MCL20L-PRAQKK (2005)
Toyota Sienna

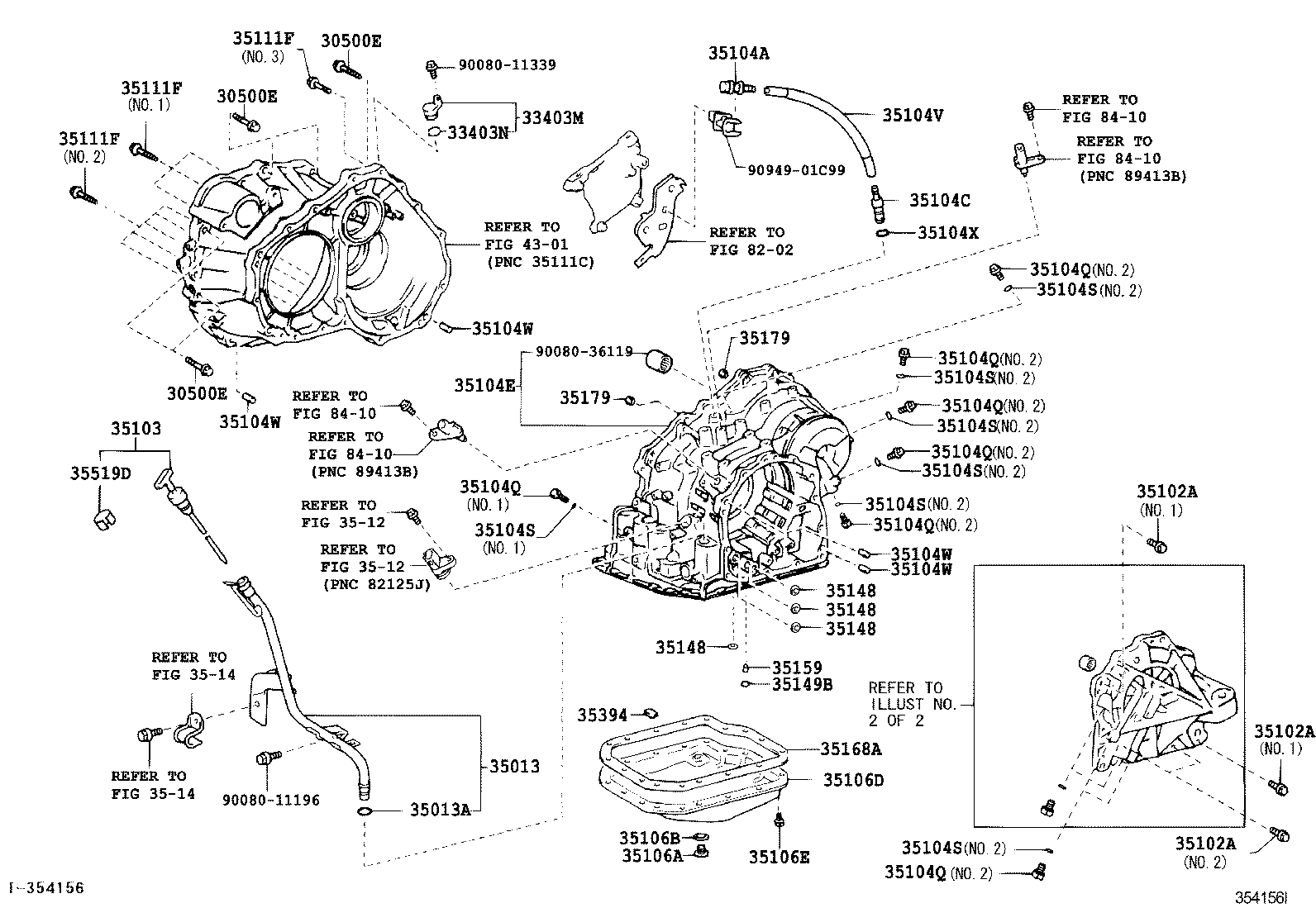

ILLUST NO. 1 OF 2(0301-0612)
U151E,U151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90080-11424 |
MCL2# *12-1.25PX65-30 |
1 | ||
| 90080-11310 |
MCL2# *12-1.25PX55-30 |
3 | ||
| 90080-11310 |
MCL2# *12-1.25PX55-30 |
3 | ||
| 90080-10337 |
MCL20,23 *10-1.25PX55-30 |
1 | ||
| 90080-10337 |
MCL20,23 *10-1.25PX55-30 |
1 | ||
| 90080-11604 |
MCL2# *12-1.25PX50-30 |
1 | ||
| 90080-11424 |
MCL2# *12-1.25PX65-30 |
1 | ||
| 90080-11426 |
MCL2# *12-1.25PX50-30 |
1 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90080-11424 |
MCL2# *12-1.25PX65-30 |
1 | ||
| 90080-11310 |
MCL2# *12-1.25PX55-30 |
3 | ||
| 90080-11310 |
MCL2# *12-1.25PX55-30 |
3 | ||
| 90080-10337 |
MCL20,23 *10-1.25PX55-30 |
1 | ||
| 90080-10337 |
MCL20,23 *10-1.25PX55-30 |
1 | ||
| 90080-11604 |
MCL2# *12-1.25PX50-30 |
1 | ||
| 90080-11424 |
MCL2# *12-1.25PX65-30 |
1 | ||
| 90080-11426 |
MCL2# *12-1.25PX50-30 |
1 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90080-11424 |
MCL2# *12-1.25PX65-30 |
1 | ||
| 90080-11310 |
MCL2# *12-1.25PX55-30 |
3 | ||
| 90080-11310 |
MCL2# *12-1.25PX55-30 |
3 | ||
| 90080-10337 |
MCL20,23 *10-1.25PX55-30 |
1 | ||
| 90080-10337 |
MCL20,23 *10-1.25PX55-30 |
1 | ||
| 90080-11604 |
MCL2# *12-1.25PX50-30 |
1 | ||
| 90080-11424 |
MCL2# *12-1.25PX65-30 |
1 | ||
| 90080-11426 |
MCL2# *12-1.25PX50-30 |
1 | ||
| 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) | ||||
| 33403-33040 |
MCL2# |
1 | ||
| 33403-33040 |
MCL2# |
1 | ||
| 33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96711-24020 |
MCL2# |
1 | ||
| 96711-24020 |
MCL2# |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-08010 |
MCL2# |
1 | ||
| 35013-08010 |
MCL2# |
1 | ||
| 35013A - RING, O(FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
MCL2# |
1 | ||
| 90301-09173 |
MCL2# |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.2 |
3 | ||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.2 |
4 | ||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.1 |
8 | ||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.1 |
7 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.2 |
3 | ||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.2 |
4 | ||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.1 |
8 | ||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.1 |
7 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.2 |
3 | ||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.2 |
4 | ||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.1 |
8 | ||
| 90080-10197 |
MCL2# *8-1.25PX30-27.5,NO.1 |
7 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-08030 |
MCL2# |
1 | ||
| 35103-08030 |
MCL2# |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90930-03149 |
MCL2# |
1 | ||
| 90930-03149 |
MCL2# |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03157 |
MCL2# |
1 | ||
| 90930-03157 |
MCL2# |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-08010 |
MCL2# |
1 | ||
| 35104-08010 |
MCL2# |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
MCL2# NO.1,(J) |
2 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL2# NO.2 |
8 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL20,23 NO.1,(J) |
2 | ||
| 90341-08001 |
MCL20,23 NO.2 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
MCL2# NO.1,(J) |
2 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL2# NO.2 |
8 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL20,23 NO.1,(J) |
2 | ||
| 90341-08001 |
MCL20,23 NO.2 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
MCL2# NO.1,(J) |
2 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL2# NO.2 |
8 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL20,23 NO.1,(J) |
2 | ||
| 90341-08001 |
MCL20,23 NO.2 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
MCL2# NO.1,(J) |
2 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL2# NO.2 |
8 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL20,23 NO.1,(J) |
2 | ||
| 90341-08001 |
MCL20,23 NO.2 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
MCL2# NO.1,(J) |
2 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL2# NO.2 |
8 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL20,23 NO.1,(J) |
2 | ||
| 90341-08001 |
MCL20,23 NO.2 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
MCL2# NO.1,(J) |
2 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL2# NO.2 |
8 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL20,23 NO.1,(J) |
2 | ||
| 90341-08001 |
MCL20,23 NO.2 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
MCL2# NO.1,(J) |
2 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL2# NO.2 |
8 | ||
| 90080-34016 |
MCL2# NO.1,(L) |
2 | ||
| 90341-08001 |
MCL20,23 NO.1,(J) |
2 | ||
| 90341-08001 |
MCL20,23 NO.2 |
8 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 90080-30105 |
MCL2# NO.2 |
8 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90080-30075 |
MCL2# NO.1,(L) |
2 | ||
| 90301-06196 |
MCL2# NO.1,(J) |
2 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 35121-45010 |
MCL2# |
1 | ||
| 35121-45010 |
MCL2# |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10017 |
MCL2# |
4 | ||
| 90250-A0005 |
MCL2# |
4 | ||
| 90250-10036 |
MCL2# |
4 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10017 |
MCL2# |
4 | ||
| 90250-A0005 |
MCL2# |
4 | ||
| 90250-10036 |
MCL2# |
4 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10017 |
MCL2# |
4 | ||
| 90250-A0005 |
MCL2# |
4 | ||
| 90250-10036 |
MCL2# |
4 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10017 |
MCL2# |
4 | ||
| 90250-A0005 |
MCL2# |
4 | ||
| 90250-10036 |
MCL2# |
4 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
MCL2# |
1 | ||
| 90301-06005 |
MCL2# |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
MCL2# |
1 | ||
| 90341-18016 |
MCL2# |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-18008 |
MCL2# |
1 | ||
| 90430-18008 |
MCL2# |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-08010 |
MCL2# (L) |
1 | ||
| 35106-33040 |
MCL2# (J) |
1 | ||
| 35106-33040 |
MCL2# (J) |
1 | ||
| 35106-08010 |
MCL2# (L) |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90080-11496 |
MCL2# |
18 | ||
| 90080-11496 |
MCL2# |
18 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08353 |
MCL20,23 *8-1.25PX50-30,NO.2,(J) |
5 | ||
| 90080-10187 |
MCL2# *8-1.25PX42-30,NO.3 |
8 | ||
| 90105-08353 |
MCL20,23 *8-1.25PX50-30,NO.1,(J) |
3 | ||
| 90080-10193 |
MCL20,23 *8-1.25PX50-30,NO.2,(L) |
5 | ||
| 90080-10193 |
MCL2# *8-1.25PX50-30,NO.2 |
5 | ||
| 90080-10193 |
MCL2# *8-1.25PX50-30,NO.1 |
3 | ||
| 90080-10193 |
MCL2# *8-1.25PX50-30,NO.1,(L) |
3 | ||
| 90080-10187 |
MCL2# *8-1.25PX42-30,NO.3 |
8 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08353 |
MCL20,23 *8-1.25PX50-30,NO.2,(J) |
5 | ||
| 90080-10187 |
MCL2# *8-1.25PX42-30,NO.3 |
8 | ||
| 90105-08353 |
MCL20,23 *8-1.25PX50-30,NO.1,(J) |
3 | ||
| 90080-10193 |
MCL20,23 *8-1.25PX50-30,NO.2,(L) |
5 | ||
| 90080-10193 |
MCL2# *8-1.25PX50-30,NO.2 |
5 | ||
| 90080-10193 |
MCL2# *8-1.25PX50-30,NO.1 |
3 | ||
| 90080-10193 |
MCL2# *8-1.25PX50-30,NO.1,(L) |
3 | ||
| 90080-10187 |
MCL2# *8-1.25PX42-30,NO.3 |
8 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08353 |
MCL20,23 *8-1.25PX50-30,NO.2,(J) |
5 | ||
| 90080-10187 |
MCL2# *8-1.25PX42-30,NO.3 |
8 | ||
| 90105-08353 |
MCL20,23 *8-1.25PX50-30,NO.1,(J) |
3 | ||
| 90080-10193 |
MCL20,23 *8-1.25PX50-30,NO.2,(L) |
5 | ||
| 90080-10193 |
MCL2# *8-1.25PX50-30,NO.2 |
5 | ||
| 90080-10193 |
MCL2# *8-1.25PX50-30,NO.1 |
3 | ||
| 90080-10193 |
MCL2# *8-1.25PX50-30,NO.1,(L) |
3 | ||
| 90080-10187 |
MCL2# *8-1.25PX42-30,NO.3 |
8 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35145-06010 |
MCL2# |
4 | ||
| 35145-06010 |
MCL2# |
4 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35145-06010 |
MCL2# |
4 | ||
| 35145-06010 |
MCL2# |
4 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35145-06010 |
MCL2# |
4 | ||
| 35145-06010 |
MCL2# |
4 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35145-06010 |
MCL2# |
4 | ||
| 35145-06010 |
MCL2# |
4 | ||
| 35149B - GASKET, TRANSAXLE CASE 2ND BRAKE | ||||
| 35149-06010 |
MCL2# |
1 | ||
| 35149-06010 |
MCL2# |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-06010 |
MCL2# |
1 | ||
| 35159-06010 |
MCL2# |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-21011 |
MCL2# |
1 | ||
| 35168-21011 |
MCL2# |
1 | ||
| 35179 - GASKET, OVERDRIVE BRAKE | ||||
| 35179-06010 |
MCL2# |
2 | ||
| 35179-06010 |
MCL2# |
2 | ||
| 35179 - GASKET, OVERDRIVE BRAKE | ||||
| 35179-06010 |
MCL2# |
2 | ||
| 35179-06010 |
MCL2# |
2 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-08010 |
MCL2# (L) |
2 | ||
| 35394-30011 |
MCL2# (J) |
2 | ||
| 35394-08010 |
MCL2# (L) |
2 | ||
| 35394-30011 |
MCL2# (J) |
2 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-52010 |
MCL2# |
1 | ||
| 35519-52010 |
MCL2# |
1 | ||
| Common parts | ||||
| 90080-11196 | ||||
| 90080-11339 | ||||
| 90080-36119 | ||||
| 90949-01C99 | ||||
| Linked diagrams | ||||
| 3512 | ||||
| 3514 | ||||
| 4301 | ||||
| 8202 | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
