MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0612)

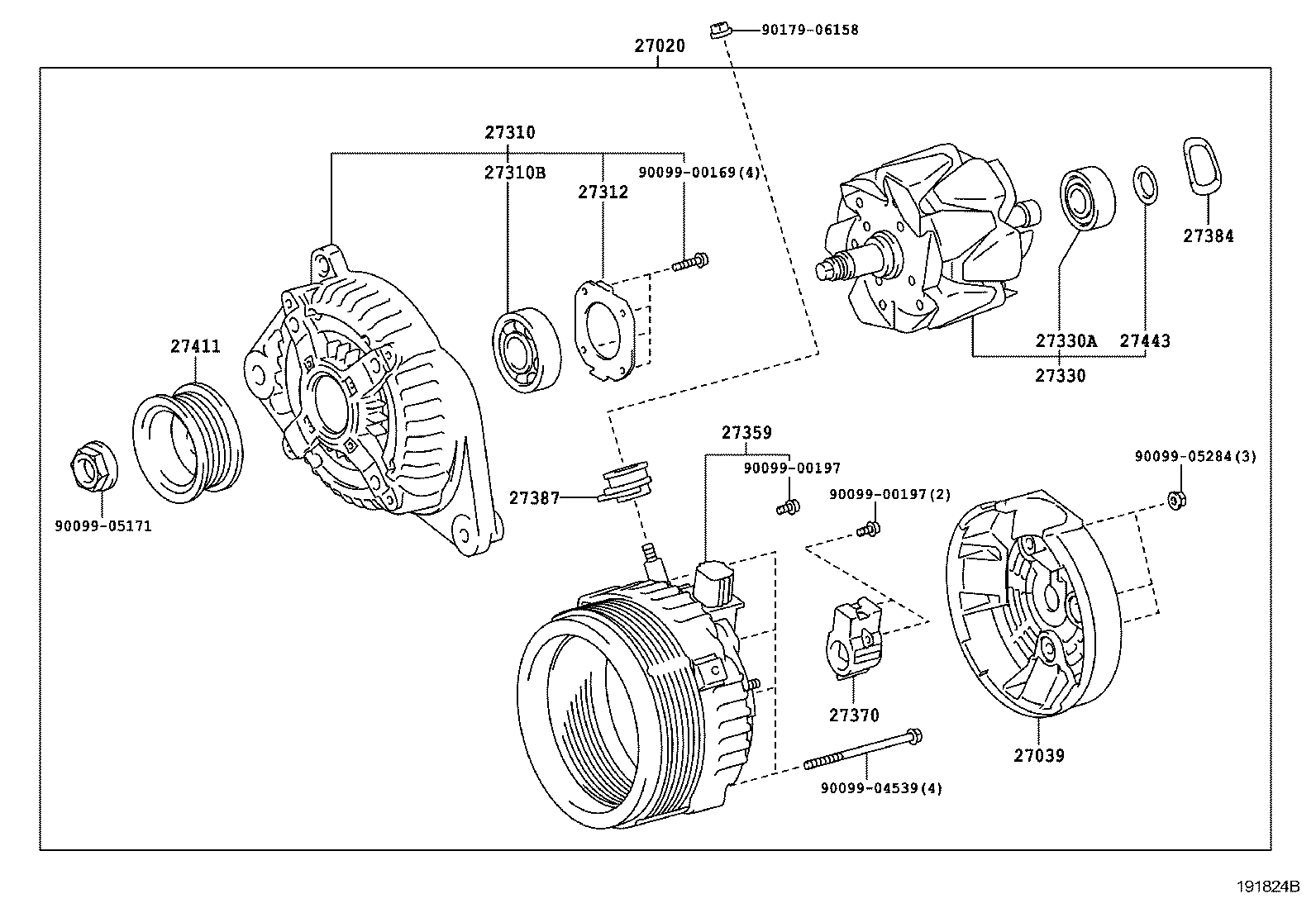

Click highlighted areas on diagram

12V 130A,150A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27359 27370 27384 27387 27411 27443 9009900169 9009900197 9009900197 9009904539 9009905171 9009905284 9017906158
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0A110

3MZFE..MCL20,25..CND

12V 150A

 1
27060-0A110

3MZFE..MCL2#

12V 150A

 1
27039 - COVER, ALTERNATOR REAR END
27039-0A110

3MZFE..MCL2#

 1
27039-0A110

3MZFE..MCL2#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0A110

3MZFE..MCL2#

 1
27310-0A110

3MZFE..MCL2#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10142

3MZFE..MCL2#

 1
90068-10142

3MZFE..MCL2#

 1
27312 - PLATE, RETAINER
27312-72100

3MZFE..MCL2#

 1
27312-72100

3MZFE..MCL2#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0A110

3MZFE..MCL20,25..CND

 1
27330-0A110

3MZFE..MCL2#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90068-10222

3MZFE..MCL2#

 1
90068-10222

3MZFE..MCL20,25..CND

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27360-0A110

3MZFE..MCL20,25..CND

 1
27360-0A110

3MZFE..MCL2#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460

3MZFE..MCL20,25..CND

 1
27370-0F060

3MZFE..MCL2#

 1
27384 - WASHER
27384-0A020

3MZFE..MCL2#

 1
27384-0A020

3MZFE..MCL2#

 1
27387 - INSULATOR, TERMINAL
27387-20130

3MZFE..MCL20,25..CND

 1
27387-20130

3MZFE..MCL2#

 1
27411 - PULLEY, ALTERNATOR
27411-0A050

3MZFE..MCL2#

 1
27411-0A050

3MZFE..MCL2#

 1
27443 - COVER, ALTERNATOR BEARING
27443-0A020

3MZFE..MCL2#

 1
27443-0A020

3MZFE..MCL2#

 1
Common parts
90099-00169
90099-00197
90099-04539
90099-05171
90099-05284
90179-06158
