MCL20L-PRAQKK (2005)
Toyota Sienna
Production
Sep 2005
-
Dec 2006
Engine
3MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0509-0612)3MZFE..MCL20,23

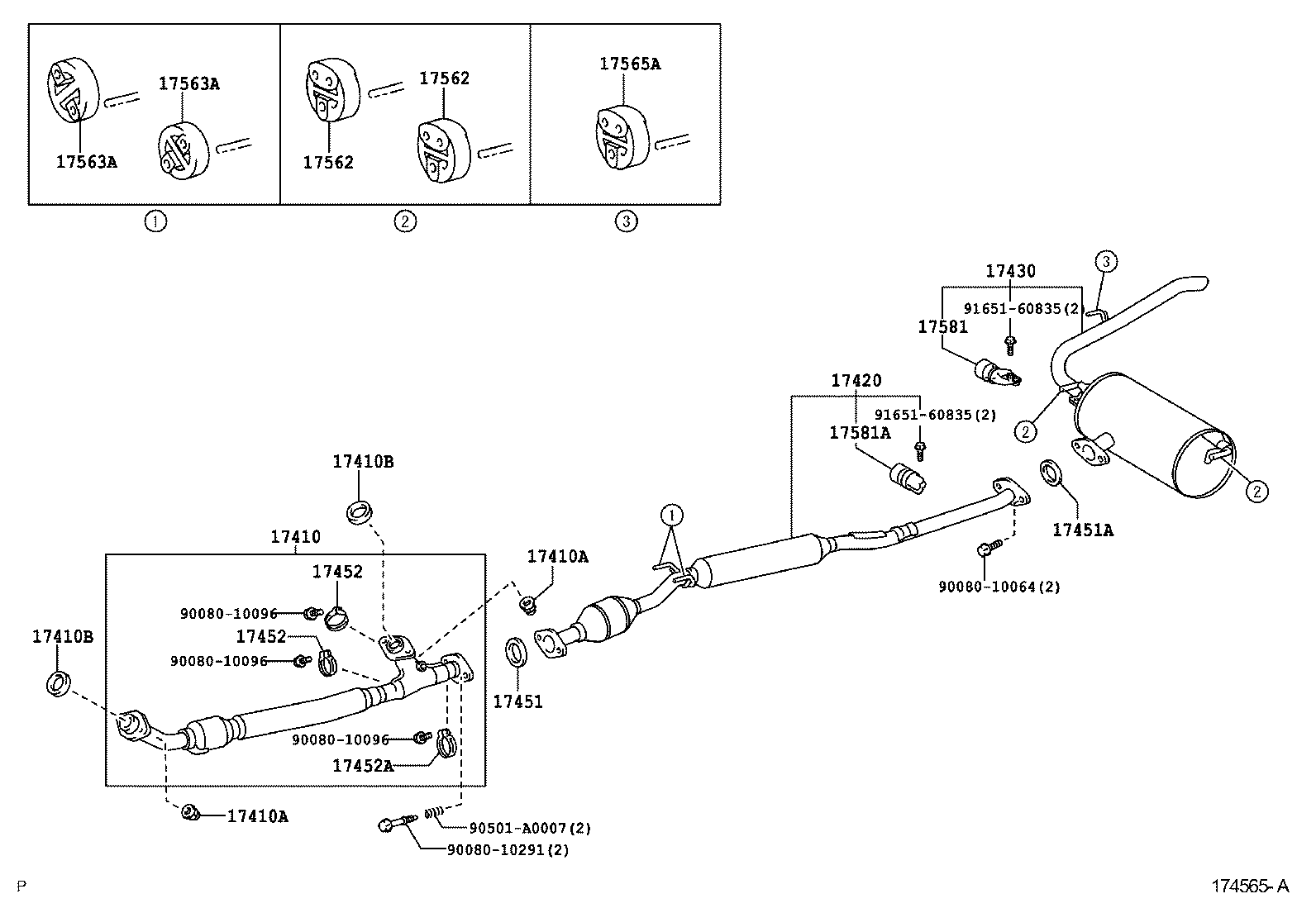

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-0A390 |
3MZFE..MCL20,23 |
1 | ||
| 17410-0A390 |
3MZFE..MCL20,23 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
3MZFE..MCL2# |
4 | ||
| 90179-10070 |
3MZFE..MCL2# |
4 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
3MZFE..MCL2# |
4 | ||
| 90179-10070 |
3MZFE..MCL2# |
4 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90080-43036 |
3MZFE..MCL2# |
2 | ||
| 90080-43036 |
3MZFE..MCL2# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90080-43036 |
3MZFE..MCL2# |
2 | ||
| 90080-43036 |
3MZFE..MCL2# |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-0A252 |
3MZFE..MCL20,23 |
1 | ||
| 17420-0A250 |
3MZFE..MCL20,23 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-0A270 |
3MZFE..MCL20,23 |
1 | ||
| 17430-0A273 |
3MZFE..MCL20,23 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-0A010 |
3MZFE..MCL20,23 (L) |
1 | ||
| 17451-0D020 |
3MZFE..MCL20,23 |
1 | ||
| 17451-20020 |
3MZFE..MCL20,23 (J) |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 90080-43026 |
3MZFE..MCL2# |
1 | ||
| 90080-43026 |
3MZFE..MCL2# |
1 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 90080-46088 |
3MZFE..MCL20,23 |
2 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 90080-46088 |
3MZFE..MCL20,23 |
2 | ||
| 17452A - CLAMP, EXHAUST PIPE | ||||
| 90080-46121 |
3MZFE..MCL20,23 |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17565-0A180 |
3MZFE..MCL20,23 |
2 | ||
| 17565-0A180 |
3MZFE..MCL20,23 |
2 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17565-0A180 |
3MZFE..MCL20,23 |
2 | ||
| 17565-0A180 |
3MZFE..MCL20,23 |
2 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-0A160 |
3MZFE..MCL20,23 |
2 | ||
| 17565-0A160 |
3MZFE..MCL20,23 |
2 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-0A160 |
3MZFE..MCL20,23 |
2 | ||
| 17565-0A160 |
3MZFE..MCL20,23 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0A190 |
3MZFE..MCL2# |
1 | ||
| 17565-0A100 |
3MZFE..MCL20,23 |
1 | ||
| 17581 - BRACKET, EXHAUST PIPE NO.1 INSULATOR SUPPORT | ||||
| 17581-62010 |
3MZFE..MCL20,23 |
1 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-20020 |
3MZFE..MCL20,23 |
1 | ||
| Common parts | ||||
| 90080-10064 | ||||
| 90080-10096 | ||||
| 90080-10291 | ||||
| 90501-A0007 | ||||
| 91651-60835 | ||||
