MCL20L-PRAQKK (2005)

Toyota Sienna

Production Sep 2005 - Dec 2006
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

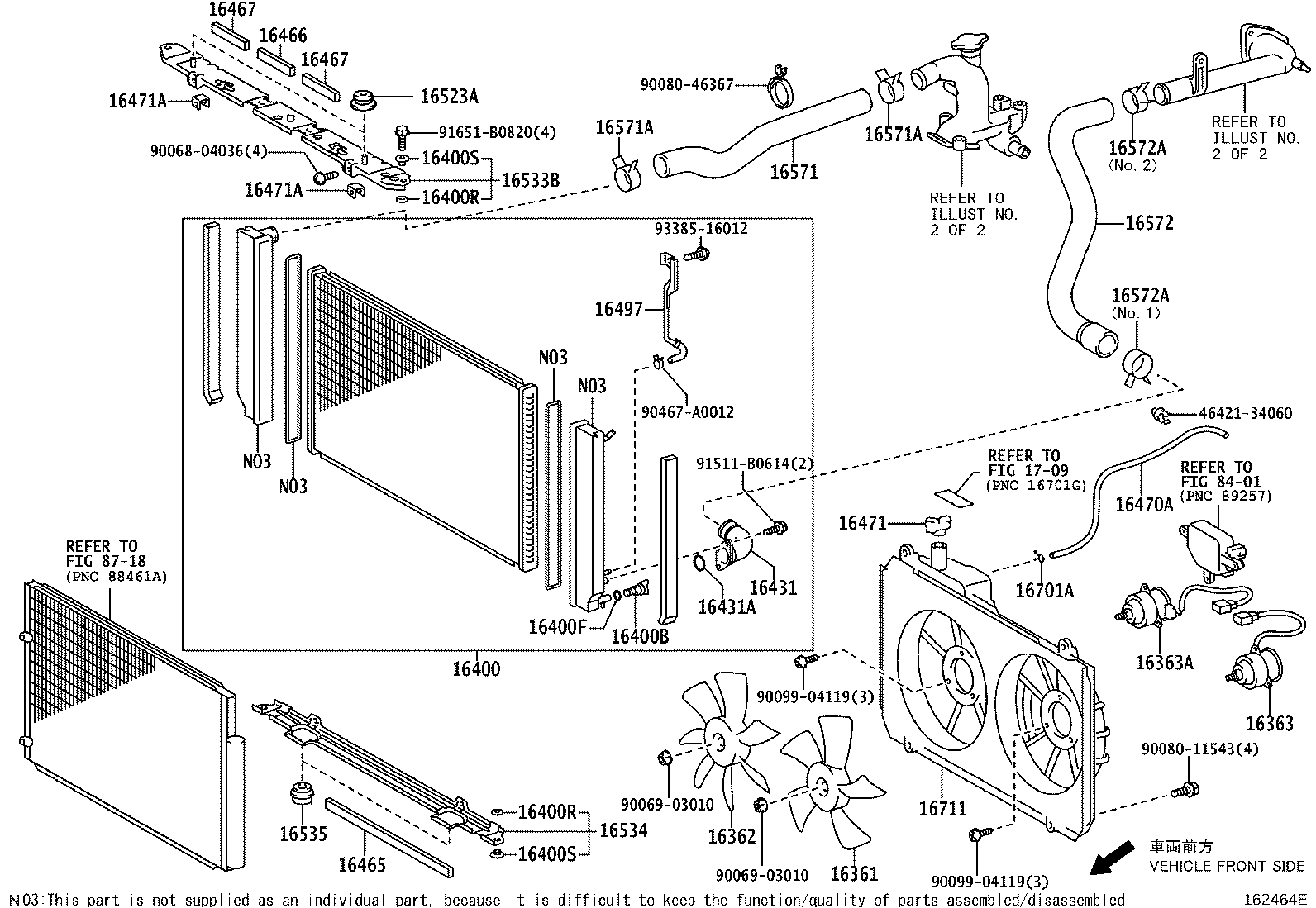

ILLUST NO. 1 OF 2(0509- )3MZFE

Click highlighted areas on diagram

diagram 16361 16362 16363 16363A 16400 16400B 16400F 16400R 16400R 16400S 16400S 16431 16431A 16465 16466 16467 16467 16470A 16471 16471A 16471A 16497 16523A 16533B 16534 16535 16571 16571A 16571A 16572 16572A 16572A 16701A 16711 1709 4642134060 8401 8718 9006804036 9006903010 9006903010 9008011543 9008046367 9009904119 9009904119 90467A0012 91511B0614 91651B0820 9338516012
Part # Description Qty Price
16361 - FAN
16361-0A140

3MZFE..MCL2#

 1
16361-0A200

3MZFE..MCL20,25

TOWING PACKAGE-FOR 3500LBS

 1
16361-0A200

3MZFE..MCL2#

 1
16362 - FAN, NO.2
16361-0A150

3MZFE..MCL2#

 1
16361-0A230

3MZFE..MCL2#

 1
16363 - MOTOR, COOLING FAN
16363-0A140

3MZFE..MCL20,25

TOWING PACKAGE-FOR 3500LBS

 1
16363-0A150

3MZFE..MCL2#

 1
16363-0A120

3MZFE..MCL2#

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-0A130

3MZFE..MCL2#

 1
16363-0A210

3MZFE..MCL2#

 1
16400 - RADIATOR ASSY
16041-0A390

3MZFE..MCL2#

 1
16041-0A380

3MZFE..MCL2#

 1
16041-0A400

3MZFE..MCL20,25

TOWING PACKAGE-FOR 3500LBS

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-21280

3MZFE..MCL2#

 1
90910-09054

3MZFE..MCL2#

 1
90910-09054

3MZFE..MCL20,25

TOWING PACKAGE-FOR 3500LBS

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
96711-19007

3MZFE..MCL2#

 1
16492-21050

3MZFE..MCL2#

 1
16400R - BUSHING(FOR RADIATOR)
16444-0F020

3MZFE..MCL2#

 4
16400R - BUSHING(FOR RADIATOR)
16444-0F020

3MZFE..MCL2#

 4
16400S - COLLAR(FOR RADIATOR)
16445-75180

3MZFE..MCL2#

 4
16400S - COLLAR(FOR RADIATOR)
16445-75180

3MZFE..MCL2#

 4
16431 - INLET, RADIATOR WATER
16431-31480

3MZFE..MCL2#

 1
16431A - RING, O(FOR RADIATOR WATER INLET)
16492-0A380

3MZFE..MCL2#

 1
16465 - PACKING, RADIATOR
16465-0A380

3MZFE..MCL2#

 1
16466 - SEAL, RADIATOR
16466-0A380

3MZFE..MCL2#

 1
16467 - SIDE SEAL
16467-0A380

3MZFE..MCL2#

 2
16467 - SIDE SEAL
16467-0A380

3MZFE..MCL2#

 2
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16472-0A380

3MZFE..MCL20,25

TOWING PACKAGE-FOR 3500LBS

 1
16472-0A380

3MZFE..MCL2#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16471-0A030

3MZFE..MCL2#

 1
16471-0A030

3MZFE..MCL2#

 1
16471A - SUPPORT SUB-ASSY
16406-0A380

3MZFE..MCL2#

 2
16471A - SUPPORT SUB-ASSY
16406-0A380

3MZFE..MCL2#

 2
16497 - INLET SUB-ASSY
16495-0A140

3MZFE..MCL2#

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-0A020

3MZFE..MCL2#

 2
16523-0A020

3MZFE..MCL2#

 2
16533B - SUPPORT, RADIATOR, NO.1
16505-0A090

3MZFE..MCL2#

 1
16534 - SUPPORT, RADIATOR, NO.2
16506-0A090

3MZFE..MCL2#

 1
16535 - SUPPORT, RADIATOR, LOWER
16535-0A090

3MZFE..MCL2#

 2
16535-0A090

3MZFE..MCL2#

 2
16571 - HOSE, RADIATOR, INLET
16571-AA020

3MZFE..MCL2#

 1
16571-AA021

3MZFE..MCL2#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-35001

3MZFE..MCL2#

 2
90466-35001

3MZFE..MCL2#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90466-35001

3MZFE..MCL2#

 2
90466-35001

3MZFE..MCL2#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-AA020

3MZFE..MCL2#

 1
16572-AA021

3MZFE..MCL2#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-35001

3MZFE..MCL2#

NO.2

 1
90466-41006

3MZFE..MCL2#

NO.1

 1
90466-41006

3MZFE..MCL2#

NO.1

 1
90466-35001

3MZFE..MCL2#

NO.2

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-35001

3MZFE..MCL2#

NO.2

 1
90466-41006

3MZFE..MCL2#

NO.1

 1
90466-41006

3MZFE..MCL2#

NO.1

 1
90466-35001

3MZFE..MCL2#

NO.2

 1
16701A - CLIP(FOR FAN SHROUD)
90068-35004

3MZFE..MCL2#

 1
16711 - SHROUD, FAN
16711-0A210

3MZFE..MCL2#

 1
16711-0A240

3MZFE..MCL2#

 1
16711-0A220

3MZFE..MCL20,25

TOWING PACKAGE-FOR 3500LBS

 1
Common parts
46421-34060
90068-04036
90069-03010
90080-11543
90080-46367
90099-04119
90467-A0012
91511-B0614
91651-B0820
93385-16012
Linked diagrams
1709
8401
8718
