MCL20L-PRAQKA (2003)
Toyota Sienna

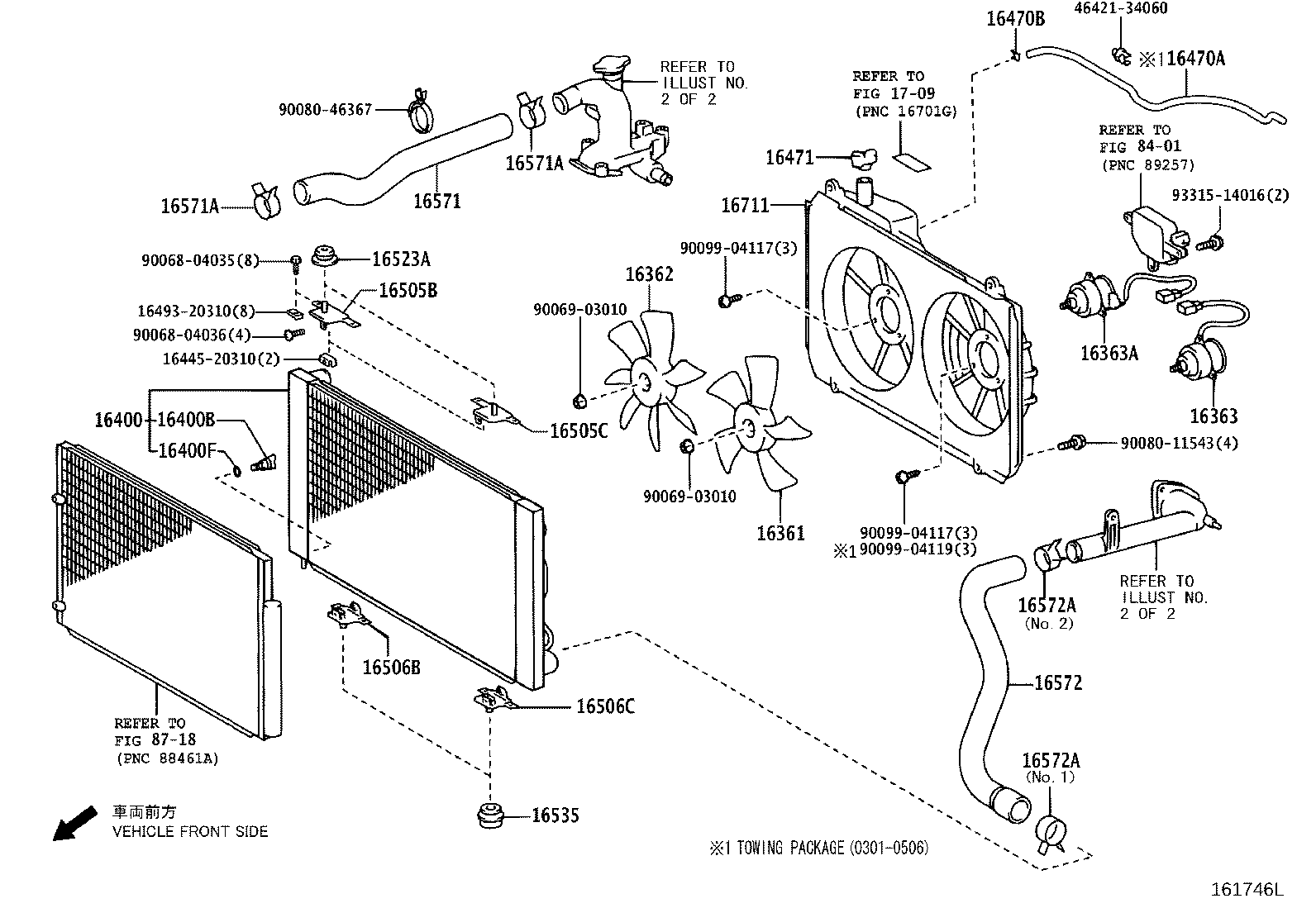

ILLUST NO. 1 OF 2(0301-0509)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0A140 |
3MZFE..MCL2# |
1 | ||
| 16361-0A200 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16362 - FAN, NO.2 | ||||
| 16361-0A150 |
3MZFE..MCL2# |
1 | ||
| 16361-0A230 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0A140 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363-0A120 |
3MZFE..MCL2# |
1 | ||
| 16363-0A150 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0A130 |
3MZFE..MCL2# |
1 | ||
| 16363-0A210 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16041-0A390 |
3MZFE..MCL2# |
1 | ||
| 16041-0A402 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16041-0A391 |
3MZFE..MCL2# |
1 | ||
| 16041-0A403 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16041-0A400 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16041-0A401 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 90910-09054 |
3MZFE..MCL2# |
1 | ||
| 90910-09054 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3MZFE..MCL2# |
1 | ||
| 16492-21050 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-0A380 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90068-35004 |
3MZFE..MCL2# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-0A030 |
3MZFE..MCL2# |
1 | ||
| 16505B - SUPPORT SUB-ASSY, RADIATOR, UPPER RH | ||||
| 16505-0A010 |
3MZFE..MCL2# |
1 | ||
| 16505-0A030 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16505C - SUPPORT SUB-ASSY, RADIATOR, UPPER LH | ||||
| 16505-0A020 |
3MZFE..MCL2# |
1 | ||
| 16505-0A040 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16506B - SUPPORT SUB-ASSY, RADIATOR, LOWER RH | ||||
| 16506-0A010 |
3MZFE..MCL2# |
1 | ||
| 16506-0A030 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16506C - SUPPORT SUB-ASSY, RADIATOR, LOWER LH | ||||
| 16506-0A040 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16506-0A020 |
3MZFE..MCL2# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0A020 |
3MZFE..MCL2# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0A090 |
3MZFE..MCL2# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-AA040 |
3MZFE..MCL2# |
1 | ||
| 16571-AA020 |
3MZFE..MCL2# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
3MZFE..MCL2# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
3MZFE..MCL2# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-AA020 |
3MZFE..MCL2# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
3MZFE..MCL2# NO.2 |
1 | ||
| 90466-41006 |
3MZFE..MCL2# NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
3MZFE..MCL2# NO.2 |
1 | ||
| 90466-41006 |
3MZFE..MCL2# NO.1 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0A221 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16711-0A210 |
3MZFE..MCL2# |
1 | ||
| 16711-0A220 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| Common parts | ||||
| 16445-20310 | ||||
| 16493-20310 | ||||
| 46421-34060 | ||||
| 90068-04035 | ||||
| 90068-04036 | ||||
| 90069-03010 | ||||
| 90080-11543 | ||||
| 90080-46367 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 93315-14016 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
| 8718 | ||||
ILLUST NO. 2 OF 2(0301- )3MZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0A010 |
3MZFE..MCL2# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28007 |
3MZFE..MCL2# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28007 |
3MZFE..MCL2# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0A040 |
3MZFE..MCL2# |
1 | ||
| 16264-0A041 |
3MZFE..MCL2# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
3MZFE..MCL2# |
2 | ||
| 96135-51300 |
3MZFE..MCL2# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
3MZFE..MCL2# |
2 | ||
| 96135-51300 |
3MZFE..MCL2# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0A040 |
3MZFE..MCL2# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-51300 |
3MZFE..MCL2# |
2 | ||
| 96137-41501 |
3MZFE..MCL2# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-51300 |
3MZFE..MCL2# |
2 | ||
| 96137-41501 |
3MZFE..MCL2# |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-0A040 |
3MZFE..MCL2# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0A021 |
3MZFE..MCL2# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
3MZFE..MCL2# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-0A020 |
3MZFE..MCL2# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03084 |
3MZFE..MCL2# *WAX 82-95 |
1 | ||
| 90916-03129 |
3MZFE..MCL2# *WAX 82-95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-62090 |
3MZFE..MCL2# |
1 | ||
| 16384 - BRACKET, FAN BELT ADJUSTING BAR | ||||
| 16384-AA010 |
3MZFE..MCL2# |
1 | ||
| Common parts | ||||
| 90080-10164 | ||||
| 90080-11256 | ||||
| 90080-11330 | ||||
| 90080-11540 | ||||
| 90080-17237 | ||||
| 90116-06070 | ||||
| 90148-80017 | ||||
| 90148-80018 | ||||
| 90179-06080 | ||||
| 90179-08230 | ||||
| 91511-B0616 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 1701 | ||||
| 2211 | ||||
| 8404 | ||||
| 8716 | ||||
| 8719 | ||||

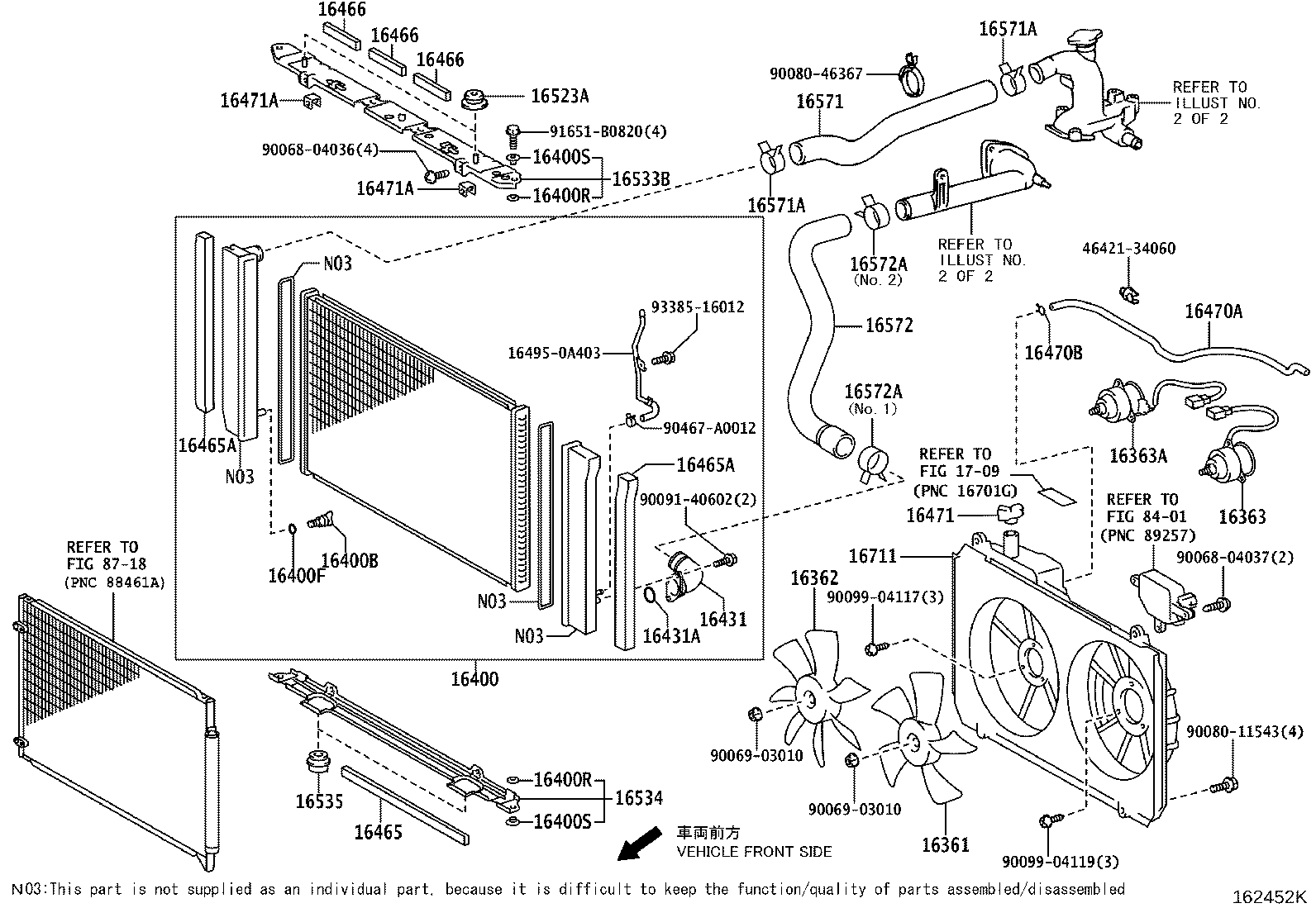

ILLUST NO. 1 OF 2(0506-0509)
W(TOWING PACKAGE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0A140 |
3MZFE..MCL2# |
1 | ||
| 16361-0A200 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16362 - FAN, NO.2 | ||||
| 16361-0A150 |
3MZFE..MCL2# |
1 | ||
| 16361-0A230 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0A140 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363-0A120 |
3MZFE..MCL2# |
1 | ||
| 16363-0A150 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0A130 |
3MZFE..MCL2# |
1 | ||
| 16363-0A210 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16041-0A390 |
3MZFE..MCL2# |
1 | ||
| 16041-0A402 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16041-0A391 |
3MZFE..MCL2# |
1 | ||
| 16041-0A403 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16041-0A400 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16041-0A401 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 90910-09054 |
3MZFE..MCL2# |
1 | ||
| 90910-09054 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3MZFE..MCL2# |
1 | ||
| 16492-21050 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
4 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
4 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-75180 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
4 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-75180 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
4 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16377-0A403 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16431A - RING, O(FOR RADIATOR WATER INLET) | ||||
| 16492-0A380 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-0A380 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16465A - PACKING, RADIATOR, NO.1 | ||||
| 16465-0A403 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
2 | ||
| 16465A - PACKING, RADIATOR, NO.1 | ||||
| 16465-0A403 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
2 | ||
| 16466 - SEAL, RADIATOR | ||||
| 16466-0A380 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
3 | ||
| 16466 - SEAL, RADIATOR | ||||
| 16466-0A380 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
3 | ||
| 16466 - SEAL, RADIATOR | ||||
| 16466-0A380 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
3 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-0A380 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90068-35004 |
3MZFE..MCL2# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-0A030 |
3MZFE..MCL2# |
1 | ||
| 16471A - SUPPORT SUB-ASSY | ||||
| 16406-0A380 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
2 | ||
| 16471A - SUPPORT SUB-ASSY | ||||
| 16406-0A380 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
2 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0A020 |
3MZFE..MCL2# |
2 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16505-0A110 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16506-0A110 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0A090 |
3MZFE..MCL2# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-AA040 |
3MZFE..MCL2# |
1 | ||
| 16571-AA020 |
3MZFE..MCL2# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
3MZFE..MCL2# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-35001 |
3MZFE..MCL2# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-AA020 |
3MZFE..MCL2# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
3MZFE..MCL2# NO.2 |
1 | ||
| 90466-41006 |
3MZFE..MCL2# NO.1 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-35001 |
3MZFE..MCL2# NO.2 |
1 | ||
| 90466-41006 |
3MZFE..MCL2# NO.1 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0A221 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| 16711-0A210 |
3MZFE..MCL2# |
1 | ||
| 16711-0A220 |
3MZFE..MCL20,25 TOWING PACKAGE-FOR 3500LBS |
1 | ||
| Common parts | ||||
| 16495-0A403 | ||||
| 46421-34060 | ||||
| 90068-04036 | ||||
| 90068-04037 | ||||
| 90069-03010 | ||||
| 90080-11543 | ||||
| 90080-46367 | ||||
| 90091-40602 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90467-A0012 | ||||
| 91651-B0820 | ||||
| 93385-16012 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
| 8718 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
