MCL20L-PRAEKA (2003)

Toyota Sienna

Production Jan 2003 - Sep 2005
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )GSL23,MCL23..CND ; (0301- )GSL20,25,MCL20,25 ; (0509- )MCL23..CND

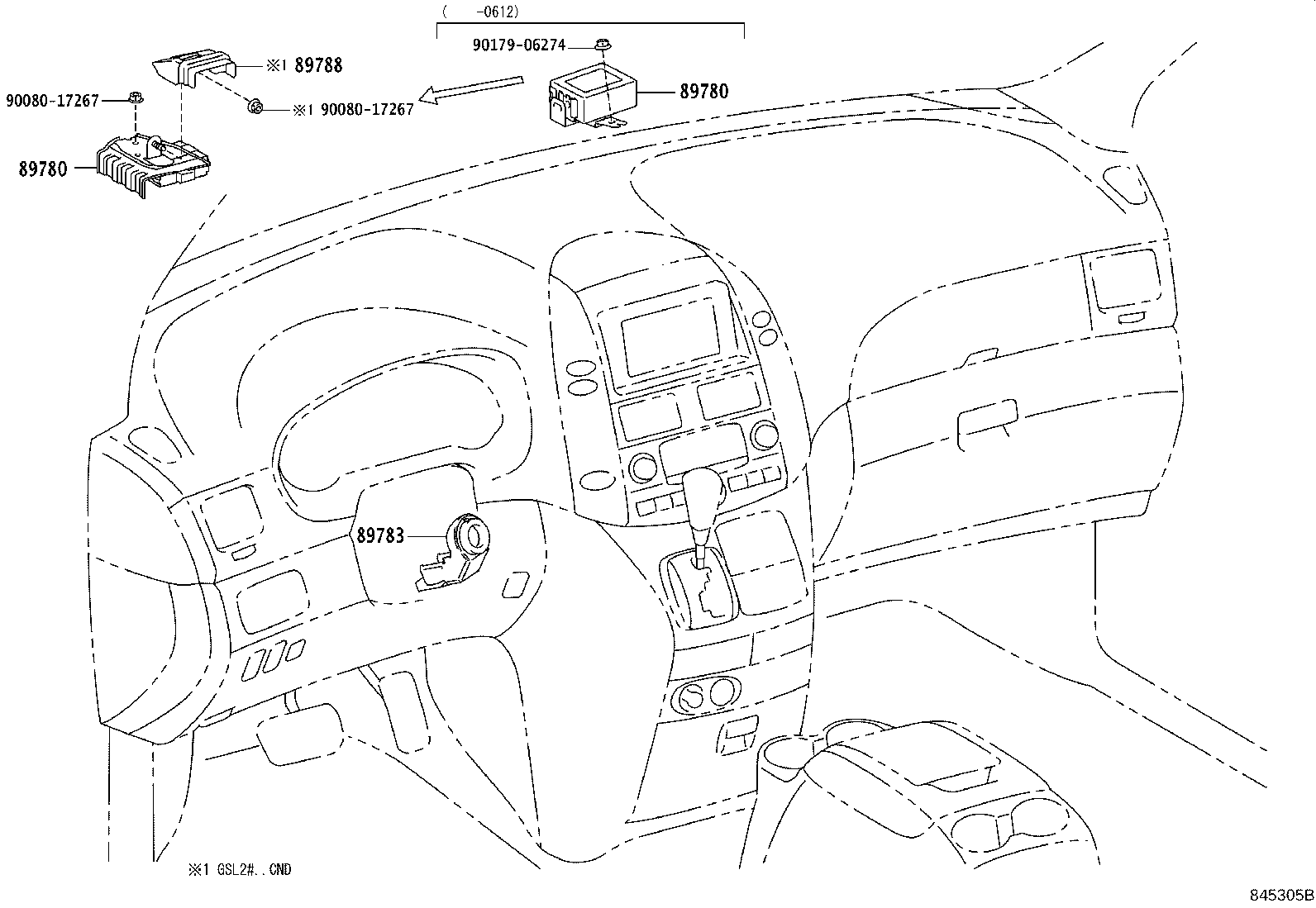

Click highlighted areas on diagram

diagram 89780 89780 89783 89788 9008017267 9008017267 9017906274
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-08010

MCL20,25..LE

ANTI-THEFT SYSTEM-ALARM & IMMOBI.

 1
89780-08010

MCL20,25..CE,LE

ANTI-THEFT SYSTEM-IMMOBI. ONLY

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-08010

MCL20,25..LE

ANTI-THEFT SYSTEM-ALARM & IMMOBI.

 1
89780-08010

MCL20,25..CE,LE

ANTI-THEFT SYSTEM-IMMOBI. ONLY

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-08010

MCL20,25..LE

ANTI-THEFT SYSTEM-ALARM & IMMOBI.

 1
89783-08010

MCL20,25..CE,LE

ANTI-THEFT SYSTEM-IMMOBI. ONLY

 1
Common parts
90080-17267
90179-06274
