MCL20L-PRAEKA (2003)

Toyota Sienna

Production Jan 2003 - Sep 2005
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0509)LE,XLE

Click highlighted areas on diagram

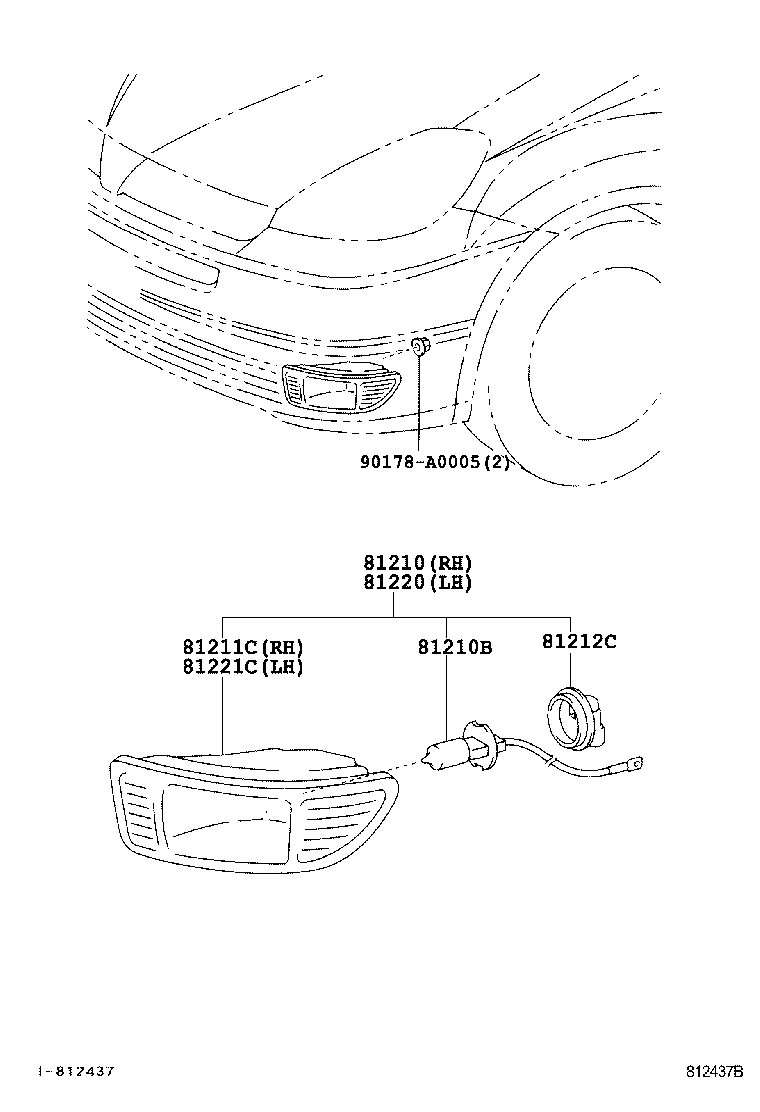

diagram 81210 81210B 81211C 81212C 81220 81221C 90178A0005
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-AE010

MCL20,25..LE..USA

OPTION-E/G ROOM MAIN&OPTION-INSTRUMENT WIRE&FRONT FOG LAMP--WITH

 1
81210B - BULB, FOG LAMP
90080-81084

MCL20,25..LE..USA

12V 55W,OPTION-E/G ROOM MAIN&OPTION-INSTRUMENT WIRE&FRONT FOG LAMP--WITH

 4
81211C - LAMP UNIT, FOG LAMP, RH
81211-AE010

MCL20,25..LE..USA

OPTION-E/G ROOM MAIN&OPTION-INSTRUMENT WIRE&FRONT FOG LAMP--WITH

 1
81212C - COVER, FOG LAMP
90069-81009

MCL20,25..LE..USA

OPTION-E/G ROOM MAIN&OPTION-INSTRUMENT WIRE&FRONT FOG LAMP--WITH

 2
81220 - LAMP ASSY, FOG, LH
81220-AE010

MCL20,25..LE..USA

OPTION-E/G ROOM MAIN&OPTION-INSTRUMENT WIRE&FRONT FOG LAMP--WITH

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-AE010

MCL20,25..LE..USA

OPTION-E/G ROOM MAIN&OPTION-INSTRUMENT WIRE&FRONT FOG LAMP--WITH

 1
Common parts
90178-A0005
