MCL20L-PFAQKA (2003)

Toyota Sienna

Production Jan 2003 - Sep 2005
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )3MZFE

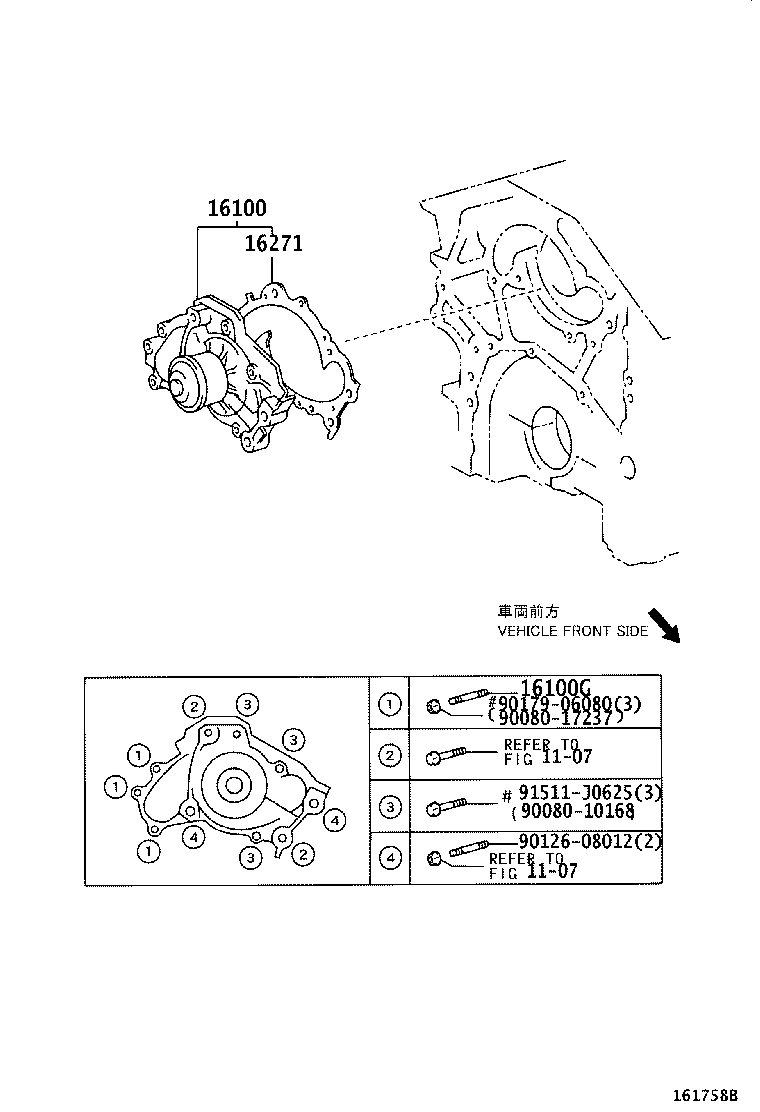

Click highlighted areas on diagram

diagram 1107 1107 16100 16100G 16271 9008010168 9008017237 9012608012 9017906080 91511J0625
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09070

3MZFE..MCL2#

 1
16271 - GASKET, WATER PUMP
16271-20020

3MZFE..MCL2#

 1
Common parts
90080-10168
90080-17237
90126-08012
90179-06080
91511-J0625
Linked diagrams
1107
