MCL20L-PFAEKK (2003)

Toyota Sienna

Production Jan 2003 - Sep 2005
Engine 3MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

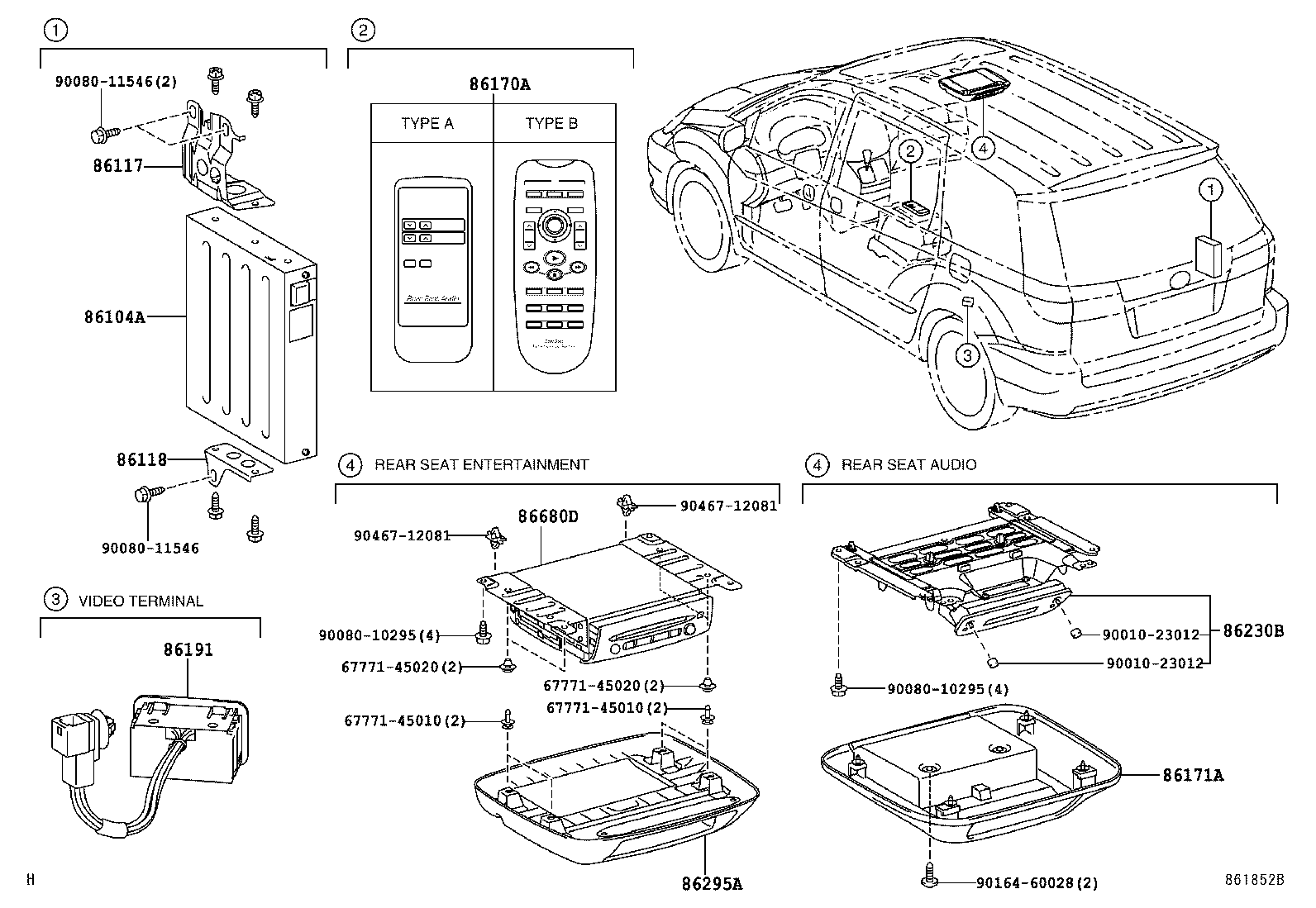

ILLUST NO. 2 OF 2(0301-0509)LE,XLE

Click highlighted areas on diagram

diagram 6777145010 6777145010 6777145020 6777145020 86104A 86117 86118 86170A 86171A 86191 86230B 86295A 86680D 9001023012 9001023012 9008010295 9008010295 9008011546 9008011546 9016460028 9046712081 9046712081
Part # Description Qty Price
86104A - CONTROLLER SUB-ASSY, MULTI-DISPLAY
86104-45010

MCL20,25..LE

TELEVISION & VTR-WITH

 1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-45010

MCL20,25..LE

TELEVISION & VTR-WITH

 1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-45010

MCL20,25..LE

TELEVISION & VTR-WITH

 1
86170A - SWITCH & VOLUME ASSY
86170-45010

MCL20,25..LE

TELEVISION & VTR-WITH,TYPE B:REFER ILLUST.

 1
86170-34010

MCL20,25..LE

REAR AUDIO-WITH,TYPE A:REFER ILLUST.

 1
86171A - BASE, RADIO REMOTE CONTROL
86171-08010A0

MCL20,25..LE

REAR AUDIO-WITH,IVORY,TRIM4#

 1
86171-08011A0

MCL20,25..LE

REAR AUDIO-WITH,IVORY,TRIM4#

 1
86171-08010B0

MCL20,25..LE

REAR AUDIO-WITH,LT.GRAY,TRIM1#

 1
86171-08011B0

MCL20,25..LE

REAR AUDIO-WITH,LT.GRAY,TRIM1#

 1
86191 - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-45010E0

MCL20,25..LE

TELEVISION & VTR-WITH,FAWN,TRIM4#

 1
86191-45010B0

MCL20,25..LE

TELEVISION & VTR-WITH,STONE,TRIM1#

 1
86230B - CONTROLLER ASSY, STEREO COMPONENT
86230-45021

MCL20,25..LE

REAR AUDIO-WITH

 1
86230-45020

MCL20,25..LE

REAR AUDIO-WITH

 1
86295A - BASE, TELEVISION
86295-45010B0

MCL20,25..LE

TELEVISION & VTR-WITH,LT.GRAY,TRIM1#

 1
86295-45010A0

MCL20,25..LE

TELEVISION & VTR-WITH,IVORY,TRIM4#

 1
86295-45050A0

MCL20,25..LE

TELEVISION & VTR-WITH,IVORY,TRIM4#

 1
86295-45050B0

MCL20,25..LE

TELEVISION & VTR-WITH,LT.GRAY,TRIM1#

 1
86680D - DISPLAY ASSY, TELEVISION
86680-45011

MCL20,25..LE

TELEVISION & VTR-WITH

 1
86680-45010

MCL20,25..LE

TELEVISION & VTR-WITH

 1
Common parts
67771-45010
67771-45020
90010-23012
90080-10295
90080-11546
90164-60028
90467-12081
