MCL10L-SESDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Aug 2000
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

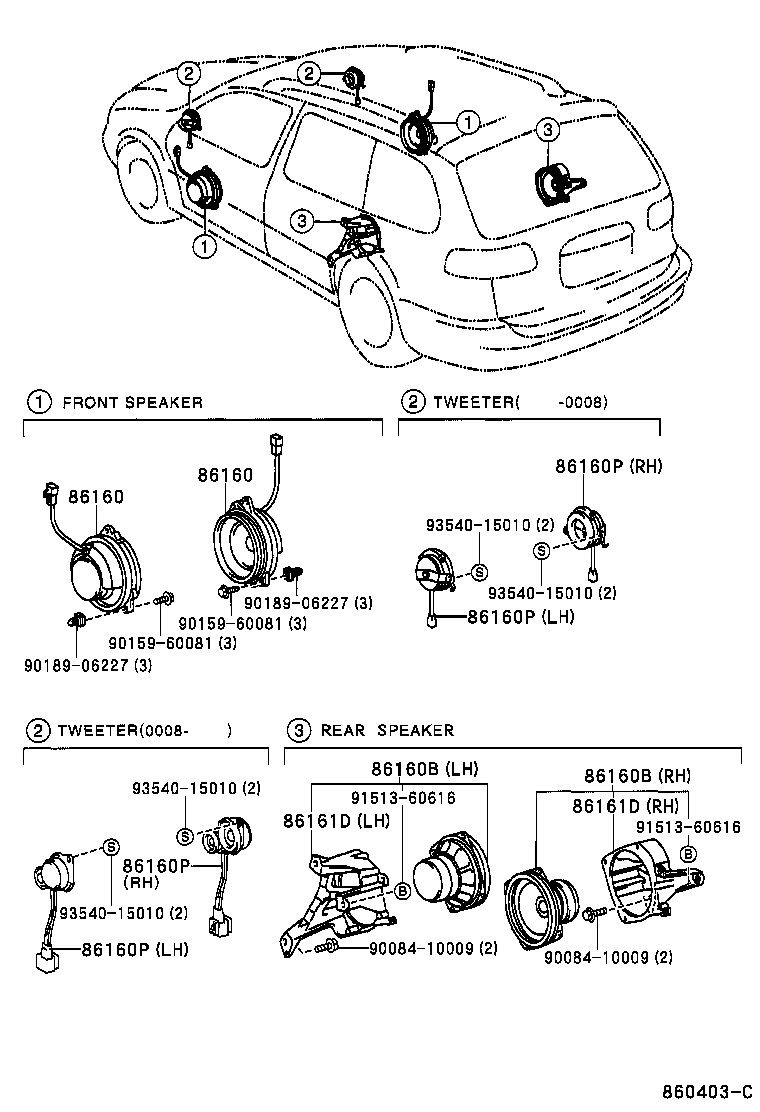

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-08070 |
MCL10 |
2 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-08070 |
MCL10 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-08060 |
MCL10 LH |
1 | ||
| 86160-08040 |
MCL10 RH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-08060 |
MCL10 LH |
1 | ||
| 86160-08040 |
MCL10 RH |
1 | ||
| 86161D - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 86161-08010 |
MCL10 RH |
1 | ||
| 86161-08020 |
MCL10 LH |
1 | ||
| 86161D - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 86161-08010 |
MCL10 RH |
1 | ||
| 86161-08020 |
MCL10 LH |
1 | ||
| Common parts | ||||
| 90084-10009 | ||||
| 90159-60081 | ||||
| 90189-06227 | ||||
| 91513-60616 | ||||
| 93540-15010 | ||||
