MCL10L-PFSGKK (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

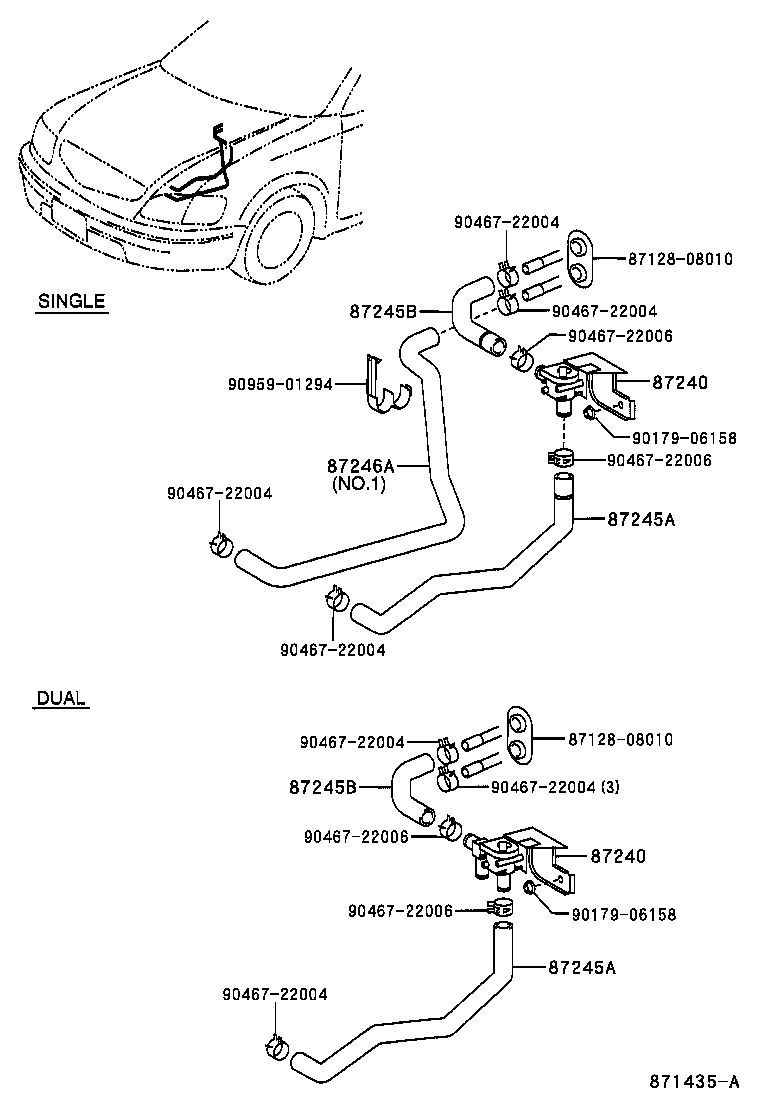

ILLUST NO. 1 OF 2(9708-0008)

Click highlighted areas on diagram

diagram 8712808010 8712808010 87240 87240 87245A 87245A 87245B 87245B 87246A 9017906158 9017906158 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722006 9046722006 9046722006 9046722006 9095901294
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-08030

MCL10

 1
87240-08020

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87240 - VALVE ASSY, HEATER WATER
87240-08030

MCL10

 1
87240-08020

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87245A - HOSE, HEATER WATER, INLET A
87246-08070

MCL10

 1
87246-08060

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87245A - HOSE, HEATER WATER, INLET A
87246-08070

MCL10

 1
87246-08060

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87245B - HOSE, HEATER WATER, INLET B
87246-08080

MCL10

 1
87246-08030

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87245B - HOSE, HEATER WATER, INLET B
87246-08080

MCL10

 1
87246-08030

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87246-08040

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87246-08120

MCL10

 1
Common parts
87128-08010
90179-06158
90467-22004
90467-22006
90959-01294

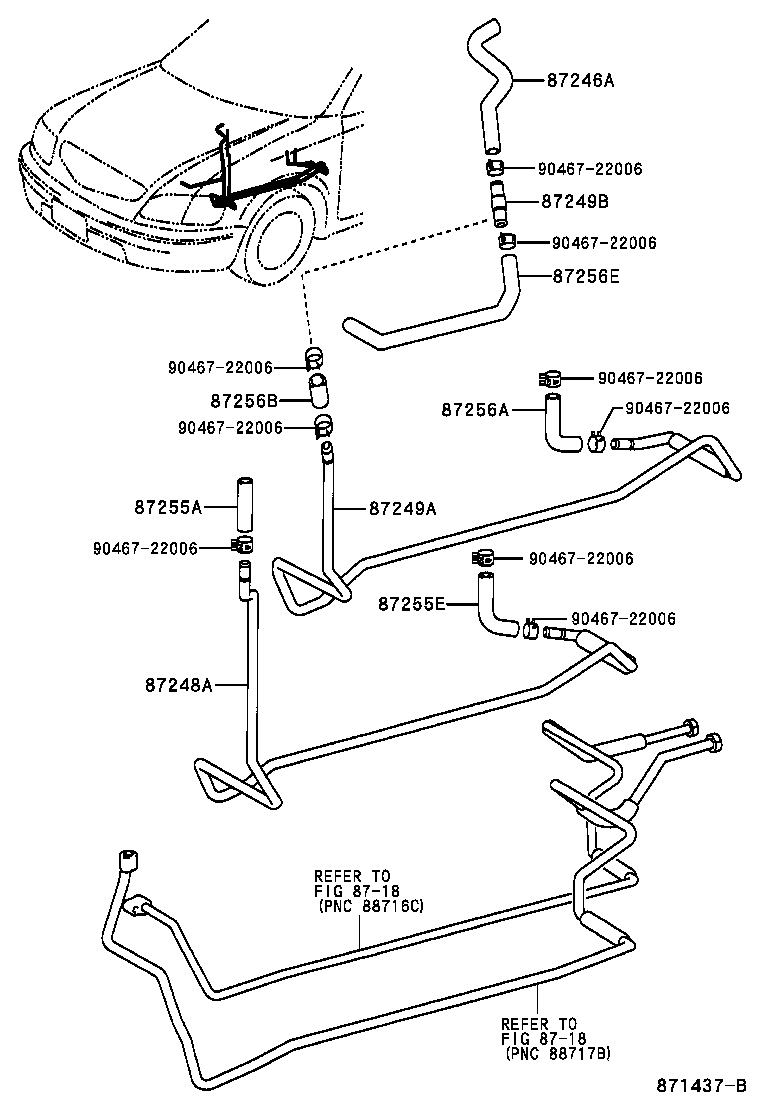

ILLUST NO. 2 OF 2(9708-0008)5D

Click highlighted areas on diagram

diagram 8718 8718 87246A 87248A 87249A 87249B 87255A 87255E 87256A 87256B 87256E 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006
Part # Description Qty Price
87246A - HOSE, HEATER WATER, OUTLET A
87246-08040

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87246-08120

MCL10

 1
87248A - PIPE, HEATER WATER INLET, A
87248-08040

MCL10..5D

 1
87248-08030

MCL10

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-08050

MCL10..5D

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-08030

MCL10..WG

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-30100

MCL10..WG

*H,L=90

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-08030

MCL10..5D

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-08040

MCL10..5D

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
99556-30100

MCL10..WG

*H,L=70

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87246-08050

MCL10..WG

 1
87246-08110

MCL10

 1
Common parts
90467-22006
Linked diagrams
8718

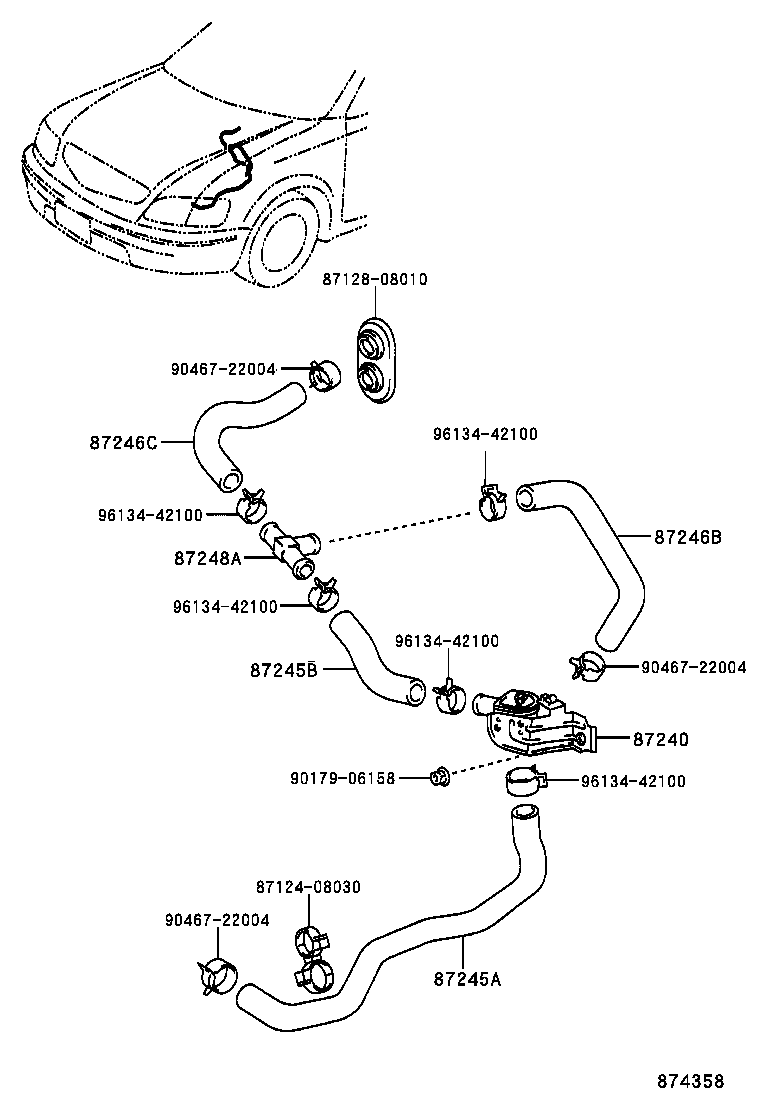

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

diagram 8712408030 8712808010 87240 87245A 87245B 87246B 87246C 87248A 9017906158 9046722004 9046722004 9046722004 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-08030

MCL10

 1
87240-08020

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87245A - HOSE, HEATER WATER, INLET A
87246-08070

MCL10

 1
87246-08060

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87245B - HOSE, HEATER WATER, INLET B
87246-08080

MCL10

 1
87246-08030

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-08100

MCL10

 1
87246C - HOSE, HEATER WATER, OUTLET C
87246-08090

MCL10

 1
87248A - PIPE, HEATER WATER INLET, A
87248-08040

MCL10..5D

 1
87248-08030

MCL10

 1
Common parts
87124-08030
87128-08010
90179-06158
90467-22004
96134-42100

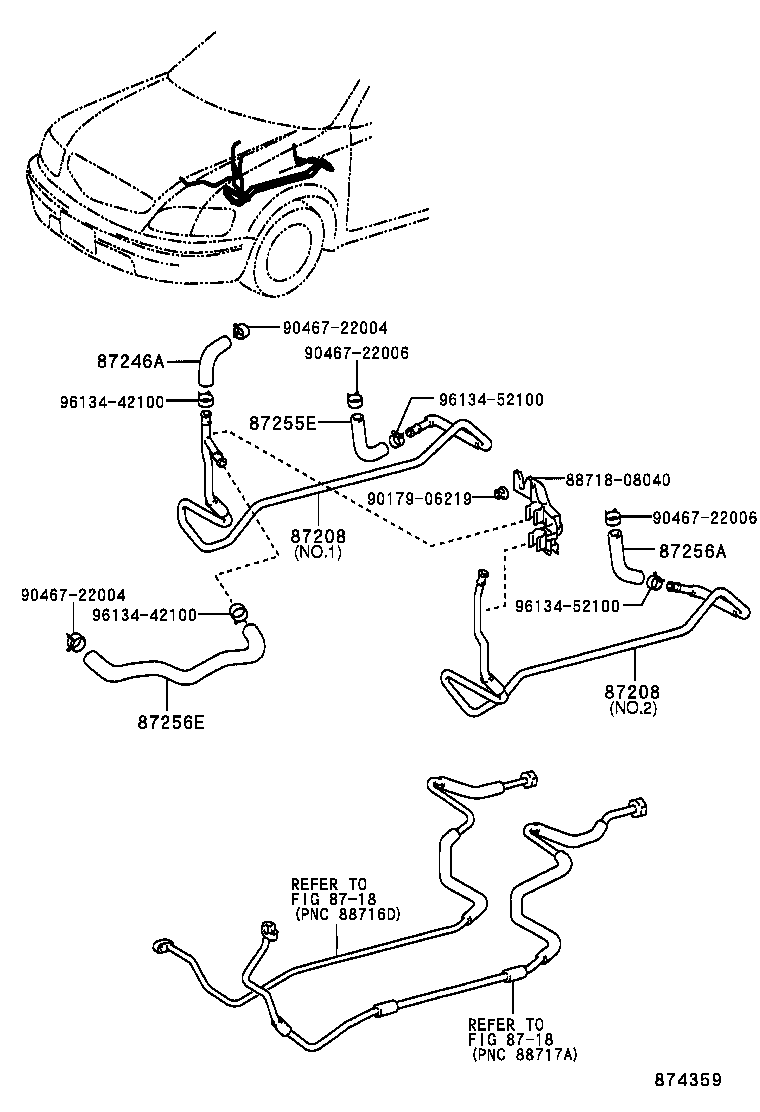

ILLUST NO. 2 OF 2(0008- )

Click highlighted areas on diagram

diagram 8718 8718 87208 87208 87246A 87255E 87256A 87256E 8871808040 9017906219 9046722004 9046722004 9046722006 9046722006 9613442100 9613442100 9613452100 9613452100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-08020

MCL10

NO.2

 1
87208-08011

MCL10

NO.1

 1
87208-08012

MCL10

NO.1

 1
87208-08021

MCL10

NO.2

 1
87208-08010

MCL10

NO.1

 1
87208-08022

MCL10

NO.2

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-08020

MCL10

NO.2

 1
87208-08011

MCL10

NO.1

 1
87208-08012

MCL10

NO.1

 1
87208-08021

MCL10

NO.2

 1
87208-08010

MCL10

NO.1

 1
87208-08022

MCL10

NO.2

 1
87246A - HOSE, HEATER WATER, OUTLET A
87246-08040

MCL10..WG

W(DUAL AIR CONDITIONER)

 1
87246-08120

MCL10

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-08030

MCL10..5D

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-08040

MCL10..5D

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87246-08050

MCL10..WG

 1
87246-08110

MCL10

 1
Common parts
88718-08040
90179-06219
90467-22004
90467-22006
96134-42100
96134-52100
Linked diagrams
8718
