MCL10L-PFSGKK (1997)
Toyota Sienna

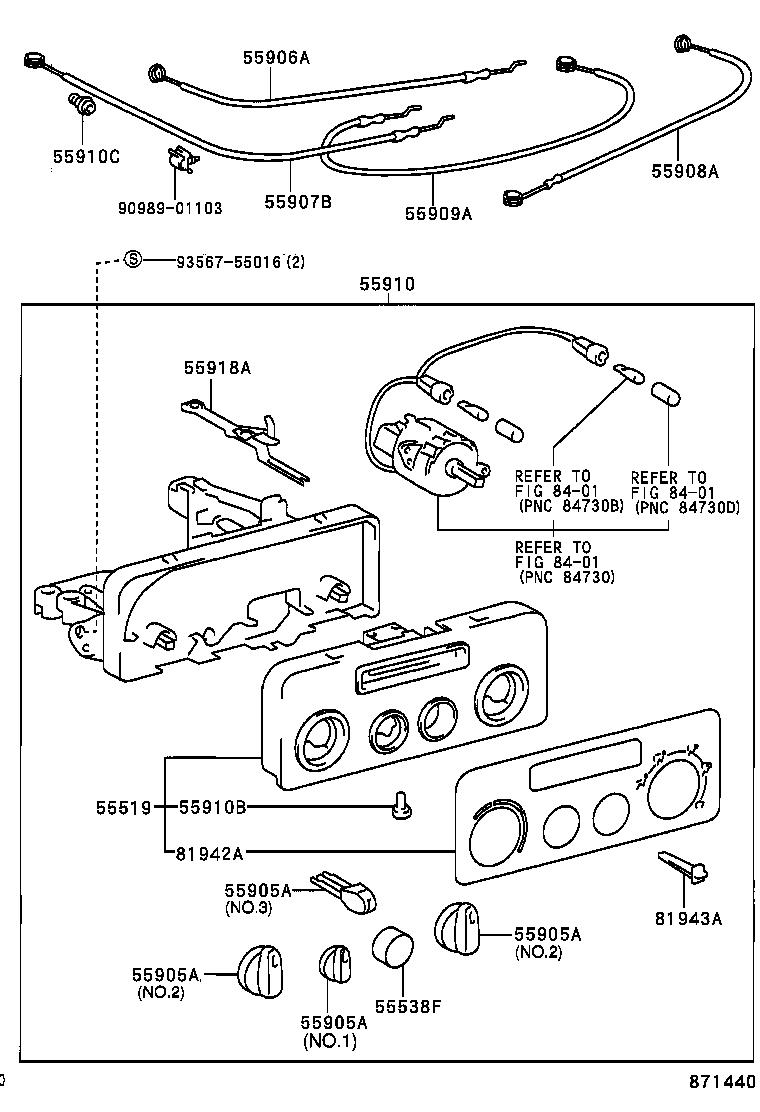

ILLUST NO. 1 OF 4(9708-0008)
FRONT CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-08030 |
MCL10 |
1 | ||
| 55519-01020C0 |
MCL10 BLACK,TRIM1#,4# |
1 | ||
| 55519-08031 |
MCL10 |
1 | ||
| 55538F - COVER, COOLER SWITCH HOLE | ||||
| 55538-08010C0 |
MCL10..WG BLACK,TRIM1#,4# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-08030C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.3 |
1 | ||
| 55905-08020C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.2 |
2 | ||
| 55905-08010C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-08030C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.3 |
1 | ||
| 55905-08020C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.2 |
2 | ||
| 55905-08010C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-08030C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.3 |
1 | ||
| 55905-08020C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.2 |
2 | ||
| 55905-08010C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-08030C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.3 |
1 | ||
| 55905-08020C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.2 |
2 | ||
| 55905-08010C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.1 |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-08010 |
MCL10 |
1 | ||
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-08010 |
MCL10 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-08010 |
MCL10 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-08010 |
MCL10 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-08010 |
MCL10 |
1 | ||
| 55910-01090C0 |
MCL10 BLACK,TRIM1#,4# |
1 | ||
| 55910-08012 |
MCL10 |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90011-11022 |
MCL10..LE REAR |
1 | ||
| 90011-11001 |
MCL10 FRONT |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-18009 |
MCL10 |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-08010 |
MCL10 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-08010 |
MCL10 |
1 | ||
| 81942-01080 |
MCL10 |
1 | ||
| 81943A - LENS, HEATER CONTROL INDICATOR LAMP | ||||
| 81943-02010 |
MCL10 |
1 | ||
| Common parts | ||||
| 90989-01103 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

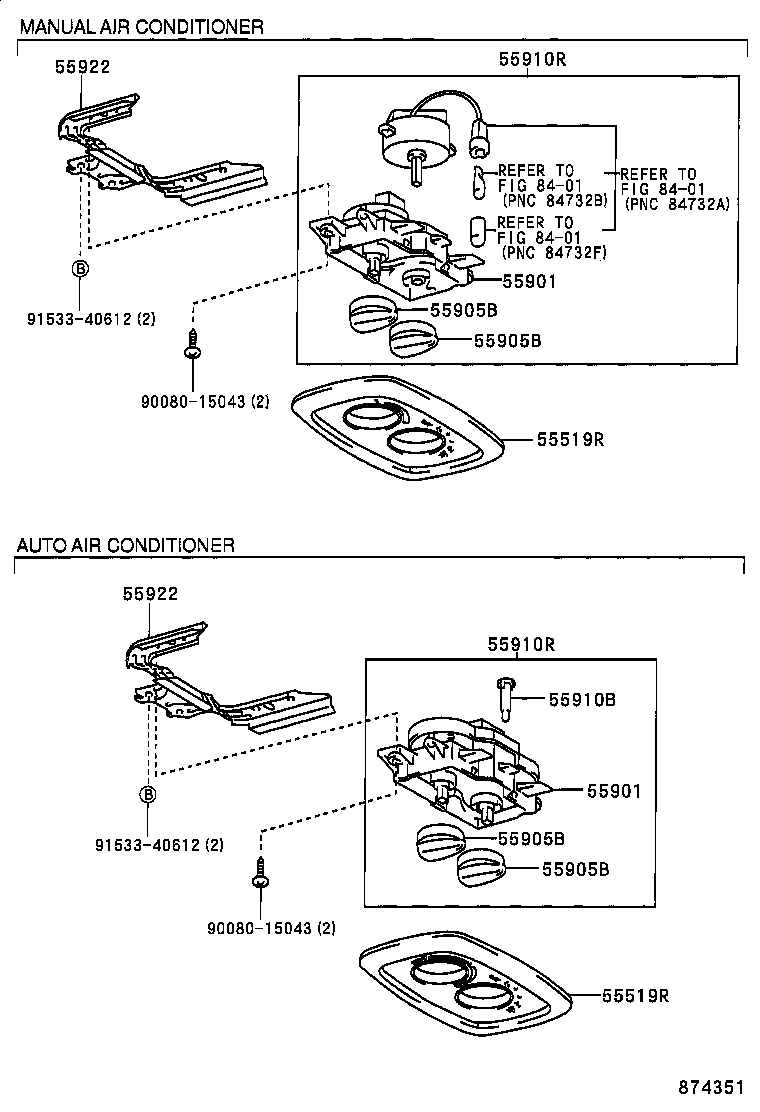

ILLUST NO. 2 OF 4(9708-0008)
REAR CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-08020B0 |
MCL10..5D W(MANUAL AIR CONDITIONER),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55519-08060B0 |
MCL10..LE..CND W(AUTO AIR CONDITIONER),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 55519-08020A0 |
MCL10..5D W(MANUAL AIR CONDITIONER),IVORY,TRIM4# |
1 | ||
| 55519-08060A0 |
MCL10..LE..CND W(AUTO AIR CONDITIONER),IVORY,TRIM4# |
1 | ||
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-08020B0 |
MCL10..5D W(MANUAL AIR CONDITIONER),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55519-08060B0 |
MCL10..LE..CND W(AUTO AIR CONDITIONER),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 55519-08020A0 |
MCL10..5D W(MANUAL AIR CONDITIONER),IVORY,TRIM4# |
1 | ||
| 55519-08060A0 |
MCL10..LE..CND W(AUTO AIR CONDITIONER),IVORY,TRIM4# |
1 | ||
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-08010 |
MCL10..5D W(MANUAL AIR CONDITIONER) |
1 | ||
| 55901-08020 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-08050 |
MCL10..5D |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-08050 |
MCL10..5D |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-08050 |
MCL10..5D |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-08050 |
MCL10..5D |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-08050 |
MCL10..5D |
2 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-08040 |
MCL10..5D W(MANUAL AIR CONDITIONER) |
1 | ||
| 55910-08060 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-08040 |
MCL10..5D W(MANUAL AIR CONDITIONER) |
1 | ||
| 55910-08060 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 55912B - BRACKET, HEATER CONTROL BASE, RH | ||||
| 55912-08010 |
MCL10..5D |
1 | ||
| 55913B - BRACKET, HEATER CONTROL BASE, LH | ||||
| 55913-08010 |
MCL10..5D |
1 | ||
| Common parts | ||||
| 90080-15043 | ||||
| 91533-40612 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

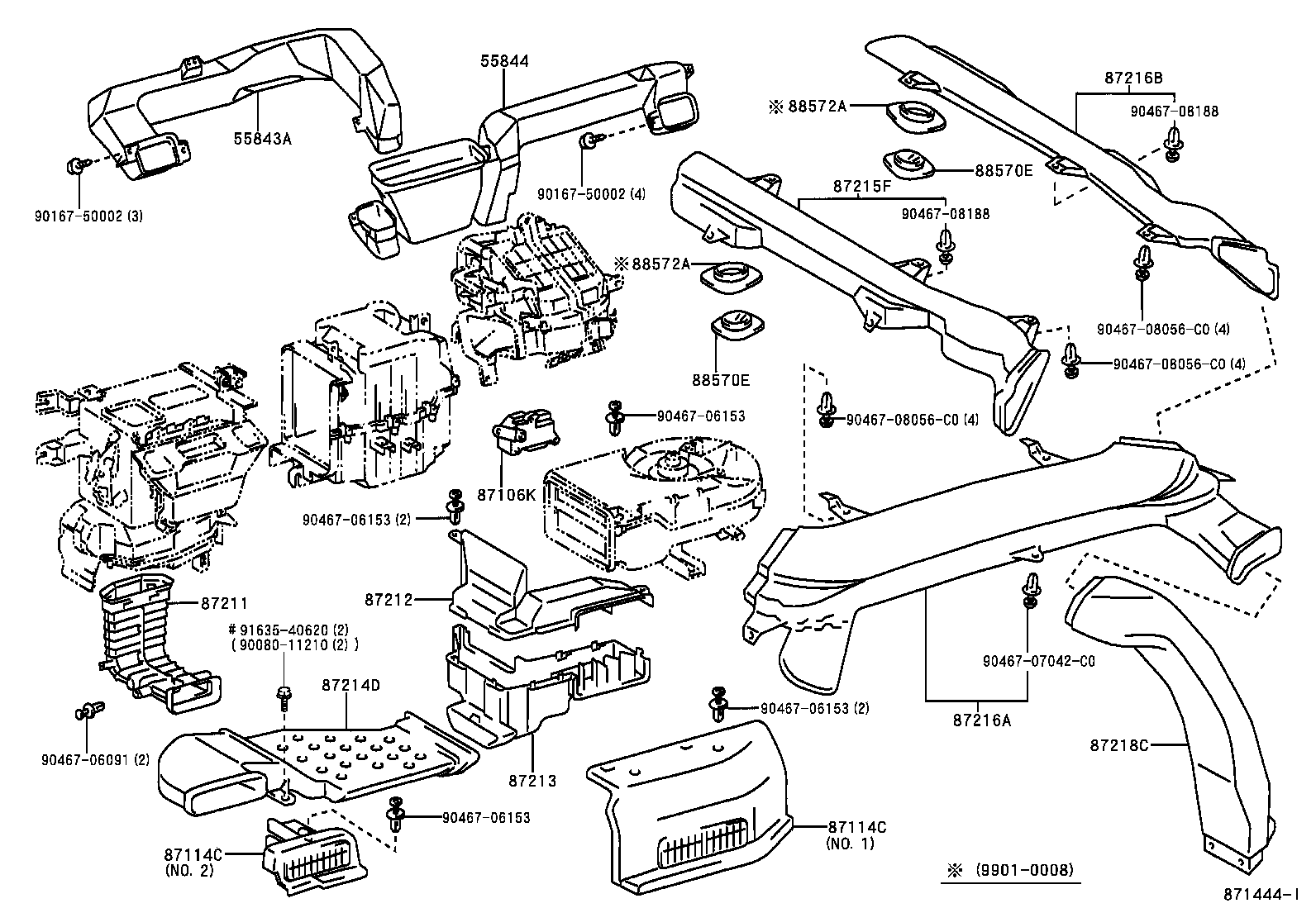

ILLUST NO. 3 OF 4(9708- )5D
DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-08020 |
MCL10 |
1 | ||
| 55843-08010 |
MCL10 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55084-08010 |
MCL10 |
1 | ||
| 55844-08010 |
MCL10 |
1 | ||
| 87106K - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-08010 |
MCL10..5D |
1 | ||
| 87114C - COVER, HEATER | ||||
| 87114-08020E0 |
MCL10..5D MD. OAK,TRIM4#,NO.1 |
1 | ||
| 87114-08020B0 |
MCL10..5D LT. BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 87114-08030E0 |
MCL10..5D MD. OAK,TRIM4#,NO.2 |
1 | ||
| 87114-08030B0 |
MCL10..5D LT. BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 87114C - COVER, HEATER | ||||
| 87114-08020E0 |
MCL10..5D MD. OAK,TRIM4#,NO.1 |
1 | ||
| 87114-08020B0 |
MCL10..5D LT. BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 87114-08030E0 |
MCL10..5D MD. OAK,TRIM4#,NO.2 |
1 | ||
| 87114-08030B0 |
MCL10..5D LT. BLUISH GRAY,TRIM1#,NO.2 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-08010 |
MCL10 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-08020 |
MCL10..5D |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87212-08030 |
MCL10..5D |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87212-08040 |
MCL10..5D |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-08030 |
MCL10 |
1 | ||
| 87215-08040 |
MCL10..LE W(MOON ROOF) |
1 | ||
| 87215-08010 |
MCL10..5D |
1 | ||
| 87215-08020 |
MCL10..5D..LE W(MOON ROOF) |
1 | ||
| 87216A - DUCT, AIR, REAR NO.5 | ||||
| 87217-08010 |
MCL10..5D |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-08020 |
MCL10..5D..LE W(MOON ROOF) |
1 | ||
| 87216-08040 |
MCL10..LE W(MOON ROOF) |
1 | ||
| 87216-08030 |
MCL10 |
1 | ||
| 87216-08010 |
MCL10..5D |
1 | ||
| 87218C - DUCT, AIR, REAR NO.6 | ||||
| 87218-08010 |
MCL10..5D |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-08010A0 |
MCL10..5D..LE IVORY,TRIM4# |
4 | ||
| 88570-08010B0 |
MCL10..5D..LE LT.BLUISH GRAY,TRIM1# |
4 | ||
| 88570-08010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
4 | ||
| 88570-08010A0 |
MCL10 IVORY,TRIM4# |
4 | ||
| 88570-08010A0 |
MCL10..5D IVORY,TRIM4# |
4 | ||
| 88570-08010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
4 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-08010A0 |
MCL10..5D..LE IVORY,TRIM4# |
4 | ||
| 88570-08010B0 |
MCL10..5D..LE LT.BLUISH GRAY,TRIM1# |
4 | ||
| 88570-08010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
4 | ||
| 88570-08010A0 |
MCL10 IVORY,TRIM4# |
4 | ||
| 88570-08010A0 |
MCL10..5D IVORY,TRIM4# |
4 | ||
| 88570-08010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
4 | ||
| 88572A - HOLDER, GRILLE | ||||
| 88572-08010 |
MCL10..5D |
4 | ||
| 88572-08010 |
MCL10..5D..LE |
4 | ||
| 88572A - HOLDER, GRILLE | ||||
| 88572-08010 |
MCL10..5D |
4 | ||
| 88572-08010 |
MCL10..5D..LE |
4 | ||
| Common parts | ||||
| 90080-11210 | ||||
| 90167-50002 | ||||
| 90467-06091 | ||||
| 90467-06153 | ||||
| 90467-07042C0 | ||||
| 90467-08056C0 | ||||
| 90467-08188 | ||||
| 91635-40620 | ||||

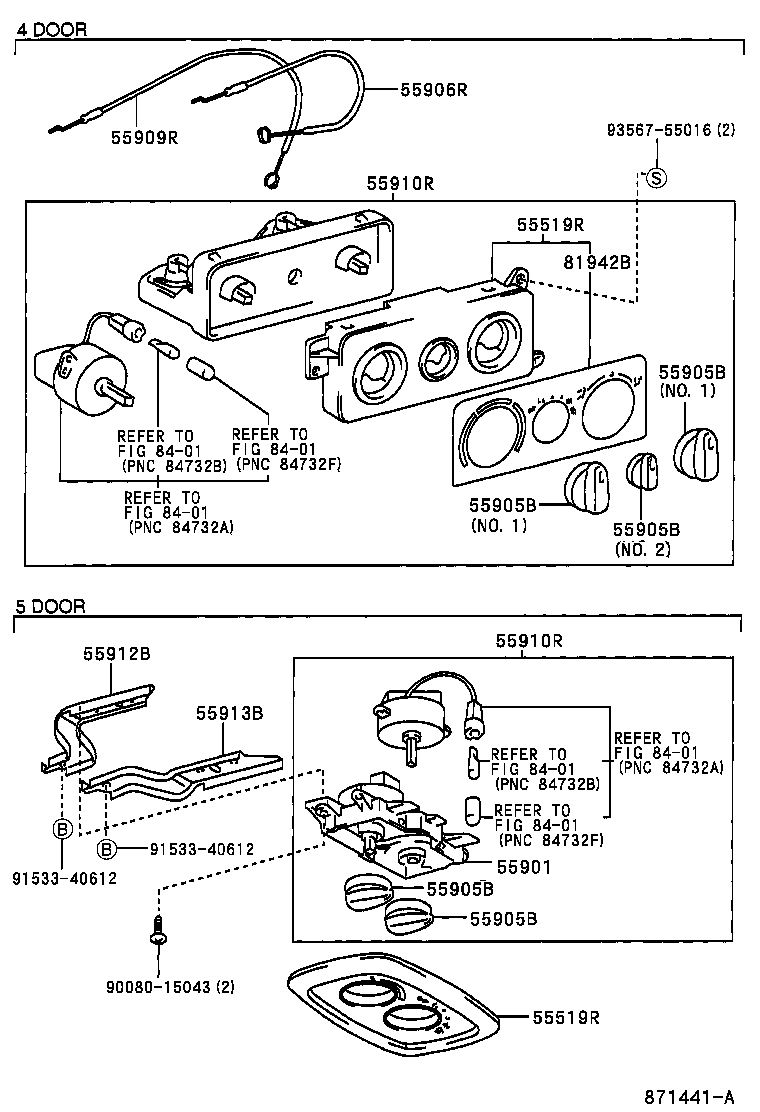

ILLUST NO. 2 OF 4(0008- )
REAR CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-08020B0 |
MCL10..5D W(MANUAL AIR CONDITIONER),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55519-08060B0 |
MCL10..LE..CND W(AUTO AIR CONDITIONER),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 55519-08020A0 |
MCL10..5D W(MANUAL AIR CONDITIONER),IVORY,TRIM4# |
1 | ||
| 55519-08060A0 |
MCL10..LE..CND W(AUTO AIR CONDITIONER),IVORY,TRIM4# |
1 | ||
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-08020B0 |
MCL10..5D W(MANUAL AIR CONDITIONER),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 55519-08060B0 |
MCL10..LE..CND W(AUTO AIR CONDITIONER),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 55519-08020A0 |
MCL10..5D W(MANUAL AIR CONDITIONER),IVORY,TRIM4# |
1 | ||
| 55519-08060A0 |
MCL10..LE..CND W(AUTO AIR CONDITIONER),IVORY,TRIM4# |
1 | ||
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-08010 |
MCL10..5D W(MANUAL AIR CONDITIONER) |
1 | ||
| 55901-08020 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-08010 |
MCL10..5D W(MANUAL AIR CONDITIONER) |
1 | ||
| 55901-08020 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-08050 |
MCL10..5D |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-08050 |
MCL10..5D |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-08050 |
MCL10..5D |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-08050 |
MCL10..5D |
2 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90011-11022 |
MCL10..LE REAR |
1 | ||
| 90011-11001 |
MCL10 FRONT |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-08040 |
MCL10..5D W(MANUAL AIR CONDITIONER) |
1 | ||
| 55910-08060 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-08040 |
MCL10..5D W(MANUAL AIR CONDITIONER) |
1 | ||
| 55910-08060 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 55922 - BRACKET, HEATER CONTROL BASE | ||||
| 55922-08010 |
MCL10 |
1 | ||
| 55922 - BRACKET, HEATER CONTROL BASE | ||||
| 55922-08010 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-15043 | ||||
| 91533-40612 | ||||
| Linked diagrams | ||||
| 8401 | ||||

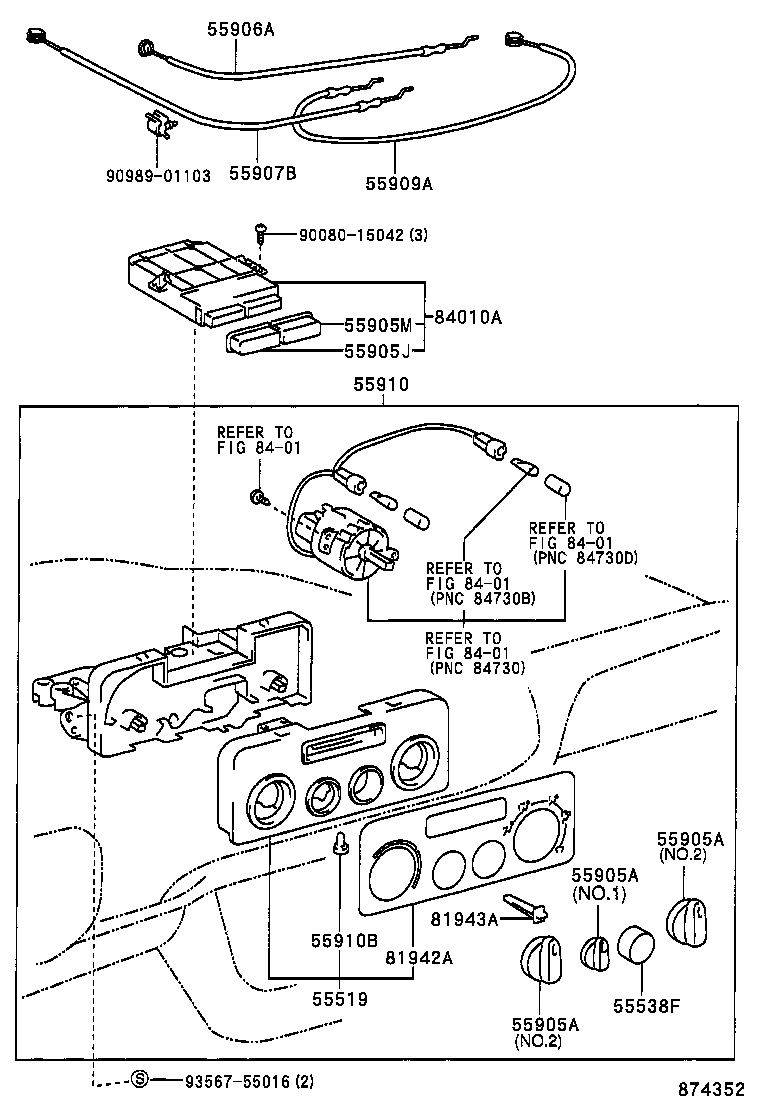

ILLUST NO. 1 OF 4(0008- )
FRONT CONTROL PANEL,W(MANUAL A/C)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-08030 |
MCL10 |
1 | ||
| 55519-01020C0 |
MCL10 BLACK,TRIM1#,4# |
1 | ||
| 55519-08031 |
MCL10 |
1 | ||
| 55538F - COVER, COOLER SWITCH HOLE | ||||
| 55538-08010C0 |
MCL10..WG BLACK,TRIM1#,4# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-08030C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.3 |
1 | ||
| 55905-08020C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.2 |
2 | ||
| 55905-08010C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-08030C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.3 |
1 | ||
| 55905-08020C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.2 |
2 | ||
| 55905-08010C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.1 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-08030C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.3 |
1 | ||
| 55905-08020C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.2 |
2 | ||
| 55905-08010C0 |
MCL10..WG BLACK,TRIM1#,4#,NO.1 |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-12630C0 |
MCL10 BLACK,TRIM1#,4# |
1 | ||
| 55905M - KNOB SUB-ASSY, CONTROL | ||||
| 55905-12620C0 |
MCL10 BLACK,TRIM1#,4# |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-08010 |
MCL10 |
1 | ||
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-08010 |
MCL10 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-08010 |
MCL10 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-08010 |
MCL10 |
1 | ||
| 55910-01090C0 |
MCL10 BLACK,TRIM1#,4# |
1 | ||
| 55910-08012 |
MCL10 |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90011-11022 |
MCL10..LE REAR |
1 | ||
| 90011-11001 |
MCL10 FRONT |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-08010 |
MCL10 |
1 | ||
| 81942-01080 |
MCL10 |
1 | ||
| 81943A - LENS, HEATER CONTROL INDICATOR LAMP | ||||
| 81943-02010 |
MCL10 |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-12280C0 |
MCL10 BLACK,TRIM1#,4# |
1 | ||
| Common parts | ||||
| 90080-15042 | ||||
| 90989-01103 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

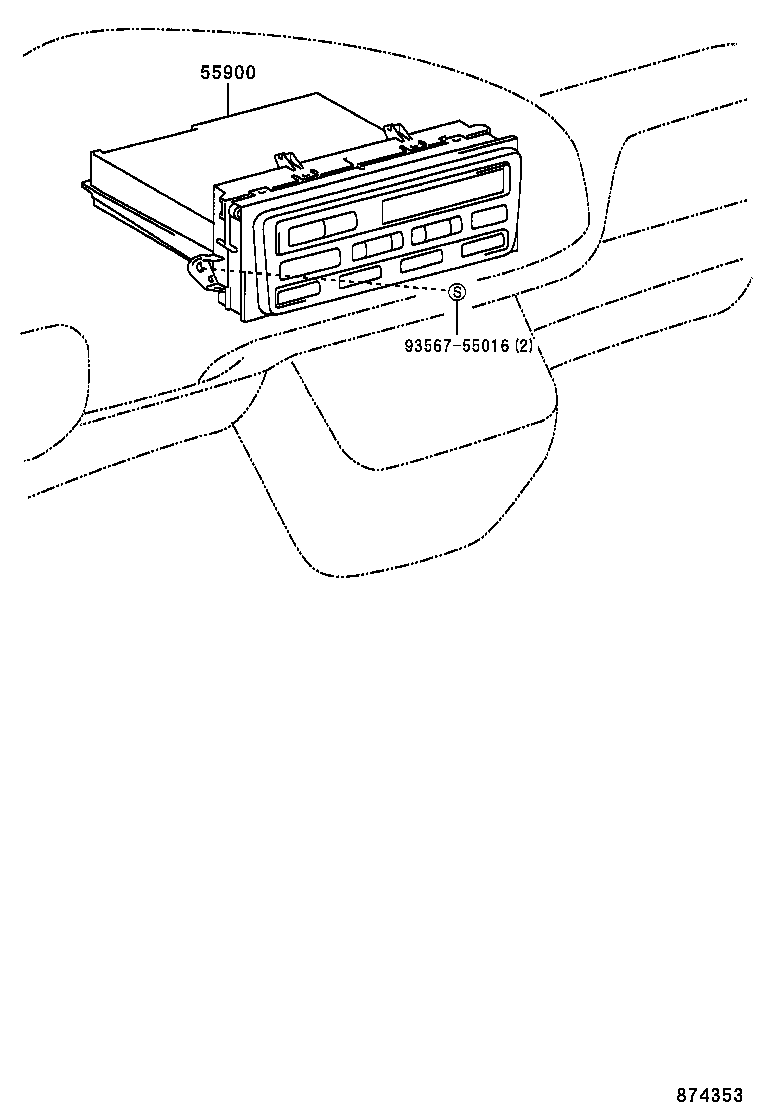

ILLUST NO. 1 OF 4(0008- )
FRONT CONTROL PANEL,W(AUTO A/C)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-08060 |
MCL10..LE..CND |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||

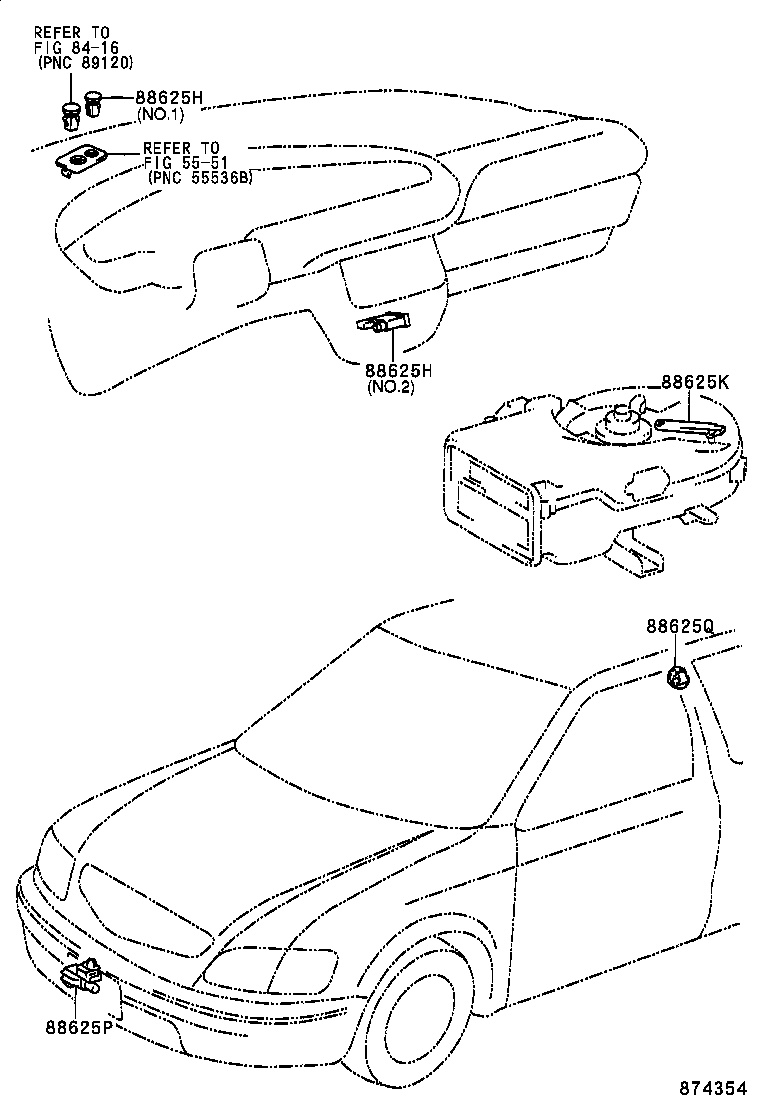

ILLUST NO. 4 OF 4(0008- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-33150 |
MCL10..LE NO.1 |
1 | ||
| 88625-47021 |
MCL10..LE NO.2 |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47021 |
MCL10..LE NO.2 |
1 | ||
| 88625-33150 |
MCL10..LE NO.1 |
1 | ||
| 88625K - THERMISTOR, COOLER | ||||
| 88625-28160 |
MCL10..LE |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
MCL10..LE |
1 | ||
| 88790-22130 |
MCL10..LE |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-45010E0 |
MCL10..LE MD.OAK,TRIM4# |
1 | ||
| 88625-45010B0 |
MCL10..LE LT. BLUISH GRAY,TRIM1# |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 8416 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
