MCL10L-PFSGKK (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

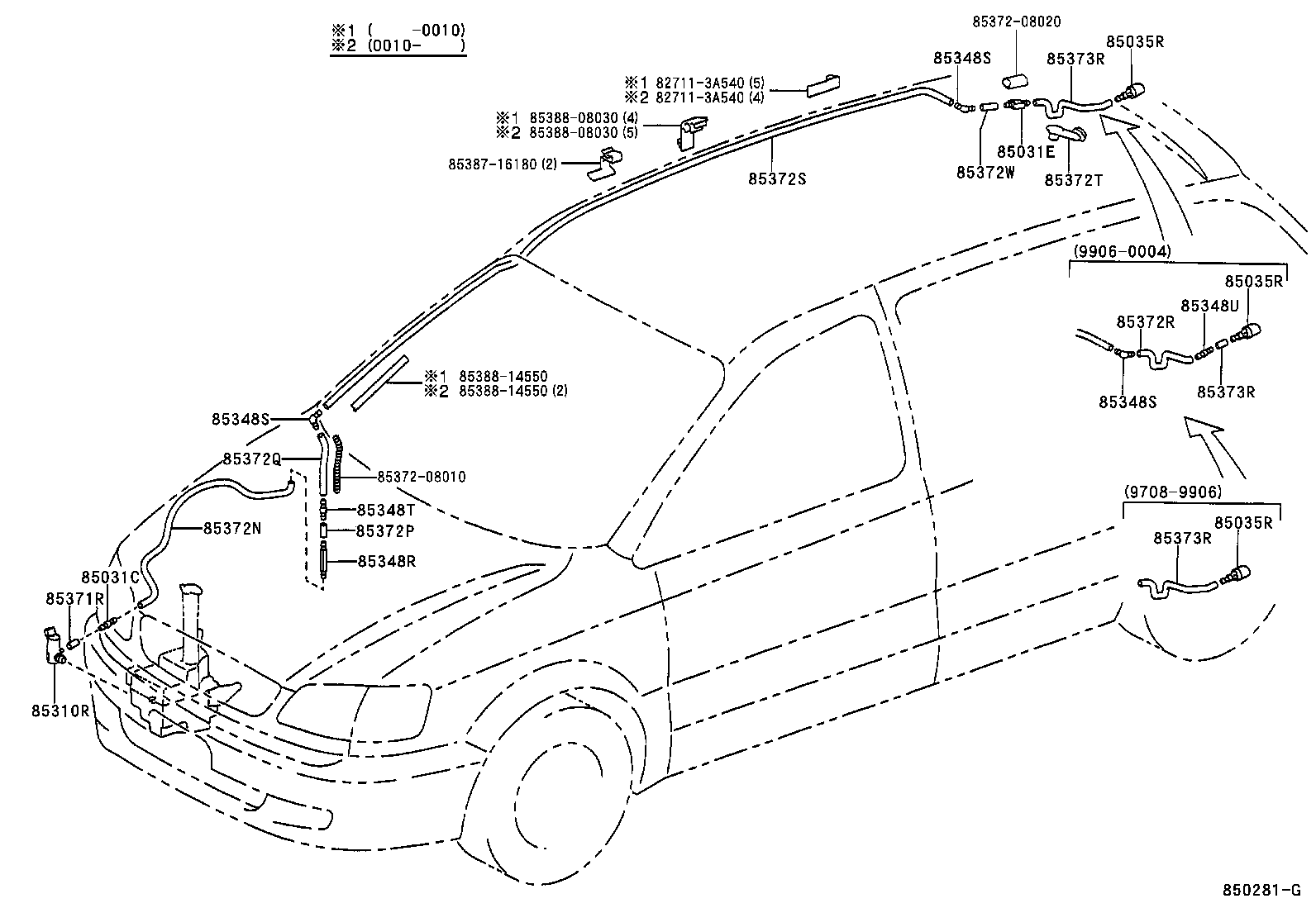

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85031-90A00 |
MCL10 |
1 | ||
| 85031E - VALVE SUB-ASSY REAR WASHER, NO.2 | ||||
| 85321-26030 |
MCL10 |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85395-08010 |
MCL10 |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85395-08010 |
MCL10 |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85395-08010 |
MCL10 |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85340-08010 |
MCL10 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-32150 |
MCL10 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85377-08020 |
MCL10 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85377-08020 |
MCL10 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85377-08020 |
MCL10 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85375-06020 |
MCL10 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85031-12250 |
MCL10 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 85374-08070 |
MCL10 L=40 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85374-08080 |
MCL10 L=1140 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85374-08070 |
MCL10 L=40 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 85374-08020 |
MCL10 L=220 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90068-33015 |
MCL10 L=290 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 85374-08040 |
MCL10 L=3280 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85373-45010 |
MCL10 |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 85374-08090 |
MCL10 L=55 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33014 |
MCL10 L=30 |
1 | ||
| 90068-33011 |
MCL10 *H,L=320 |
1 | ||
| 90068-33023 |
MCL10 L=260 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33014 |
MCL10 L=30 |
1 | ||
| 90068-33011 |
MCL10 *H,L=320 |
1 | ||
| 90068-33023 |
MCL10 L=260 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33014 |
MCL10 L=30 |
1 | ||
| 90068-33011 |
MCL10 *H,L=320 |
1 | ||
| 90068-33023 |
MCL10 L=260 |
1 | ||
| Common parts | ||||
| 82711-3A540 | ||||
| 85372-08010 | ||||
| 85372-08020 | ||||
| 85387-16180 | ||||
| 85388-08030 | ||||
| 85388-14550 | ||||
