MCL10L-PFSGKK (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708-0008)

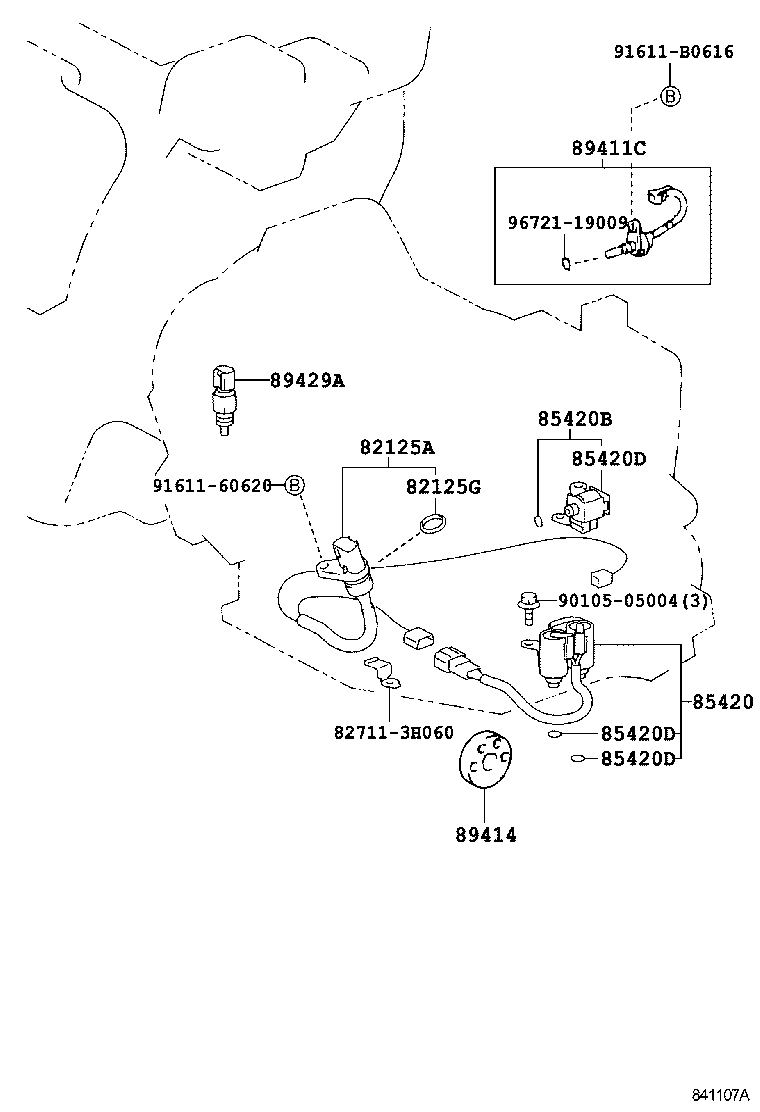

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-32050 |
MCL10 |
1 | ||
| 82125-45010 |
MCL10 |
1 | ||
| 82125G - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
MCL10 |
1 | ||
| 96721-24018 |
MCL10 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32102 |
MCL10 |
1 | ||
| 85420-33010 |
MCL10 |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32111 |
MCL10 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
MCL10 |
2 | ||
| 90301-06004 |
MCL10 |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
MCL10 |
2 | ||
| 90301-06004 |
MCL10 |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
MCL10 |
2 | ||
| 90301-06004 |
MCL10 |
3 | ||
| 89411C - SENSOR, SPEED | ||||
| 89413-24010 |
MCL10 AISIN |
1 | ||
| 89411-33010 |
MCL10 TOYOTA |
1 | ||
| 89411-32020 |
MCL10 |
1 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-33010 |
MCL10 |
1 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89429-34010 |
MCL10 |
1 | ||
| Common parts | ||||
| 82711-3H060 | ||||
| 90105-05004 | ||||
| 91611-60620 | ||||
| 91611-B0616 | ||||
| 96721-19009 | ||||
(0008- )

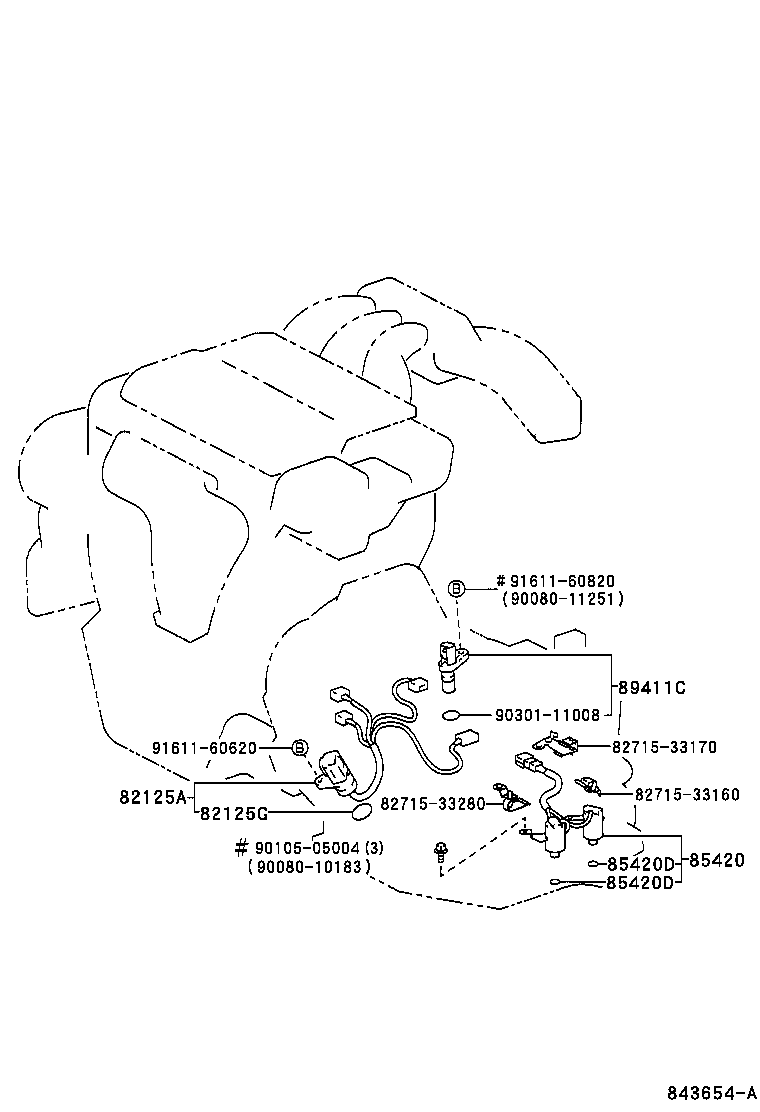

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-32050 |
MCL10 |
1 | ||
| 82125-45010 |
MCL10 |
1 | ||
| 82125G - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
MCL10 |
1 | ||
| 96721-24018 |
MCL10 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32102 |
MCL10 |
1 | ||
| 85420-33010 |
MCL10 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
MCL10 |
2 | ||
| 90301-06004 |
MCL10 |
3 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
MCL10 |
2 | ||
| 90301-06004 |
MCL10 |
3 | ||
| 89411C - SENSOR, SPEED | ||||
| 89413-24010 |
MCL10 AISIN |
1 | ||
| 89411-33010 |
MCL10 TOYOTA |
1 | ||
| 89411-32020 |
MCL10 |
1 | ||
| Common parts | ||||
| 82715-33160 | ||||
| 82715-33170 | ||||
| 82715-33280 | ||||
| 90080-10183 | ||||
| 90080-11251 | ||||
| 90105-05004 | ||||
| 90301-11008 | ||||
| 91611-60620 | ||||
| 91611-60820 | ||||
