MCL10L-PFSGKK (1997)
Toyota Sienna

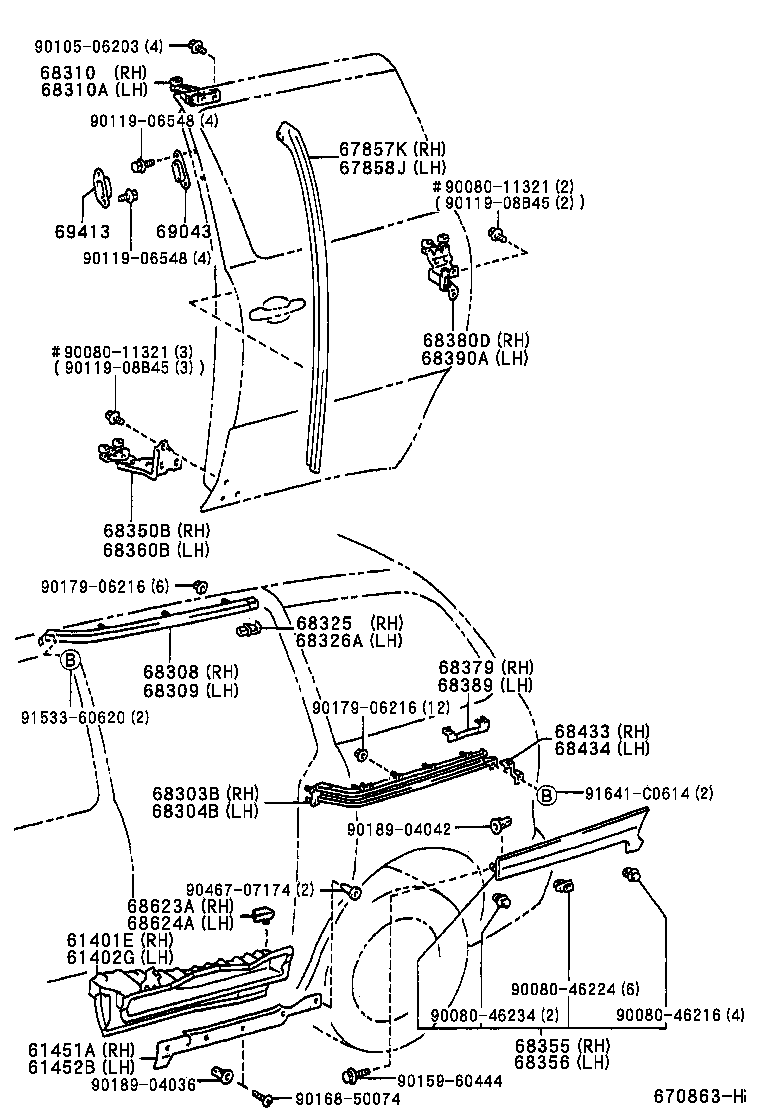

ILLUST NO. 1 OF 2(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61401E - RAIL SUB-ASSY, NO.1 LOWER OUTER, RH | ||||
| 61401-08010 |
MCL10 |
1 | ||
| 61402G - RAIL SUB-ASSY, NO.1 LOWER OUTER, LH | ||||
| 61402-08010 |
MCL10..5D |
1 | ||
| 61451A - PLATE, STEP, LOWER RH | ||||
| 61451-08010 |
MCL10 |
1 | ||
| 61452B - PLATE, STEP, LOWER LH | ||||
| 61452-08010 |
MCL10..5D |
1 | ||
| 67857K - PROTECTOR, SLIDE DOOR PANEL | ||||
| 67857-08010 |
MCL10 |
1 | ||
| 67857-08010 |
MCL10..5D..LE |
1 | ||
| 67858J - PROTECTOR, SLIDE DOOR RAIL, LH | ||||
| 67858-08010 |
MCL10..LE |
1 | ||
| 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-08010 |
MCL10 |
1 | ||
| 68303-08020 |
MCL10..LE W(AUTO SLIDE DOOR & EASY CLOSER) |
1 | ||
| 68303-08020 |
MCL10 |
1 | ||
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-08020 |
MCL10 |
1 | ||
| 68304-08010 |
MCL10..5D |
1 | ||
| 68304-08010 |
MCL10..5D |
1 | ||
| 68308 - RAIL SUB-ASSY, SLIDE DOOR, UPPER RH | ||||
| 68308-08010 |
MCL10 |
1 | ||
| 68308-08010 |
MCL10 |
1 | ||
| 68309 - RAIL SUB-ASSY, SLIDE DOOR, UPPER LH | ||||
| 68309-08010 |
MCL10..5D |
1 | ||
| 68309-08010 |
MCL10 |
1 | ||
| 68309-08010 |
MCL10..5D |
1 | ||
| 68310 - ROLLER ASSY, SLIDE DOOR, UPPER | ||||
| 68310-08010 |
MCL10 |
1 | ||
| 68310A - ROLLER ASSY, SLIDE DOOR, UPPER, LH | ||||
| 68310-08010 |
MCL10..5D |
1 | ||
| 68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH | ||||
| 68325-45020 |
MCL10 PINK |
1 | ||
| 68325-45010 |
MCL10 WHITE |
1 | ||
| 68325-45050 |
MCL10..LE W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH),LIGHT GREEN |
2 | ||
| 68325-45030 |
MCL10 YELLOW |
1 | ||
| 68325-45050 |
MCL10..LE LIGHT GREEN |
1 | ||
| 68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH | ||||
| 68326-45030 |
MCL10..5D YELLOW |
1 | ||
| 68326-45020 |
MCL10..5D PINK |
1 | ||
| 68326-45010 |
MCL10..5D WHITE |
1 | ||
| 68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH | ||||
| 68350-08010 |
MCL10 |
1 | ||
| 68355 - GARNISH, SLIDE DOOR CENTER RAIL, RH | ||||
| 68355-08010A0 |
MCL10 SUPER WHITE 2,040 |
1 | ||
| 68355-08010C0 |
MCL10 BLACK,202 |
1 | ||
| 68355-08010J0 |
MCL10..WG BLUE M.M.,8L9 |
1 | ||
| 68355-08010E1 |
MCL10 BEIGE M.M.,4N7 |
1 | ||
| 68355-08010G2 |
MCL10 GR. GREEN ME.,6M3 |
1 | ||
| 68355-08011E1 |
MCL10 BEIGE M.M.,4N7 |
1 | ||
| 68355-08011K0 |
MCL10..WG LT.PURPLE ME.OP.,931 |
1 | ||
| 68355-08011D1 |
MCL10 DK.RED M.M.,3M6 |
1 | ||
| 68355-08010G0 |
MCL10 DK.GREEN M.M.,6P2 |
1 | ||
| 68355-08010G3 |
MCL10 GREEN MC.,6R1 |
1 | ||
| 68355-08011G3 |
MCL10 GREEN MC.,6R1 |
1 | ||
| 68355-08010D0 |
MCL10 RED MM,3K4 |
1 | ||
| 68355-08010K0 |
MCL10..WG LT.PURPLE ME.OP.,931 |
1 | ||
| 68355-08011G2 |
MCL10 GR.GREEN ME.,6M3 |
1 | ||
| 68355-08011A0 |
MCL10 SUPER WHITE 2,040 |
1 | ||
| 68355-08011J1 |
MCL10 BLUE M.M.,8N7 |
1 | ||
| 68355-08011J2 |
MCL10 DK.BLUE MC.,8Q0 |
1 | ||
| 68355-08010D1 |
MCL10 DK. RED M.M.,3M6 |
1 | ||
| 68355-08011E2 |
MCL10 BEIGE M.M.,4Q2 |
1 | ||
| 68355-08011J0 |
MCL10..WG BLUE M.M.,8L9 |
1 | ||
| 68355-08011C0 |
MCL10 BLACK,202 |
1 | ||
| 68355-08011D2 |
MCL10 DK. RED MC.,3N6 |
1 | ||
| 68355-08011B0 |
MCL10 SILVER M.M.,1D7 |
1 | ||
| 68355-08011D3 |
MCL10 DK. RED MC.,3P5 |
1 | ||
| 68355-08011D0 |
MCL10 RED MM,3K4 |
1 | ||
| 68356 - GARNISH, SLIDE DOOR CENTER RAIL, LH | ||||
| 68356-08010C0 |
MCL10..5D BLACK,202 |
1 | ||
| 68356-08010G0 |
MCL10..5D DK.GREEN M.M.,6P2 |
1 | ||
| 68356-08010G2 |
MCL10..5D GR. GREEN ME.,6M3 |
1 | ||
| 68356-08010D0 |
MCL10..5D RED MM,3K4 |
1 | ||
| 68356-08010E1 |
MCL10..5D BEIGE M.M.,4N7 |
1 | ||
| 68356-08010D1 |
MCL10..5D DK. RED M.M.,3M6 |
1 | ||
| 68356-08010K0 |
MCL10..5D LT.PURPLE ME.OP.,931 |
1 | ||
| 68356-08011K0 |
MCL10..5D LT.PURPLE ME.OP.,931 |
1 | ||
| 68356-08011A0 |
MCL10..5D SUPER WHITE 2,040 |
1 | ||
| 68356-08010J0 |
MCL10..5D BLUE M.M.,8L9 |
1 | ||
| 68356-08011E1 |
MCL10..5D BEIGE M.M.,4N7 |
1 | ||
| 68356-08011D0 |
MCL10..5D RED MM,3K4 |
1 | ||
| 68356-08010A0 |
MCL10..5D SUPER WHITE 2,040 |
1 | ||
| 68356-08010G3 |
MCL10..5D GREEN MC.,6R1 |
1 | ||
| 68356-08011G2 |
MCL10..5D GR.GREEN ME.,6M3 |
1 | ||
| 68356-08011B0 |
MCL10 SILVER M.M.,1D7 |
1 | ||
| 68356-08011D1 |
MCL10..5D DK.RED M.M.,3M6 |
1 | ||
| 68356-08011D3 |
MCL10 DK. RED MC.,3P5 |
1 | ||
| 68356-08011C0 |
MCL10..5D BLACK,202 |
1 | ||
| 68356-08011E2 |
MCL10..5D BEIGE M.M.,4Q2 |
1 | ||
| 68356-08011J2 |
MCL10 DK.BLUE MC.,8Q0 |
1 | ||
| 68356-08011J0 |
MCL10..5D BLUE M.M.,8L9 |
1 | ||
| 68356-08011G3 |
MCL10..5D GREEN MC.,6R1 |
1 | ||
| 68356-08011D2 |
MCL10 DK. RED MC.,3N6 |
1 | ||
| 68356-08011J1 |
MCL10..5D BLUE M.M.,8N7 |
1 | ||
| 68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH | ||||
| 68360-08010 |
MCL10..5D |
1 | ||
| 68379 - SPRING, SLIDE DOOR CATCH, RH | ||||
| 68379-45010 |
MCL10 |
1 | ||
| 68380D - HINGE ASSY, SLIDE DOOR, CENTER RH | ||||
| 68380-08010 |
MCL10 |
1 | ||
| 68380-08020 |
MCL10..LE W(AUTO SLIDE DOOR & EASY CLOSER) |
1 | ||
| 68380-08020 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER) |
1 | ||
| 68389 - SPRING, SLIDE DOOR CATCH, LH | ||||
| 68389-45010 |
MCL10..5D |
1 | ||
| 68390A - HINGE ASSY, SLIDE DOOR, CENTER LH | ||||
| 68390-08010 |
MCL10..5D |
1 | ||
| 68390-08020 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER) |
1 | ||
| 68433 - PROTECTOR, FRONT SLIDE DOOR CENTER RAIL, RH | ||||
| 68433-45010 |
MCL10 |
1 | ||
| 68434 - PROTECTOR, FRONT SLIDE DOOR CENTER RAIL, LH | ||||
| 68434-45010 |
MCL10..5D |
1 | ||
| 68623A - COVER, REAR DOOR CHECK, RH | ||||
| 68623-08010 |
MCL10 |
1 | ||
| 68624A - COVER, REAR DOOR CHECK, LH | ||||
| 68624-08010 |
MCL10..5D |
1 | ||
| 69043 - STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE | ||||
| 69043-08010 |
MCL10..5D |
2 | ||
| 69043-08010 |
MCL10..5D..LE W(AUTO SLIDE DOOR & EASY CLOSER),LH |
1 | ||
| 69043-08020 |
MCL10..5D..LE W(AUTO SLIDE DOOR & EASY CLOSER),RH |
1 | ||
| 69043-08020 |
MCL10..LE W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH) |
2 | ||
| 69043-08010 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER),LH |
1 | ||
| 69043-08020 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER),RH |
1 | ||
| 69413 - STOP, SLIDE DOOR DOWN MALE | ||||
| 69416-08020 |
MCL10..5D..LE W(AUTO SLIDE DOOR & EASY CLOSER),RH |
1 | ||
| 69416-08010 |
MCL10..5D..LE W(AUTO SLIDE DOOR & EASY CLOSER),LH |
1 | ||
| 69416-08010 |
MCL10..5D |
2 | ||
| 69416-08010 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER),LH |
1 | ||
| 69416-08020 |
MCL10..LE W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH) |
2 | ||
| 69416-08020 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER),RH |
1 | ||
| Common parts | ||||
| 90080-11321 | ||||
| 90080-46216 | ||||
| 90080-46224 | ||||
| 90080-46234 | ||||
| 90105-06203 | ||||
| 90119-06548 | ||||
| 90119-08B45 | ||||
| 90159-60444 | ||||
| 90168-50074 | ||||
| 90179-06216 | ||||
| 90189-04036 | ||||
| 90189-04042 | ||||
| 90467-07174 | ||||
| 91533-60620 | ||||
| 91641-C0614 | ||||

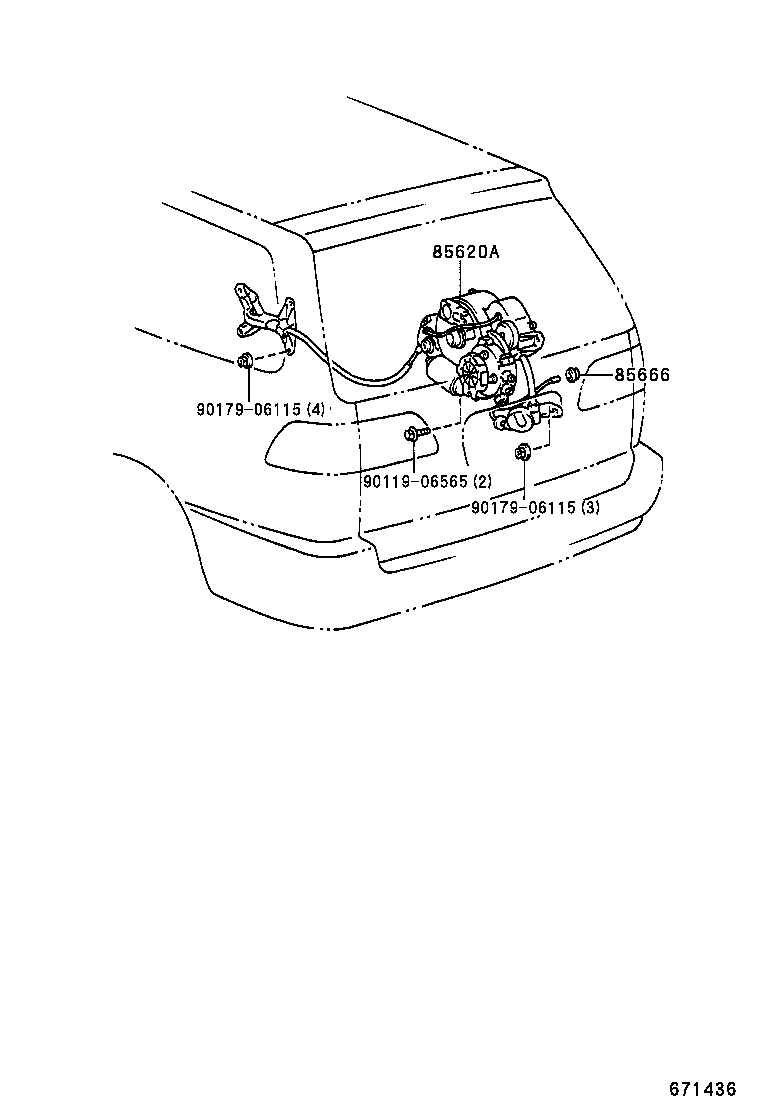

ILLUST NO. 2 OF 2(9803-0207)LE ; (0207- )
W(AUTO SLIDE DOOR & EASY CLOSER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85620A - MOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH | ||||
| 85620-08031 |
MCL10..LE W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH),LH |
1 | ||
| 85620-08010 |
MCL10..LE |
1 | ||
| 85620-08011 |
MCL10..LE W(AUTO SLIDE DOOR & EASY CLOSER = RH);W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH),RH |
1 | ||
| 85666 - COVER, DRIVE ROLLER | ||||
| 85666-08010 |
MCL10..LE |
1 | ||
| 85666-08010 |
MCL10 |
1 | ||
| 85666-08010 |
MCL10..LE W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH) |
2 | ||
| Common parts | ||||
| 90119-06565 | ||||
| 90179-06115 | ||||
