MCL10L-PFSGKK (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

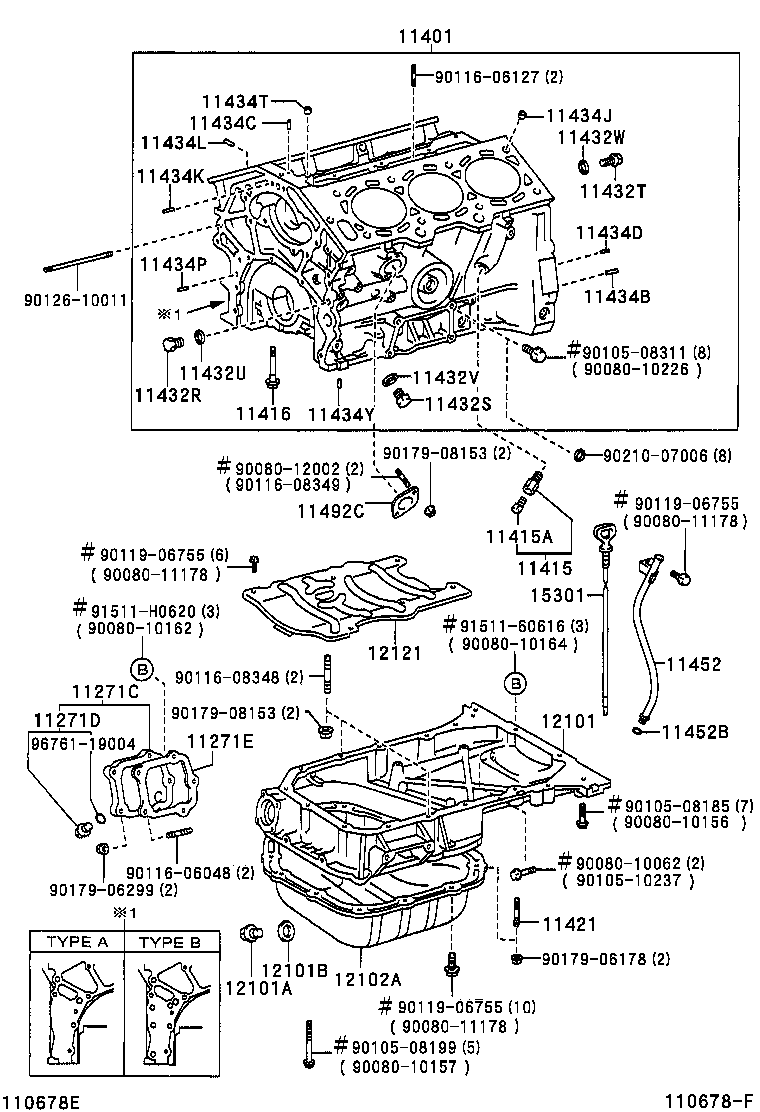

Click highlighted areas on diagram

diagram 11271C 11271D 11271E 11401 11415 11415A 11416 11421 11432R 11432S 11432T 11432U 11432V 11432W 11434B 11434C 11434D 11434J 11434K 11434L 11434P 11434T 11434Y 11452 11452B 11492C 12101 12101A 12101B 12102A 12121 15301 9008010062 9008010156 9008010157 9008010162 9008010164 9008010226 9008011178 9008011178 9008011178 9008012002 9010508185 9010508199 9010508311 9010510237 9011606048 9011606127 9011608348 9011608349 9011906755 9011906755 9011906755 9012610011 9017906178 9017906299 9017908153 9017908153 9021007006 9151160616 91511H0620 9676119004
Part # Description Qty Price
11271C - COVER, CYLIVDER BLOCK SIDE
11271-20010

1MZFE..MCL10

 1
11271D - PLUG, DRAIN COCK(FOR CYLINDER BLOCK SIDE COVER )
90910-09104

1MZFE..MCL10

 1
11271E - GASKET, E.G.R COOLER
25685-0A010

1MZFE..MCL10

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-29515

1MZFE..MCL10

(J)

 1
11401-09210

1MZFE..MCL10

 1
11401-09230

1MZFE..MCL10

TYPE B:REFER TO ILLUSTRATION

 1
11401-29516

1MZFE..MCL10

(J)

 1
11401-09101

1MZFE..MCL10

(L)

 1
11401-09210

1MZFE..MCL10

TYPE A:REFER TO ILLUSTRATION

 1
11401-09100

1MZFE..MCL10

(L)

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09095

1MZFE..MCL10

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1MZFE..MCL10

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02114

1MZFE..MCL10

 16
11421 - BOLT, STUD(FOR OIL PAN)
90116-06098

1MZFE..MCL10

 2
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-16013

1MZFE..MCL10

 1
11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
90341-16013

1MZFE..MCL10

 1
11432T - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
90341-20013

1MZFE..MCL10

 1
11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
90430-16009

1MZFE..MCL10

 1
11432V - GASKET, STRAIGHT SCREW PLUG NO.2(FOR CYLINDER BLOCK)
90430-16009

1MZFE..MCL10

 1
11432W - GASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)
90430-20004

1MZFE..MCL10

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1MZFE..MCL10

L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-04097

1MZFE..MCL10

L=12,OD=4.0

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-04097

1MZFE..MCL10

L=12,OD=4.0

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-16001

1MZFE..MCL10

 4
11434K - PIN, STRAIGHT(FOR WATER PUMP)
90250-04097

1MZFE..MCL10

 2
11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING)
90250-04097

1MZFE..MCL10

 2
11434P - PIN, STRAIGHT(FOR OIL PUMP SET)
90250-04097

1MZFE..MCL10

L=12,OD=4.0

 2
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90253-11021

1MZFE..MCL10

 1
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097

1MZFE..MCL10

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-0A020

1MZFE..MCL10

(L)

 1
11452-20020

1MZFE..MCL10

(J)

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1MZFE..MCL10

 1
11492C - PLATE, WATER SEAL
11492-50010

1MZFE..MCL10

 1
11492-20010

1MZFE..MCL10

 1
12101 - PAN SUB-ASSY, OIL
12111-20031

1MZFE..MCL10

(J)

 1
12111-0A021

1MZFE..MCL10

(L)

 1
12111-0A020

1MZFE..MCL10

(L)

 1
12111-0A030

1MZFE..MCL10

(L)

 1
12111-20032

1MZFE..MCL10

(J)

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

1MZFE..MCL10

 1
90341-12012

1MZFE..MCL10

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1MZFE..MCL10

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-0A010

1MZFE..MCL10

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-0A010

1MZFE..MCL10

 1
12121-0A011

1MZFE..MCL10

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-20021

1MZFE..MCL10

 1
15301-20020

1MZFE..MCL10

 1
Common parts
90080-10062
90080-10156
90080-10157
90080-10162
90080-10164
90080-10226
90080-11178
90080-12002
90105-08185
90105-08199
90105-08311
90105-10237
90116-06048
90116-06127
90116-08348
90116-08349
90119-06755
90126-10011
90179-06178
90179-06299
90179-08153
90210-07006
91511-60616
91511-H0620
96761-19004
