MCL10L-PFSGKA (1997)
Toyota Sienna

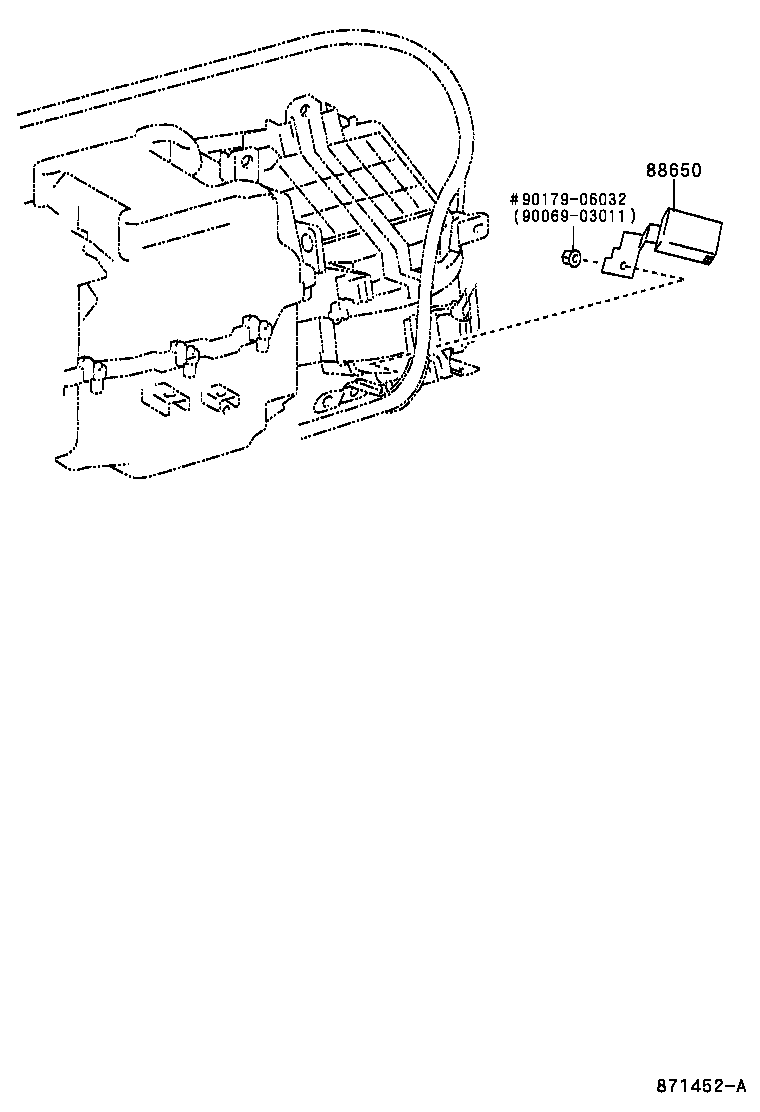

ILLUST NO. 3 OF 4(9708- )
AMPLIFIER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-08030 |
MCL10 |
1 | ||
| 88650-08020 |
MCL10..V;MCL10..5D |
1 | ||
| Common parts | ||||
| 90069-03011 | ||||
| 90179-06032 | ||||

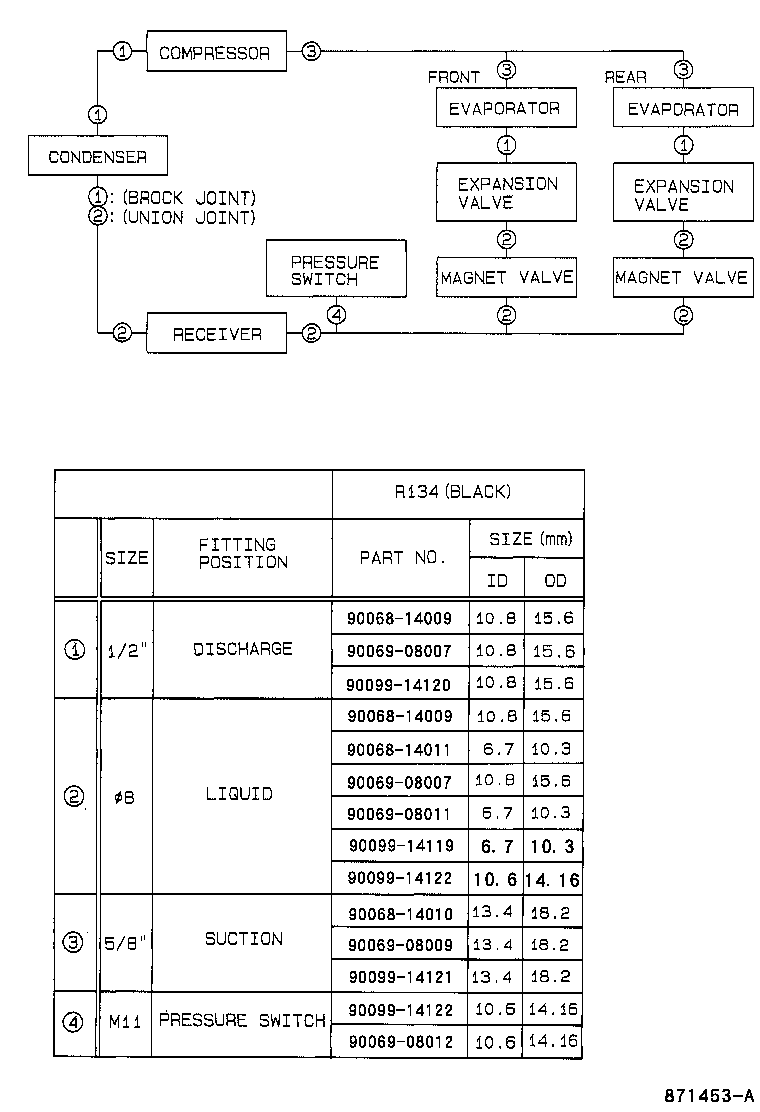

ILLUST NO. 4 OF 4(9708- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14009 | ||||
| 90068-14010 | ||||
| 90068-14011 | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90069-08011 | ||||
| 90069-08012 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

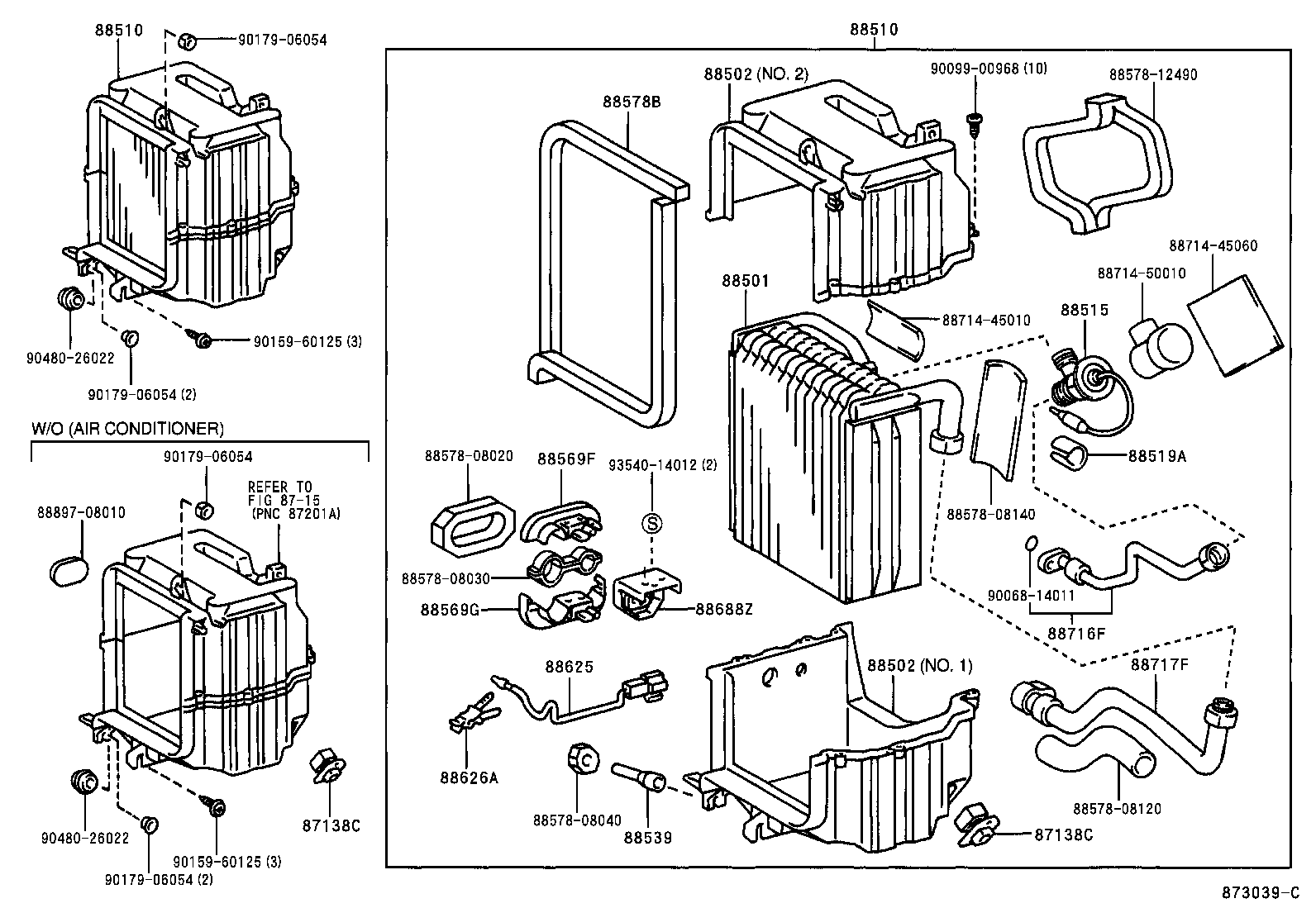

ILLUST NO. 1 OF 4(9708-0008)
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-08010 |
MCL10 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-08010 |
MCL10 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-08020 |
MCL10 |
1 | ||
| 88501-08050 |
MCL10 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-08020 |
MCL10 NO.1 |
1 | ||
| 88521-08080 |
MCL10 NO.2 |
1 | ||
| 88502-08040 |
MCL10..LE W(AUTO AIR CONDITIONER),NO.1 |
1 | ||
| 88521-08040 |
MCL10 NO.2 |
1 | ||
| 88502-08030 |
MCL10 W(MANUAL AIR CONDITIONER),NO.1 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-08020 |
MCL10 NO.1 |
1 | ||
| 88521-08080 |
MCL10 NO.2 |
1 | ||
| 88502-08040 |
MCL10..LE W(AUTO AIR CONDITIONER),NO.1 |
1 | ||
| 88521-08040 |
MCL10 NO.2 |
1 | ||
| 88502-08030 |
MCL10 W(MANUAL AIR CONDITIONER),NO.1 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-08010 |
MCL10 |
1 | ||
| 88510-08040 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 88510-08050 |
MCL10 W(MANUAL AIR CONDITIONER) |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-08010 |
MCL10 |
1 | ||
| 88510-08040 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 88510-08050 |
MCL10 W(MANUAL AIR CONDITIONER) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-08060 |
MCL10 FRONT |
1 | ||
| 88515-08050 |
MCL10..5D REAR |
1 | ||
| 88519A - HOLDER, REMOTE BULB, PARTS | ||||
| 88519-08010 |
MCL10 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-89108 |
MCL10 |
1 | ||
| 88569F - CLAMP | ||||
| 88569-08040 |
MCL10 |
1 | ||
| 88569G - CLAMP | ||||
| 88569-08030 |
MCL10 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20470 |
MCL10 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-16210 |
MCL10 |
1 | ||
| 88625-52020 |
MCL10 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
MCL10 |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-45010 |
MCL10 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-08020 |
MCL10 |
1 | ||
| 88716-08190 |
MCL10 |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-08320 |
MCL10..LE |
1 | ||
| 88717-08020 |
MCL10 |
1 | ||
| Common parts | ||||
| 88578-08020 | ||||
| 88578-08030 | ||||
| 88578-08040 | ||||
| 88578-08120 | ||||
| 88578-08140 | ||||
| 88578-12490 | ||||
| 88714-45010 | ||||
| 88714-45060 | ||||
| 88714-50010 | ||||
| 88897-08010 | ||||
| 90068-14011 | ||||
| 90099-00968 | ||||
| 90159-60125 | ||||
| 90179-06054 | ||||
| 90480-26022 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 8715 | ||||

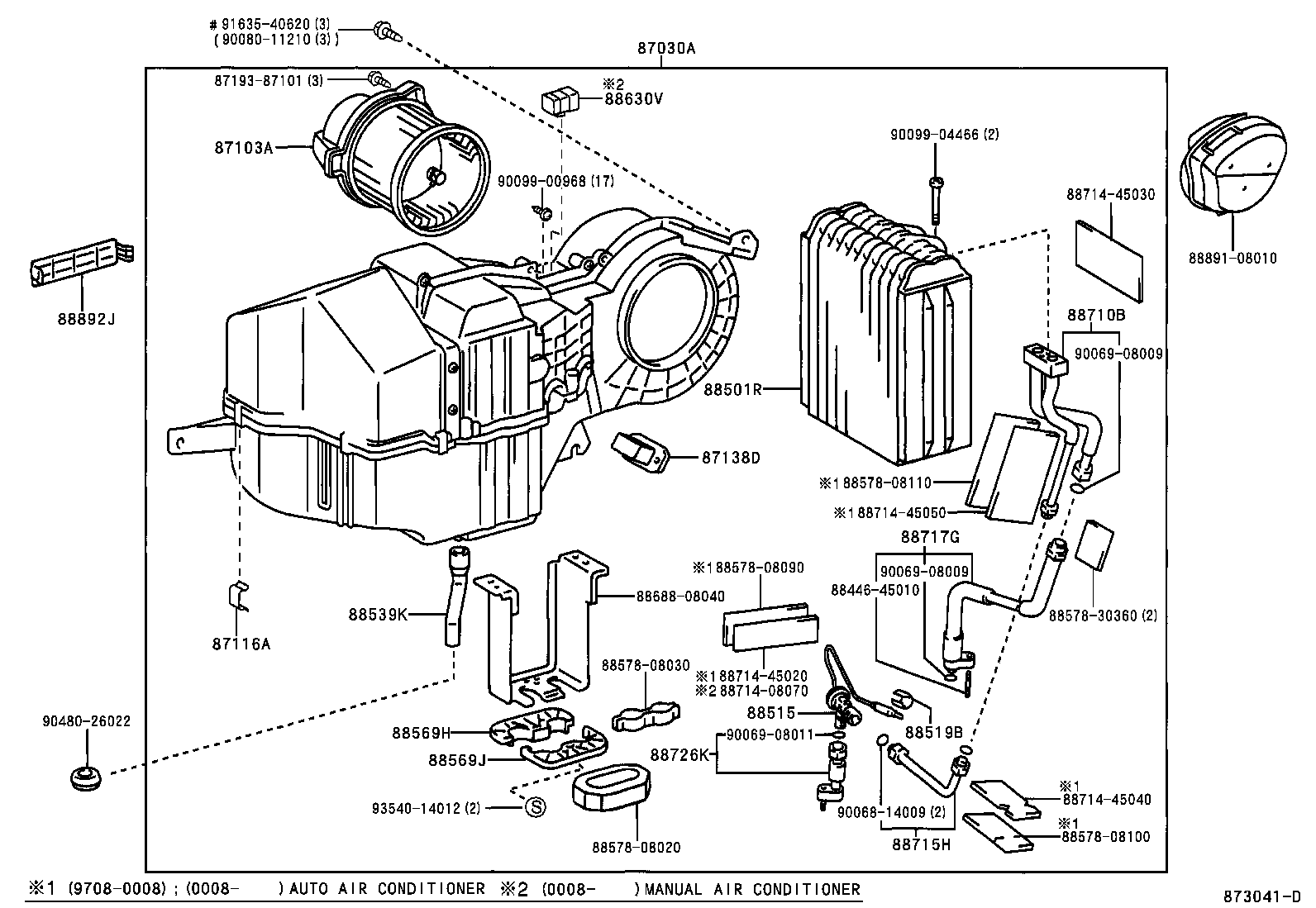

ILLUST NO. 2 OF 4(9708- )5D
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-08020 |
MCL10..5D |
1 | ||
| 87030-08041 |
MCL10..5D |
1 | ||
| 87030-08040 |
MCL10..5D |
1 | ||
| 87030-08060 |
MCL10 W(MANUAL AIR CONDITIONER) |
1 | ||
| 87030-08050 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-08030 |
MCL10..5D |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-08020 |
MCL10 |
4 | ||
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-08050 |
MCL10..5D |
1 | ||
| 88750-08010 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 87138-08060 |
MCL10 W(MANUAL AIR CONDITIONER) |
1 | ||
| 87138-08030 |
MCL10..5D |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-08040 |
MCL10..5D |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-08060 |
MCL10 FRONT |
1 | ||
| 88515-08050 |
MCL10..5D REAR |
1 | ||
| 88519B - HOLDER, REMOTE BULB, PARTS | ||||
| 88519-22030 |
MCL10..5D |
1 | ||
| 88519-22030 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 88519-08010 |
MCL10 W(MANUAL AIR CONDITIONER) |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-08010 |
MCL10..5D |
1 | ||
| 88569H - CLAMP | ||||
| 88569-08040 |
MCL10..WG |
1 | ||
| 88569J - CLAMP | ||||
| 88569-08030 |
MCL10..WG |
1 | ||
| 88630V - RELAY ASSY | ||||
| 88630-16090 |
MCL10 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-08010 |
MCL10..5D |
1 | ||
| 88715H - TUBE, DISCHARGE, H | ||||
| 88715-08110 |
MCL10..5D |
1 | ||
| 88717G - PIPE, COOLER REFRIGERANT SUCTION, G | ||||
| 88717-08230 |
MCL10..5D |
1 | ||
| 88717-08140 |
MCL10..5D |
1 | ||
| 88717-08310 |
MCL10 |
1 | ||
| 88726K - PIPE, COOLER REFRIGERANT LIQUID, K | ||||
| 88716-08150 |
MCL10..5D |
1 | ||
| 88716-08180 |
MCL10 |
1 | ||
| 88716-08070 |
MCL10..5D |
1 | ||
| 88892J - COVER SUB-ASSY | ||||
| 88892-08010 |
MCL10..5D |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88446-45010 | ||||
| 88578-08020 | ||||
| 88578-08030 | ||||
| 88578-08090 | ||||
| 88578-08100 | ||||
| 88578-08110 | ||||
| 88578-30360 | ||||
| 88688-08040 | ||||
| 88714-08070 | ||||
| 88714-45020 | ||||
| 88714-45030 | ||||
| 88714-45040 | ||||
| 88714-45050 | ||||
| 88891-08010 | ||||
| 90068-14009 | ||||
| 90069-08009 | ||||
| 90069-08011 | ||||
| 90080-11210 | ||||
| 90099-00968 | ||||
| 90099-04466 | ||||
| 90480-26022 | ||||
| 91635-40620 | ||||
| 93540-14012 | ||||

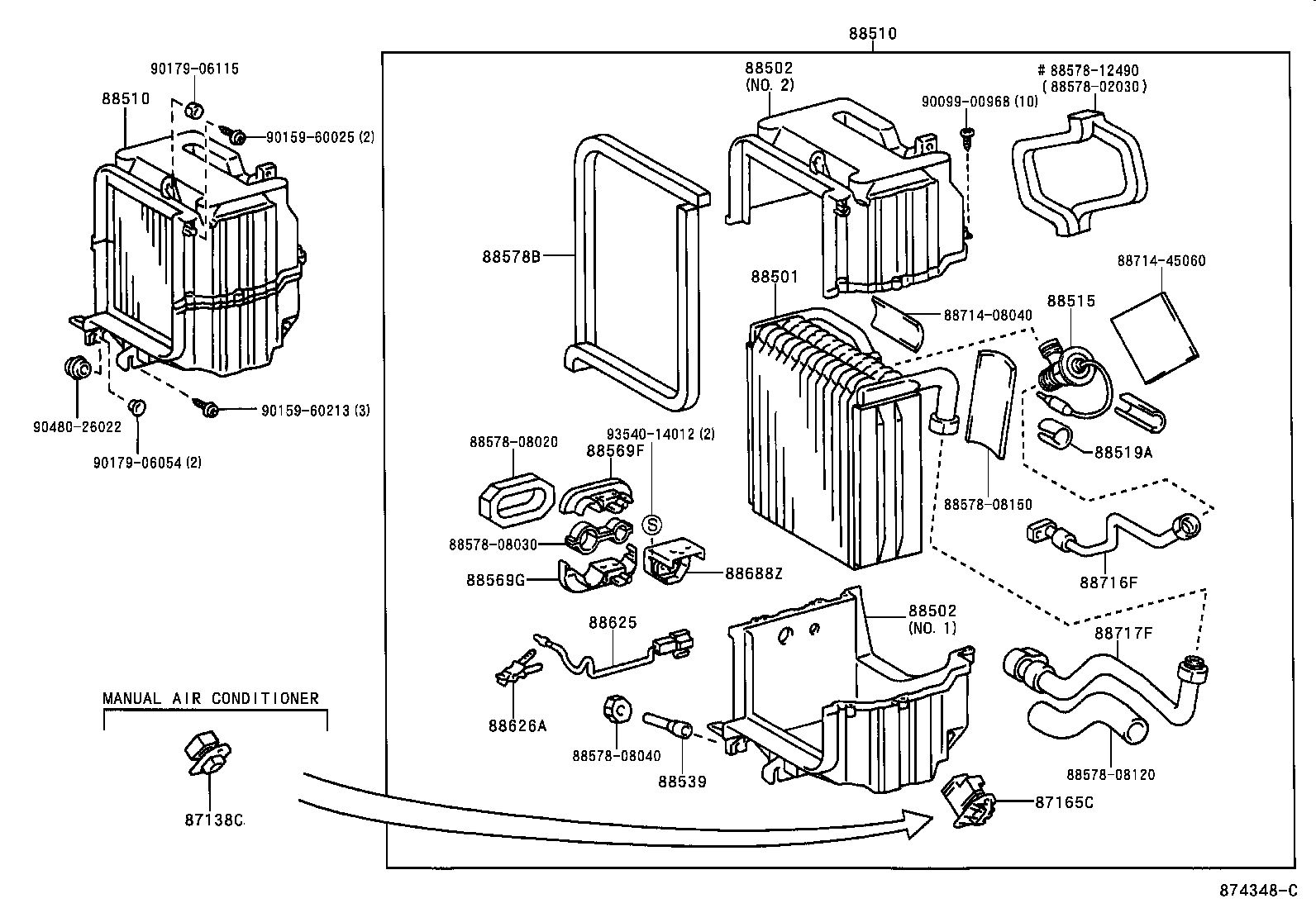

ILLUST NO. 1 OF 4(0008- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-08010 |
MCL10 |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-32010 |
MCL10..LE |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-08020 |
MCL10 |
1 | ||
| 88501-08050 |
MCL10 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-08020 |
MCL10 NO.1 |
1 | ||
| 88521-08080 |
MCL10 NO.2 |
1 | ||
| 88502-08040 |
MCL10..LE W(AUTO AIR CONDITIONER),NO.1 |
1 | ||
| 88521-08040 |
MCL10 NO.2 |
1 | ||
| 88502-08030 |
MCL10 W(MANUAL AIR CONDITIONER),NO.1 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-08020 |
MCL10 NO.1 |
1 | ||
| 88521-08080 |
MCL10 NO.2 |
1 | ||
| 88502-08040 |
MCL10..LE W(AUTO AIR CONDITIONER),NO.1 |
1 | ||
| 88521-08040 |
MCL10 NO.2 |
1 | ||
| 88502-08030 |
MCL10 W(MANUAL AIR CONDITIONER),NO.1 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-08010 |
MCL10 |
1 | ||
| 88510-08040 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 88510-08050 |
MCL10 W(MANUAL AIR CONDITIONER) |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-08010 |
MCL10 |
1 | ||
| 88510-08040 |
MCL10..LE W(AUTO AIR CONDITIONER) |
1 | ||
| 88510-08050 |
MCL10 W(MANUAL AIR CONDITIONER) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-08060 |
MCL10 FRONT |
1 | ||
| 88515-08050 |
MCL10..5D REAR |
1 | ||
| 88519A - HOLDER, REMOTE BULB, PARTS | ||||
| 88519-08010 |
MCL10 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-89108 |
MCL10 |
1 | ||
| 88569F - CLAMP | ||||
| 88569-08040 |
MCL10 |
1 | ||
| 88569G - CLAMP | ||||
| 88569-08030 |
MCL10 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-20470 |
MCL10 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-16210 |
MCL10 |
1 | ||
| 88625-52020 |
MCL10 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
MCL10 |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-45010 |
MCL10 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-08020 |
MCL10 |
1 | ||
| 88716-08190 |
MCL10 |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-08320 |
MCL10..LE |
1 | ||
| 88717-08020 |
MCL10 |
1 | ||
| Common parts | ||||
| 88578-02030 | ||||
| 88578-08020 | ||||
| 88578-08030 | ||||
| 88578-08040 | ||||
| 88578-08120 | ||||
| 88578-08150 | ||||
| 88578-12490 | ||||
| 88714-08040 | ||||
| 88714-45060 | ||||
| 90099-00968 | ||||
| 90159-60025 | ||||
| 90159-60213 | ||||
| 90179-06054 | ||||
| 90179-06115 | ||||
| 90480-26022 | ||||
| 93540-14012 | ||||
