MCL10L-PFSGKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

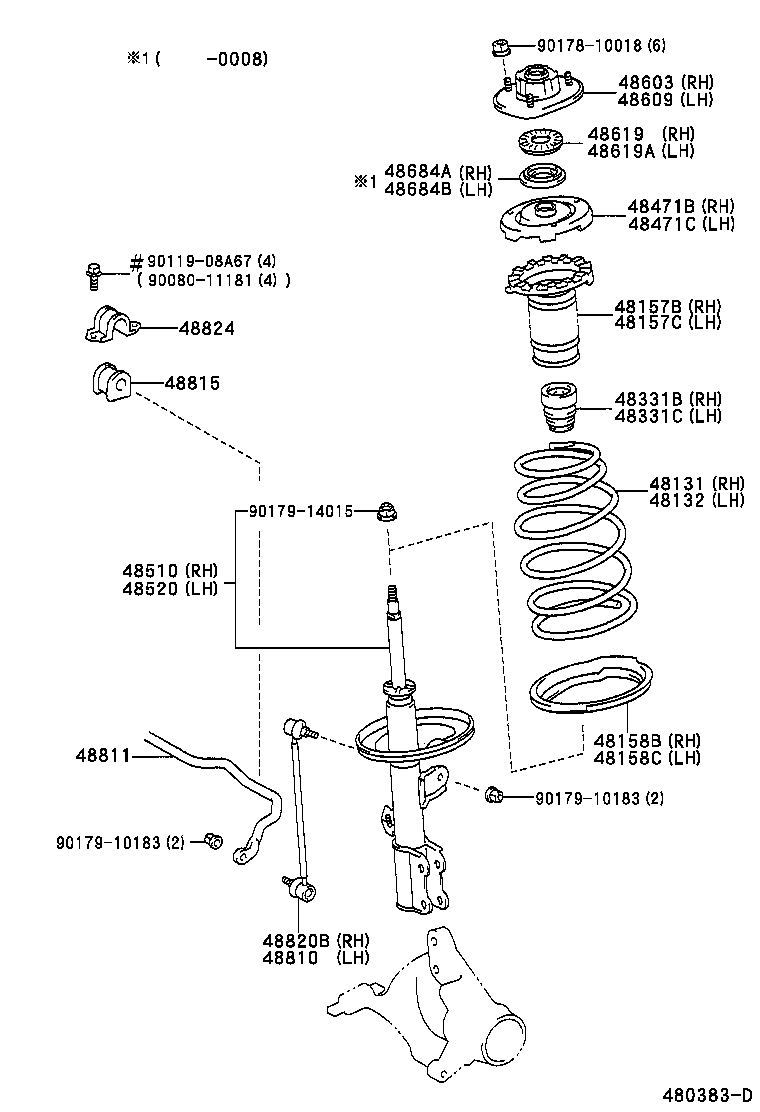

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-AE010 |
MCL10 |
1 | ||
| 48131-AE011 |
MCL10 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-AE010 |
MCL10 |
1 | ||
| 48131-AE011 |
MCL10 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-08010 |
MCL10 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-08010 |
MCL10 |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-AA020 |
MCL10 |
1 | ||
| 48158-07010 |
MCL10 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-AA020 |
MCL10 |
1 | ||
| 48158-07010 |
MCL10 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-06011 |
MCL10 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-06011 |
MCL10 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-41010 |
MCL10 |
1 | ||
| 48471-06030 |
MCL10 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-06030 |
MCL10 |
1 | ||
| 48471-41010 |
MCL10 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-A9040 |
MCL10 MARK 48510-AE010 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-A9040 |
MCL10 MARK 48520-AE010 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48603-08010 |
MCL10 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-08010 |
MCL10 |
1 | ||
| 48619 - BEARING, STRUT MOUNTING, RH | ||||
| 90080-36070 |
MCL10 |
1 | ||
| 48619-08010 |
MCL10 |
1 | ||
| 48619A - BEARING, STRUT MOUNTING, LH | ||||
| 48619-08010 |
MCL10 |
1 | ||
| 90080-36070 |
MCL10 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-08010 |
MCL10 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-08010 |
MCL10 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-08010 |
MCL10 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-AE010 |
MCL10 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-AE010 |
MCL10 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-08010 |
MCL10 |
1 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-07010 |
MCL10 |
2 | ||
| Common parts | ||||
| 90080-11181 | ||||
| 90119-08A67 | ||||
| 90178-10018 | ||||
| 90179-10183 | ||||
| 90179-14015 | ||||
