MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF 3(9708- )
Click highlighted areas on diagram
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14009 | ||||
| 90068-14010 | ||||
| 90068-14011 | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90069-08011 | ||||
| 90069-08012 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

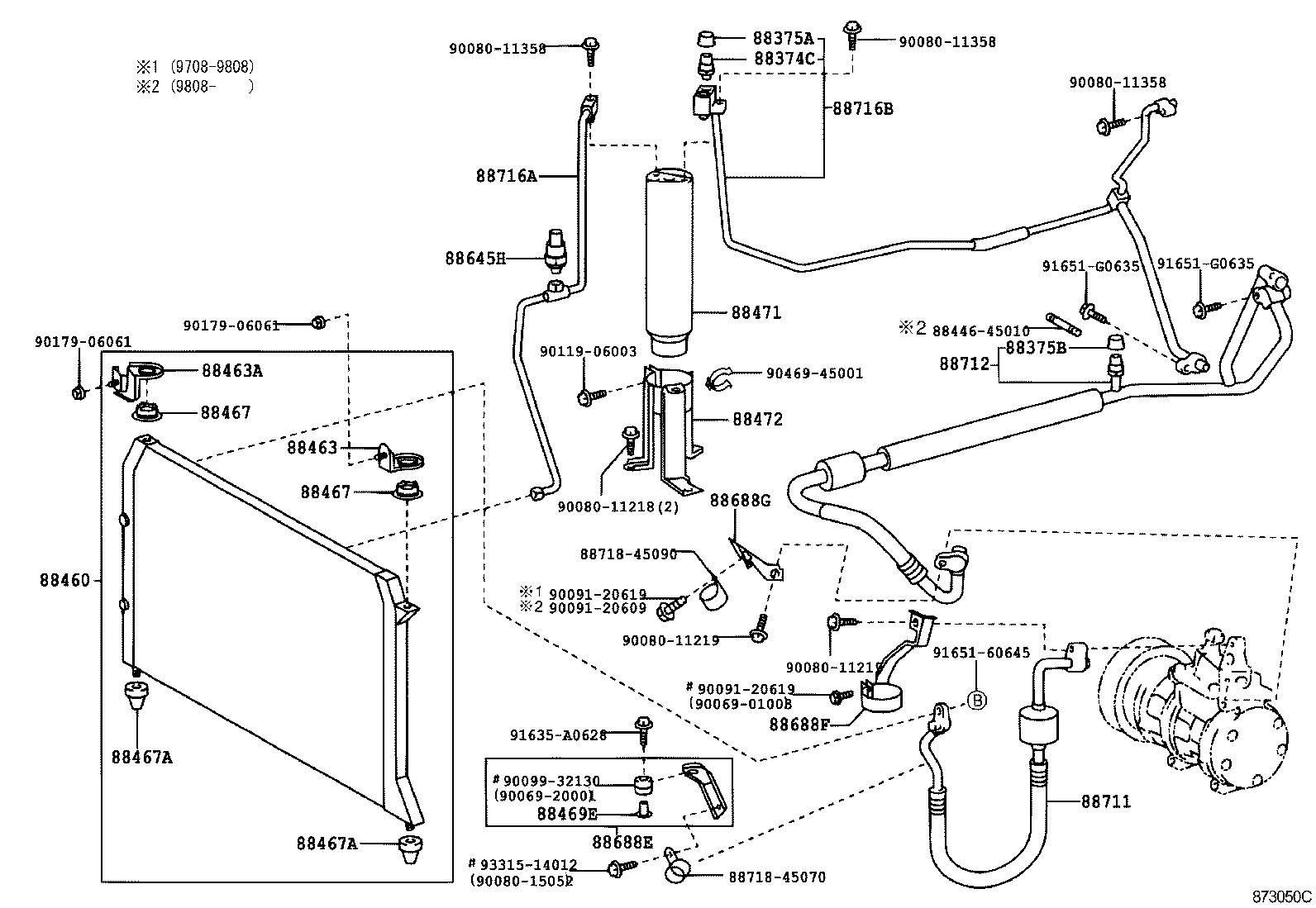

ILLUST NO. 1 OF 3(9708- )5D
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
MCL10 |
1 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
MCL10 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
MCL10 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-08010 |
MCL10 |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-45040 |
MCL10 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-45050 |
MCL10 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-45020 |
MCL10 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-45020 |
MCL10 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-24050 |
MCL10 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-24050 |
MCL10 |
2 | ||
| 88469E - COLLAR, CONDENSER BRACKET, NO.2 | ||||
| 88469-28010 |
MCL10 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-28100 |
MCL10 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-08010 |
MCL10 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
MCL10 |
1 | ||
| 88645-60030 |
MCL10 TOWING PACKAGE |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-45020 |
MCL10 |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-45060 |
MCL10 |
1 | ||
| 88688G - BRACKET, COOLER REFRIGERANT PIPE | ||||
| 88688-45030 |
MCL10 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-08010 |
MCL10 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-08060 |
MCL10..5D TOWING PACKAGE |
1 | ||
| 88712-08050 |
MCL10..5D |
1 | ||
| 88712-08060 |
MCL10 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-08050 |
MCL10 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88706-08110 |
MCL10 |
1 | ||
| 88706-08020 |
MCL10..WG W(DUAL AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 88446-45010 | ||||
| 88718-45070 | ||||
| 88718-45090 | ||||
| 90069-01003 | ||||
| 90069-20001 | ||||
| 90080-11218 | ||||
| 90080-11219 | ||||
| 90080-11358 | ||||
| 90080-15052 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90099-32130 | ||||
| 90119-06003 | ||||
| 90179-06061 | ||||
| 90469-45001 | ||||
| 91635-A0628 | ||||
| 91651-60645 | ||||
| 91651-G0635 | ||||
| 93315-14012 | ||||

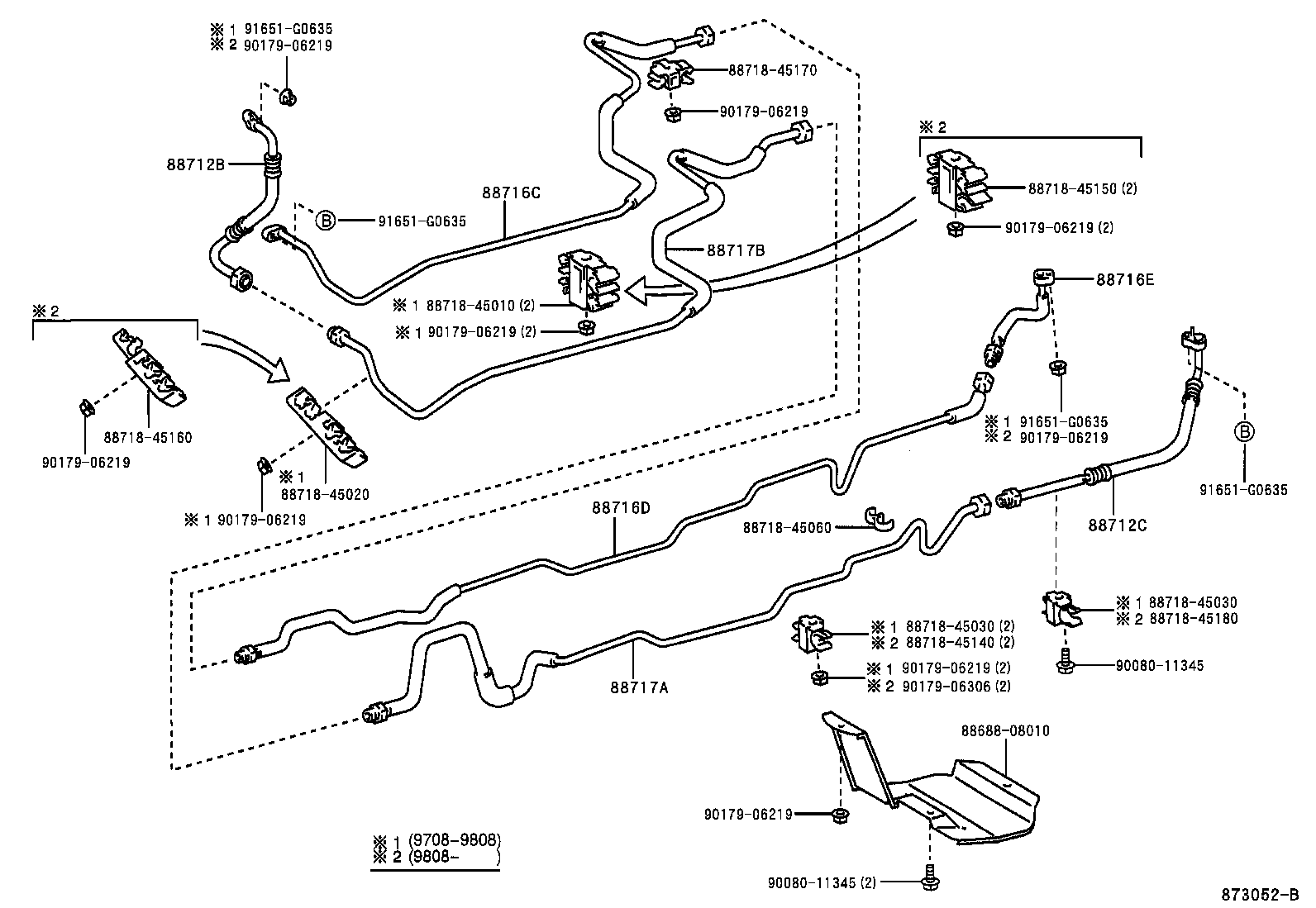

ILLUST NO. 2 OF 3(9708-0008)5D
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-45020 |
MCL10..WG |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-45040 |
MCL10..5D |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88715-08090 |
MCL10..5D |
1 | ||
| 88716-08170 |
MCL10 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88715-08100 |
MCL10..5D |
1 | ||
| 88716-08160 |
MCL10 |
1 | ||
| 88715-08060 |
MCL10..5D |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-08120 |
MCL10..5D |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-08180 |
MCL10..5D |
1 | ||
| 88717-08330 |
MCL10 |
1 | ||
| 88717-08240 |
MCL10..5D |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-08250 |
MCL10..5D |
1 | ||
| 88717-08300 |
MCL10 |
1 | ||
| 88717-08210 |
MCL10..5D |
1 | ||
| Common parts | ||||
| 88688-08010 | ||||
| 88718-45010 | ||||
| 88718-45020 | ||||
| 88718-45030 | ||||
| 88718-45060 | ||||
| 88718-45140 | ||||
| 88718-45150 | ||||
| 88718-45160 | ||||
| 88718-45170 | ||||
| 88718-45180 | ||||
| 90080-11345 | ||||
| 90179-06219 | ||||
| 90179-06306 | ||||
| 91651-G0635 | ||||

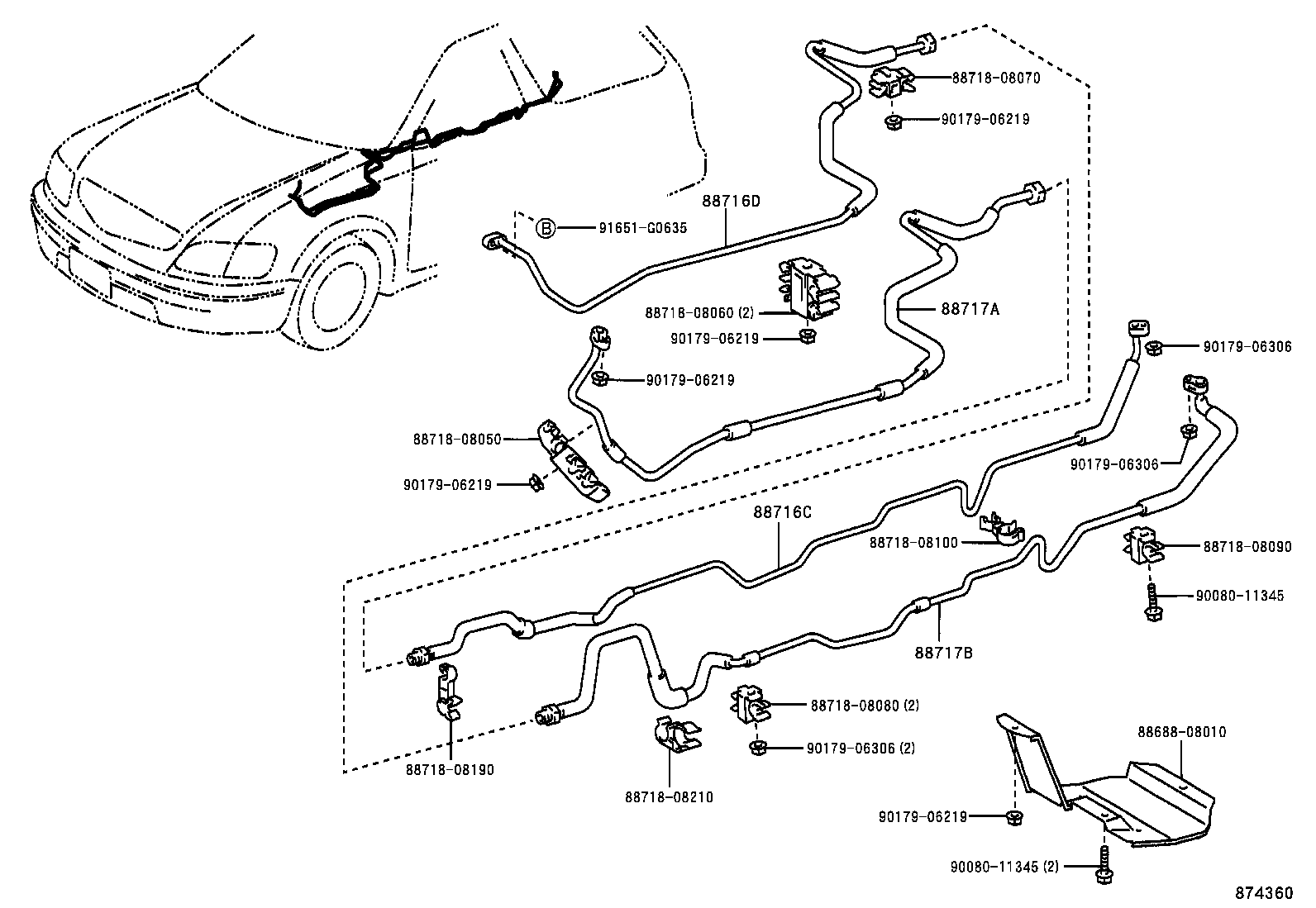

ILLUST NO. 2 OF 3(0008- )
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88715-08090 |
MCL10..5D |
1 | ||
| 88716-08170 |
MCL10 |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88715-08100 |
MCL10..5D |
1 | ||
| 88716-08160 |
MCL10 |
1 | ||
| 88715-08060 |
MCL10..5D |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-08180 |
MCL10..5D |
1 | ||
| 88717-08330 |
MCL10 |
1 | ||
| 88717-08240 |
MCL10..5D |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-08250 |
MCL10..5D |
1 | ||
| 88717-08300 |
MCL10 |
1 | ||
| 88717-08210 |
MCL10..5D |
1 | ||
| Common parts | ||||
| 88688-08010 | ||||
| 88718-08050 | ||||
| 88718-08060 | ||||
| 88718-08070 | ||||
| 88718-08080 | ||||
| 88718-08090 | ||||
| 88718-08100 | ||||
| 88718-08190 | ||||
| 88718-08210 | ||||
| 90080-11345 | ||||
| 90179-06219 | ||||
| 90179-06306 | ||||
| 91651-G0635 | ||||
