MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

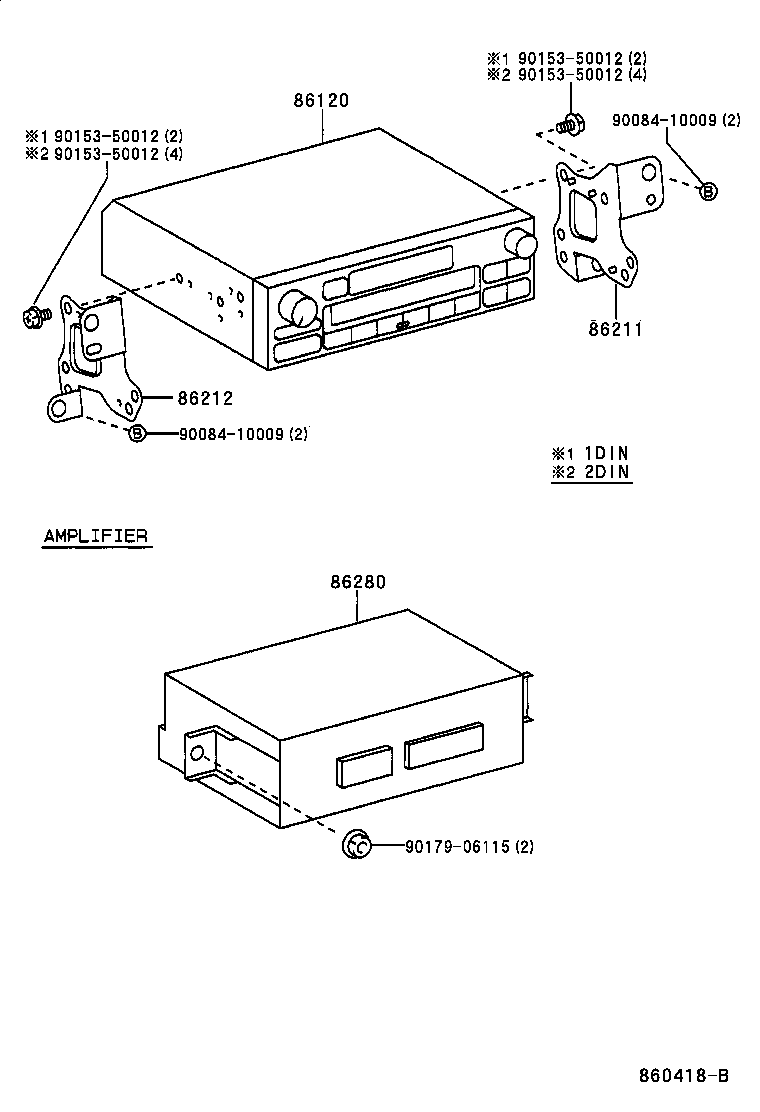

diagram 86120 86211 86212 86280 9008410009 9008410009 9015350012 9015350012 9015350012 9015350012 9017906115
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-08010

MCL10..WG

FUJITSU TEN,ID=16408,TYPE A:REFER TO ILLUSTRATION

 1
86120-08020

MCL10..WG

FUJITSU TEN,ID=11801,TYPE B:REFER TO ILLUSTRATION,W(4 SPEAKER)

 1
86120-08060

MCL10..WG

TYPE A:REFER TO ILLUSTRATION

 1
86120-0C020

MCL10..WG

FUJITSU TEN USA,TYPE F:REFER TO ILLUSTRATION

 1
86120-08070

MCL10..WG

TYPE B:REFER TO ILLUSTRATION,W(4 SPEAKER)

 1
86211 - BRACKET, RADIO, NO.1
86211-08020

MCL10

 1
86211-08010

MCL10

 1
86212 - BRACKET, RADIO, NO.2
86212-08020

MCL10

 1
86212-08010

MCL10

 1
Common parts
90084-10009
90153-50012
90179-06115

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

KNOB,RADIO RECEIVER

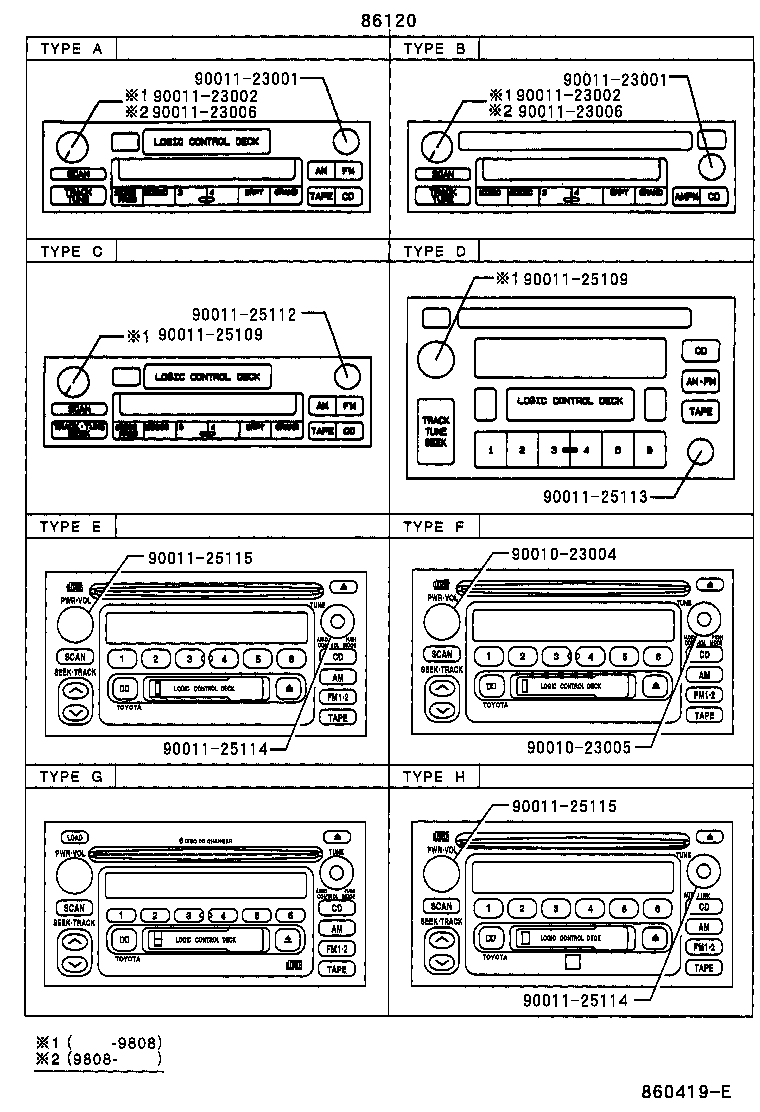

diagram 86120 9001023004 9001023005 9001123001 9001123001 9001123002 9001123002 9001123006 9001123006 9001125109 9001125109 9001125112 9001125113 9001125114 9001125114 9001125115 9001125115
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-08010

MCL10..WG

FUJITSU TEN,ID=16408,TYPE A:REFER TO ILLUSTRATION

 1
86120-08020

MCL10..WG

FUJITSU TEN,ID=11801,TYPE B:REFER TO ILLUSTRATION,W(4 SPEAKER)

 1
86120-08060

MCL10..WG

TYPE A:REFER TO ILLUSTRATION

 1
86120-0C020

MCL10..WG

FUJITSU TEN USA,TYPE F:REFER TO ILLUSTRATION

 1
86120-08070

MCL10..WG

TYPE B:REFER TO ILLUSTRATION,W(4 SPEAKER)

 1
Common parts
90010-23004
90010-23005
90011-23001
90011-23002
90011-23006
90011-25109
90011-25112
90011-25113
90011-25114
90011-25115

ILLUST NO. 3 OF 3(9808- )WG

Click highlighted areas on diagram

AUDIO CONTROL SWITCH

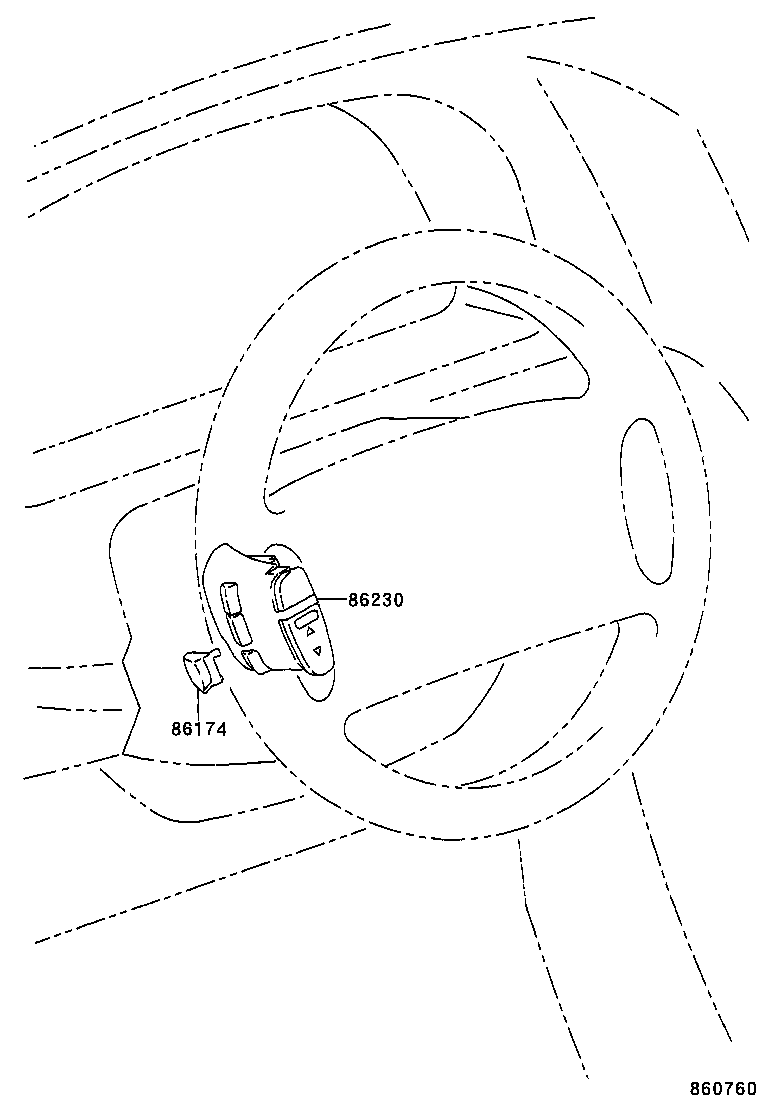

diagram 86174 86230
Part # Description Qty Price
86174 - CASE, SWITCH & VOLUME
86174-45010

MCL10..WG

 1
86230 - CONTROLLER ASSY, STEREO COMPONENT
86230-45010

MCL10..WG

 1

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

KNOB,RADIO RECEIVER,CONDENSER

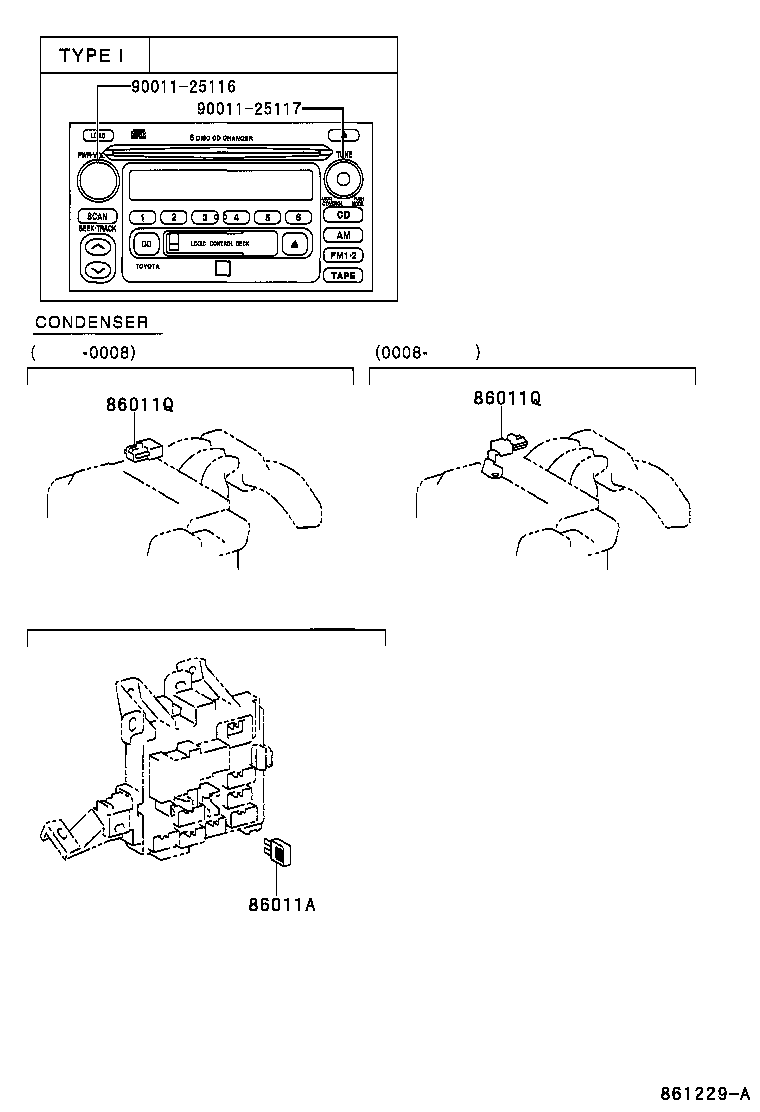

diagram 86011A 86011Q 86011Q 9001125116 9001125117
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04066

MCL10

 1
86011Q - CONDENSER, RADIO SETTING
90980-04153

MCL10

 1
90980-04083

MCL10

 1
86011Q - CONDENSER, RADIO SETTING
90980-04153

MCL10

 1
90980-04083

MCL10

 1
Common parts
90011-25116
90011-25117
