MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

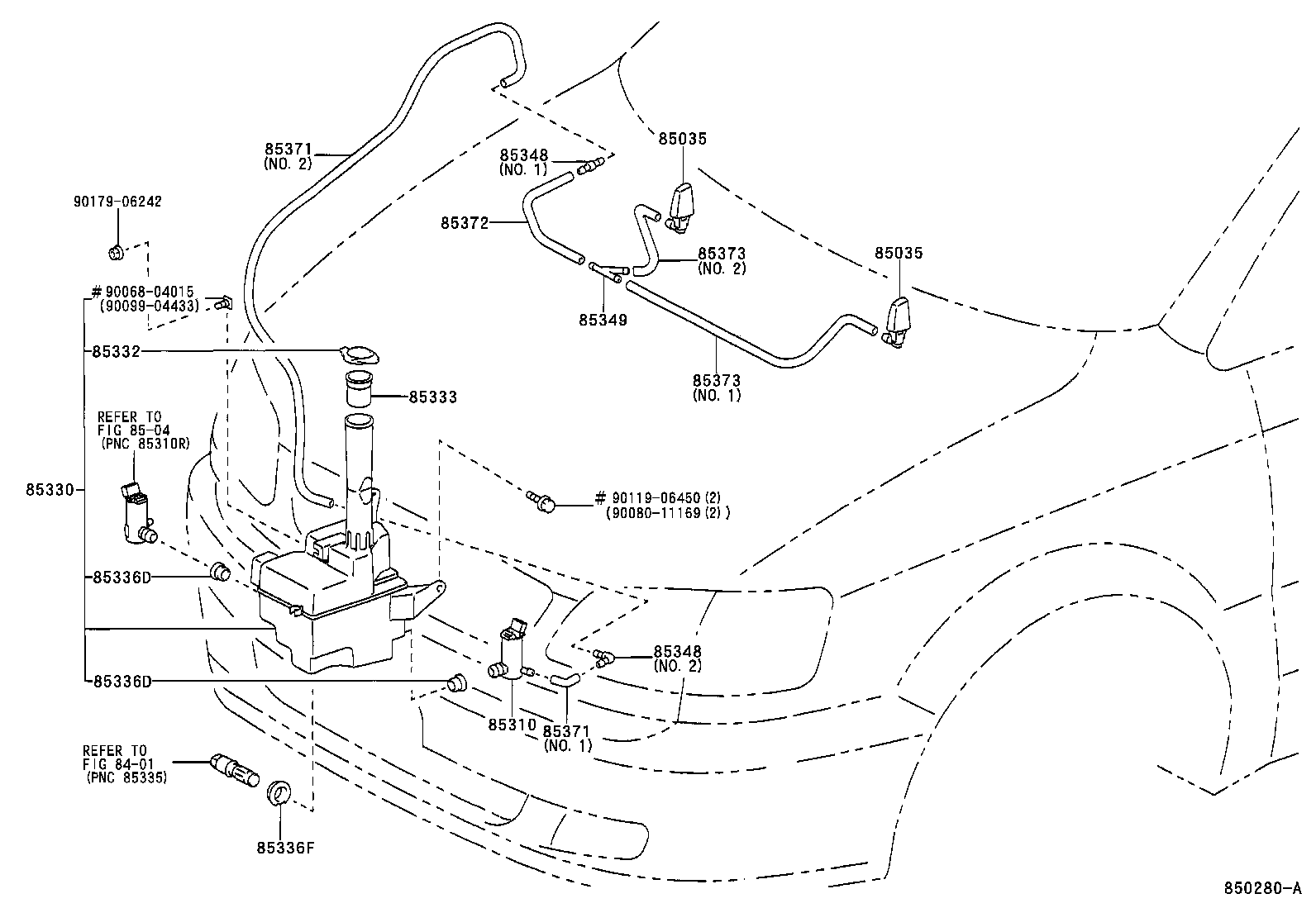

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-08010 |
MCL10 LH |
1 | ||
| 85381-08010 |
MCL10 RH |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85382-08010 |
MCL10 LH |
1 | ||
| 85381-08010 |
MCL10 RH |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-AA010 |
MCL10 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-08010 |
MCL10 |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-AA020 |
MCL10 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-AA020 |
MCL10 |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 90068-32002 |
MCL10 |
2 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 90068-32002 |
MCL10 |
2 | ||
| 85336F - PACKING, WINDSHIELD WASHER JAR | ||||
| 85319-AA020 |
MCL10 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-06020 |
MCL10 NO.1 |
1 | ||
| 85355-20200 |
MCL10 NO.2 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-06020 |
MCL10 NO.1 |
1 | ||
| 85355-20200 |
MCL10 NO.2 |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85378-01010 |
MCL10 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85355-14481 |
MCL10 NO.1 |
1 | ||
| 85374-08030 |
MCL10 L=1560,NO.2 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85355-14481 |
MCL10 NO.1 |
1 | ||
| 85374-08030 |
MCL10 L=1560,NO.2 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 85374-08010 |
MCL10 L=425 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 85374-08050 |
MCL10 L=780,NO.1 |
1 | ||
| 85374-08060 |
MCL10 L=240,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 85374-08050 |
MCL10 L=780,NO.1 |
1 | ||
| 85374-08060 |
MCL10 L=240,NO.2 |
1 | ||
| Common parts | ||||
| 90068-04015 | ||||
| 90080-11169 | ||||
| 90099-04433 | ||||
| 90119-06450 | ||||
| 90179-06242 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8504 | ||||
