MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )

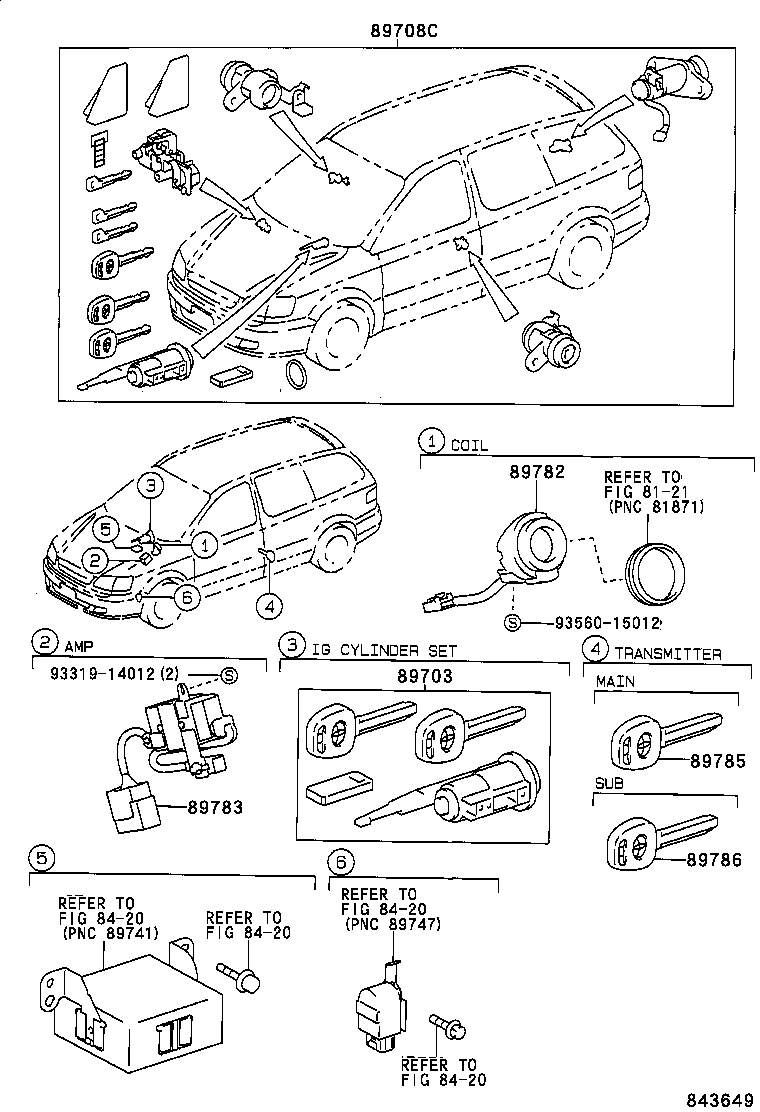

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER | ||||
| 89703-45010 |
MCL10 |
1 | ||
| 89708C - CYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER | ||||
| 89708-45020 |
MCL10 |
1 | ||
| 89782 - COIL, TRANSPONDER KEY | ||||
| 89782-45010 |
MCL10 |
1 | ||
| 89783 - AMPLIFIER, TRANSPONDER KEY | ||||
| 89783-45010 |
MCL10 |
1 | ||
| 89785 - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-26020 |
MCL10 |
1 | ||
| 89786 - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-60050 |
MCL10 |
1 | ||
| Common parts | ||||
| 93319-14012 | ||||
| 93560-15012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8420 | ||||
