MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

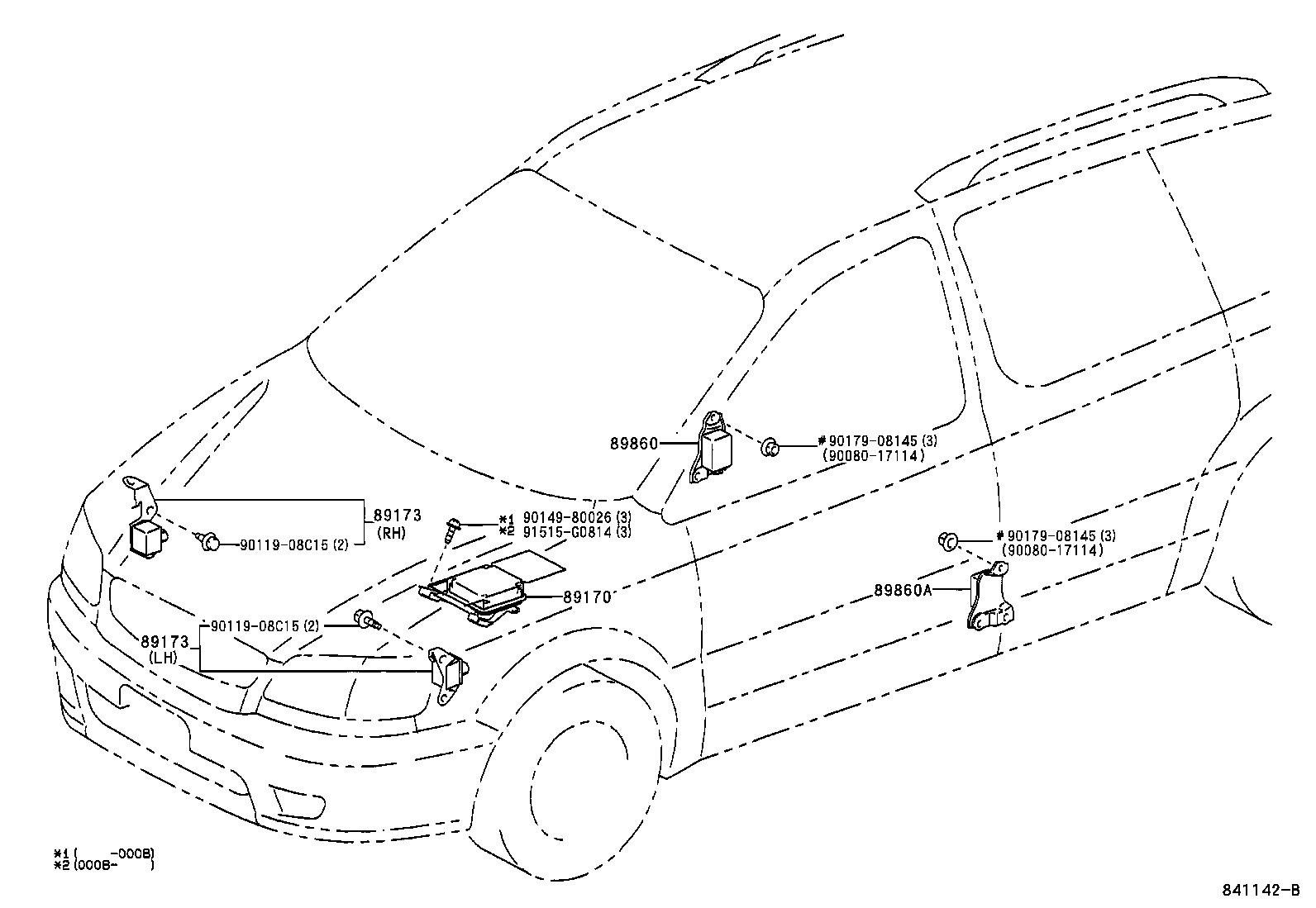

Click highlighted areas on diagram

diagram 89170 89173 89173 89860 89860A 9008017114 9008017114 9011908C15 9011908C15 9014980026 9017908145 9017908145 91515G0814
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-08011

MCL10

 1
89170-08030

MCL10

 1
89170-08040

MCL10

W(SIDE AIR BAG)

 1
89170-08010

MCL10

 1
89173 - SENSOR, AIR BAG, FRONT
89173-49035

MCL10

RH

 1
89173-49045

MCL10

LH

 1
89173 - SENSOR, AIR BAG, FRONT
89173-49035

MCL10

RH

 1
89173-49045

MCL10

LH

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-45010

MCL10

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-45010

MCL10

 1
Common parts
90080-17114
90119-08C15
90149-80026
90179-08145
91515-G0814
