MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

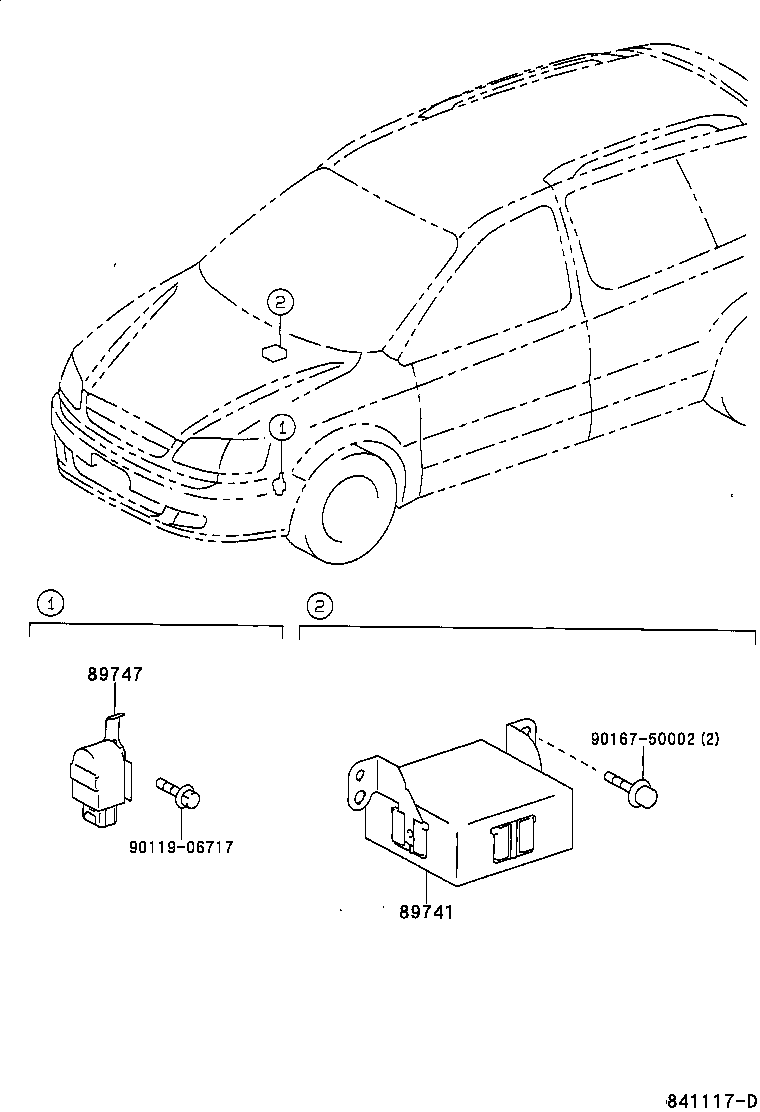

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

diagram 89741 89747 9011906717 9016750002
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-08030

MCL10..WG

 1
89741-08010

MCL10..WG

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-45020

MCL10

 1
Common parts
90119-06717
90167-50002

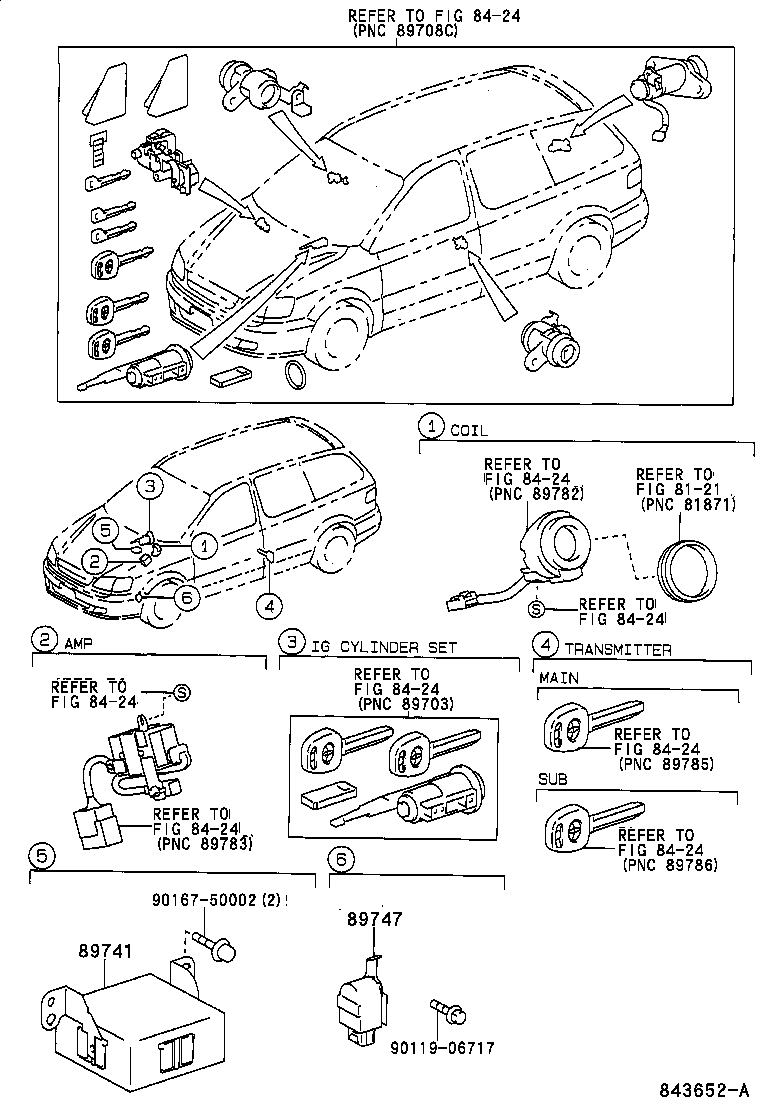

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

W(IMMOBILIZER)

diagram 8121 8424 8424 8424 8424 8424 8424 8424 8424 89741 89747 9011906717 9016750002
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-08030

MCL10..WG

 1
89741-08010

MCL10..WG

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-45020

MCL10

 1
Common parts
90119-06717
90167-50002
Linked diagrams
8121
8424

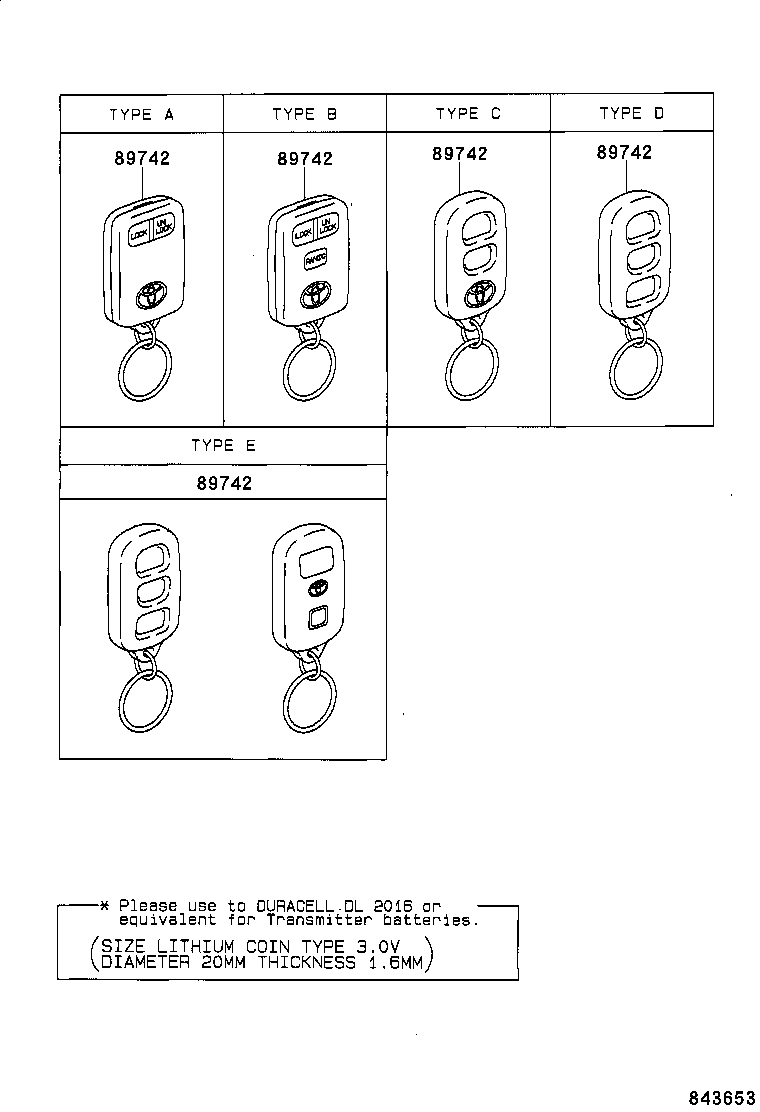

ILLUST NO. 2 OF 2(9708- )

Click highlighted areas on diagram

diagram 89742 89742 89742 89742 89742
Part # Description Qty Price
89742 - TRANSMITTER, DOOR CONTROL
89742-06010

MCL10..WG

TYPE C:REFER TO ILLUSTRATION

 2
89742-08010

MCL10..WG

TYPE A:REFER TO ILLUSTRATION

 2
89742-08050

MCL10

TYPE D:REFER TO ILLUSTRATION

 2
89742 - TRANSMITTER, DOOR CONTROL
89742-06010

MCL10..WG

TYPE C:REFER TO ILLUSTRATION

 2
89742-08010

MCL10..WG

TYPE A:REFER TO ILLUSTRATION

 2
89742-08050

MCL10

TYPE D:REFER TO ILLUSTRATION

 2
89742 - TRANSMITTER, DOOR CONTROL
89742-06010

MCL10..WG

TYPE C:REFER TO ILLUSTRATION

 2
89742-08010

MCL10..WG

TYPE A:REFER TO ILLUSTRATION

 2
89742-08050

MCL10

TYPE D:REFER TO ILLUSTRATION

 2
89742 - TRANSMITTER, DOOR CONTROL
89742-06010

MCL10..WG

TYPE C:REFER TO ILLUSTRATION

 2
89742-08010

MCL10..WG

TYPE A:REFER TO ILLUSTRATION

 2
89742-08050

MCL10

TYPE D:REFER TO ILLUSTRATION

 2
89742 - TRANSMITTER, DOOR CONTROL
89742-06010

MCL10..WG

TYPE C:REFER TO ILLUSTRATION

 2
89742-08010

MCL10..WG

TYPE A:REFER TO ILLUSTRATION

 2
89742-08050

MCL10

TYPE D:REFER TO ILLUSTRATION

 2
