MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

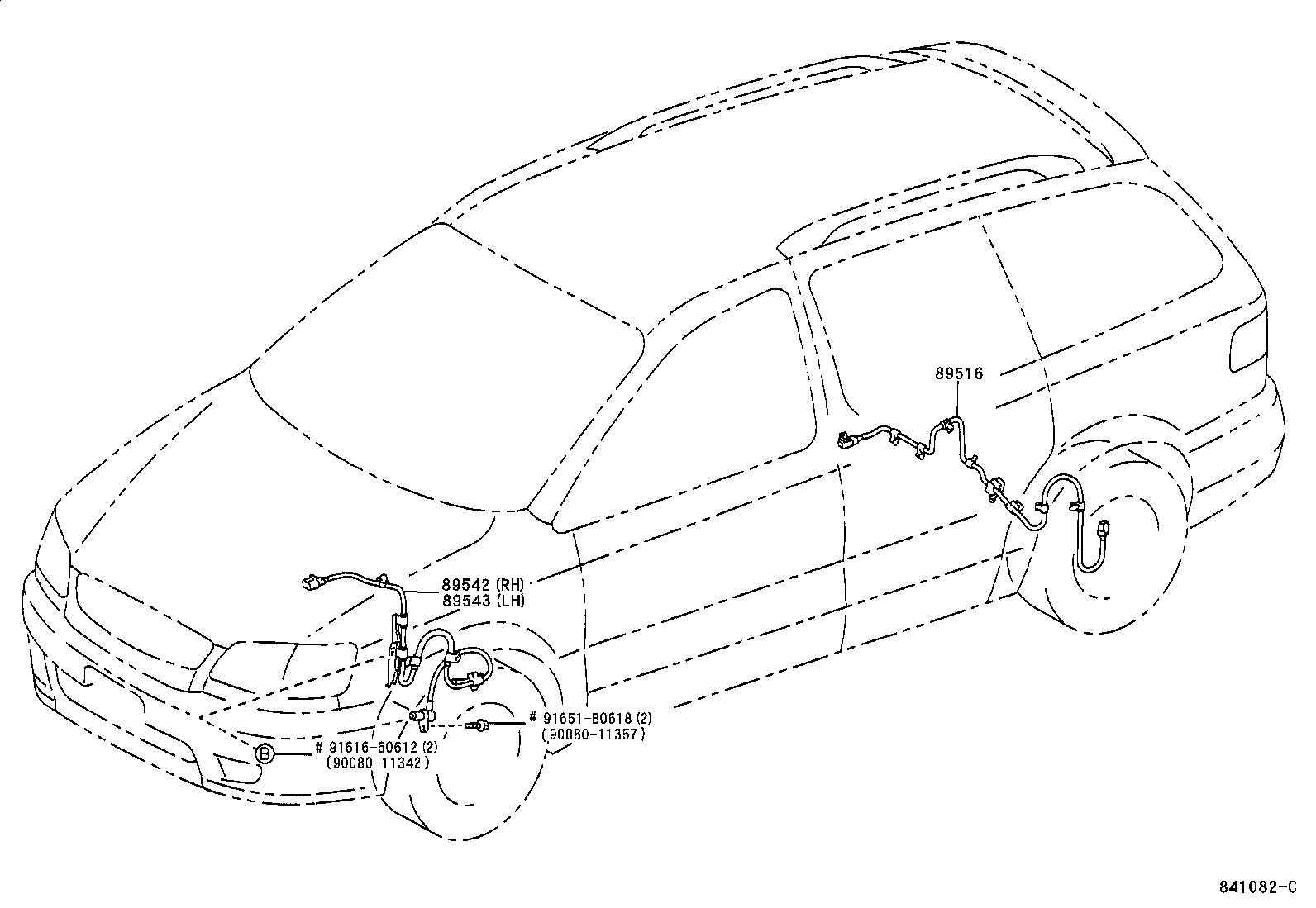

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-45040 |
MCL10 LH |
1 | ||
| 89516-45030 |
MCL10 RH |
1 | ||
| 89516-45020 |
MCL10 LH |
1 | ||
| 89516-45010 |
MCL10 RH |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-45010 |
MCL10 |
1 | ||
| 89542-08010 |
MCL10 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-45010 |
MCL10 |
1 | ||
| 89543-08010 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-11342 | ||||
| 90080-11357 | ||||
| 91616-60612 | ||||
| 91651-B0618 | ||||
(0008- )

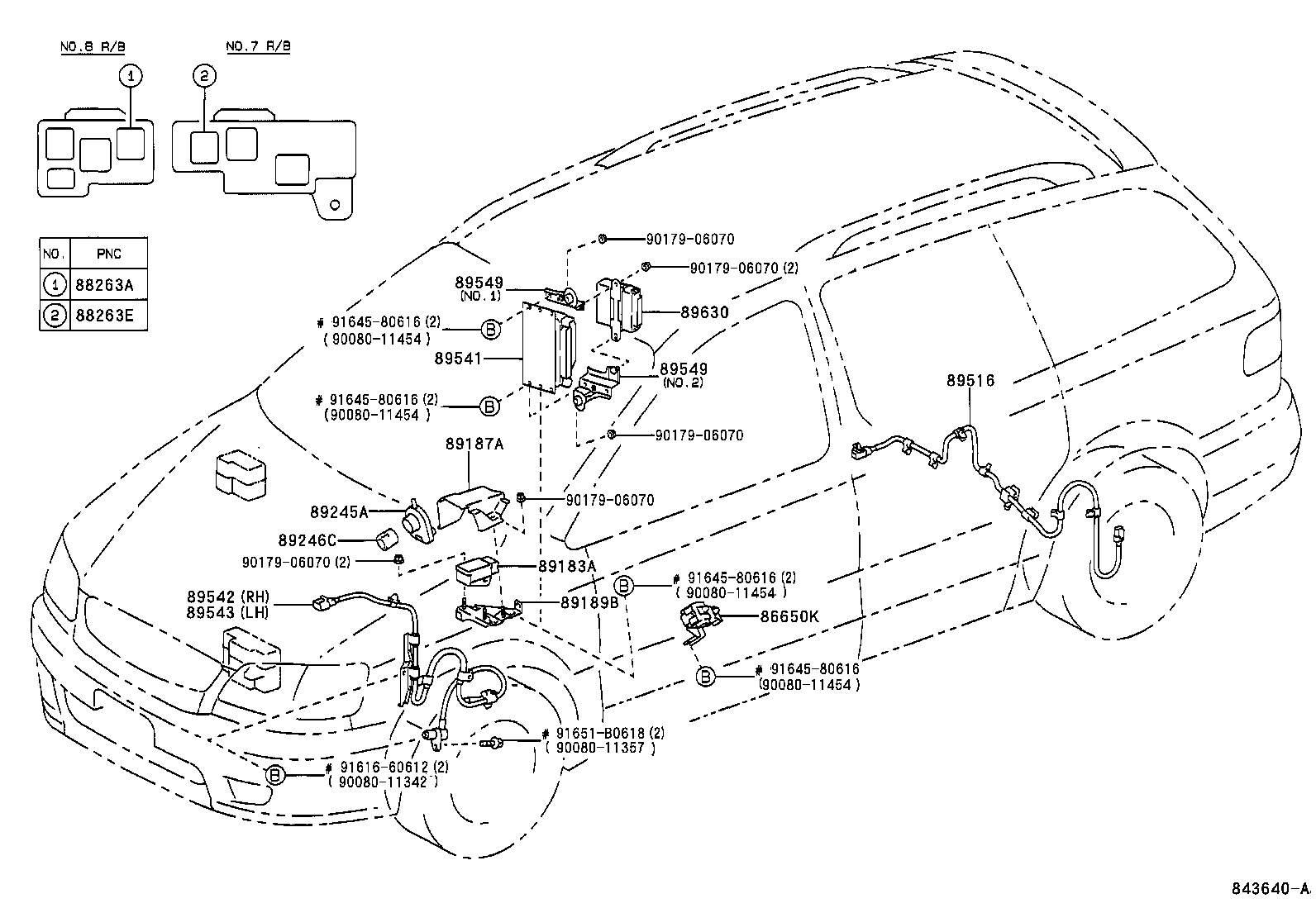

Click highlighted areas on diagram
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86650K - BUZZER ASSY, SKID CONTROL | ||||
| 86650-45010 |
MCL10 W(VSC) |
1 | ||
| 86650-45020 |
MCL10 W(VSC) |
1 | ||
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-24020 |
MCL10 W(VSC) |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-24030 |
MCL10 W(VSC) |
1 | ||
| 89183A - SENSOR, YAWRATE | ||||
| 89183-08010 |
MCL10 W(VSC) |
1 | ||
| 89187A - PROTECTOR, YAWRATE SENSOR | ||||
| 89187-45010 |
MCL10 W(VSC) |
1 | ||
| 89189B - BRACKET, YAWRATE SENSOR | ||||
| 89189-45010 |
MCL10 W(VSC) |
1 | ||
| 89245A - SENSOR, STEERING | ||||
| 89245-05010 |
MCL10 W(VSC) |
1 | ||
| 89246C - ADAPTER, STEERING SENSOR | ||||
| 89246-08010 |
MCL10 W(VSC) |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-45040 |
MCL10 LH |
1 | ||
| 89516-45030 |
MCL10 RH |
1 | ||
| 89516-45020 |
MCL10 LH |
1 | ||
| 89516-45010 |
MCL10 RH |
1 | ||
| 89541 - COMPUTER, SKID CONTROL | ||||
| 89541-08020 |
MCL10 W(VSC) |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-45010 |
MCL10 |
1 | ||
| 89542-08010 |
MCL10 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-45010 |
MCL10 |
1 | ||
| 89543-08010 |
MCL10 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 89549-45020 |
MCL10 W(VSC),N0.2 |
1 | ||
| 89549-45010 |
MCL10 W(VSC),NO.1 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 89549-45020 |
MCL10 W(VSC),N0.2 |
1 | ||
| 89549-45010 |
MCL10 W(VSC),NO.1 |
1 | ||
| 89630 - COMPUTER ASSY, TRANSLATE | ||||
| 89630-45010 |
MCL10 W(VSC) |
1 | ||
| Common parts | ||||
| 90080-11342 | ||||
| 90080-11357 | ||||
| 90080-11454 | ||||
| 90179-06070 | ||||
| 91616-60612 | ||||
| 91645-80616 | ||||
| 91651-B0618 | ||||
