Toyota Sienna MCL10 ELECTRONIC FUEL INJECTION SYSTEM

MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003

Engine 1MZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

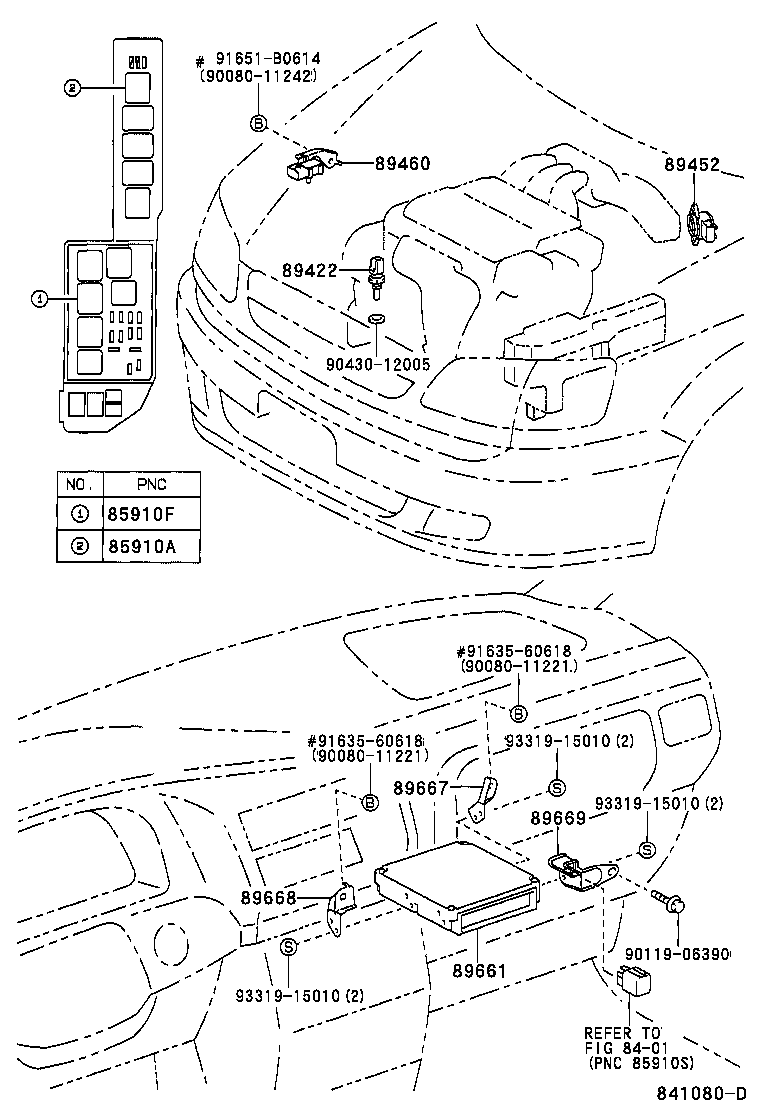

Click highlighted areas on diagram

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90084-98031	MCL10 NIPPONDENSO USA	08/1997 - 12/2999	1
90987-02012	MCL10 NIPPONDENSO JAPAN	08/1997 - 12/2999	1
85910F - RELAY, COMPUTER (FOR EFI)
90084-98031	MCL10 NIPPONDENSO USA	08/1997 - 12/2999	1
90987-02012	MCL10 NIPPONDENSO JAPAN	08/1997 - 12/2999	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010	MCL10	08/1997 - 12/2999	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-06020	MCL10	08/1997 - 12/2999	1
89460 - SENSOR ASSY, VAPOR PRESSURE
89460-08020	MCL10	08/1997 - 08/2000	1
89461-0C010	MCL10	08/2000 - 12/2999	1
89661 - COMPUTER, ENGINE CONTROL
89661-08060	MCL10	08/2000 - 10/2000	1
89661-08010	MCL10	08/1997 - 02/1998	1
89661-08011	MCL10	02/1998 - 08/1998	1
89661-08050	MCL10	06/1999 - 08/2000	1
89661-08020	MCL10..USA CALIFORNIA SPEC	08/1998 - 06/1999	1
89661-08080	MCL10	07/2002 - 12/2999	1
89661-08061	MCL10	10/2000 - 07/2001	1
89661-08070	MCL10	07/2001 - 07/2002	1
89661-08040	MCL10..USA CALIFORNIA SPEC	06/1999 - 08/2000	1
89661-08030	MCL10	08/1998 - 06/1999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-08020	MCL10	08/2000 - 12/2999	1
89667-08010	MCL10	08/1997 - 08/2000	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-08010	MCL10	08/1997 - 12/2999	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-08030	MCL10	08/2000 - 12/2999	1
89669-08020	MCL10	08/1998 - 08/2000	1
89669-08010	MCL10	08/1997 - 08/1998	1
Common parts
90080-11221
90080-11242
90119-06390
90430-12005
91635-60618
91651-B0614
93319-15010
Linked diagrams
8401

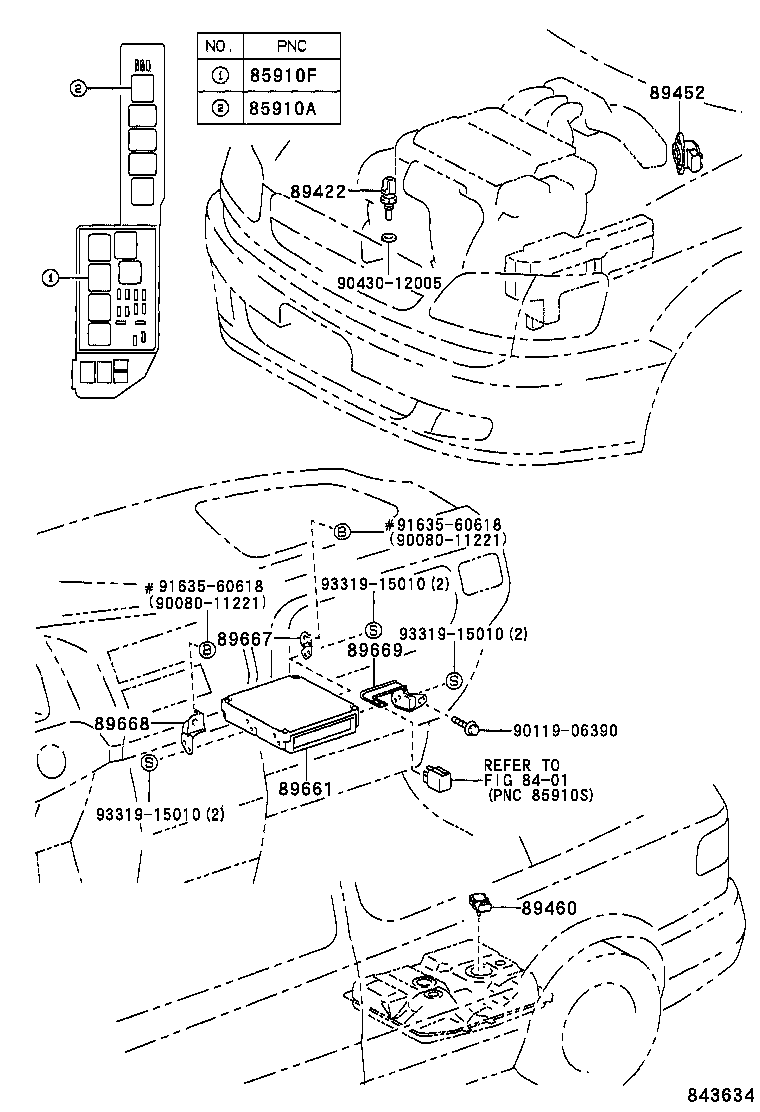

Click highlighted areas on diagram

Part #	Description	Period	Qty
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90084-98031	MCL10 NIPPONDENSO USA	08/1997 - 12/2999	1
90987-02012	MCL10 NIPPONDENSO JAPAN	08/1997 - 12/2999	1
85910F - RELAY, COMPUTER (FOR EFI)
90084-98031	MCL10 NIPPONDENSO USA	08/1997 - 12/2999	1
90987-02012	MCL10 NIPPONDENSO JAPAN	08/1997 - 12/2999	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010	MCL10	08/1997 - 12/2999	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-06020	MCL10	08/1997 - 12/2999	1
89460 - SENSOR ASSY, VAPOR PRESSURE
89460-08020	MCL10	08/1997 - 08/2000	1
89461-0C010	MCL10	08/2000 - 12/2999	1
89661 - COMPUTER, ENGINE CONTROL
89661-08060	MCL10	08/2000 - 10/2000	1
89661-08010	MCL10	08/1997 - 02/1998	1
89661-08011	MCL10	02/1998 - 08/1998	1
89661-08050	MCL10	06/1999 - 08/2000	1
89661-08020	MCL10..USA CALIFORNIA SPEC	08/1998 - 06/1999	1
89661-08080	MCL10	07/2002 - 12/2999	1
89661-08061	MCL10	10/2000 - 07/2001	1
89661-08070	MCL10	07/2001 - 07/2002	1
89661-08040	MCL10..USA CALIFORNIA SPEC	06/1999 - 08/2000	1
89661-08030	MCL10	08/1998 - 06/1999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-08020	MCL10	08/2000 - 12/2999	1
89667-08010	MCL10	08/1997 - 08/2000	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-08010	MCL10	08/1997 - 12/2999	1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-08030	MCL10	08/2000 - 12/2999	1
89669-08020	MCL10	08/1998 - 08/2000	1
89669-08010	MCL10	08/1997 - 08/1998	1
Common parts
90080-11221
90119-06390
90430-12005
91635-60618
93319-15010
Linked diagrams
8401
