MCL10L-PFSDKA (1997)
Toyota Sienna

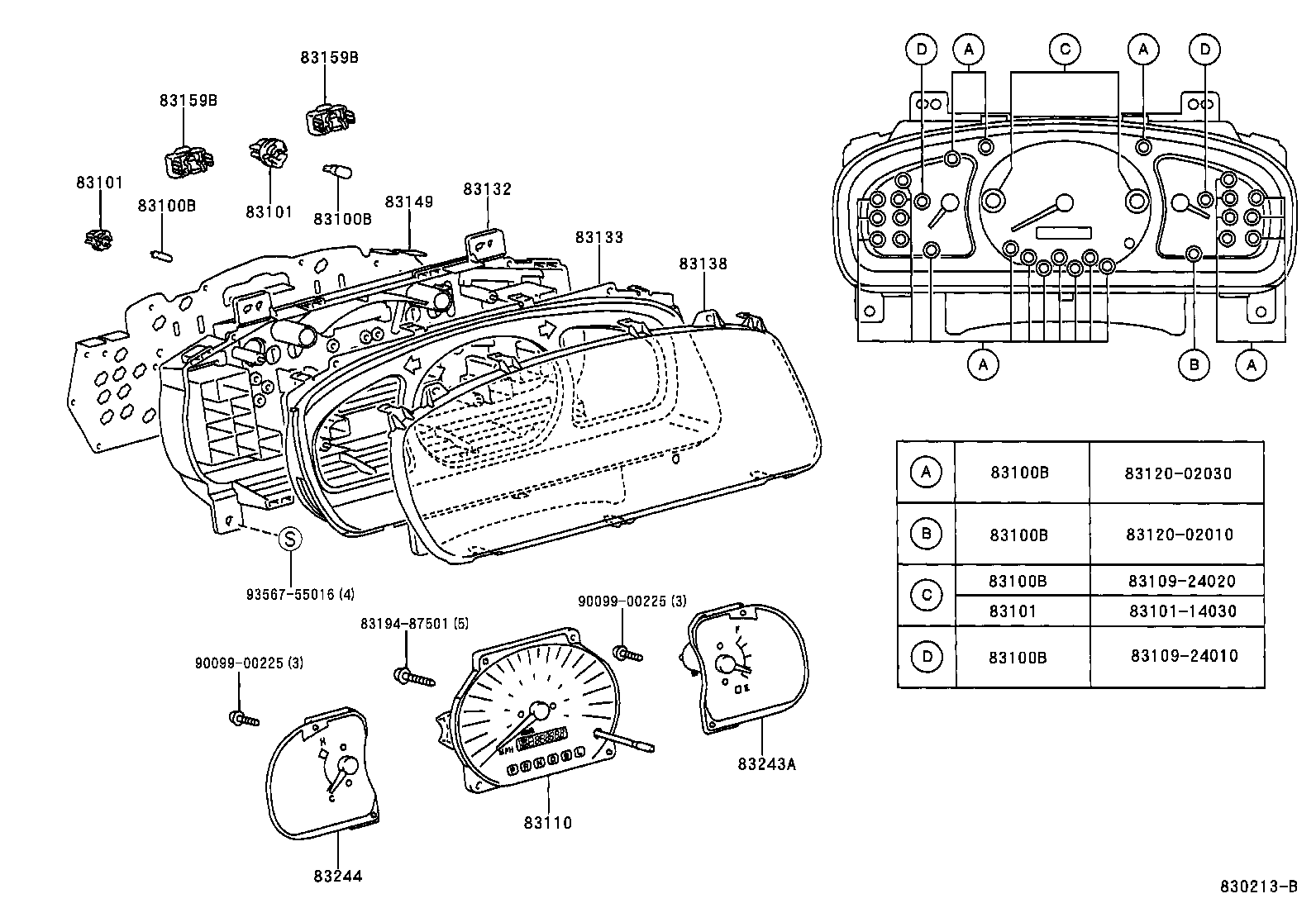

ILLUST NO. 1 OF 2(9708- )
W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCL10 |
1 | ||
| 83101-14030 |
MCL10 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
MCL10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCL10..CE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCL10 |
1 | ||
| 83101-14030 |
MCL10 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
MCL10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCL10..CE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCL10 |
1 | ||
| 83101-14030 |
MCL10 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
MCL10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCL10..CE |
2 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-08030 |
MCL10..CE..USA |
1 | ||
| 83220-08050 |
MCL10..USA W(TACHOMETER) |
1 | ||
| 83220-08070 |
MCL10..CE..USA |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-08010 |
MCL10 W(TACHOMETER) |
1 | ||
| 83841-08030 |
MCL10..CE |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-08010 |
MCL10 W(TACHOMETER) |
1 | ||
| 83811-08030 |
MCL10..CE |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-08030 |
MCL10..CE |
1 | ||
| 83852-08010 |
MCL10 W(TACHOMETER) |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-08110 |
MCL10..CE |
1 | ||
| 83861-08070 |
MCL10..CE |
1 | ||
| 83861-08090 |
MCL10 W(TACHOMETER) |
1 | ||
| 83861-08030 |
MCL10..CE |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
MCL10 |
2 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
MCL10 |
2 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-08030 |
MCL10..CE..USA |
1 | ||
| 83882-08050 |
MCL10..USA W(TACHOMETER) |
1 | ||
| 83882-08070 |
MCL10..CE..USA |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-08070 |
MCL10..CE..USA |
1 | ||
| 83883-08030 |
MCL10..CE..USA |
1 | ||
| 83883-08050 |
MCL10..USA W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 83194-87501 | ||||
| 90099-00225 | ||||
| 93567-55016 | ||||

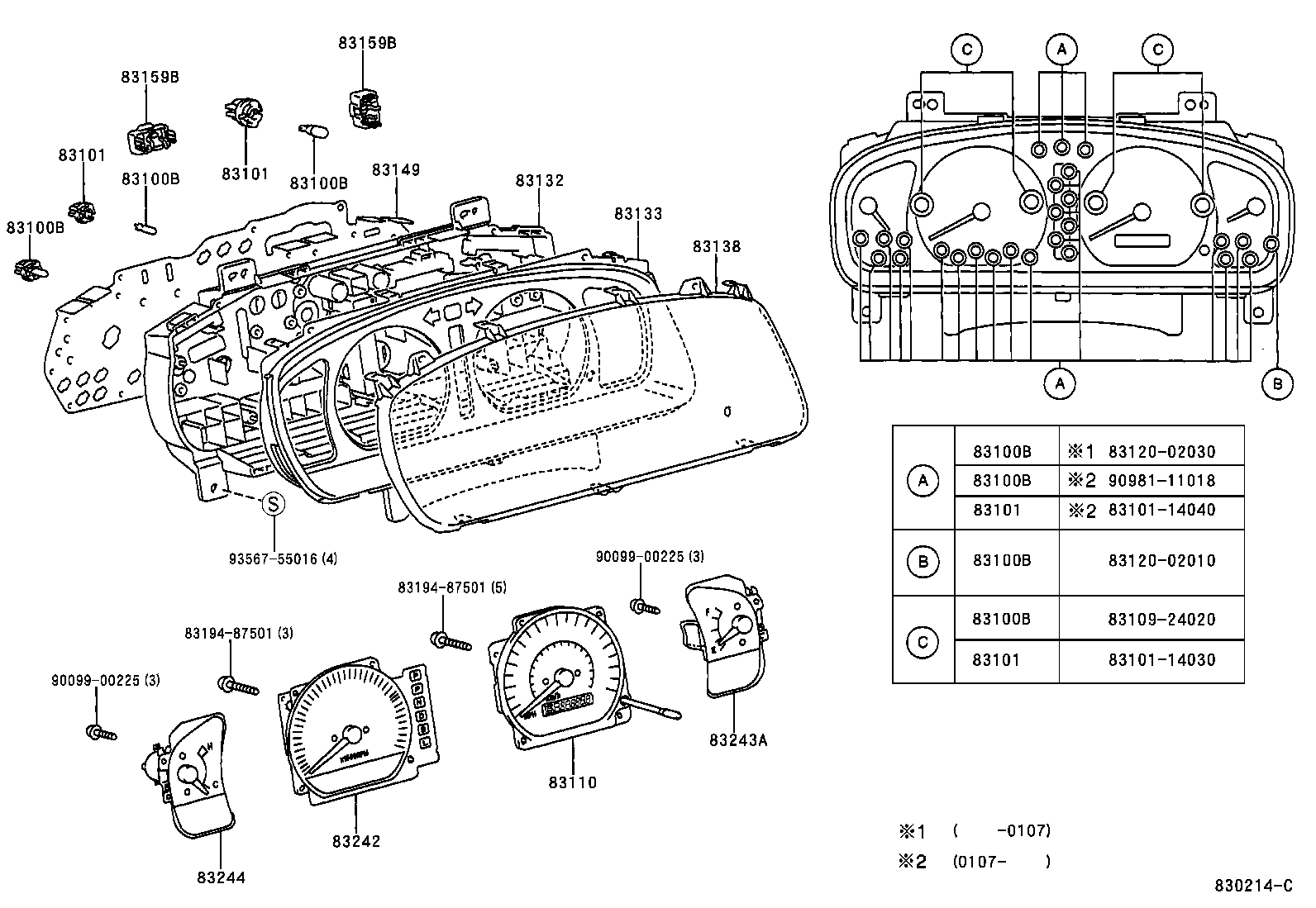

ILLUST NO. 1 OF 2(9708- )
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
2 | ||
| 83109-24020 |
MCL10..CE 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02010 |
MCL10 14V 3.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10..CE 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCL10 12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83109-24010 |
MCL10..CE 12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
23 | ||
| 83109-24020 |
MCL10 12V3.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-02030 |
MCL10 14V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCL10 |
1 | ||
| 83101-14030 |
MCL10 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
MCL10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCL10..CE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCL10 |
1 | ||
| 83101-14030 |
MCL10 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
MCL10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCL10..CE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCL10 |
1 | ||
| 83101-14030 |
MCL10 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
MCL10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCL10..CE |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCL10 |
1 | ||
| 83101-14030 |
MCL10 TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
MCL10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14030 |
MCL10..CE |
2 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-08030 |
MCL10..CE..USA |
1 | ||
| 83220-08050 |
MCL10..USA W(TACHOMETER) |
1 | ||
| 83220-08070 |
MCL10..CE..USA |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-08010 |
MCL10 W(TACHOMETER) |
1 | ||
| 83841-08030 |
MCL10..CE |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-08010 |
MCL10 W(TACHOMETER) |
1 | ||
| 83811-08030 |
MCL10..CE |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-08030 |
MCL10..CE |
1 | ||
| 83852-08010 |
MCL10 W(TACHOMETER) |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-08110 |
MCL10..CE |
1 | ||
| 83861-08070 |
MCL10..CE |
1 | ||
| 83861-08090 |
MCL10 W(TACHOMETER) |
1 | ||
| 83861-08030 |
MCL10..CE |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
MCL10 |
2 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
MCL10 |
2 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-08050 |
MCL10..USA |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-08030 |
MCL10..CE..USA |
1 | ||
| 83882-08050 |
MCL10..USA W(TACHOMETER) |
1 | ||
| 83882-08070 |
MCL10..CE..USA |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-08070 |
MCL10..CE..USA |
1 | ||
| 83883-08030 |
MCL10..CE..USA |
1 | ||
| 83883-08050 |
MCL10..USA W(TACHOMETER) |
1 | ||
| Common parts | ||||
| 83194-87501 | ||||
| 90099-00225 | ||||
| 93567-55016 | ||||

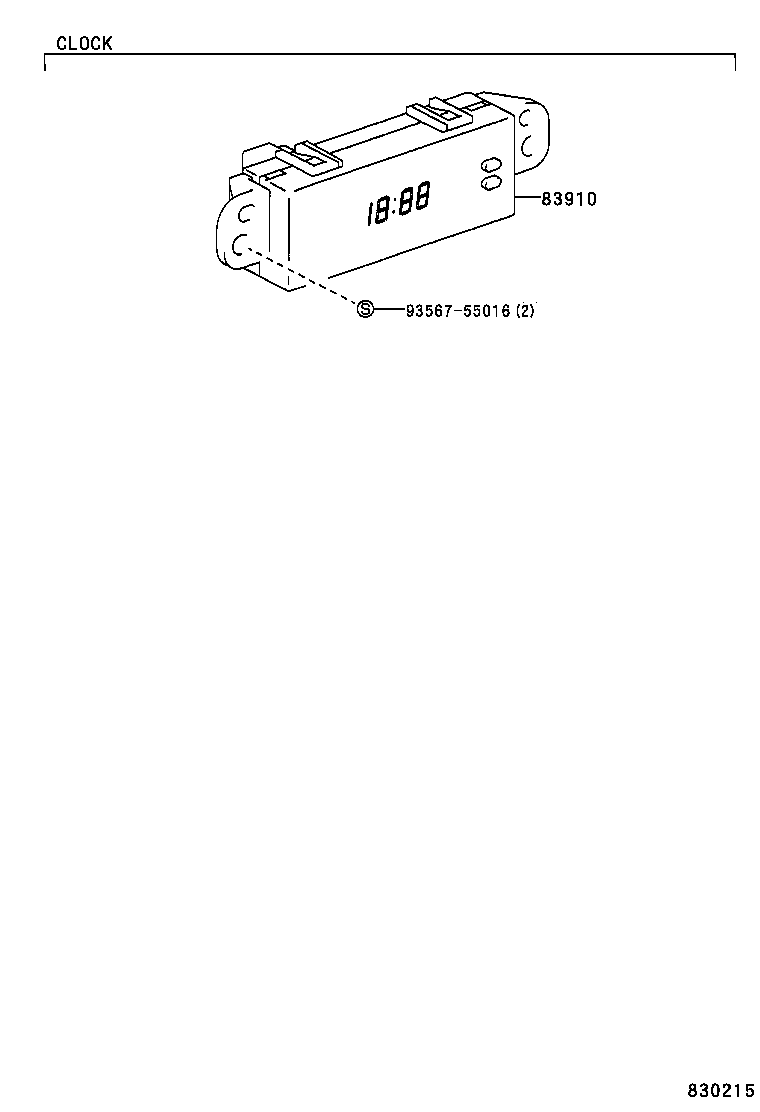

ILLUST NO. 2 OF 2(9708- )
CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-45010 |
MCL10 |
1 | ||
| 83910-AE020 |
MCL10 |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
