MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

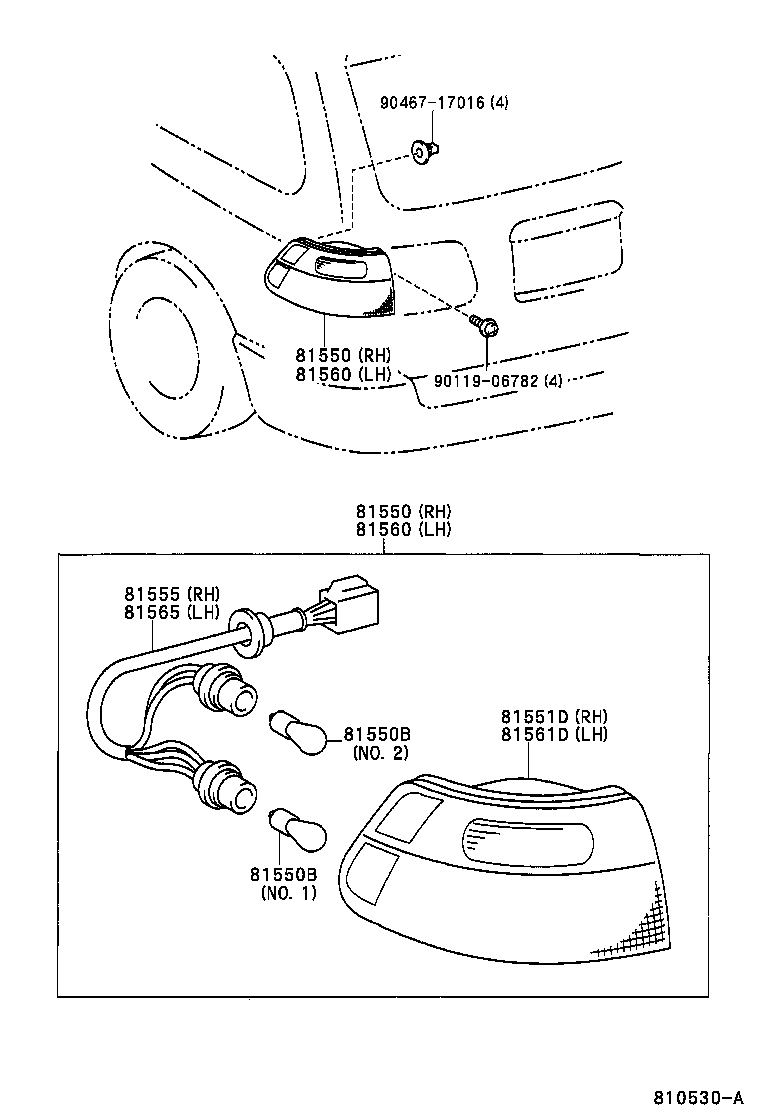

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-08010 |
MCL10 |
1 | ||
| 81550-08020 |
MCL10 |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-08010 |
MCL10 |
1 | ||
| 81550-08020 |
MCL10 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90080-81094 |
MCL10 12V 27W,NO.1 |
2 | ||
| 99132-21270 |
MCL10 12V 27/8W,NO.2 |
2 | ||
| 99132-11270 |
MCL10 12V 27W,NO.1 |
2 | ||
| 90981-12031 |
MCL10 12V 27/8W,NO.2 |
2 | ||
| 90981-13051 |
MCL10 12V 21/5W,NO.2 |
2 | ||
| 90981-12030 |
MCL10 12V 27W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90080-81094 |
MCL10 12V 27W,NO.1 |
2 | ||
| 99132-21270 |
MCL10 12V 27/8W,NO.2 |
2 | ||
| 99132-11270 |
MCL10 12V 27W,NO.1 |
2 | ||
| 90981-12031 |
MCL10 12V 27/8W,NO.2 |
2 | ||
| 90981-13051 |
MCL10 12V 21/5W,NO.2 |
2 | ||
| 90981-12030 |
MCL10 12V 27W,NO.1 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-08020 |
MCL10 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-08010 |
MCL10 |
1 | ||
| 81555-08020 |
MCL10 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-08010 |
MCL10 |
1 | ||
| 81560-08020 |
MCL10 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-08010 |
MCL10 |
1 | ||
| 81560-08020 |
MCL10 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-08020 |
MCL10 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-08010 |
MCL10 |
1 | ||
| 81555-08020 |
MCL10 |
1 | ||
| Common parts | ||||
| 90119-06782 | ||||
| 90467-17016 | ||||
