MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

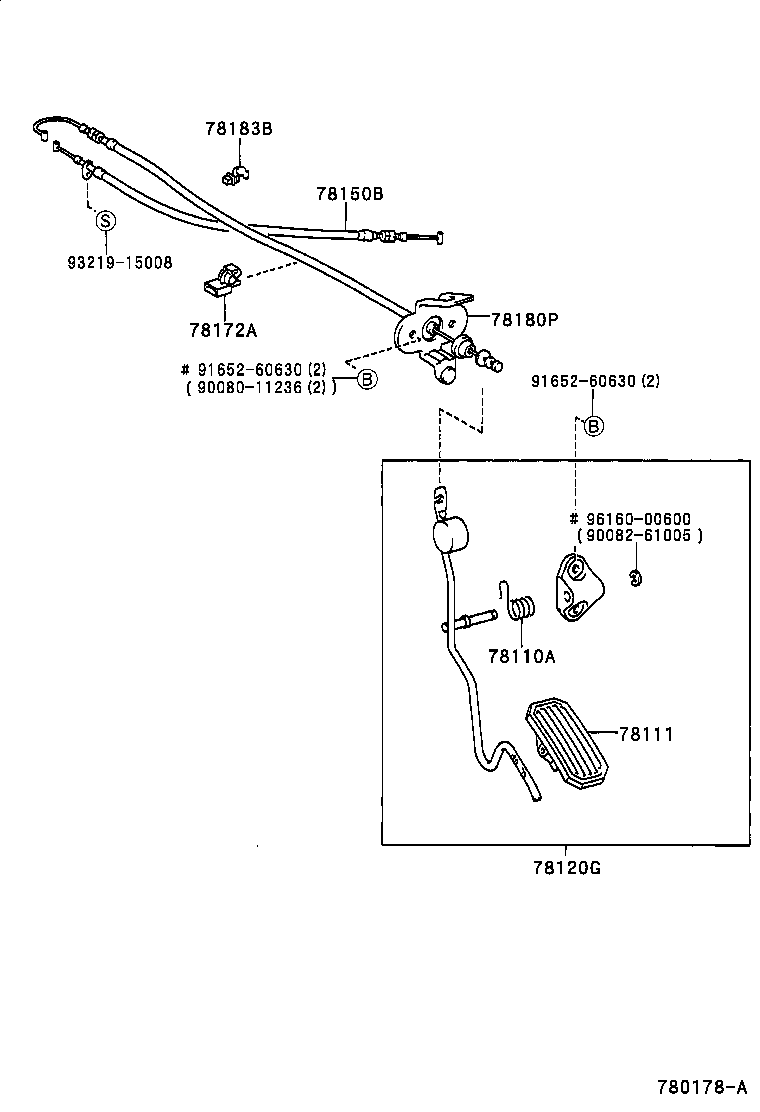

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90080-50200 |
MCL10 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-06010 |
MCL10 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-08010 |
MCL10 |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-08010 |
MCL10..WG |
1 | ||
| 78150-08020 |
MCL10 |
1 | ||
| 78172A - BRACKET, ACCELERATOR CONTROL NO.2 ROD, LH | ||||
| 78172-08010 |
MCL10 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-08030 |
MCL10 W(CRUISE CONTROL) |
1 | ||
| 78180-08010 |
MCL10..CE |
1 | ||
| 78180-08020 |
MCL10..WG W(CRUISE CONTROL) |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-08010 |
MCL10..CE |
1 | ||
| Common parts | ||||
| 90080-11236 | ||||
| 90082-61005 | ||||
| 91652-60630 | ||||
| 93219-15008 | ||||
| 96160-00600 | ||||
