MCL10L-PFSDKA (1997)
Toyota Sienna

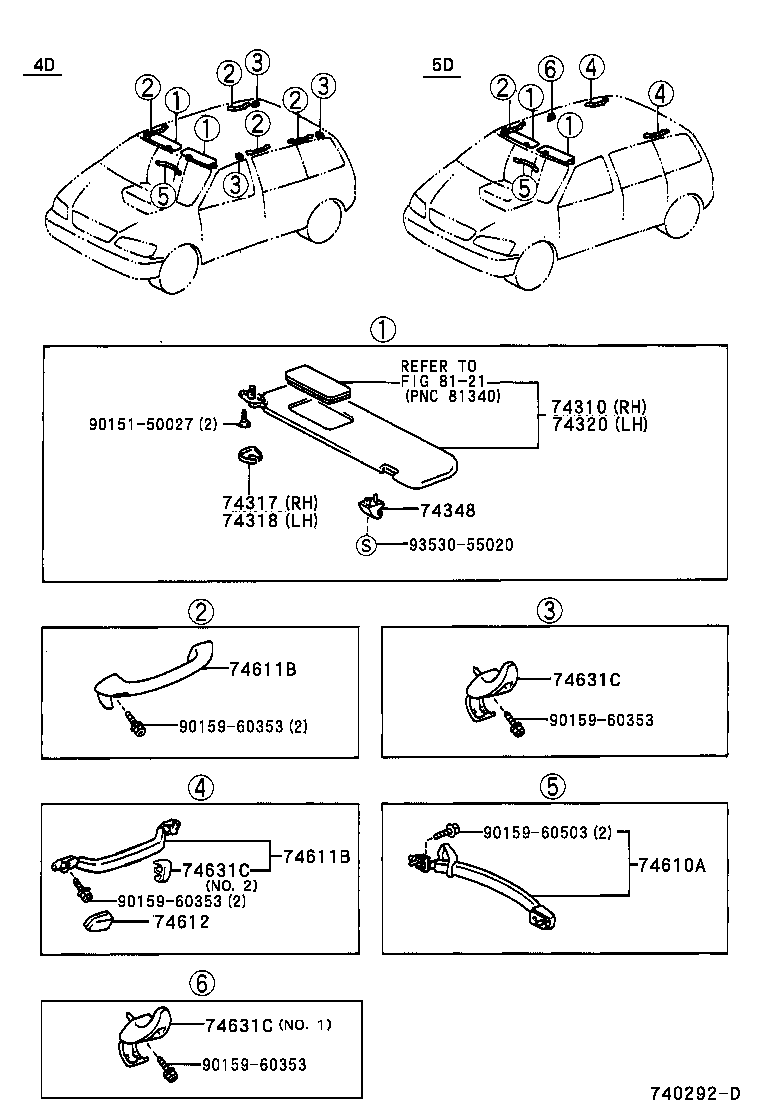

ILLUST NO. 1 OF 2(9708-0008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-AE010A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-AE011A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-AE012A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-AE011B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-08010B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-AE013B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-08011A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-08010A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-AE012B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-AE013A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-08011B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-08010A0 |
MCL10 IVORY,TRIM4# |
1 | ||
| 74317-AC010A0 |
MCL10 IVORY,TRIM4# |
1 | ||
| 74317-AC010B2 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74317-08010B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-08010A0 |
MCL10 IVORY,TRIM4# |
1 | ||
| 74317-AC010A0 |
MCL10 IVORY,TRIM4# |
1 | ||
| 74317-AC010B2 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74317-08010B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-AE010A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74320-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-AE011A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74320-AE012B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-AE011B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-AE013A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74320-08010A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74320-AE013B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-AE012A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74320-08010B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-08011B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-08011A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-AC010A0 |
MCL10 IVORY,TRIM4# |
2 | ||
| 74348-08010A0 |
MCL10 IVORY,TRIM4# |
2 | ||
| 74348-AC010B2 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74348-08010B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-AE011E0 |
MCL10..5D MD.OAK,TRIM4# |
2 | ||
| 74610-AE011B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-AE010B0 |
MCL10..5D LT. BLUISH GRAY,TRIM1#,FRONT |
1 | ||
| 74611-AE010A0 |
MCL10..5D IVORY,TRIM4#,FRONT |
1 | ||
| 74610-45010B0 |
MCL10 LT. BLUISH GRAY,TRIM1#,FRONT |
1 | ||
| 74610-AA010B1 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,REAR |
2 | ||
| 74610-AA010A0 |
MCL10..5D IVORY,TRIM4#,REAR |
2 | ||
| 74610-45010A0 |
MCL10 IVORY,TRIM4#,FRONT |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-AE010B0 |
MCL10..5D LT. BLUISH GRAY,TRIM1#,FRONT |
1 | ||
| 74611-AE010A0 |
MCL10..5D IVORY,TRIM4#,FRONT |
1 | ||
| 74610-45010B0 |
MCL10 LT. BLUISH GRAY,TRIM1#,FRONT |
1 | ||
| 74610-AA010B1 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,REAR |
2 | ||
| 74610-AA010A0 |
MCL10..5D IVORY,TRIM4#,REAR |
2 | ||
| 74610-45010A0 |
MCL10 IVORY,TRIM4#,FRONT |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-AA010A0 |
MCL10..5D IVORY,TRIM4# |
4 | ||
| 74612-AA010B1 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
4 | ||
| 74631C - HOOK, COAT | ||||
| 74631-32010A0 |
MCL10..5D IVORY,TRIM4#,NO.1 |
1 | ||
| 74631-AA010A0 |
MCL10..5D IVORY,TRIM4#,NO.2 |
2 | ||
| 74631-AA010B1 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,NO.2 |
2 | ||
| 74631-32010B2 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 74631C - HOOK, COAT | ||||
| 74631-32010A0 |
MCL10..5D IVORY,TRIM4#,NO.1 |
1 | ||
| 74631-AA010A0 |
MCL10..5D IVORY,TRIM4#,NO.2 |
2 | ||
| 74631-AA010B1 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,NO.2 |
2 | ||
| 74631-32010B2 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 74631C - HOOK, COAT | ||||
| 74631-32010A0 |
MCL10..5D IVORY,TRIM4#,NO.1 |
1 | ||
| 74631-AA010A0 |
MCL10..5D IVORY,TRIM4#,NO.2 |
2 | ||
| 74631-AA010B1 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,NO.2 |
2 | ||
| 74631-32010B2 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| Common parts | ||||
| 90151-50027 | ||||
| 90159-60353 | ||||
| 90159-60503 | ||||
| 93530-55020 | ||||
| Linked diagrams | ||||
| 8121 | ||||

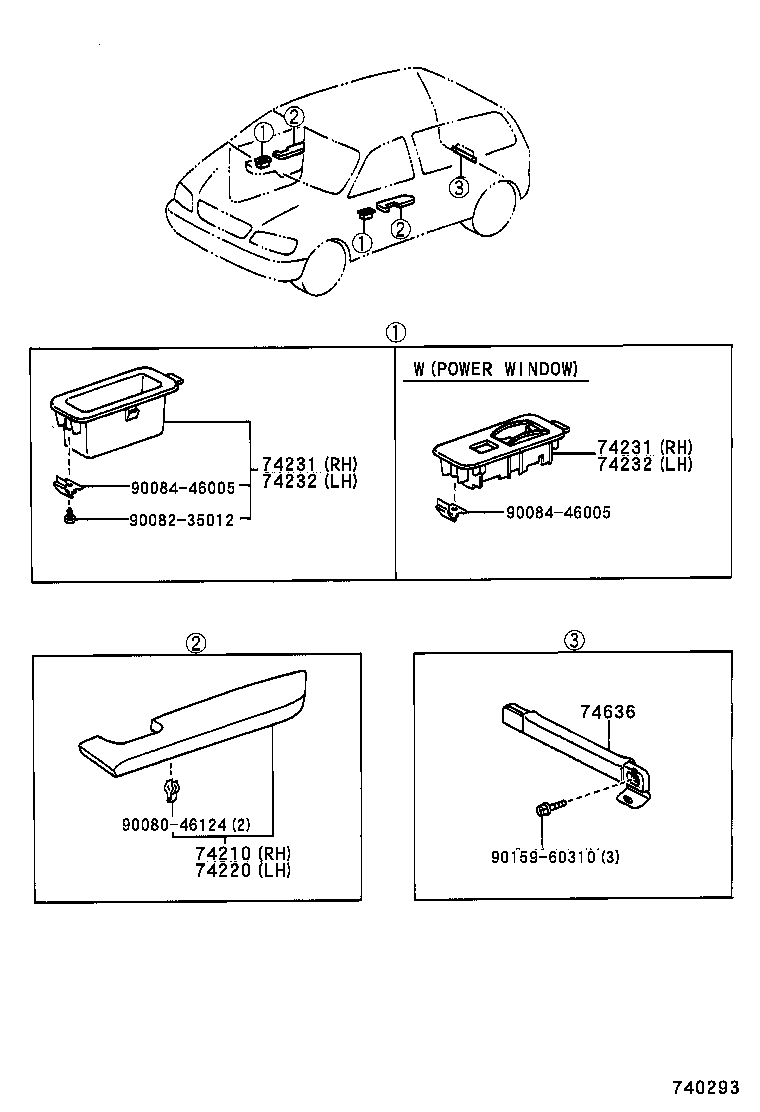

ILLUST NO. 2 OF 2(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 74210-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74220-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-08010E0 |
MCL10..CE MD.OAK,TRIM4# |
1 | ||
| 74231-08010B0 |
MCL10..WG..CE LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74231-08020B0 |
MCL10..WG W(POWER WINDOW),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74231-08020E0 |
MCL10..WG W(POWER WINDOW),MD.OAK,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-08010E0 |
MCL10..CE MD.OAK,TRIM4# |
1 | ||
| 74231-08010B0 |
MCL10..WG..CE LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74231-08020B0 |
MCL10..WG W(POWER WINDOW),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74231-08020E0 |
MCL10..WG W(POWER WINDOW),MD.OAK,TRIM4# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74231-08010B0 |
MCL10..WG..CE LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74231-08010E0 |
MCL10..CE MD.OAK,TRIM4# |
1 | ||
| 74232-08010E0 |
MCL10..WG W(POWER WINDOW),MD.OAK,TRIM4# |
1 | ||
| 74232-08010B0 |
MCL10..WG W(POWER WINDOW),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74231-08010B0 |
MCL10..WG..CE LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74231-08010E0 |
MCL10..CE MD.OAK,TRIM4# |
1 | ||
| 74232-08010E0 |
MCL10..WG W(POWER WINDOW),MD.OAK,TRIM4# |
1 | ||
| 74232-08010B0 |
MCL10..WG W(POWER WINDOW),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74636 - GRIP, BACK DOOR ASSIST | ||||
| 74636-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74636-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-46124 | ||||
| 90082-35012 | ||||
| 90084-46005 | ||||
| 90159-60310 | ||||

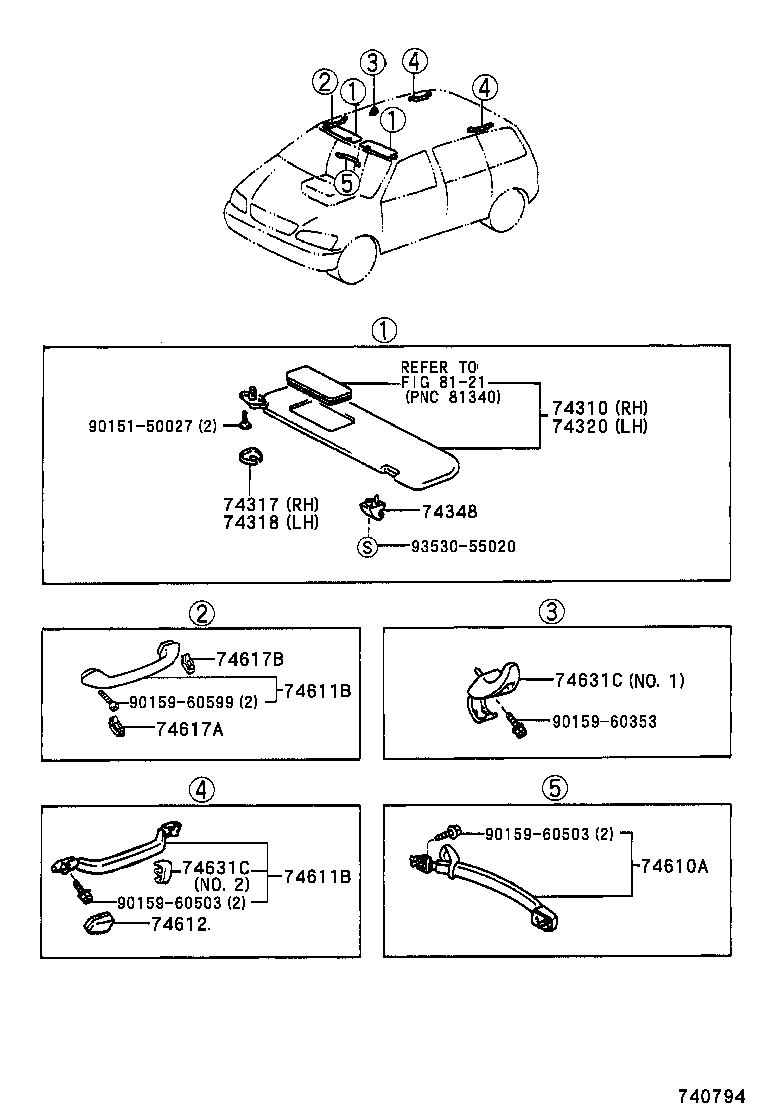

ILLUST NO. 1 OF 2(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-AE010A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-AE011A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-AE012A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-AE011B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-08010B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-AE013B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-08011A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-08010A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-AE012B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74310-AE013A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74310-08011B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-08010A0 |
MCL10 IVORY,TRIM4# |
1 | ||
| 74317-AC010A0 |
MCL10 IVORY,TRIM4# |
1 | ||
| 74317-AC010B2 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74317-08010B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-08010A0 |
MCL10 IVORY,TRIM4# |
1 | ||
| 74317-AC010A0 |
MCL10 IVORY,TRIM4# |
1 | ||
| 74317-AC010B2 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74317-08010B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-AE010A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74320-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-AE011A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74320-AE012B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-AE011B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-AE013A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74320-08010A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74320-AE013B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-AE012A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74320-08010B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-08011B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 74320-08011A0 |
MCL10..CE IVORY,TRIM4# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-AC010A0 |
MCL10 IVORY,TRIM4# |
2 | ||
| 74348-08010A0 |
MCL10 IVORY,TRIM4# |
2 | ||
| 74348-AC010B2 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74348-08010B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-AE011E0 |
MCL10..5D MD.OAK,TRIM4# |
2 | ||
| 74610-AE011B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-AE010B0 |
MCL10..5D LT. BLUISH GRAY,TRIM1#,FRONT |
1 | ||
| 74611-AE010A0 |
MCL10..5D IVORY,TRIM4#,FRONT |
1 | ||
| 74610-45010B0 |
MCL10 LT. BLUISH GRAY,TRIM1#,FRONT |
1 | ||
| 74610-AA010B1 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,REAR |
2 | ||
| 74610-AA010A0 |
MCL10..5D IVORY,TRIM4#,REAR |
2 | ||
| 74610-45010A0 |
MCL10 IVORY,TRIM4#,FRONT |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74611-AE010B0 |
MCL10..5D LT. BLUISH GRAY,TRIM1#,FRONT |
1 | ||
| 74611-AE010A0 |
MCL10..5D IVORY,TRIM4#,FRONT |
1 | ||
| 74610-45010B0 |
MCL10 LT. BLUISH GRAY,TRIM1#,FRONT |
1 | ||
| 74610-AA010B1 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,REAR |
2 | ||
| 74610-AA010A0 |
MCL10..5D IVORY,TRIM4#,REAR |
2 | ||
| 74610-45010A0 |
MCL10 IVORY,TRIM4#,FRONT |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-AA010A0 |
MCL10..5D IVORY,TRIM4# |
4 | ||
| 74612-AA010B1 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
4 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-44010A0 |
MCL10 IVORY,TRIM4# |
1 | ||
| 74617-44010B1 |
MCL10 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74617B - PLUG, DOOR ASSIST GRIP | ||||
| 74617-44020B1 |
MCL10 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 74617-44020A0 |
MCL10 IVORY,TRIM4# |
1 | ||
| 74631C - HOOK, COAT | ||||
| 74631-32010A0 |
MCL10..5D IVORY,TRIM4#,NO.1 |
1 | ||
| 74631-AA010A0 |
MCL10..5D IVORY,TRIM4#,NO.2 |
2 | ||
| 74631-AA010B1 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,NO.2 |
2 | ||
| 74631-32010B2 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| 74631C - HOOK, COAT | ||||
| 74631-32010A0 |
MCL10..5D IVORY,TRIM4#,NO.1 |
1 | ||
| 74631-AA010A0 |
MCL10..5D IVORY,TRIM4#,NO.2 |
2 | ||
| 74631-AA010B1 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,NO.2 |
2 | ||
| 74631-32010B2 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,NO.1 |
1 | ||
| Common parts | ||||
| 90151-50027 | ||||
| 90159-60353 | ||||
| 90159-60503 | ||||
| 90159-60599 | ||||
| 93530-55020 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
