MCL10L-PFSDKA (1997)
Toyota Sienna

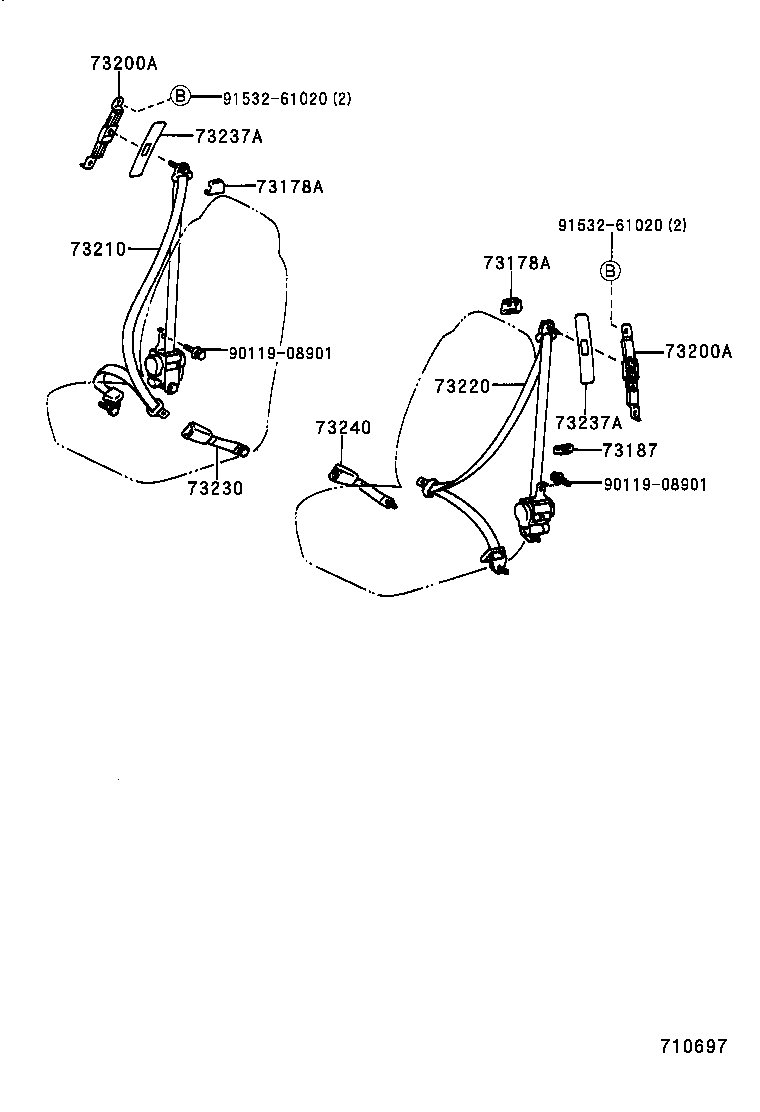

ILLUST NO. 1 OF 3(9708- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B2 |
MCL10 TOKAIRIKA SEAT BELT,LT. BLUISH GRAY,TRIM1# |
2 | ||
| 73178-33020E0 |
MCL10 TOKAIRIKA SEAT BELT,MD.OAK,TRIM4# |
2 | ||
| 73178-07020E3 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 73178-07020B2 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 73178-AA010B3 |
MCL10 QSS SEAT BELT,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 73178-AA010E1 |
MCL10 QSS SEAT BELT,MD.OAK,TRIM4# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020B2 |
MCL10 TOKAIRIKA SEAT BELT,LT. BLUISH GRAY,TRIM1# |
2 | ||
| 73178-33020E0 |
MCL10 TOKAIRIKA SEAT BELT,MD.OAK,TRIM4# |
2 | ||
| 73178-07020E3 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 73178-07020B2 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 73178-AA010B3 |
MCL10 QSS SEAT BELT,LT.BLUISH GRAY,TRIM1# |
2 | ||
| 73178-AA010E1 |
MCL10 QSS SEAT BELT,MD.OAK,TRIM4# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-AA030B0 |
MCL10 LT.GRAY,TRIM1# |
2 | ||
| 73200-AA010B1 |
MCL10..WG LT.GRAY,TRIM1# |
2 | ||
| 73200-AA010E1 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 73200-AA030A0 |
MCL10 IVORY,TRIM4# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-AA030B0 |
MCL10 LT.GRAY,TRIM1# |
2 | ||
| 73200-AA010B1 |
MCL10..WG LT.GRAY,TRIM1# |
2 | ||
| 73200-AA010E1 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 73200-AA030A0 |
MCL10 IVORY,TRIM4# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73210-08030E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 73210-08010E0 |
MCL10 LIGHT OAK,TRIM4# |
1 | ||
| 73210-08020E0 |
MCL10 LIGHT OAK,TRIM4# |
1 | ||
| 73210-08030B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73210-08020B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-08030B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73220-08010E0 |
MCL10 LIGHT OAK,TRIM4# |
1 | ||
| 73220-08020E0 |
MCL10 LIGHT OAK,TRIM4# |
1 | ||
| 73220-08020B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73220-08030E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 73220-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-08020B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 73230-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 73230-08020E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 73230-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 73237A - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-08010B0 |
MCL10..WG W(AUTO SLIDE DOOR & EASY CLOSER),LT. BLUISH GRAY,TRIM1# |
2 | ||
| 73237-AA010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 73237-08010E0 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER),MD. OAK,TRIM4# |
2 | ||
| 73237-AA010B1 |
MCL10 LT.BLUISH GRAY,TRIM1# |
2 | ||
| 73237A - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-08010B0 |
MCL10..WG W(AUTO SLIDE DOOR & EASY CLOSER),LT. BLUISH GRAY,TRIM1# |
2 | ||
| 73237-AA010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 73237-08010E0 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER),MD. OAK,TRIM4# |
2 | ||
| 73237-AA010B1 |
MCL10 LT.BLUISH GRAY,TRIM1# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 73230-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 73230-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 73240-08010B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08901 | ||||
| 91532-61020 | ||||

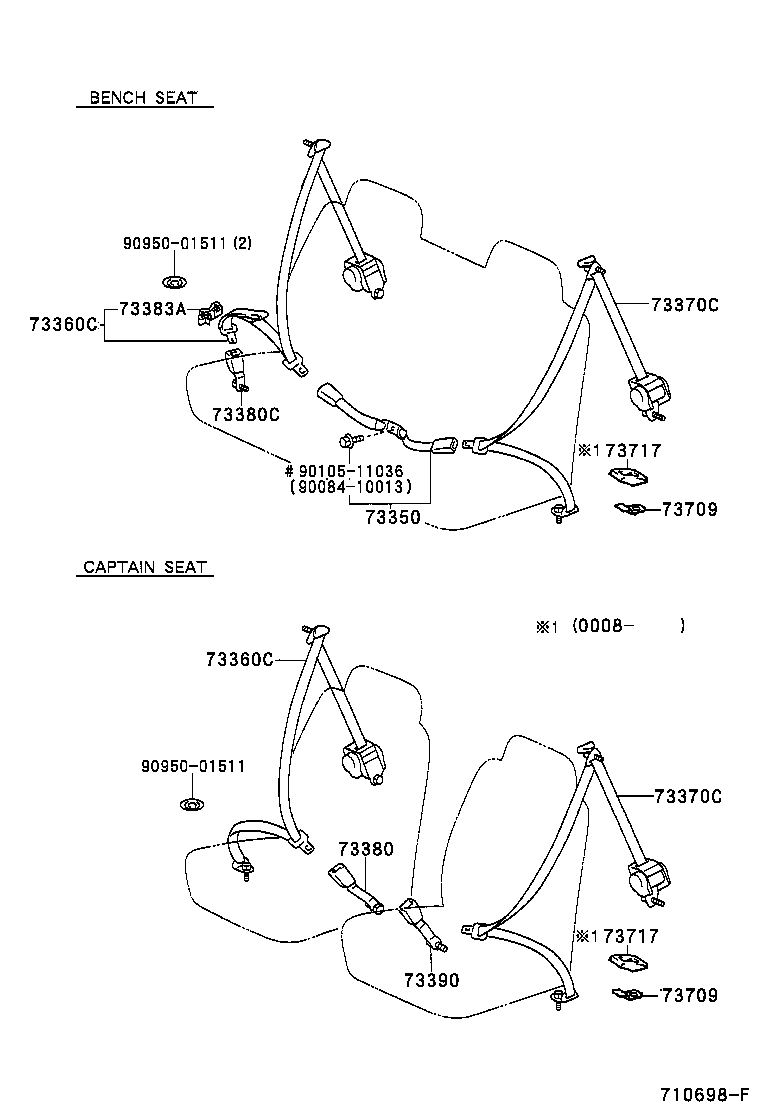

ILLUST NO. 2 OF 3(9708- )
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73330-08010E0 |
MCL10 LIGHT OAK,TRIM4# |
1 | ||
| 73330-08010E1 |
MCL10 OAK,TRIM4# |
1 | ||
| 73330-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-08030E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 73360-08040B0 |
MCL10 W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 73360-08030B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73360-08010E0 |
MCL10 LIGHT OAK,TRIM4# |
1 | ||
| 73360-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73360-08040E0 |
MCL10 W(CAPTAIN SEAT),OAK,TRIM4# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-08030E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 73360-08040B0 |
MCL10 W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 73360-08030B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73360-08010E0 |
MCL10 LIGHT OAK,TRIM4# |
1 | ||
| 73360-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73360-08040E0 |
MCL10 W(CAPTAIN SEAT),OAK,TRIM4# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-08020E0 |
MCL10..5D LIGHT OAK,TRIM4# |
1 | ||
| 73370-08020B0 |
MCL10..5D BLUISH GRAY,TRIM1# |
1 | ||
| 73370-08030B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73370-08030E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-08020E0 |
MCL10..5D LIGHT OAK,TRIM4# |
1 | ||
| 73370-08020B0 |
MCL10..5D BLUISH GRAY,TRIM1# |
1 | ||
| 73370-08030B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73370-08030E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73390-08010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 73390-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73380-08010E0 |
MCL10 LIGHT OAK,TRIM4# |
1 | ||
| 73383A - HOOK, RR SEAT BELT | ||||
| 73383-08010B0 |
MCL10..WG LT. BLUISH GRAY,TRIM1# |
1 | ||
| 73383-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73390-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 73390-08010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73708-12060 |
MCL10 |
1 | ||
| 73709 - BRACKET SUB-ASSY, TETHER ANCHOR | ||||
| 73708-12060 |
MCL10 |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50011E4 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 73717-50011B5 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| 73717-50011E4 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 73717-50011B5 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90084-10013 | ||||
| 90105-11036 | ||||
| 90950-01511 | ||||

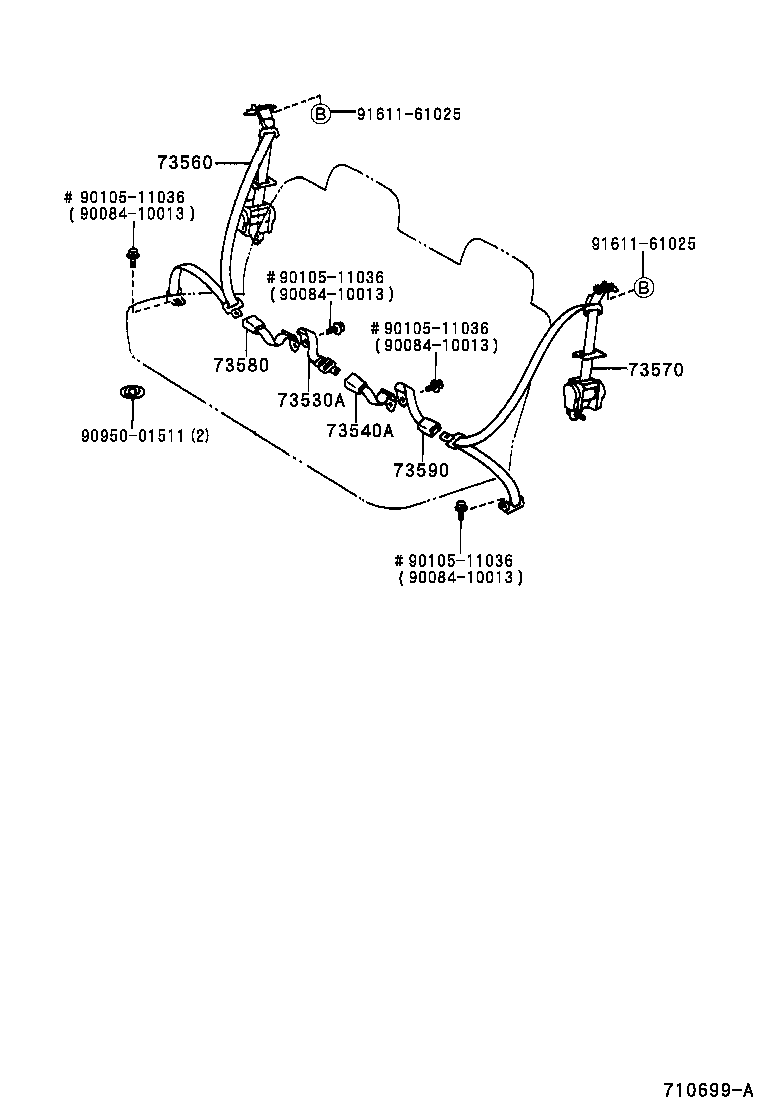

ILLUST NO. 3 OF 3(9708- )
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-08020E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 73530-08010E0 |
MCL10..WG LIGHT OAK,TRIM4# |
1 | ||
| 73530-08020B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73530-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH | ||||
| 73540-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73540-08010E0 |
MCL10..WG LIGHT OAK,TRIM4# |
1 | ||
| 73540-08020E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 73540-08020B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-08010E0 |
MCL10..WG LIGHT OAK,TRIM4# |
1 | ||
| 73560-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73560-08020B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73560-08020E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73570-08020B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73570-08010E0 |
MCL10..WG LIGHT OAK,TRIM4# |
1 | ||
| 73570-08020E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-08020B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73580-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73580-08020E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 73580-08010E0 |
MCL10..WG LIGHT OAK,TRIM4# |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-08010E0 |
MCL10..WG LIGHT OAK,TRIM4# |
1 | ||
| 73580-08020B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 73580-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 73580-08020E0 |
MCL10 OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90084-10013 | ||||
| 90105-11036 | ||||
| 90950-01511 | ||||
| 91611-61025 | ||||
