MCL10L-PFSDKA (1997)
Toyota Sienna

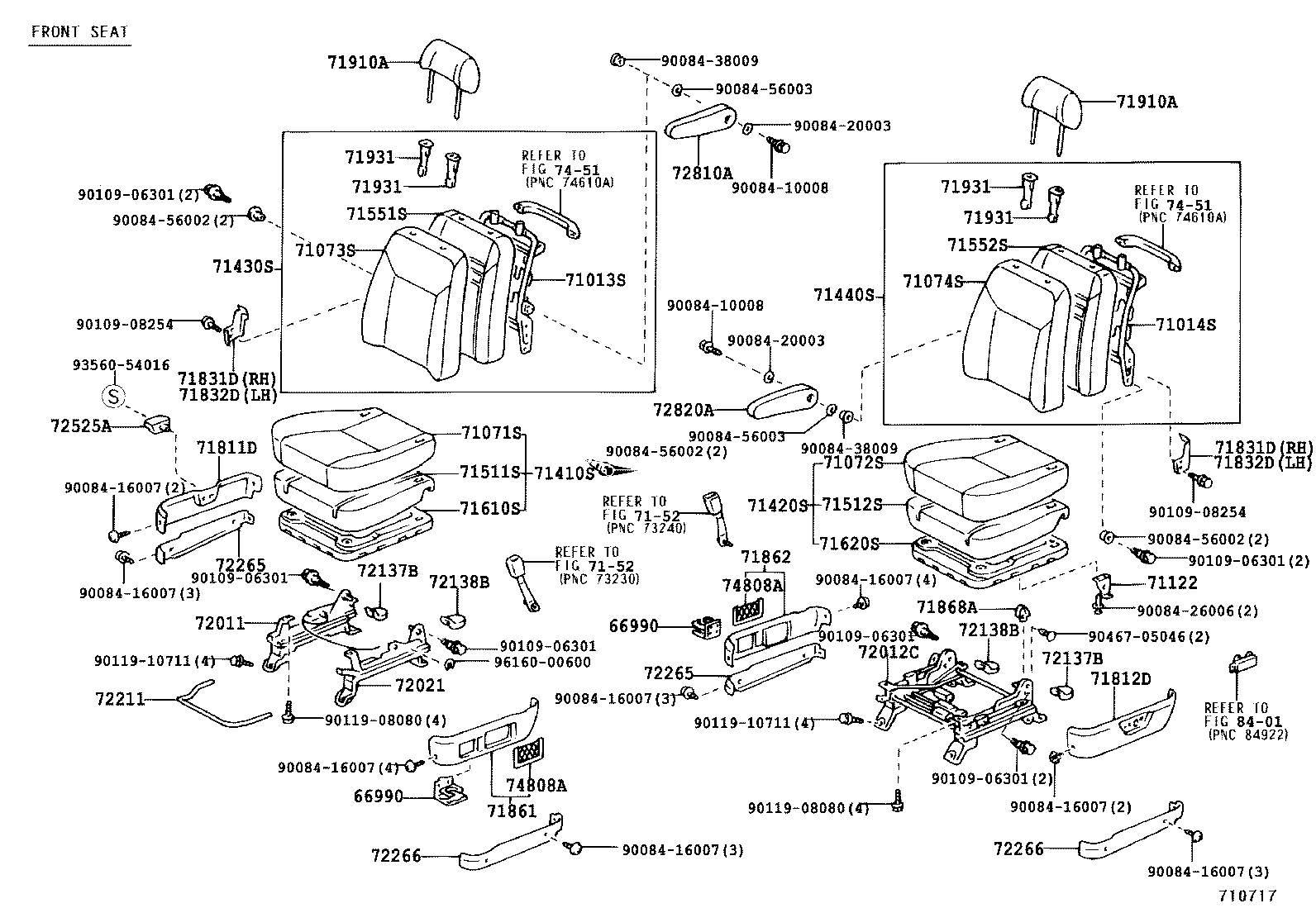

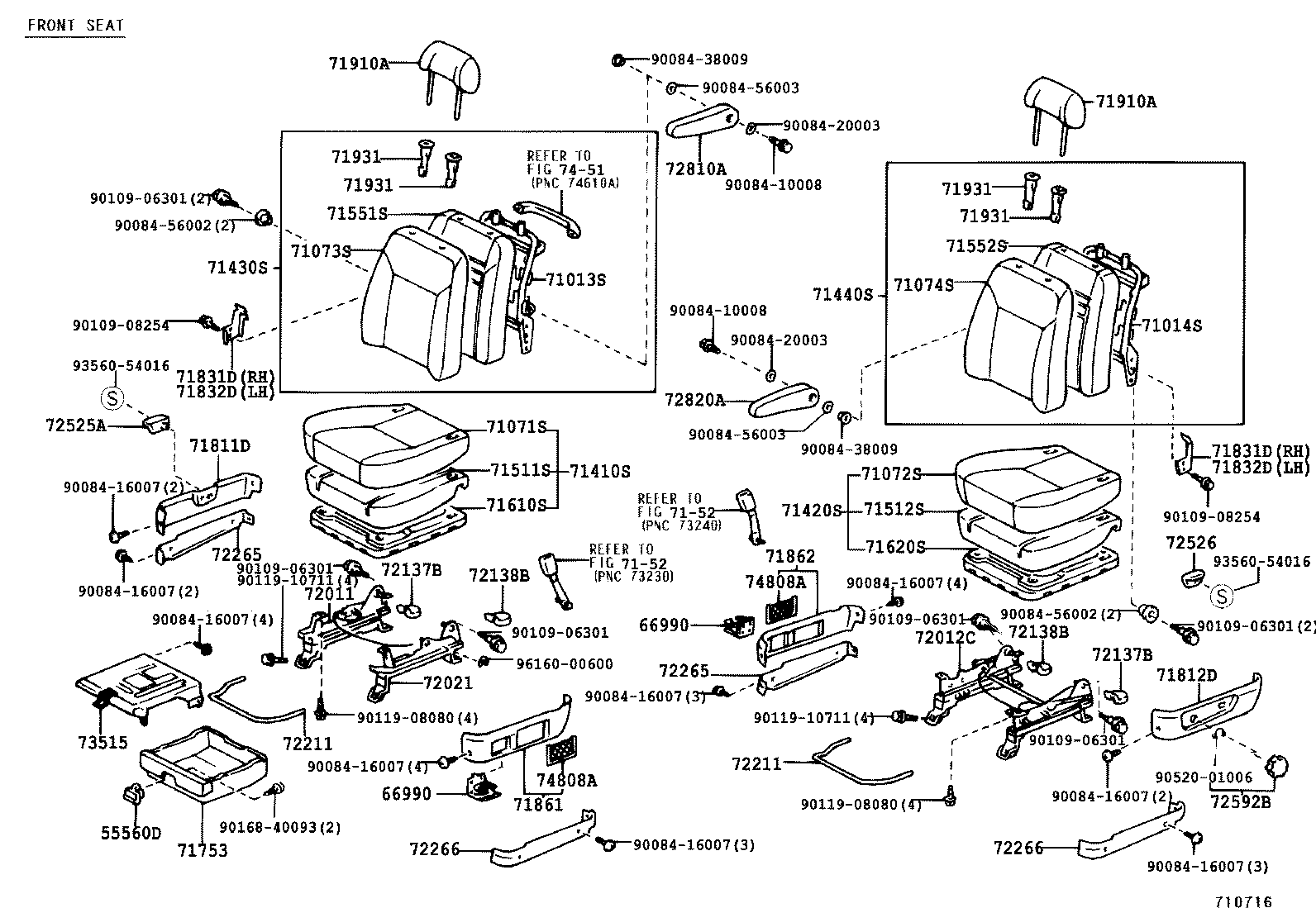

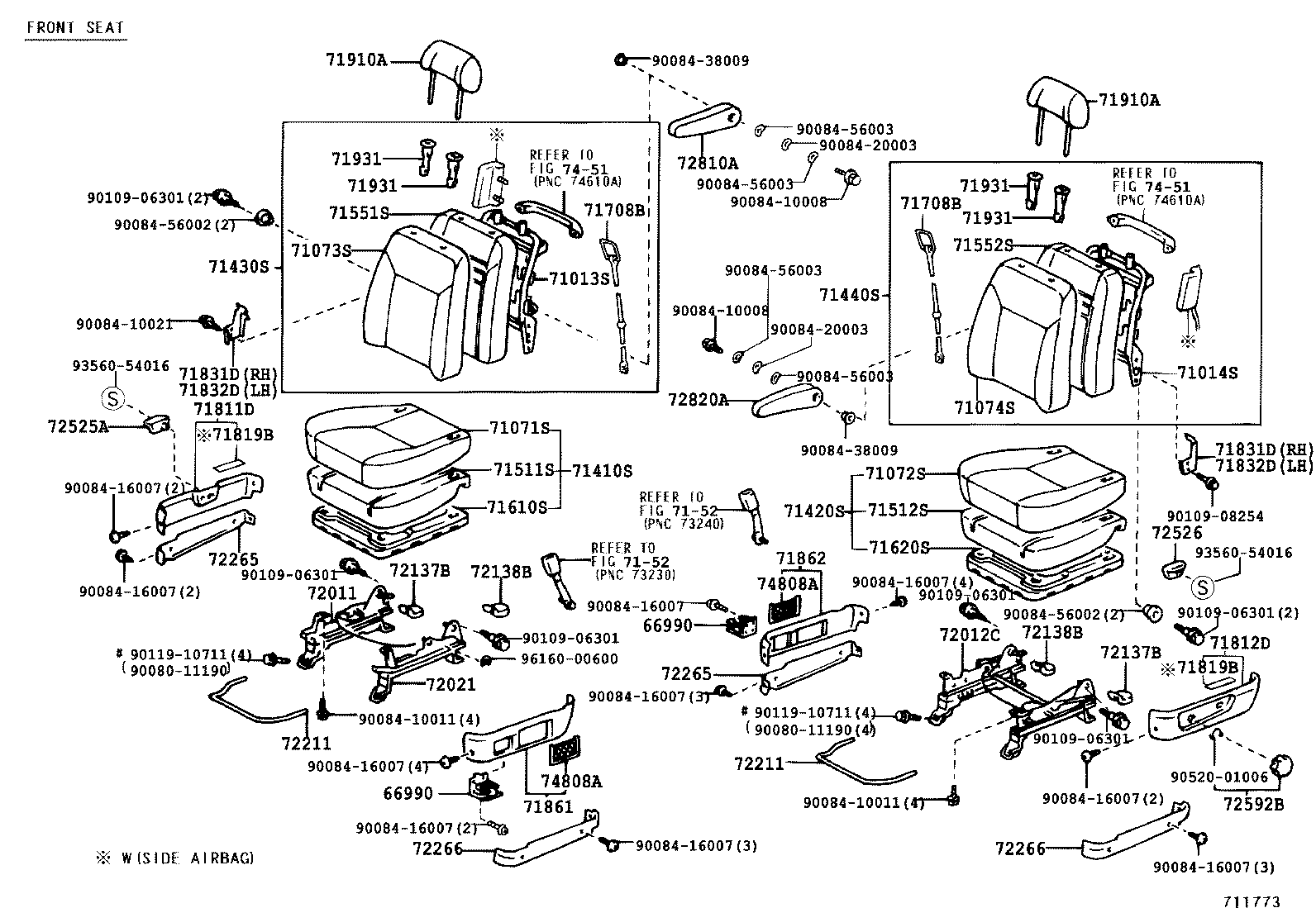

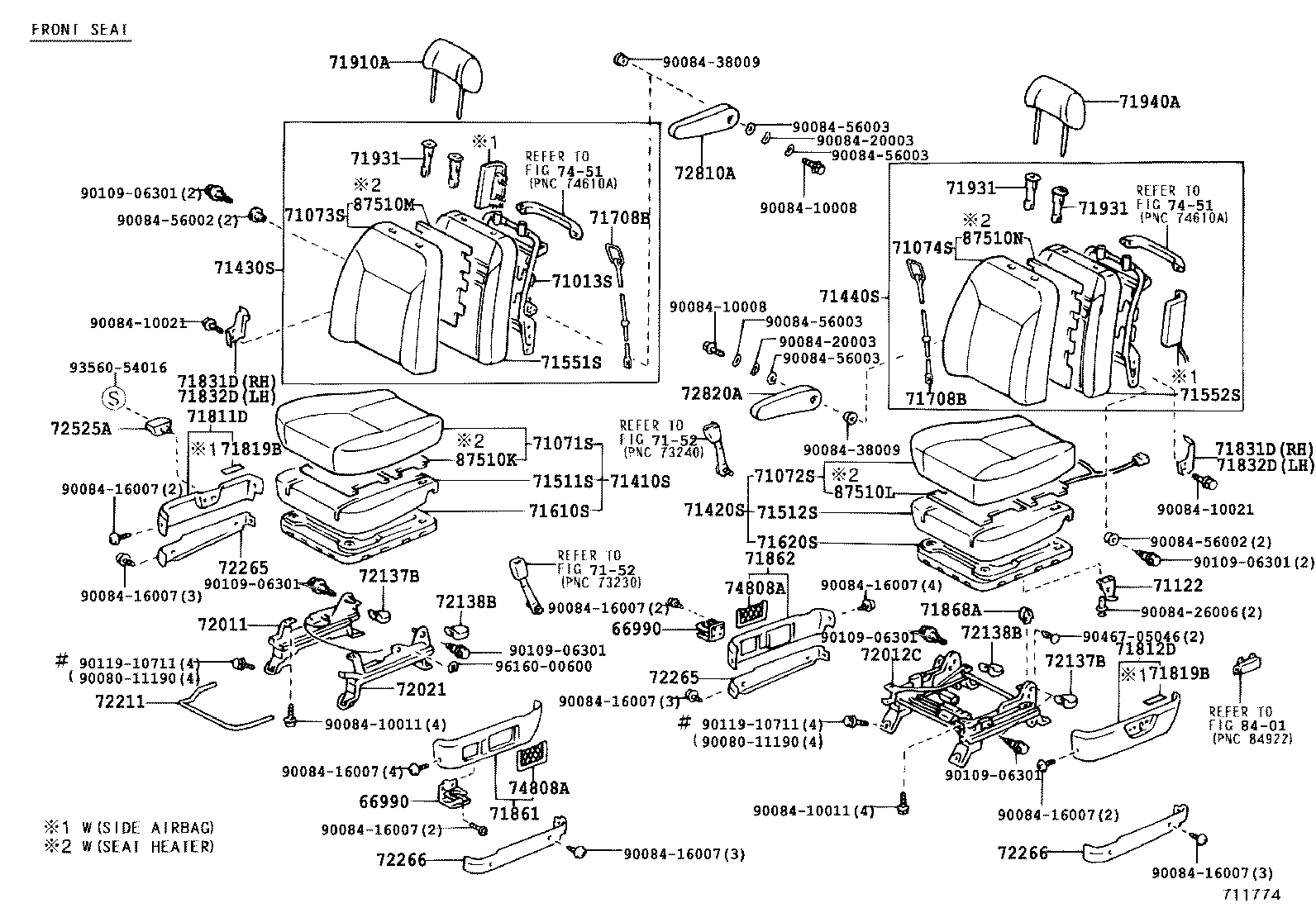

ILLUST NO. 1 OF 3(9708-0008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-AE010 |
MCL10 |
1 | ||
| 71013-AE020 |
MCL10 W(*80,SIDE) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-AE020 |
MCL10..5D |
1 | ||
| 71014-AE030 |
MCL10 W(*80,SIDE) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71071-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71071-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71071-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71071-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71071-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71071-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71073-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71073-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71073-AE060B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71073-AE060E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71073-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-AE020B0 |
MCL10..5D..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71074-AE020E1 |
MCL10..5D..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71074-AE090E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71074-AE090B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71074-AE070E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71074-AE070B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE070B0 |
MCL10..5D..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE070E0 |
MCL10..5D..CE OAK.,TRIM4# |
1 | ||
| 71410-AE100E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE100B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE110B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE110E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71430-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE060E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71430-AE060B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-AE020B1 |
MCL10..5D..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71440-AE020E1 |
MCL10..5D..CE OAK,TRIM4# |
1 | ||
| 71440-AE070E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71440-AE090B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-AE090E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71440-AE070B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-AE010 |
MCL10 |
1 | ||
| 71051-AE020 |
MCL10..5D |
1 | ||
| 71051-AE030 |
MCL10 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-AE010 |
MCL10 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-AE010 |
MCL10 |
1 | ||
| 71551-AE020 |
MCL10 W(*80,SIDE) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-AE030 |
MCL10 W(*80,SIDE) |
1 | ||
| 71552-AE020 |
MCL10..5D |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-AE010 |
MCL10 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-AE010 |
MCL10 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-AE020E1 |
MCL10 W(*80,SIDE),MD.OAK,TRIM4# |
1 | ||
| 71811-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71811-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71811-AE020B1 |
MCL10 W(*80,SIDE),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-AE010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 71812-AE010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 71812-AE030B1 |
MCL10 W(*80,SIDE),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71812-AE030E1 |
MCL10 W(*80,SIDE),MD.OAK,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AA010 |
MCL10 |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AA010 |
MCL10 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-AA010 |
MCL10 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-AA010 |
MCL10 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71861-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71862-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-08010 |
MCL10 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-08020 |
MCL10 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-08010 |
MCL10 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-08010 |
MCL10 |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-08010 |
MCL10 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72265-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72265-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-AE010E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72266-AE030B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72266-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72266-AE030E0 |
MCL10 MD.OAK,TRIM4#,LH |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-AE010E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72266-AE030B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72266-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72266-AE030E0 |
MCL10 MD.OAK,TRIM4#,LH |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AA010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72525-AA010B1 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-AA010B1 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72526-AA010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72457-AA010B1 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72457-AA010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72820-AE010B2 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010B4 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010E4 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820-AE010E2 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72810-AE010B5 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010B3 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010E3 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010E5 |
MCL10 OAK,TRIM4# |
1 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 74808-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 74808-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90084-10008 | ||||
| 90084-16007 | ||||
| 90084-20003 | ||||
| 90084-38009 | ||||
| 90084-56002 | ||||
| 90084-56003 | ||||
| 90109-06301 | ||||
| 90109-08254 | ||||
| 90119-08080 | ||||
| 90119-10711 | ||||
| 90168-40093 | ||||
| 90520-01006 | ||||
| 93560-54016 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7451 | ||||
ILLUST NO. 1 OF 3(9708-0008)
W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-AE010 |
MCL10 |
1 | ||
| 71013-AE020 |
MCL10 W(*80,SIDE) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-AE020 |
MCL10..5D |
1 | ||
| 71014-AE030 |
MCL10 W(*80,SIDE) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71071-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71071-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71071-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71071-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71071-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71071-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71073-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71073-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71073-AE060B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71073-AE060E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71073-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-AE020B0 |
MCL10..5D..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71074-AE020E1 |
MCL10..5D..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71074-AE090E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71074-AE090B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71074-AE070E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71074-AE070B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE070B0 |
MCL10..5D..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE070E0 |
MCL10..5D..CE OAK.,TRIM4# |
1 | ||
| 71410-AE100E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE100B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE110B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE110E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71430-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE060E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71430-AE060B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-AE020B1 |
MCL10..5D..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71440-AE020E1 |
MCL10..5D..CE OAK,TRIM4# |
1 | ||
| 71440-AE070E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71440-AE090B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-AE090E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71440-AE070B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-AE010 |
MCL10 |
1 | ||
| 71051-AE020 |
MCL10..5D |
1 | ||
| 71051-AE030 |
MCL10 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-AE010 |
MCL10 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-AE010 |
MCL10 |
1 | ||
| 71551-AE020 |
MCL10 W(*80,SIDE) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-AE030 |
MCL10 W(*80,SIDE) |
1 | ||
| 71552-AE020 |
MCL10..5D |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-AE010 |
MCL10 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-AE010 |
MCL10 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-AE020E1 |
MCL10 W(*80,SIDE),MD.OAK,TRIM4# |
1 | ||
| 71811-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71811-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71811-AE020B1 |
MCL10 W(*80,SIDE),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-AE010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 71812-AE010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 71812-AE030B1 |
MCL10 W(*80,SIDE),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71812-AE030E1 |
MCL10 W(*80,SIDE),MD.OAK,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AA010 |
MCL10 |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AA010 |
MCL10 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-AA010 |
MCL10 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-AA010 |
MCL10 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71861-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71862-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-08010 |
MCL10 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-08020 |
MCL10 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-08010 |
MCL10 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-08010 |
MCL10 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72265-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72265-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-AE010E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72266-AE030B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72266-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72266-AE030E0 |
MCL10 MD.OAK,TRIM4#,LH |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-AE010E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72266-AE030B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72266-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72266-AE030E0 |
MCL10 MD.OAK,TRIM4#,LH |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AA010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72525-AA010B1 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72820-AE010B2 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010B4 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010E4 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820-AE010E2 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72810-AE010B5 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010B3 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010E3 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010E5 |
MCL10 OAK,TRIM4# |
1 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 74808-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 74808-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90084-10008 | ||||
| 90084-16007 | ||||
| 90084-20003 | ||||
| 90084-26006 | ||||
| 90084-38009 | ||||
| 90084-56002 | ||||
| 90084-56003 | ||||
| 90109-06301 | ||||
| 90109-08254 | ||||
| 90119-08080 | ||||
| 90119-10711 | ||||
| 90467-05046 | ||||
| 93560-54016 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7451 | ||||
| 8401 | ||||

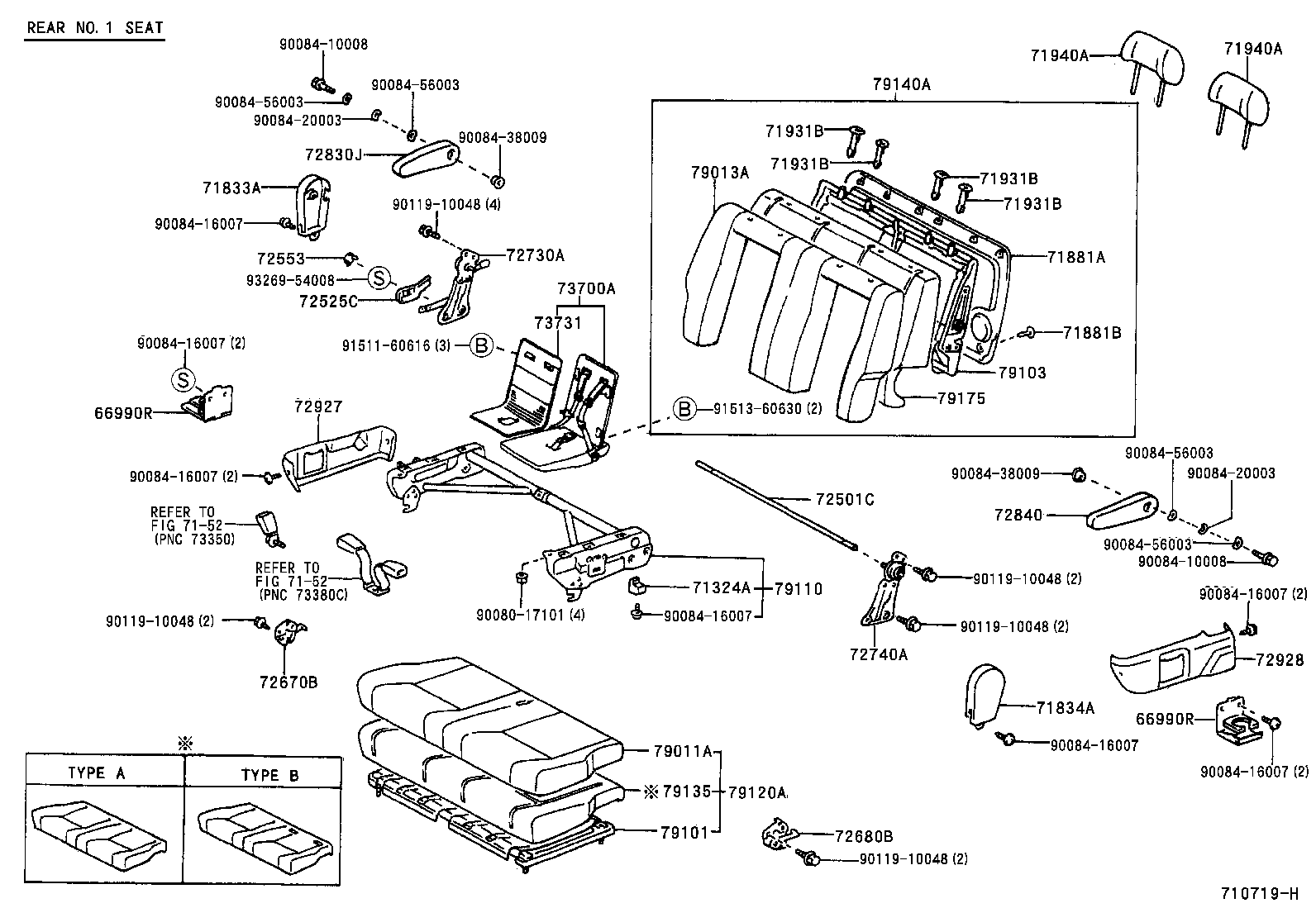

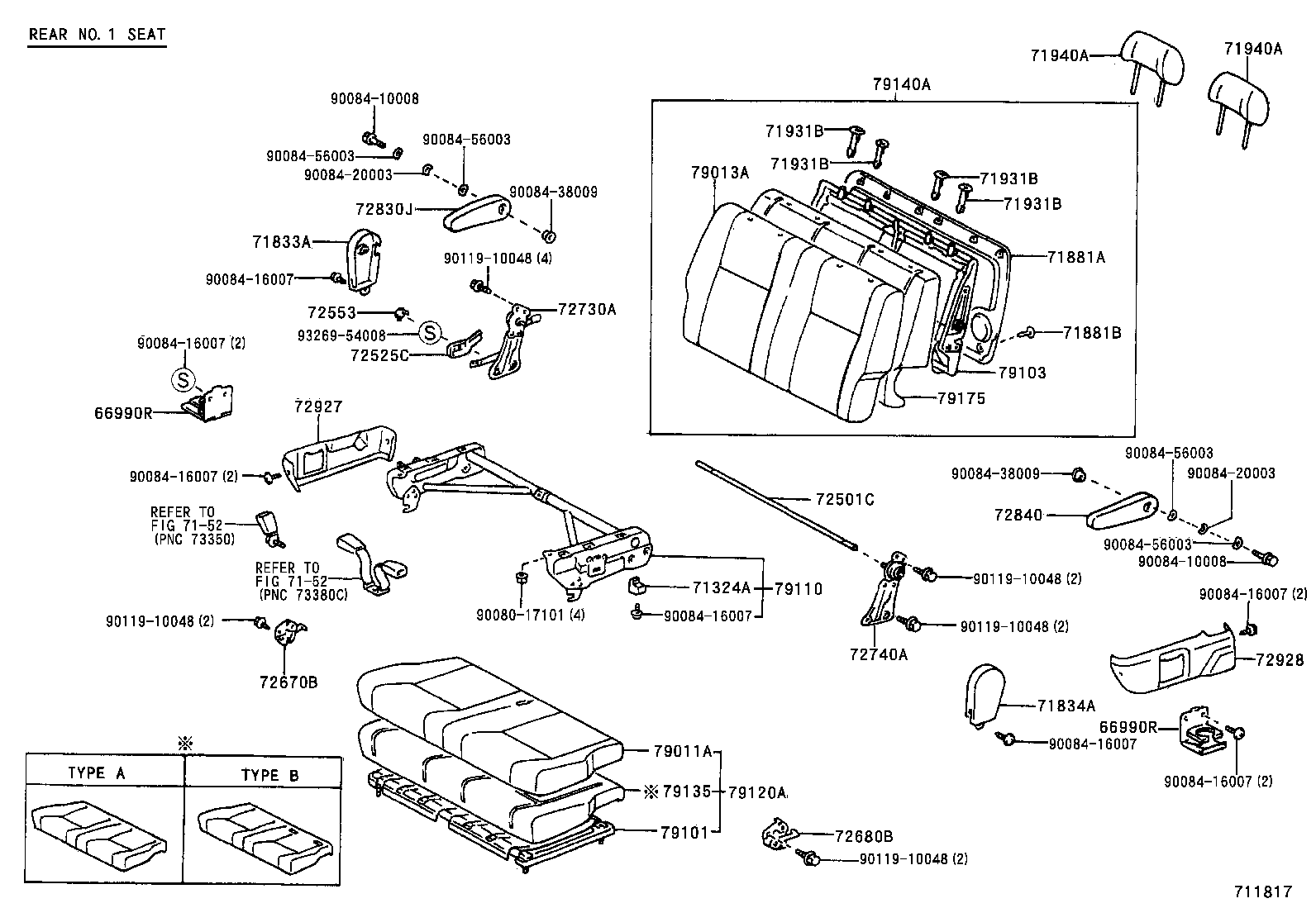

ILLUST NO. 2 OF 4(9708- )5D
BENCH SEAT (CHILD RESTRAINT SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990R - HOLDER ASSY, CUP, NO.1 | ||||
| 66990-AE010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10..5D MD.OAK,TRIM4# |
2 | ||
| 66990R - HOLDER ASSY, CUP, NO.1 | ||||
| 66990-AE010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10..5D MD.OAK,TRIM4# |
2 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-AE010 |
MCL10 |
2 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-AE040B0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71833-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71833-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 71833-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71833-AE040E0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4# |
1 | ||
| 71833-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71834-AE020E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71834-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71834-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 71834-AE040E0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4# |
1 | ||
| 71834-AE040B0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881A - BOARD, REAR SEAT BACK | ||||
| 71881-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71881-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881B - CLIP, REAR SEAT BACK BOARD | ||||
| 90084-46011B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
3 | ||
| 90084-46011E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
4 | ||
| 90084-46011E0 |
MCL10 MD.OAK,TRIM4# |
3 | ||
| 90084-46011B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71940-AE010E1 |
MCL10..WG..CE W(CHILD SEAT),OAK,TRIM4# |
1 | ||
| 71940-AE010B1 |
MCL10..WG..CE W(CHILD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE060E0 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71940-AE050E0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
2 | ||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71940-AE050B0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE060B0 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71940-AE010E1 |
MCL10..WG..CE W(CHILD SEAT),OAK,TRIM4# |
1 | ||
| 71940-AE010B1 |
MCL10..WG..CE W(CHILD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE060E0 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71940-AE050E0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
2 | ||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71940-AE050B0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE060B0 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-08030 |
MCL10..CE |
2 | ||
| 72501-08060 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72501-08010 |
MCL10 |
1 | ||
| 72501-08040 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72501-08040 |
MCL10 |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-AE020B0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AE020E0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4# |
1 | ||
| 72525-AA010B1 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72525-AA010E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-AE010E0 |
MCL10 W(LEATHER SEAT),MD.OAK,TRIM4# |
1 | ||
| 72553-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72553-AE010B0 |
MCL10..WG W(LEATHER SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72553-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
2 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72093-08020 |
MCL10 W(CAPTAIN SEAT) |
2 | ||
| 72093-08010 |
MCL10 |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72093-08010 |
MCL10 |
1 | ||
| 72094-08010 |
MCL10 W(CAPTAIN SEAT) |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-08012 |
MCL10 |
1 | ||
| 72730-08011 |
MCL10 |
1 | ||
| 72730-08050 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72730-08040 |
MCL10 W(CAPTAIN SEAT) |
1 | ||
| 72730-08013 |
MCL10 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-08060 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72740-08051 |
MCL10 W(CAPTAIN SEAT) |
1 | ||
| 72740-08011 |
MCL10 |
1 | ||
| 72740-08012 |
MCL10 |
1 | ||
| 72740-08013 |
MCL10 |
1 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72810-AE010E5 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010B3 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010B5 |
MCL10 W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72810-AE010E3 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010B5 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010E5 |
MCL10 W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72820-AE010B2 |
MCL10..5D;MCL10..4D..LE BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010B4 |
MCL10 W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72820-AE010E4 |
MCL10 W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 72820-AE010E4 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820-AE010E2 |
MCL10..5D;MCL10..4D..LE OAK,TRIM4# |
1 | ||
| 72820-AE010B4 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72927-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72927-AE020E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4#,RH |
1 | ||
| 72927-AE020B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72927-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72927-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4#,LH |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-AE020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72928-AE020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 72928-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72928-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 73700A - SEAT ASSY, CHILD RESTRAINT | ||||
| 73700-AE010E2 |
MCL10..WG..CE OAK,TRIM4# |
2 | ||
| 73700-AE010B2 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 73700-AE030E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 73700-AE030B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
2 | ||
| 73731 - COVER, CHILD RESTRAINT SEAT | ||||
| 73731-AE010E0 |
MCL10..WG MEDIUM OAK,TRIM4# |
2 | ||
| 73731-AE010B0 |
MCL10..WG LT. BLUISH GRAY,TRIM1# |
2 | ||
| 73731-AE010B1 |
MCL10 BLUISH GRAY-HANNAH,TRIM1# |
2 | ||
| 73731-AE010E1 |
MCL10 OAK - HANNAH,TRIM4# |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79011-AE040E1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 79011-AE080B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79011-AE040B1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79011-AE080E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79011-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-AE020E1 |
MCL10..5D..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79013-AE020B0 |
MCL10..5D..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79013-AE110B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79013-AE130B1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79013-AE060B2 |
MCL10..5D..CE W(CHILD SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79013-AE130E1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 79013-AE110E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79013-AE060E3 |
MCL10..5D..CE W(CHILD SEAT),MEDIUM OAK,TRIM4# |
1 | ||
| 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79101-AE010 |
MCL10 |
1 | ||
| 79101-AE020 |
MCL10 |
1 | ||
| 79103 - FRAME SUB-ASSY, NO.1 SEAT BACK | ||||
| 79103-AE020 |
MCL10..5D |
1 | ||
| 79103-AE040 |
MCL10..5D W(CHILD SEAT) |
1 | ||
| 79110 - LEG ASSY, NO.1 SEAT | ||||
| 79110-AE100 |
MCL10 |
1 | ||
| 79110-AE060 |
MCL10..5D W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-AE040B1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79120-AE040E1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 79120-AE090E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79120-AE090B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79120-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-AE011 |
MCL10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 79135-AE010 |
MCL10 |
1 | ||
| 79135-AE010 |
MCL10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-AE020E1 |
MCL10..5D..CE OAK,TRIM4# |
1 | ||
| 79140-AE110B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79140-AE110E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79140-AE120B1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-AE020B1 |
MCL10..5D..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79140-AE060E1 |
MCL10..5D..CE W(CHILD SEAT),OAK,TRIM4# |
1 | ||
| 79140-AE120E1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 79140-AE060B1 |
MCL10..5D..CE W(CHILD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-AE020 |
MCL10..5D |
1 | ||
| 79175-AE040 |
MCL10..5D W(CHILD SEAT) |
1 | ||
| Common parts | ||||
| 90080-17101 | ||||
| 90084-10008 | ||||
| 90084-16007 | ||||
| 90084-20003 | ||||
| 90084-38009 | ||||
| 90084-56003 | ||||
| 90119-10048 | ||||
| 91511-60616 | ||||
| 91513-60630 | ||||
| 93269-54008 | ||||
| Linked diagrams | ||||
| 7152 | ||||

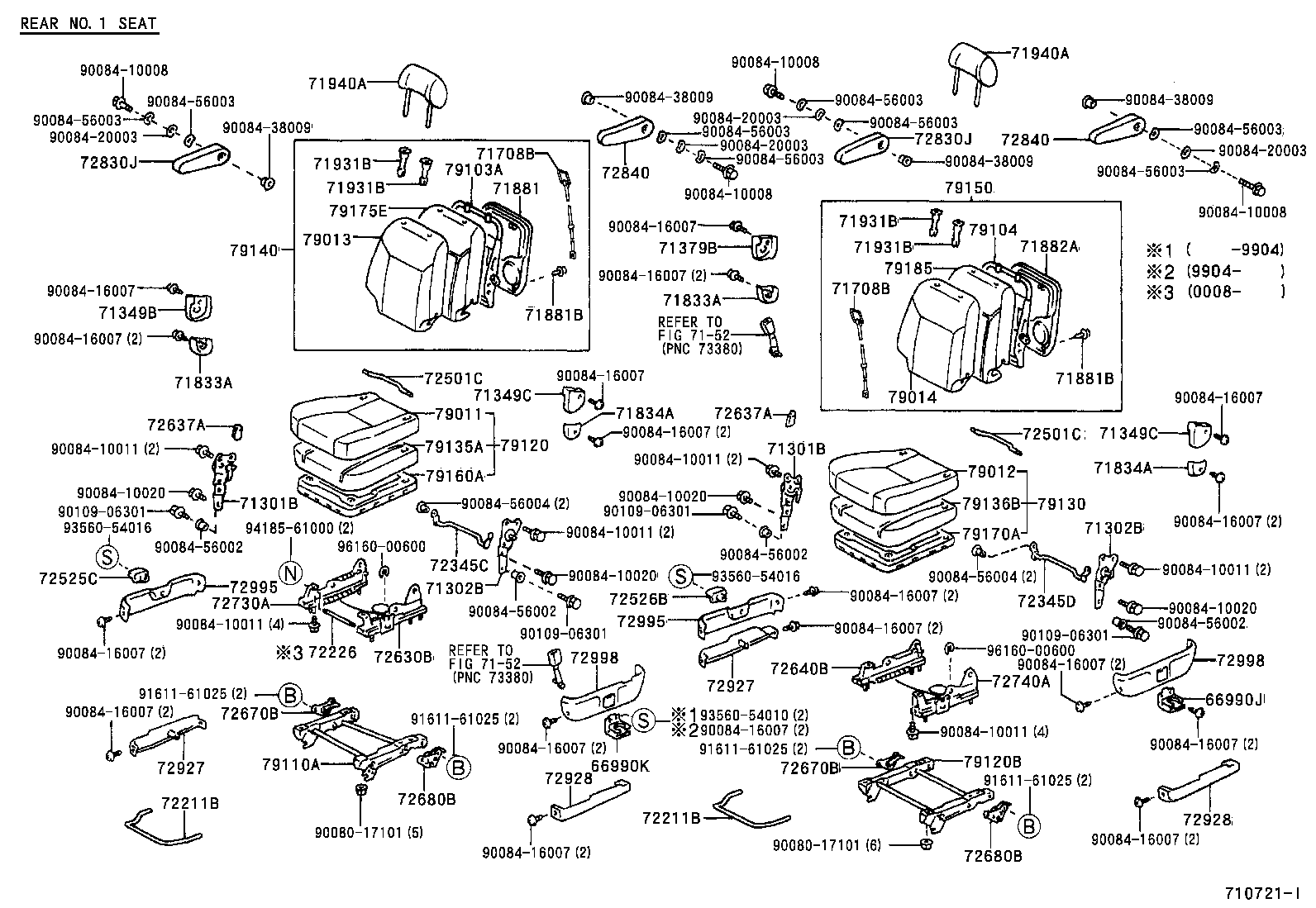

ILLUST NO. 2 OF 4(9708- )5D
CAPTAIN SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990J - HOLDER ASSY, CUP, NO.1 LH | ||||
| 66990-AE010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 66990-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 66990K - HOLDER ASSY, CUP, NO.1 RH | ||||
| 66990-AE010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 66990-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71301-08010 |
MCL10 RH |
1 | ||
| 71301-08020 |
MCL10 LH |
1 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71301-08010 |
MCL10 RH |
1 | ||
| 71301-08020 |
MCL10 LH |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71302-08020 |
MCL10 LH |
1 | ||
| 71302-08010 |
MCL10 RH |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71302-08020 |
MCL10 LH |
1 | ||
| 71302-08010 |
MCL10 RH |
1 | ||
| 71349B - COVER, REAR SEAT BACK STAY, RH | ||||
| 71349-AE010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71349-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-AE030B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| 71349-AE030E0 |
MCL10 MD. OAK,TRIM4# |
2 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-AE030B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| 71349-AE030E0 |
MCL10 MD. OAK,TRIM4# |
2 | ||
| 71379B - COVER, REAR SEAT BACK HINGE, LH | ||||
| 71349-AE010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71349-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-AA010 |
MCL10 |
4 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-AA010 |
MCL10 |
4 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-AE040B0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71833-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71833-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 71833-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71833-AE040E0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4# |
1 | ||
| 71833-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-AE040B0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71833-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71833-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 71833-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71833-AE040E0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4# |
1 | ||
| 71833-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71834-AE020E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71834-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71834-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 71834-AE040E0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4# |
1 | ||
| 71834-AE040B0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71834-AE020E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71834-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71834-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 71834-AE040E0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4# |
1 | ||
| 71834-AE040B0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-AE020E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71881-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71881-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881B - CLIP, REAR SEAT BACK BOARD | ||||
| 90084-46011B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
3 | ||
| 90084-46011E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
4 | ||
| 90084-46011E0 |
MCL10 MD.OAK,TRIM4# |
3 | ||
| 90084-46011B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71881B - CLIP, REAR SEAT BACK BOARD | ||||
| 90084-46011B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
3 | ||
| 90084-46011E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
4 | ||
| 90084-46011E0 |
MCL10 MD.OAK,TRIM4# |
3 | ||
| 90084-46011B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71881-AE020E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71881-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71881-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71940-AE010E1 |
MCL10..WG..CE W(CHILD SEAT),OAK,TRIM4# |
1 | ||
| 71940-AE010B1 |
MCL10..WG..CE W(CHILD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE060E0 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71940-AE050E0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
2 | ||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71940-AE050B0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE060B0 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71940-AE010E1 |
MCL10..WG..CE W(CHILD SEAT),OAK,TRIM4# |
1 | ||
| 71940-AE010B1 |
MCL10..WG..CE W(CHILD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE060E0 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71940-AE050E0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
2 | ||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71940-AE050B0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE060B0 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-08010 |
MCL10 |
2 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-08010 |
MCL10 |
2 | ||
| 72226 - BRACKET, SEAT TRACK, NO.1 | ||||
| 72226-08010 |
MCL10 |
1 | ||
| 72345C - PIPE,RECLINING CONNECTING, RH | ||||
| 72345-08010 |
MCL10 |
1 | ||
| 72345D - PIPE, RECLINING CONNECTING, LH | ||||
| 72345-08020 |
MCL10 |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-08030 |
MCL10..CE |
2 | ||
| 72501-08060 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72501-08010 |
MCL10 |
1 | ||
| 72501-08040 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72501-08040 |
MCL10 |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-08030 |
MCL10..CE |
2 | ||
| 72501-08060 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72501-08010 |
MCL10 |
1 | ||
| 72501-08040 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72501-08040 |
MCL10 |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-AE020B0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AE020E0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4# |
1 | ||
| 72525-AA010B1 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72525-AA010E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72525-AA010B1 |
MCL10 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AA010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72630B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72630-08010 |
MCL10 |
1 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-AE010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72637-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72637A - HANDLE, REAR SEAT LOCK | ||||
| 72637-AE010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72637-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72640B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 72640-08011 |
MCL10 |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72093-08020 |
MCL10 W(CAPTAIN SEAT) |
2 | ||
| 72093-08010 |
MCL10 |
1 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72093-08020 |
MCL10 W(CAPTAIN SEAT) |
2 | ||
| 72093-08010 |
MCL10 |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72093-08010 |
MCL10 |
1 | ||
| 72094-08010 |
MCL10 W(CAPTAIN SEAT) |
2 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72093-08010 |
MCL10 |
1 | ||
| 72094-08010 |
MCL10 W(CAPTAIN SEAT) |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-08012 |
MCL10 |
1 | ||
| 72730-08011 |
MCL10 |
1 | ||
| 72730-08050 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72730-08040 |
MCL10 W(CAPTAIN SEAT) |
1 | ||
| 72730-08013 |
MCL10 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-08060 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72740-08051 |
MCL10 W(CAPTAIN SEAT) |
1 | ||
| 72740-08011 |
MCL10 |
1 | ||
| 72740-08012 |
MCL10 |
1 | ||
| 72740-08013 |
MCL10 |
1 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72810-AE010E5 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010B3 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010B5 |
MCL10 W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72810-AE010E3 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010B5 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010E5 |
MCL10 W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72810-AE010E5 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010B3 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010B5 |
MCL10 W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72810-AE010E3 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010B5 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010E5 |
MCL10 W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72820-AE010B2 |
MCL10..5D;MCL10..4D..LE BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010B4 |
MCL10 W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72820-AE010E4 |
MCL10 W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 72820-AE010E4 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820-AE010E2 |
MCL10..5D;MCL10..4D..LE OAK,TRIM4# |
1 | ||
| 72820-AE010B4 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72820-AE010B2 |
MCL10..5D;MCL10..4D..LE BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010B4 |
MCL10 W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72820-AE010E4 |
MCL10 W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 72820-AE010E4 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820-AE010E2 |
MCL10..5D;MCL10..4D..LE OAK,TRIM4# |
1 | ||
| 72820-AE010B4 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72927-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72927-AE020E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4#,RH |
1 | ||
| 72927-AE020B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72927-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72927-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4#,LH |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72927-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72927-AE020E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4#,RH |
1 | ||
| 72927-AE020B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72927-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72927-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4#,LH |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-AE020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72928-AE020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 72928-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72928-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-AE020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72928-AE020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 72928-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72928-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-AE050B0 |
MCL10 LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72995-AE060B0 |
MCL10 LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72995-AE060E0 |
MCL10 MD.OAK,TRIM4#,LH |
1 | ||
| 72995-AE050E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-AE050B0 |
MCL10 LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72995-AE060B0 |
MCL10 LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72995-AE060E0 |
MCL10 MD.OAK,TRIM4#,LH |
1 | ||
| 72995-AE050E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-AE020B0 |
MCL10 LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72998-AE020E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72998-AE040E0 |
MCL10..CE MD.OAK,TRIM4#,LH |
1 | ||
| 72998-AE040B0 |
MCL10..CE LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-AE020B0 |
MCL10 LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72998-AE020E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72998-AE040E0 |
MCL10..CE MD.OAK,TRIM4#,LH |
1 | ||
| 72998-AE040B0 |
MCL10..CE LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-AE070E1 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
1 | ||
| 79011-AE070B1 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79011-AE070E1 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
1 | ||
| 79011-AE070B1 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-AE160B1 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79013-AE160E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 79013-AE160B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
2 | ||
| 79013-AE160E1 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-AE160B1 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79013-AE160E1 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-AE050 |
MCL10 |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79103-AE050 |
MCL10 |
1 | ||
| 79110A - LEG ASSY, NO.1 SEAT, RH | ||||
| 79110-AE120 |
MCL10 |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-AE070E1 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
1 | ||
| 79120-AE070B1 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120B - LEG ASSY, NO.1 SEAT, LH | ||||
| 79120-AE110 |
MCL10 |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79120-AE070B1 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-AE070E1 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 71511-AE010 |
MCL10 |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 71511-AE010 |
MCL10 |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-AE160E1 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
1 | ||
| 79140-AE160B1 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79140-AE160E1 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
1 | ||
| 79140-AE160B1 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH | ||||
| 71610-AE010 |
MCL10 |
1 | ||
| 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 71610-AE010 |
MCL10 |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-AE050 |
MCL10 |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79175-AE050 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-17101 | ||||
| 90084-10008 | ||||
| 90084-10011 | ||||
| 90084-10020 | ||||
| 90084-16007 | ||||
| 90084-20003 | ||||
| 90084-38009 | ||||
| 90084-56002 | ||||
| 90084-56003 | ||||
| 90084-56004 | ||||
| 90109-06301 | ||||
| 91611-61025 | ||||
| 93560-54010 | ||||
| 93560-54016 | ||||
| 94185-61000 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||

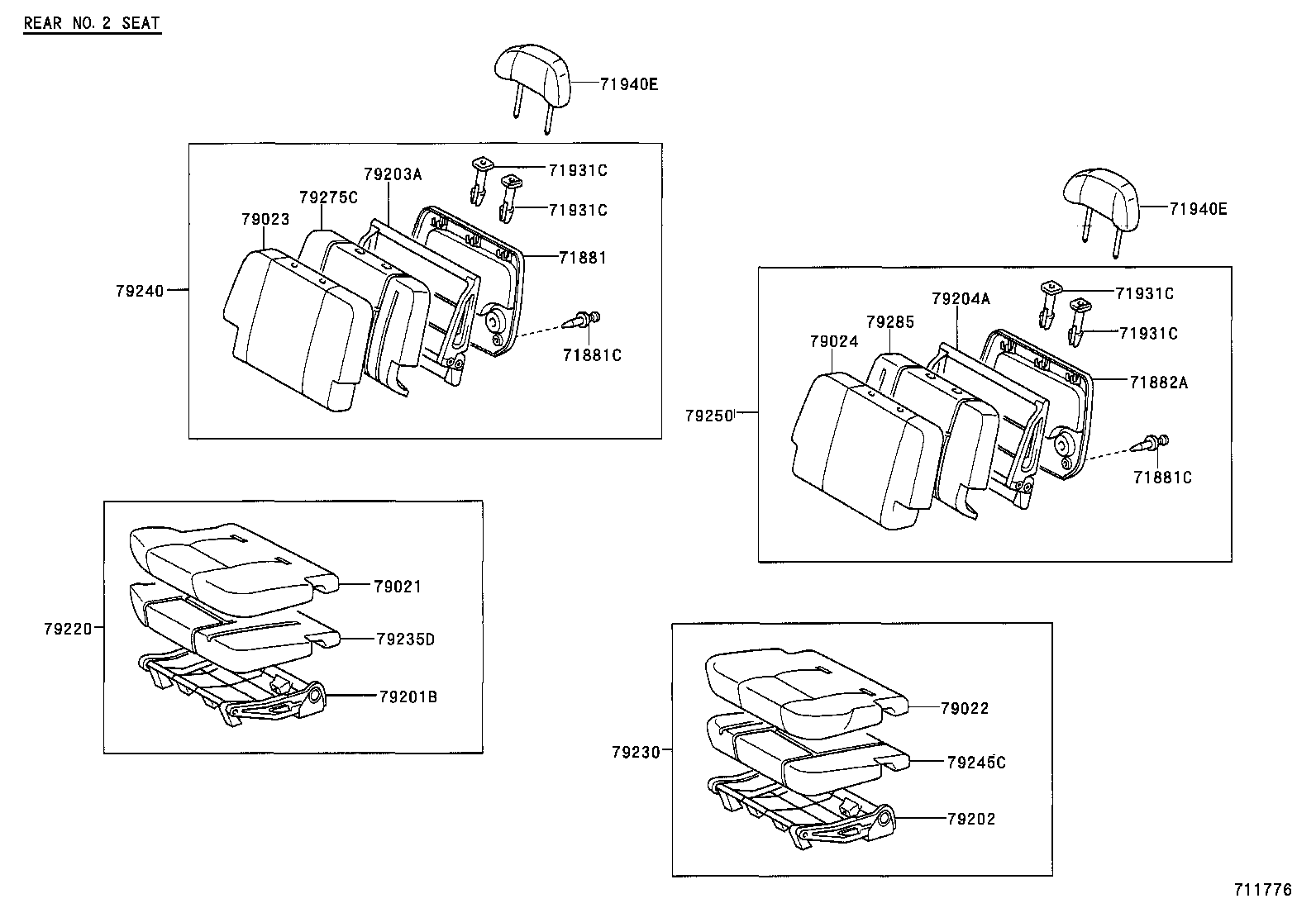

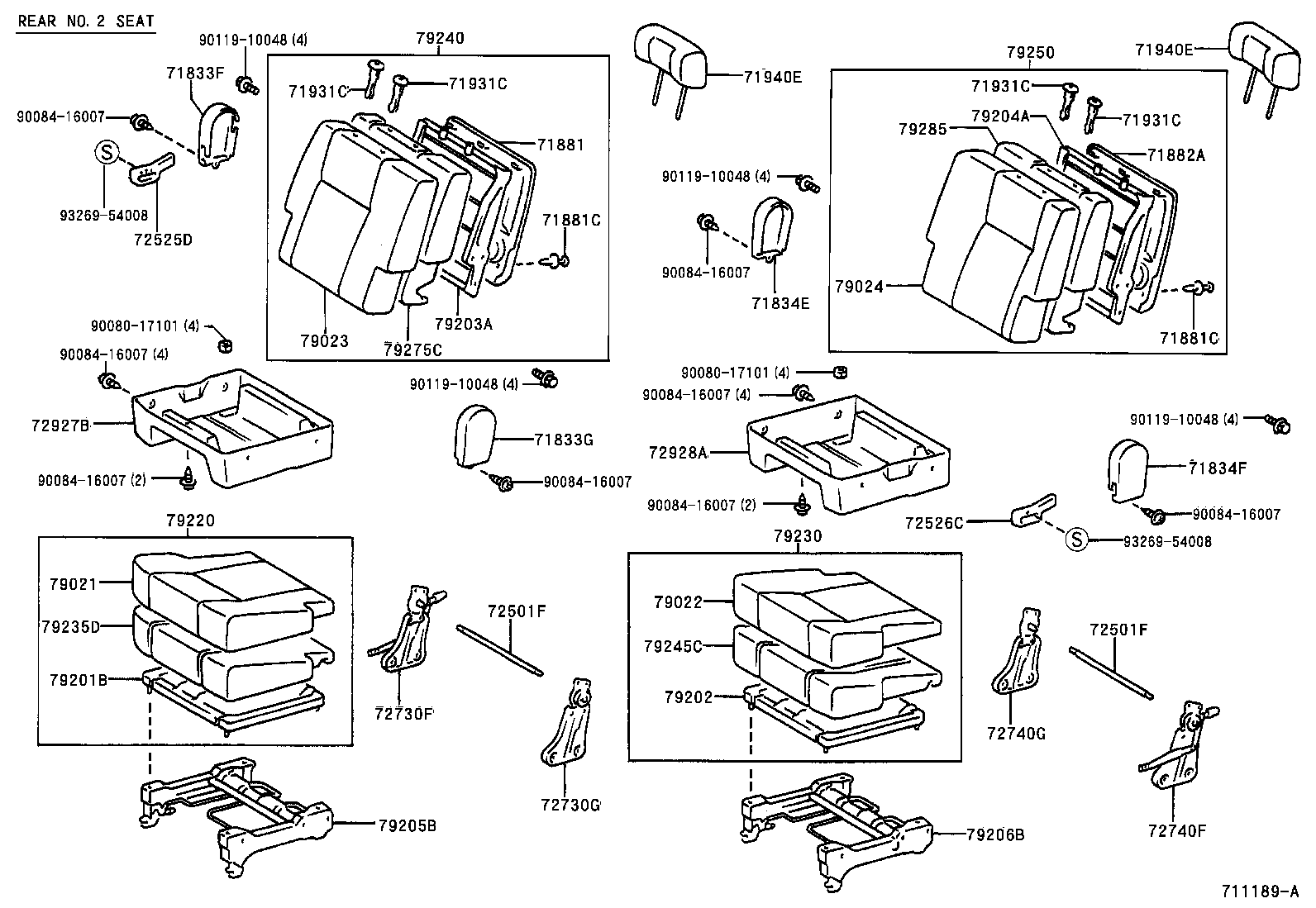

ILLUST NO. 3 OF 3(9708-0008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71833F - COVER, REAR NO.2 SEAT RECLINING, OUTER RH | ||||
| 71833-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71833-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71833G - COVER, REAR NO.2 SEAT RECLINING, INNER RH | ||||
| 71834-AE020E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71834-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71834E - COVER, REAR NO.2 SEAT RECLINING, INNER LH | ||||
| 71833-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71833-AE020E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71834F - COVER, REAR NO.2 SEAT RECLINING, OUTER LH | ||||
| 71834-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71834-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-AE020E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71881-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71881-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881C - CLIP, REAR NO.2 SEAT BACK BOARD | ||||
| 90084-46011B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
4 | ||
| 90084-46011E0 |
MCL10..WG MD.OAK,TRIM4# |
4 | ||
| 71881C - CLIP, REAR NO.2 SEAT BACK BOARD | ||||
| 90084-46011B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
4 | ||
| 90084-46011E0 |
MCL10..WG MD.OAK,TRIM4# |
4 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71881-AE020E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71881-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71881-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10..WG W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10..WG W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10..WG W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10..WG W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10..WG W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10..WG W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10..WG W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10..WG W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
2 | ||
| 71910-AE011E1 |
MCL10..WG..CE OAK,TRIM4# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
2 | ||
| 71910-AE011E1 |
MCL10..WG..CE OAK,TRIM4# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 72501F - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-08021 |
MCL10..WG |
2 | ||
| 72501-08020 |
MCL10..WG |
2 | ||
| 72501F - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-08021 |
MCL10..WG |
2 | ||
| 72501-08020 |
MCL10..WG |
2 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72526-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72526-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 72730F - ADJUSTER ASSY, NO.2 SEAT RECLINING, OUTER RH | ||||
| 72730-08021 |
MCL10..WG |
1 | ||
| 72730-08020 |
MCL10..WG |
1 | ||
| 72730G - ADJUSTER ASSY, NO.2 SEAT RECLINING, INNER RH | ||||
| 72740-08020 |
MCL10..WG |
1 | ||
| 72740-08021 |
MCL10..WG |
1 | ||
| 72740F - ADJUSTER ASSY, NO.2 SEAT RECLINING, OUTER LH | ||||
| 72740-08030 |
MCL10..WG |
1 | ||
| 72740-08031 |
MCL10..WG |
1 | ||
| 72740G - ADJUSTER ASSY, NO.2 SEAT RECLINING, INNER LH | ||||
| 72730-08031 |
MCL10..WG |
1 | ||
| 72730-08030 |
MCL10..WG |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-AE040E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 72907-08010E1 |
MCL10 OAK,TRIM4# |
1 | ||
| 72927-AE040B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72907-08010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 72907-08010B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72928A - COVER, REAR SEAT CUSHION UNDER, NO.2 | ||||
| 72928-AE040B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72908-08010B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72908-08010E1 |
MCL10 OAK,TRIM4# |
1 | ||
| 72928-AE040E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 72908-08010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79021-AE010E1 |
MCL10..WG..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79021-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79021-AE040B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79022-AE040B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79022-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79022-AE010E1 |
MCL10..WG..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79023-AE040B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79023-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79023-AE010E1 |
MCL10..WG..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79024-AE040B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79024-AE010E1 |
MCL10..WG..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79024-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79201-AE010 |
MCL10..WG |
1 | ||
| 79201-AE020 |
MCL10 |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-AE020 |
MCL10 |
1 | ||
| 79201-AE010 |
MCL10..WG |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79203-AE010 |
MCL10..WG |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79204-AE010 |
MCL10..WG |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79030-08011 |
MCL10..WG |
1 | ||
| 79030-08010 |
MCL10..WG |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79040-08010 |
MCL10..WG |
1 | ||
| 79040-08011 |
MCL10..WG |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
1 | ||
| 79220-AE040B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79220-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79220-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
1 | ||
| 79230-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79230-AE040B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79230-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-AE020 |
MCL10 |
1 | ||
| 79235-AE010 |
MCL10..WG |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79240-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
1 | ||
| 79240-AE040B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79240-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79245-AE020 |
MCL10 |
1 | ||
| 79245-AE010 |
MCL10..WG |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79250-AE040B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79250-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79250-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79275-AE010 |
MCL10..WG |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79285-AE010 |
MCL10..WG |
1 | ||
| Common parts | ||||
| 90080-17101 | ||||
| 90084-16007 | ||||
| 90119-10048 | ||||
| 93269-54008 | ||||
ILLUST NO. 1 OF 4(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-AE010 |
MCL10 |
1 | ||
| 71013-AE020 |
MCL10 W(*80,SIDE) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-AE020 |
MCL10..5D |
1 | ||
| 71014-AE030 |
MCL10 W(*80,SIDE) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71071-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71071-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71071-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71071-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71071-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71071-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71073-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71073-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71073-AE060B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71073-AE060E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71073-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-AE020B0 |
MCL10..5D..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71074-AE020E1 |
MCL10..5D..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71074-AE090E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71074-AE090B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71074-AE070E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71074-AE070B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE070B0 |
MCL10..5D..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE070E0 |
MCL10..5D..CE OAK.,TRIM4# |
1 | ||
| 71410-AE100E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE100B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE110B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE110E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71430-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE060E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71430-AE060B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-AE020B1 |
MCL10..5D..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71440-AE020E1 |
MCL10..5D..CE OAK,TRIM4# |
1 | ||
| 71440-AE070E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71440-AE090B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-AE090E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71440-AE070B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-AE010 |
MCL10 |
1 | ||
| 71051-AE020 |
MCL10..5D |
1 | ||
| 71051-AE030 |
MCL10 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-AE010 |
MCL10 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-AE010 |
MCL10 |
1 | ||
| 71551-AE020 |
MCL10 W(*80,SIDE) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-AE030 |
MCL10 W(*80,SIDE) |
1 | ||
| 71552-AE020 |
MCL10..5D |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-AE010 |
MCL10 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-AE010 |
MCL10 |
1 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-AA010 |
MCL10 |
4 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-AA010 |
MCL10 |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-AE020E1 |
MCL10 W(*80,SIDE),MD.OAK,TRIM4# |
1 | ||
| 71811-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71811-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71811-AE020B1 |
MCL10 W(*80,SIDE),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-AE010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 71812-AE010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 71812-AE030B1 |
MCL10 W(*80,SIDE),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71812-AE030E1 |
MCL10 W(*80,SIDE),MD.OAK,TRIM4# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-02010B5 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| 71819-02010E5 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-02010B5 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| 71819-02010E5 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AA010 |
MCL10 |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AA010 |
MCL10 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-AA010 |
MCL10 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-AA010 |
MCL10 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71861-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71862-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-08010 |
MCL10 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-08020 |
MCL10 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-08010 |
MCL10 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-08010 |
MCL10 |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-08010 |
MCL10 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72265-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72265-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-AE010E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72266-AE030B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72266-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72266-AE030E0 |
MCL10 MD.OAK,TRIM4#,LH |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-AE010E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72266-AE030B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72266-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72266-AE030E0 |
MCL10 MD.OAK,TRIM4#,LH |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AA010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72525-AA010B1 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-AA010B1 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72526-AA010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72592B - KNOB,RECLINING ADJUSTER, LH | ||||
| 72457-AA010B1 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72457-AA010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72820-AE010B2 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010B4 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010E4 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820-AE010E2 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72810-AE010B5 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010B3 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010E3 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010E5 |
MCL10 OAK,TRIM4# |
1 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 74808-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 74808-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90080-11190 | ||||
| 90084-10008 | ||||
| 90084-10011 | ||||
| 90084-10021 | ||||
| 90084-16007 | ||||
| 90084-20003 | ||||
| 90084-38009 | ||||
| 90084-56002 | ||||
| 90084-56003 | ||||
| 90109-06301 | ||||
| 90109-08254 | ||||
| 90119-10711 | ||||
| 90520-01006 | ||||
| 93560-54016 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7451 | ||||
ILLUST NO. 1 OF 4(0008- )
W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 66990 - HOLDER ASSY, CUP | ||||
| 66990-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-AE010 |
MCL10 |
1 | ||
| 71013-AE020 |
MCL10 W(*80,SIDE) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71071-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71071-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71071-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71071-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71071-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71071-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71071-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71073-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71073-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71073-AE060B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71073-AE060E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71073-AE040B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-AE020B0 |
MCL10..5D..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71074-AE020E1 |
MCL10..5D..CE MEDIUM OAK,TRIM4# |
1 | ||
| 71074-AE090E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71074-AE090B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71074-AE070E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71074-AE070B0 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE070B0 |
MCL10..5D..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE070E0 |
MCL10..5D..CE OAK.,TRIM4# |
1 | ||
| 71410-AE100E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE100B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE110B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71410-AE110E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71410-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71430-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE060E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71430-AE060B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY,TRIM1# |
1 | ||
| 71430-AE040E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-AE020B1 |
MCL10..5D..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71440-AE020E1 |
MCL10..5D..CE OAK,TRIM4# |
1 | ||
| 71440-AE070E0 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71440-AE090B0 |
MCL10..CE W(*80,SIDE),BLUISH GRAY,TRIM1# |
1 | ||
| 71440-AE090E0 |
MCL10..CE W(*80,SIDE),OAK,TRIM4# |
1 | ||
| 71440-AE070B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-AE010 |
MCL10 |
1 | ||
| 71051-AE020 |
MCL10..5D |
1 | ||
| 71051-AE030 |
MCL10 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-AE010 |
MCL10 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-AE010 |
MCL10 |
1 | ||
| 71551-AE020 |
MCL10 W(*80,SIDE) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-AE030 |
MCL10 W(*80,SIDE) |
1 | ||
| 71552-AE020 |
MCL10..5D |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-AE010 |
MCL10 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-AE010 |
MCL10 |
1 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-AA010 |
MCL10 |
4 | ||
| 71708B - STRAP SUB-ASSY, SEAT COVER | ||||
| 71708-AA010 |
MCL10 |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-AE020E1 |
MCL10 W(*80,SIDE),MD.OAK,TRIM4# |
1 | ||
| 71811-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71811-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71811-AE020B1 |
MCL10 W(*80,SIDE),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-AE010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 71812-AE010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 71812-AE030B1 |
MCL10 W(*80,SIDE),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 71812-AE030E1 |
MCL10 W(*80,SIDE),MD.OAK,TRIM4# |
1 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-02010B5 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| 71819-02010E5 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 71819B - LABEL, SIDE AIR BAG NAME | ||||
| 71819-02010B5 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| 71819-02010E5 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AA010 |
MCL10 |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AA010 |
MCL10 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-AA010 |
MCL10 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-AA010 |
MCL10 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71861-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71862-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71940-AE010E1 |
MCL10..WG..CE W(CHILD SEAT),OAK,TRIM4# |
1 | ||
| 71940-AE010B1 |
MCL10..WG..CE W(CHILD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE060E0 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71940-AE050E0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
2 | ||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71940-AE050B0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE060B0 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-08010 |
MCL10 |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-08020 |
MCL10 |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-08010 |
MCL10 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72137-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-08010 |
MCL10 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72265-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 72265-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-AE010E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72266-AE030B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72266-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72266-AE030E0 |
MCL10 MD.OAK,TRIM4#,LH |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-AE010E0 |
MCL10 MD.OAK,TRIM4#,RH |
1 | ||
| 72266-AE030B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72266-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72266-AE030E0 |
MCL10 MD.OAK,TRIM4#,LH |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-AA010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72525-AA010B1 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72820-AE010B2 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010B4 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010E4 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820-AE010E2 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72810-AE010B5 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010B3 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010E3 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010E5 |
MCL10 OAK,TRIM4# |
1 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 74808-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74808A - BOX SUB-ASSY, SEAT TRASH | ||||
| 74808-AE010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 74808-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90080-11190 | ||||
| 90084-10008 | ||||
| 90084-10011 | ||||
| 90084-10021 | ||||
| 90084-16007 | ||||
| 90084-20003 | ||||
| 90084-26006 | ||||
| 90084-38009 | ||||
| 90084-56002 | ||||
| 90084-56003 | ||||
| 90109-06301 | ||||
| 90119-10711 | ||||
| 90467-05046 | ||||
| 93560-54016 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7451 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-AE020E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71881-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71881-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881C - CLIP, REAR NO.2 SEAT BACK BOARD | ||||
| 90084-46011B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
4 | ||
| 90084-46011E0 |
MCL10..WG MD.OAK,TRIM4# |
4 | ||
| 71881C - CLIP, REAR NO.2 SEAT BACK BOARD | ||||
| 90084-46011B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
4 | ||
| 90084-46011E0 |
MCL10..WG MD.OAK,TRIM4# |
4 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71881-AE020E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71881-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 71881-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10..WG W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10..WG W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10..WG W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10..WG W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10..WG W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10..WG W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10..WG W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
MCL10..WG W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
2 | ||
| 71910-AE011E1 |
MCL10..WG..CE OAK,TRIM4# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
2 | ||
| 71910-AE011E1 |
MCL10..WG..CE OAK,TRIM4# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79021-AE010E1 |
MCL10..WG..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79021-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79021-AE040B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79022-AE040B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79022-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79022-AE010E1 |
MCL10..WG..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79023-AE040B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79023-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79023-AE010E1 |
MCL10..WG..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79024-AE040B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79024-AE010E1 |
MCL10..WG..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79024-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79201-AE010 |
MCL10..WG |
1 | ||
| 79201-AE020 |
MCL10 |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-AE020 |
MCL10 |
1 | ||
| 79201-AE010 |
MCL10..WG |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79203-AE010 |
MCL10..WG |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79204-AE010 |
MCL10..WG |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
1 | ||
| 79220-AE040B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79220-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79220-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
1 | ||
| 79230-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79230-AE040B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79230-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-AE020 |
MCL10 |
1 | ||
| 79235-AE010 |
MCL10..WG |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79240-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
1 | ||
| 79240-AE040B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79240-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79245-AE020 |
MCL10 |
1 | ||
| 79245-AE010 |
MCL10..WG |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79250-AE040B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79250-AE040E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79250-AE010E1 |
MCL10..WG..CE OAK,TRIM4# |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79275-AE010 |
MCL10..WG |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79285-AE010 |
MCL10..WG |
1 | ||
ILLUST NO. 2 OF 4(9708- )5D
BENCH SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990R - HOLDER ASSY, CUP, NO.1 | ||||
| 66990-AE010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10..5D MD.OAK,TRIM4# |
2 | ||
| 66990R - HOLDER ASSY, CUP, NO.1 | ||||
| 66990-AE010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
2 | ||
| 66990-AE010E0 |
MCL10..5D MD.OAK,TRIM4# |
2 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-AE010 |
MCL10 |
2 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-AE040B0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71833-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71833-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 71833-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71833-AE040E0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4# |
1 | ||
| 71833-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71834-AE020E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71834-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71834-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 71834-AE040E0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4# |
1 | ||
| 71834-AE040B0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881A - BOARD, REAR SEAT BACK | ||||
| 71881-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 71881-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71881B - CLIP, REAR SEAT BACK BOARD | ||||
| 90084-46011B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
3 | ||
| 90084-46011E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
4 | ||
| 90084-46011E0 |
MCL10 MD.OAK,TRIM4# |
3 | ||
| 90084-46011B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
4 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-44010E3 |
MCL10 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931-32020P4 |
MCL10..WG W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
MCL10 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-44010B7 |
MCL10..WG W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71940-AE010E1 |
MCL10..WG..CE W(CHILD SEAT),OAK,TRIM4# |
1 | ||
| 71940-AE010B1 |
MCL10..WG..CE W(CHILD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE060E0 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71940-AE050E0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
2 | ||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71940-AE050B0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE060B0 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE011B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE011E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 71940-AE010E1 |
MCL10..WG..CE W(CHILD SEAT),OAK,TRIM4# |
1 | ||
| 71940-AE010B1 |
MCL10..WG..CE W(CHILD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71910-AE060E0 |
MCL10..CE W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 71910-AE040E0 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71910-AE040B0 |
MCL10..CE BLUISH GRAY,TRIM1# |
2 | ||
| 71940-AE050E0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
2 | ||
| 71910-AE010E1 |
MCL10..CE OAK,TRIM4# |
2 | ||
| 71940-AE050B0 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-AE060B0 |
MCL10..CE W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-08030 |
MCL10..CE |
2 | ||
| 72501-08060 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72501-08010 |
MCL10 |
1 | ||
| 72501-08040 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72501-08040 |
MCL10 |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-AE020B0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AE020E0 |
MCL10..WG W(CHILD RESTRAINT SYSTEM),MD.OAK,TRIM4# |
1 | ||
| 72525-AA010B1 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72525-AA010E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-AE010E0 |
MCL10 W(LEATHER SEAT),MD.OAK,TRIM4# |
1 | ||
| 72553-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72553-AE010B0 |
MCL10..WG W(LEATHER SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72553-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
2 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72093-08020 |
MCL10 W(CAPTAIN SEAT) |
2 | ||
| 72093-08010 |
MCL10 |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72093-08010 |
MCL10 |
1 | ||
| 72094-08010 |
MCL10 W(CAPTAIN SEAT) |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-08012 |
MCL10 |
1 | ||
| 72730-08011 |
MCL10 |
1 | ||
| 72730-08050 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72730-08040 |
MCL10 W(CAPTAIN SEAT) |
1 | ||
| 72730-08013 |
MCL10 |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-08060 |
MCL10..WG W(CHILD SEAT) |
1 | ||
| 72740-08051 |
MCL10 W(CAPTAIN SEAT) |
1 | ||
| 72740-08011 |
MCL10 |
1 | ||
| 72740-08012 |
MCL10 |
1 | ||
| 72740-08013 |
MCL10 |
1 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72810-AE010E5 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010B3 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010B5 |
MCL10 W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72810-AE010E3 |
MCL10 OAK,TRIM4# |
1 | ||
| 72810-AE010B5 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72810-AE010E5 |
MCL10 W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72820-AE010B2 |
MCL10..5D;MCL10..4D..LE BLUISH GRAY,TRIM1# |
1 | ||
| 72820-AE010B4 |
MCL10 W(CAPTAIN SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 72820-AE010E4 |
MCL10 W(CAPTAIN SEAT),OAK,TRIM4# |
2 | ||
| 72820-AE010E4 |
MCL10 OAK,TRIM4# |
1 | ||
| 72820-AE010E2 |
MCL10..5D;MCL10..4D..LE OAK,TRIM4# |
1 | ||
| 72820-AE010B4 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-AE010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 72927-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72927-AE020E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4#,RH |
1 | ||
| 72927-AE020B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 72927-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 72927-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4#,LH |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-AE020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72928-AE020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 72928-AE030B0 |
MCL10 W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72928-AE030E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-AE010E1 |
MCL10..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79011-AE040E1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 79011-AE080B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79011-AE040B1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79011-AE080E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79011-AE010B0 |
MCL10..WG..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-AE020E1 |
MCL10..5D..CE MEDIUM OAK,TRIM4# |
1 | ||
| 79013-AE020B0 |
MCL10..5D..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 79013-AE110B1 |
MCL10..CE BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79013-AE130B1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY-CONFETTI,TRIM1# |
1 | ||
| 79013-AE060B2 |
MCL10..5D..CE W(CHILD SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 79013-AE130E1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 79013-AE110E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79013-AE060E3 |
MCL10..5D..CE W(CHILD SEAT),MEDIUM OAK,TRIM4# |
1 | ||
| 79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79101-AE010 |
MCL10 |
1 | ||
| 79101-AE020 |
MCL10 |
1 | ||
| 79103 - FRAME SUB-ASSY, NO.1 SEAT BACK | ||||
| 79103-AE020 |
MCL10..5D |
1 | ||
| 79103-AE040 |
MCL10..5D W(CHILD SEAT) |
1 | ||
| 79110 - LEG ASSY, NO.1 SEAT | ||||
| 79110-AE100 |
MCL10 |
1 | ||
| 79110-AE060 |
MCL10..5D W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-AE040B1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-AE010B1 |
MCL10..WG..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79120-AE040E1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 79120-AE090E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79120-AE090B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79120-AE010E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-AE011 |
MCL10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 79135-AE010 |
MCL10 |
1 | ||
| 79135-AE010 |
MCL10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-AE020E1 |
MCL10..5D..CE OAK,TRIM4# |
1 | ||
| 79140-AE110B1 |
MCL10..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79140-AE110E1 |
MCL10..CE OAK,TRIM4# |
1 | ||
| 79140-AE120B1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-AE020B1 |
MCL10..5D..CE BLUISH GRAY,TRIM1# |
1 | ||
| 79140-AE060E1 |
MCL10..5D..CE W(CHILD SEAT),OAK,TRIM4# |
1 | ||
| 79140-AE120E1 |
MCL10..CE W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 79140-AE060B1 |
MCL10..5D..CE W(CHILD SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-AE020 |
MCL10..5D |
1 | ||
| 79175-AE040 |
MCL10..5D W(CHILD SEAT) |
1 | ||
| Common parts | ||||
| 90080-17101 | ||||
| 90084-10008 | ||||
| 90084-16007 | ||||
| 90084-20003 | ||||
| 90084-38009 | ||||
| 90084-56003 | ||||
| 90119-10048 | ||||
| 93269-54008 | ||||
| Linked diagrams | ||||
| 7152 | ||||

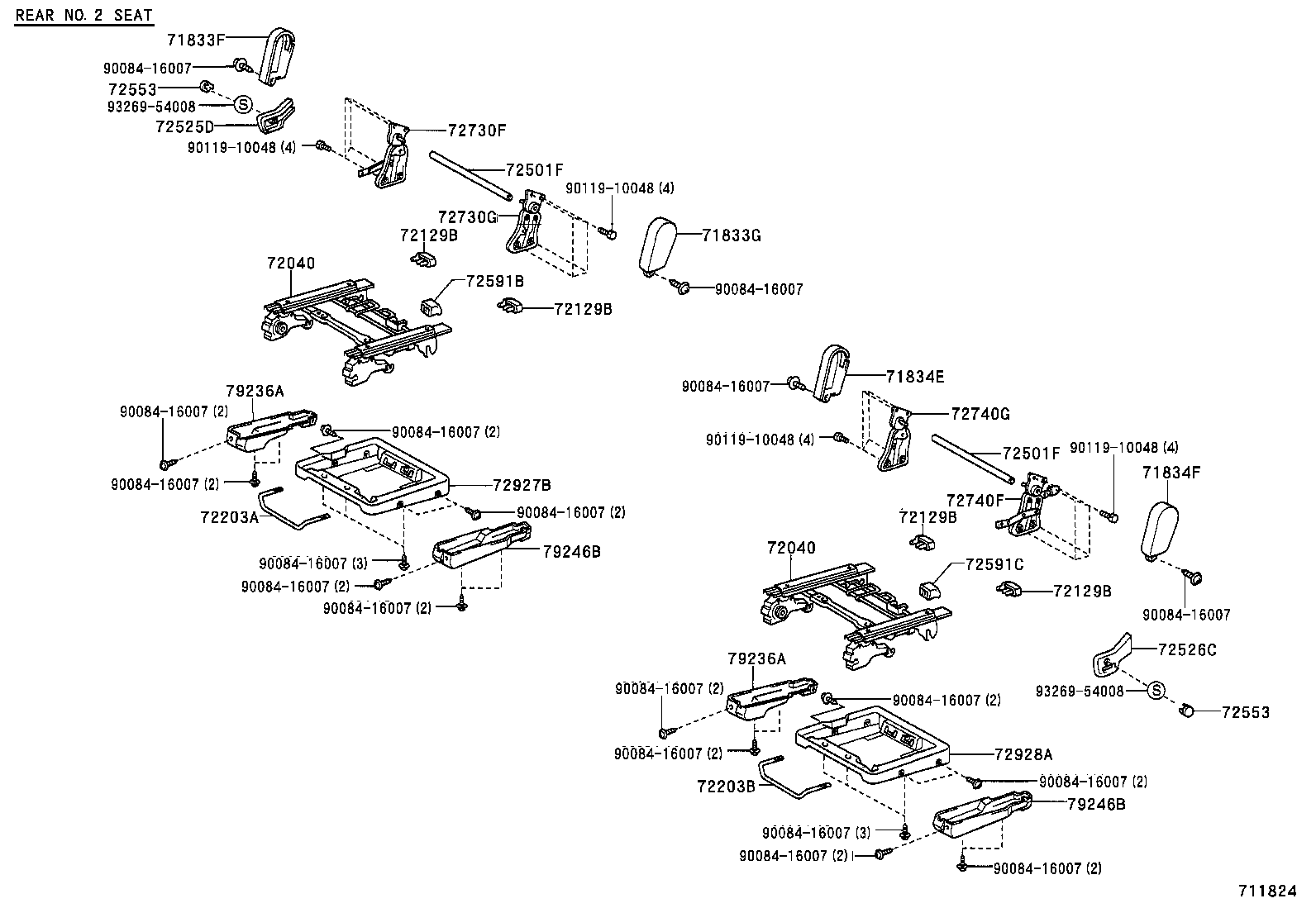

ILLUST NO. 4 OF 4(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71833F - COVER, REAR NO.2 SEAT RECLINING, OUTER RH | ||||
| 71833-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71833-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71833G - COVER, REAR NO.2 SEAT RECLINING, INNER RH | ||||
| 71834-AE020E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71834-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71834E - COVER, REAR NO.2 SEAT RECLINING, INNER LH | ||||
| 71833-AE020B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 71833-AE020E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71834F - COVER, REAR NO.2 SEAT RECLINING, OUTER LH | ||||
| 71834-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 71834-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72040 - ADJUSTER ASSY, REAR NO.2 SEAT | ||||
| 72040-08010 |
MCL10 |
2 | ||
| 72040 - ADJUSTER ASSY, REAR NO.2 SEAT | ||||
| 72040-08010 |
MCL10 |
2 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-08010 |
MCL10 |
4 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-08010 |
MCL10 |
4 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-08010 |
MCL10 |
4 | ||
| 72129B - PROTECTOR, SEAT TRACK LOWER RAIL | ||||
| 72129-08010 |
MCL10 |
4 | ||
| 72203A - HANDLE SUB-ASSY, REAR SEAT TRACK, RH | ||||
| 72203-0C010 |
MCL10 |
1 | ||
| 72203B - HANDLE SUB-ASSY, REAR SEAT TRACK, LH | ||||
| 72203-0C010 |
MCL10 |
1 | ||
| 72501F - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-08021 |
MCL10..WG |
2 | ||
| 72501-08020 |
MCL10..WG |
2 | ||
| 72501F - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-08021 |
MCL10..WG |
2 | ||
| 72501-08020 |
MCL10..WG |
2 | ||
| 72525D - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH | ||||
| 72525-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72525-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 72526C - HANDLE, RECLINING ADJUSTER RELEASE, NO.2 LH | ||||
| 72526-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72526-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-AE010E0 |
MCL10 W(LEATHER SEAT),MD.OAK,TRIM4# |
1 | ||
| 72553-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72553-AE010B0 |
MCL10..WG W(LEATHER SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72553-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
2 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-AE010E0 |
MCL10 W(LEATHER SEAT),MD.OAK,TRIM4# |
1 | ||
| 72553-AE010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 72553-AE010B0 |
MCL10..WG W(LEATHER SEAT),LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72553-AE010E0 |
MCL10..WG MD.OAK,TRIM4# |
2 | ||
| 72591B - LEVER, RECLINING REMOTE CONTROL, RH | ||||
| 72591-0C010 |
MCL10 |
1 | ||
| 72591C - LEVER, RECLINING REMOTE CONTROL, LH | ||||
| 72591-0C010 |
MCL10 |
1 | ||
| 72730F - ADJUSTER ASSY, NO.2 SEAT RECLINING, OUTER RH | ||||
| 72730-08021 |
MCL10..WG |
1 | ||
| 72730-08020 |
MCL10..WG |
1 | ||
| 72730G - ADJUSTER ASSY, NO.2 SEAT RECLINING, INNER RH | ||||
| 72740-08020 |
MCL10..WG |
1 | ||
| 72740-08021 |
MCL10..WG |
1 | ||
| 72740F - ADJUSTER ASSY, NO.2 SEAT RECLINING, OUTER LH | ||||
| 72740-08030 |
MCL10..WG |
1 | ||
| 72740-08031 |
MCL10..WG |
1 | ||
| 72740G - ADJUSTER ASSY, NO.2 SEAT RECLINING, INNER LH | ||||
| 72730-08031 |
MCL10..WG |
1 | ||
| 72730-08030 |
MCL10..WG |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-AE040E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 72907-08010E1 |
MCL10 OAK,TRIM4# |
1 | ||
| 72927-AE040B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72907-08010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 72907-08010B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72928A - COVER, REAR SEAT CUSHION UNDER, NO.2 | ||||
| 72928-AE040B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 72908-08010B0 |
MCL10 BLUISH GRAY,TRIM1# |
1 | ||
| 72908-08010E1 |
MCL10 OAK,TRIM4# |
1 | ||
| 72928-AE040E0 |
MCL10..WG MD.OAK,TRIM4# |
1 | ||
| 72908-08010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-08010B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| 79236-08010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 79236A - COVER, NO.2 SEAT LEG | ||||
| 79236-08010B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| 79236-08010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 79246B - COVER, NO.2 SEAT LEG, B | ||||
| 79246-08010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 79246-08010B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| 79246B - COVER, NO.2 SEAT LEG, B | ||||
| 79246-08010E0 |
MCL10 MD.OAK,TRIM4# |
2 | ||
| 79246-08010B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90084-16007 | ||||
| 90119-10048 | ||||
| 93269-54008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
