MCL10L-PFSDKA (1997)
Toyota Sienna

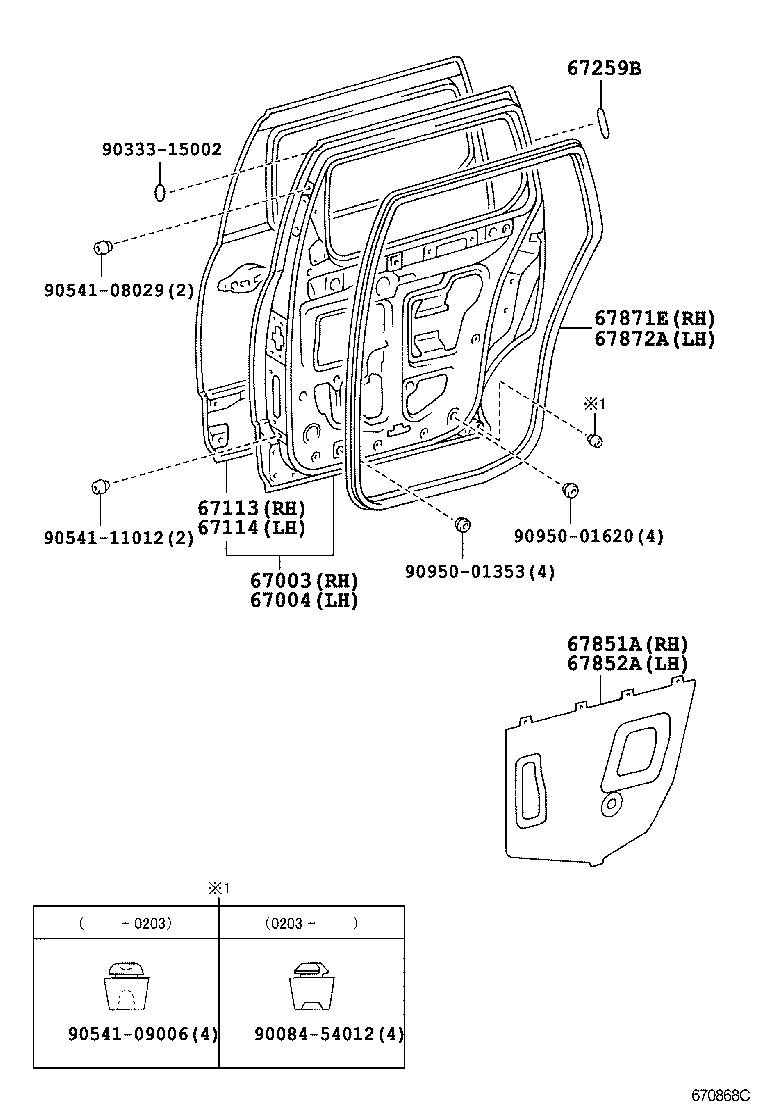

ILLUST NO. 2 OF 2(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-08021 |
MCL10 |
1 | ||
| 67003-08010 |
MCL10 |
1 | ||
| 67003-08020 |
MCL10 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-08020 |
MCL10..5D;MCL10..4D..USA |
1 | ||
| 67004-08010 |
MCL10..5D |
1 | ||
| 67004-08021 |
MCL10 |
1 | ||
| 67004-08022 |
MCL10 |
1 | ||
| 67004-08020 |
MCL10..5D |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-08010 |
MCL10 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-08010 |
MCL10..5D |
1 | ||
| 67114-08010 |
MCL10..5D;MCL10..4D..USA |
1 | ||
| 67259B - REFLECTOR, SLIDE DOOR | ||||
| 67259-08010 |
MCL10..5D |
2 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-08010 |
MCL10 |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-08010 |
MCL10..5D |
1 | ||
| 67871E - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 67871-08010 |
MCL10 |
1 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 67872-08010 |
MCL10..5D |
1 | ||
| Common parts | ||||
| 90084-54012 | ||||
| 90333-15002 | ||||
| 90541-08029 | ||||
| 90541-09006 | ||||
| 90541-11012 | ||||
| 90950-01353 | ||||
| 90950-01620 | ||||

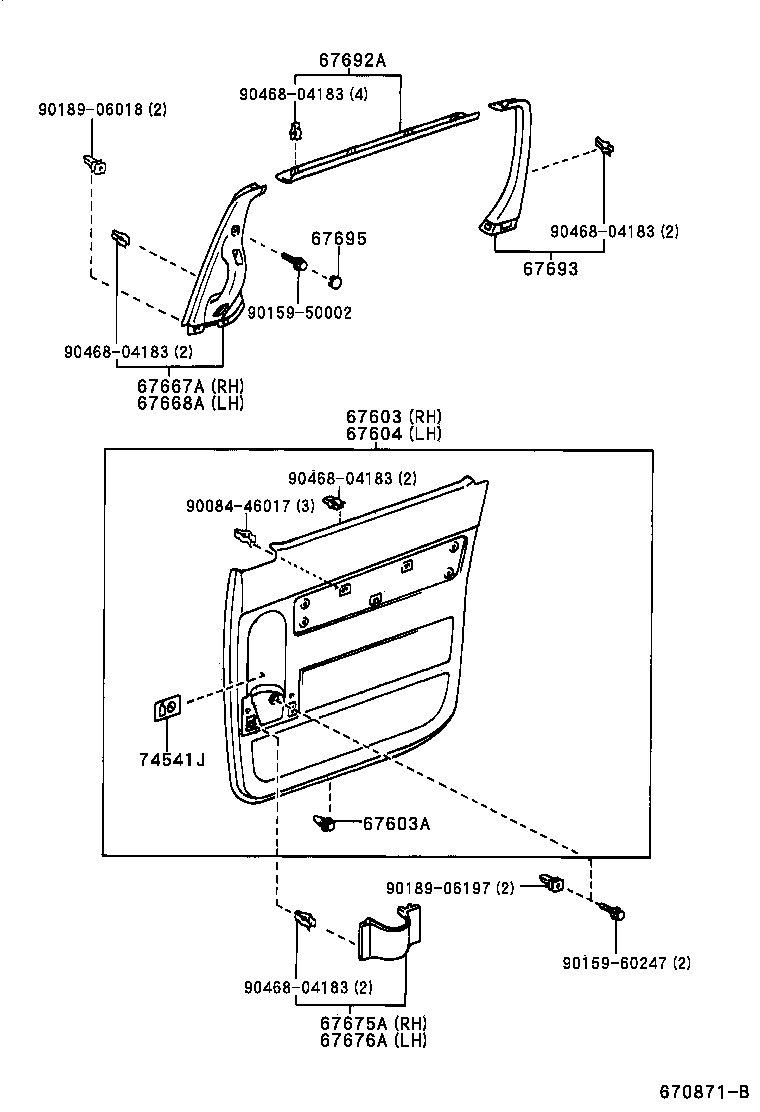

ILLUST NO. 1 OF 2(9708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-08010B0 |
MCL10..WG..CE LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67680-08040B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 67680-08040E0 |
MCL10..CE MD.OAK,TRIM4# |
1 | ||
| 67680-08010E0 |
MCL10..CE MD.OAK,TRIM4# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
MCL10..5D |
20 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-08010B0 |
MCL10..5D..CE LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67690-08010E0 |
MCL10..5D..CE MD.OAK,TRIM4# |
1 | ||
| 67690-08040B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 67690-08040E0 |
MCL10..CE MD.OAK,TRIM4# |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67667-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-08010E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 67668-08010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67675A - POCKET, SLIDE DOOR TRIM, RH | ||||
| 67675-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 67675-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67676A - POCKET, SLIDE DOOR TRIM, LH | ||||
| 67676-08010E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 67676-08010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 67692A - COVER, SLIDE DOOR TRIM, UPPER NO.1 | ||||
| 67692-08020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 67692-08010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 67692-08010E0 |
MCL10..5D MD.OAK,TRIM4#,RH |
1 | ||
| 67692-08020E0 |
MCL10..5D MD.OAK,TRIM4#,LH |
1 | ||
| 67693 - COVER, SLIDE DOOR TRIM BOARD | ||||
| 67693-08010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,RH |
1 | ||
| 67693-08020E0 |
MCL10..5D MD.OAK,TRIM4#,LH |
1 | ||
| 67693-08010E0 |
MCL10..5D MD.OAK,TRIM4#,RH |
1 | ||
| 67693-08020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1#,LH |
1 | ||
| 67695 - COVER, SLIDE DOOR TRIM, UPPER NO.2 | ||||
| 67695-08010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
2 | ||
| 67695-08010E0 |
MCL10..5D MD.OAK,TRIM4# |
2 | ||
| 74541J - LABEL, BOTTLE HOLDER INFORMATION | ||||
| 74541-08010 |
MCL10..5D;MCL10..4D..LE |
2 | ||
| Common parts | ||||
| 90084-46017 | ||||
| 90159-50002 | ||||
| 90159-60247 | ||||
| 90189-06018 | ||||
| 90189-06197 | ||||
| 90468-04183 | ||||
