MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

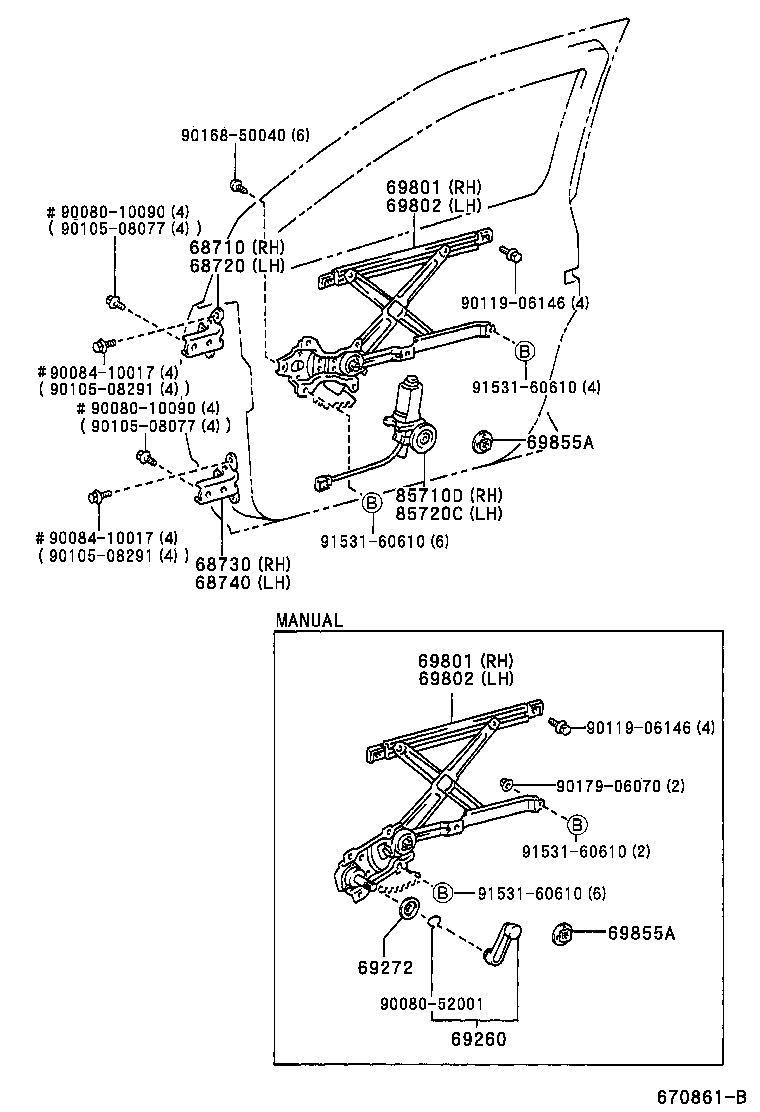

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69272 69801 69801 69802 69802 69855A 69855A 85710D 85720C 9008010090 9008010090 9008052001 9008410017 9008410017 9010508077 9010508077 9010508291 9010508291 9011906146 9011906146 9016850040 9017906070 9153160610 9153160610 9153160610 9153160610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02010

MCL10

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02010

MCL10

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-08011

MCL10

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-08011

MCL10

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-AA010E0

MCL10..CE

MD.OAK,TRIM4#

 2
69260-AA010B1

MCL10..WG..CE

LT.BLUISH GRAY,TRIM1#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-03010

MCL10..CE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-08010

MCL10..WG

W(POWER WINDOW)

 1
69810-08020

MCL10..CE

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-08010

MCL10..WG

W(POWER WINDOW)

 1
69810-08020

MCL10..CE

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-08020

MCL10..CE

 1
69802-08010

MCL10..WG

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-08020

MCL10..CE

 1
69802-08010

MCL10..WG

W(POWER WINDOW)

 1
69855A - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

MCL10

 2
69855A - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

MCL10

 2
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-08010

MCL10..WG

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-08010

MCL10..WG

 1
85720-45010

MCL10

 1
Common parts
90080-10090
90080-52001
90084-10017
90105-08077
90105-08291
90119-06146
90168-50040
90179-06070
91531-60610
