MCL10L-PFSDKA (1997)
Toyota Sienna
(9708- )

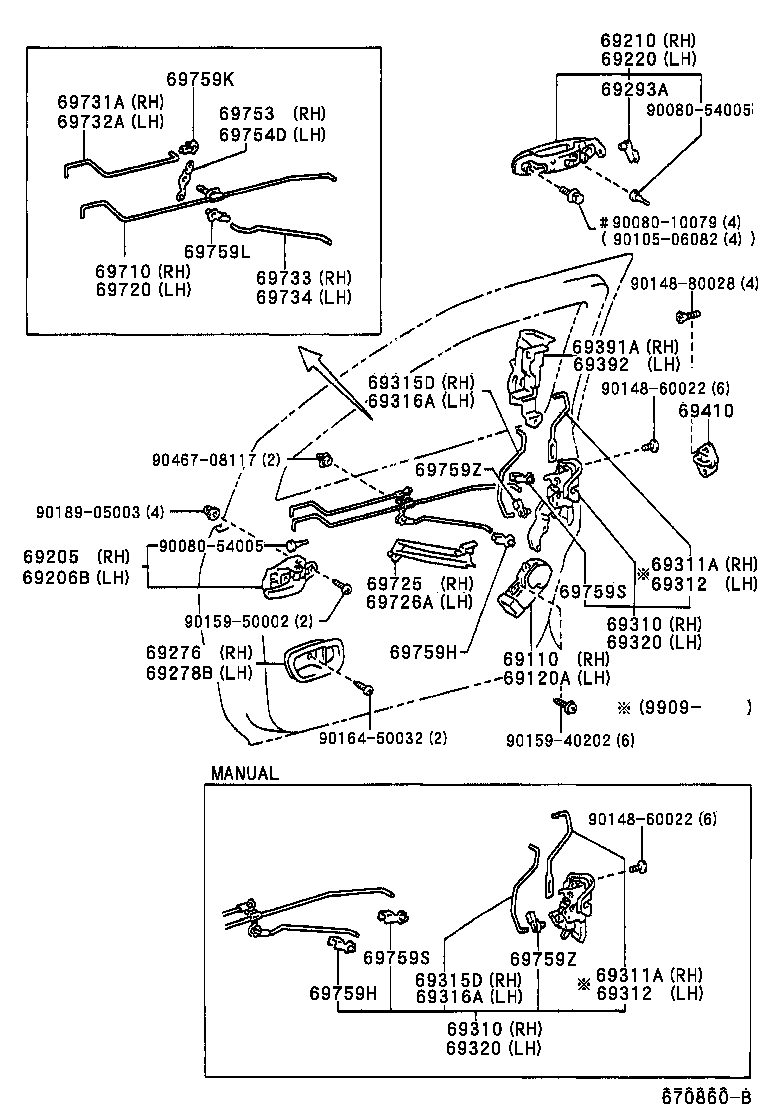

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-08010 |
MCL10..WG |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-08010 |
MCL10..WG |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-AA010E1 |
MCL10 OAK,TRIM4# |
1 | ||
| 69205-AA010B1 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-AA010B1 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 69206-AA010E1 |
MCL10 OAK,TRIM4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-08010C0 |
MCL10 BLACK,202 |
1 | ||
| 69210-08010G1 |
MCL10 DK.GREEN ME.,6P2 |
1 | ||
| 69210-08010D0 |
MCL10 RED M.M.,3K4 |
1 | ||
| 69210-08010J1 |
MCL10 BLUE M.M.,8N7 |
1 | ||
| 69210-08010G2 |
MCL10 GREEN MC.,6R1 |
1 | ||
| 69210-08010E0 |
MCL10 BEIGE M.M.,4N7 |
1 | ||
| 69210-08010D3 |
MCL10 DK. RED MC.,3P5 |
1 | ||
| 69210-08010D1 |
MCL10 DK.RED M.M.,3M6 |
1 | ||
| 69210-08010J2 |
MCL10 DK.BLUE MC.,8Q0 |
1 | ||
| 69210-08010A0 |
MCL10 SUPER WHITE 2,040 |
1 | ||
| 69210-08010G0 |
MCL10 GR.GREEN ME.,6M3 |
1 | ||
| 69210-08010E1 |
MCL10 BEIGE M.M.,4Q2 |
1 | ||
| 69210-08010B0 |
MCL10 SILVER M.M.,1D7 |
1 | ||
| 69210-08010J0 |
MCL10..WG BLUE M.M.,8L9 |
1 | ||
| 69210-08010D2 |
MCL10 DK. RED MC.,3N6 |
1 | ||
| 69210-08010K0 |
MCL10..WG LT.PURPLE ME.OP.,931 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-08010G1 |
MCL10 DK.GREEN M.M.,6P2 |
1 | ||
| 69220-08010E0 |
MCL10 BEIGE M.M.,4N7 |
1 | ||
| 69220-08010C0 |
MCL10 BLACK,202 |
1 | ||
| 69220-08010D1 |
MCL10 DK.RED M.M.,3M6 |
1 | ||
| 69220-08010K0 |
MCL10..WG LT.PURPLE ME.OP.,931 |
1 | ||
| 69220-08010A0 |
MCL10 SUPER WHITE 2,040 |
1 | ||
| 69220-08010D0 |
MCL10 RED M.M.,3K4 |
1 | ||
| 69220-08010G2 |
MCL10 GREEN MC.,6R1 |
1 | ||
| 69220-08010D3 |
MCL10 DK. RED MC.,3P5 |
1 | ||
| 69220-08010G0 |
MCL10 GR.GREEN ME.,6M3 |
1 | ||
| 69220-08010J2 |
MCL10 DK.BLUE MC.,8Q0 |
1 | ||
| 69220-08010D2 |
MCL10 DK. RED MC.,3N6 |
1 | ||
| 69220-08010J1 |
MCL10 BLUE M.M.,8N7 |
1 | ||
| 69220-08010B0 |
MCL10 SILVER M.M.,1D7 |
1 | ||
| 69220-08010E1 |
MCL10 BEIGE M.M.,4Q2 |
1 | ||
| 69220-08010J0 |
MCL10..WG BLUE M.M.,8L9 |
1 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-08010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 69277-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-08010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 69278-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-08030 |
MCL10 RH |
1 | ||
| 69293-08040 |
MCL10 LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69303-08010 |
MCL10..WG W(POWER DOOR LOCK) |
1 | ||
| 69310-08010 |
MCL10..CE |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69303-08010 |
MCL10..WG W(POWER DOOR LOCK) |
1 | ||
| 69310-08010 |
MCL10..CE |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-08010 |
MCL10 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-08010 |
MCL10 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-08010 |
MCL10 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-08010 |
MCL10 |
1 | ||
| 69315D - LINK, FRONT DOOR OUTSIDE LOCKING, RH | ||||
| 69315-08010 |
MCL10..WG |
1 | ||
| 69315D - LINK, FRONT DOOR OUTSIDE LOCKING, RH | ||||
| 69315-08010 |
MCL10..WG |
1 | ||
| 69316A - LINK, FRONT DOOR OUTSIDE LOCKING, LH | ||||
| 69316-08010 |
MCL10..WG |
1 | ||
| 69316A - LINK, FRONT DOOR OUTSIDE LOCKING, LH | ||||
| 69316-08010 |
MCL10..WG |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-08010 |
MCL10..CE |
1 | ||
| 69304-08010 |
MCL10..WG W(POWER DOOR LOCK) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-08010 |
MCL10..CE |
1 | ||
| 69304-08010 |
MCL10..WG W(POWER DOOR LOCK) |
1 | ||
| 69391A - COVER, FRONT DOOR LOCK, OUTER RH | ||||
| 69391-08010 |
MCL10..WG |
1 | ||
| 69392 - COVER, FRONT DOOR LOCK, OUTER LH | ||||
| 69392-08010 |
MCL10..WG |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-AA020 |
MCL10 |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69710-08010 |
MCL10 |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69720-08010 |
MCL10 |
1 | ||
| 69725 - PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH | ||||
| 69725-08010 |
MCL10 |
1 | ||
| 69726A - PROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH | ||||
| 69726-08010 |
MCL10 |
1 | ||
| 69731A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH | ||||
| 69731-08010 |
MCL10 |
1 | ||
| 69732A - LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH | ||||
| 69732-08010 |
MCL10 |
1 | ||
| 69733 - LINK, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69733-08010 |
MCL10 |
1 | ||
| 69734 - LINK, FRONT DOOR INSIDE LOCKING, LH | ||||
| 69734-08010 |
MCL10 |
1 | ||
| 69753 - BELLCRANK, DOOR LOCK CONTROL, RH | ||||
| 69753-08010 |
MCL10 |
1 | ||
| 69754D - BELLCRANK, DOOR LOCK CONTROL, LH | ||||
| 69754-08010 |
MCL10 |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-24050 |
MCL10 LH |
1 | ||
| 69759-24060 |
MCL10 RH |
1 | ||
| 69759H - SNAP, DOOR LOCK CONTROL LINK, NO.2 | ||||
| 69759-24050 |
MCL10 LH |
1 | ||
| 69759-24060 |
MCL10 RH |
1 | ||
| 69759K - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24080 |
MCL10 |
2 | ||
| 69759L - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24090 |
MCL10 |
2 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24050 |
MCL10 LH |
1 | ||
| 69759-24060 |
MCL10 RH |
1 | ||
| 69759S - SNAP, FRONT DOOR INSIDE HANDLE | ||||
| 69759-24050 |
MCL10 LH |
1 | ||
| 69759-24060 |
MCL10 RH |
1 | ||
| 69759Z - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-AA050 |
MCL10 |
2 | ||
| 69759Z - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-AA050 |
MCL10 |
2 | ||
| Common parts | ||||
| 90080-10079 | ||||
| 90080-54005 | ||||
| 90105-06082 | ||||
| 90148-60022 | ||||
| 90148-80028 | ||||
| 90159-40202 | ||||
| 90159-50002 | ||||
| 90164-50032 | ||||
| 90189-05003 | ||||
| 90467-08117 | ||||
