MCL10L-PFSDKA (1997)
Toyota Sienna
ILLUST NO. 1 OF 2(9708- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62211-08030E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62211-08030B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62211-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62212-08030E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62212-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62212-08030B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62222D - SPACER, FRONT PILLAR, NO.2 RH | ||||
| 62222-08010 |
MCL10 |
1 | ||
| 62232F - SPACER, FRONT PILLAR, NO.2 LH | ||||
| 62232-08010 |
MCL10 |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62411-08020E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62411-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62411-08020B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-08030E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62412-08020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62412-08020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 62412-08030B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62431B - GARNISH, ROOF SIDE RAIL, NO.1 RH | ||||
| 62431-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62431-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62431-08020E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62431-08020B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62432B - GARNISH, ROOF SIDE RAIL, NO.1 LH | ||||
| 62432-08010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62432-08020E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62432-08010E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 62432-08020B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62550F - GARNISH ASSY, REAR WINDOW SIDE, RH | ||||
| 62550-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62550-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62550-08040B0 |
MCL10 W(CAPTAIN SEAT),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62550-08030E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62550-08030B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62550-08040E0 |
MCL10 W(CAPTAIN SEAT),MD.OAK,TRIM4# |
1 | ||
| 62560C - GARNISH ASSY, REAR WINDOW SIDE, LH | ||||
| 62560-08020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 62560-08030B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62560-08030E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62560-08020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62570D - GARNISH ASSY, REAR WINDOW SIDE, NO.2 RH | ||||
| 62570-08020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 62570-08030E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62570-08030B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62570-08020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62570E - CLIP, REAR WINDOW SIDE GARNISH | ||||
| 90467-07041C0 |
MCL10..WG BLACK,TRIM1#,4# |
8 | ||
| 62570E - CLIP, REAR WINDOW SIDE GARNISH | ||||
| 90467-07041C0 |
MCL10..WG BLACK,TRIM1#,4# |
8 | ||
| 62580F - GARNISH ASSY, REAR WINDOW SIDE, NO.2 LH | ||||
| 62580-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62580-08020B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62580-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62580-08020E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62581G - COVER, QUARTER PILLAR, RH | ||||
| 62581-08020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62581-08020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 62581-08030B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62581-08030E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62582G - COVER, QUARTER PILLAR, LH | ||||
| 62582-08020E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62582-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62582-08020B0 |
MCL10 LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62582-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62591E - PLATE, SIDE TRIM BASE, NO.2 | ||||
| 62591-08010 |
MCL10 |
2 | ||
| 62591E - PLATE, SIDE TRIM BASE, NO.2 | ||||
| 62591-08010 |
MCL10 |
2 | ||
| 75577C - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-08010 |
MCL10 |
2 | ||
| 75577C - BRACKET, ROOF SIDE GARNISH | ||||
| 75577-08010 |
MCL10 |
2 | ||
| Common parts | ||||
| 67771-02030 | ||||
| 90080-46236 | ||||
| 90080-46252 | ||||
| 90159-50328 | ||||
| 90467-10161 | ||||
| 93567-54516 | ||||
| Linked diagrams | ||||
| 7150 | ||||
| 7152 | ||||
| 8602 | ||||

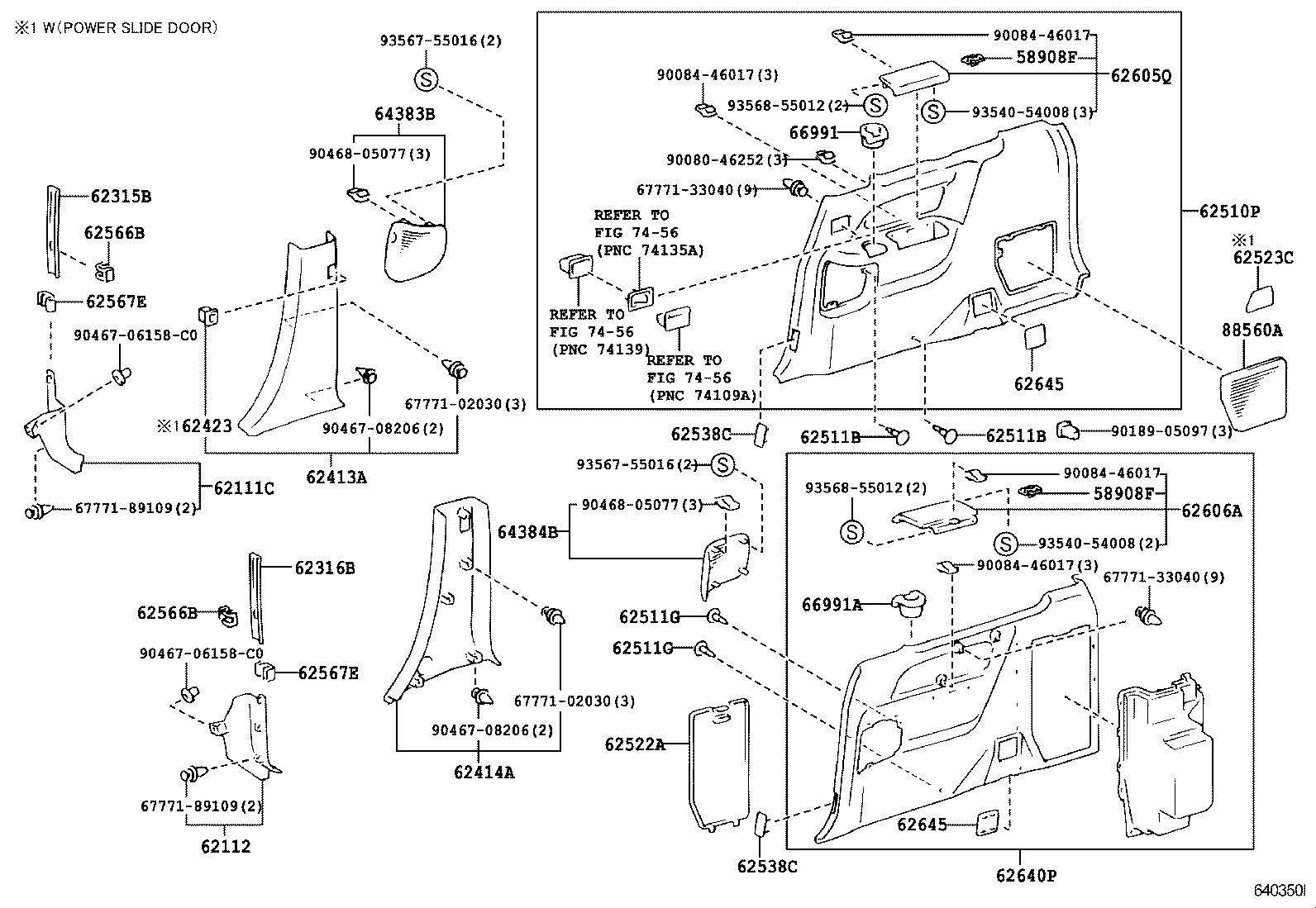

ILLUST NO. 2 OF 2(9708- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58908F - LOCK SUB-ASSY, QUARTER TRIM LID | ||||
| 58908-32040 |
MCL10 |
1 | ||
| 58908F - LOCK SUB-ASSY, QUARTER TRIM LID | ||||
| 58908-32040 |
MCL10 |
1 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62111-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62112-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62315B - COVER, FRONT DOOR OPENING TRIM, RH | ||||
| 62315-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62315-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62316B - COVER, FRONT DOOR OPENING TRIM, LH | ||||
| 62316-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62316-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62413-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62413-08030B0 |
MCL10..WG LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62413-08030E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62413-08040B0 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62413-08040E0 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER),MD.OAK,TRIM4# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-08020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 62414-08010E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 62414-08020B0 |
MCL10..5D LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62414-08010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62423 - COVER, CENTER PILLAR GARNISH, LOWER RH | ||||
| 62423-08010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62423-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-08040B0 |
MCL10..5D..CE LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62510-08040E0 |
MCL10..5D..CE MD.OAK,TRIM4# |
1 | ||
| 62510-08110E0 |
MCL10..CE MD.OAK,TRIM4# |
1 | ||
| 62510-08110B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62510-08160B0 |
MCL10..CE W(AUTO SLIDE DOOR & EASY CLOSER),LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62510-08160E0 |
MCL10..CE W(AUTO SLIDE DOOR & EASY CLOSER),MD.OAK,TRIM4# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-07076E4 |
MCL10 DK. OAK,TRIM4# |
2 | ||
| 90467-07076B2 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 90467-07076E4 |
MCL10..WG DK. OAK,TRIM11,4# |
2 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-07076E4 |
MCL10 DK. OAK,TRIM4# |
2 | ||
| 90467-07076B2 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
2 | ||
| 90467-07076E4 |
MCL10..WG DK. OAK,TRIM11,4# |
2 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-07076E4 |
MCL10..5D DK. OAK,TRIM11,4# |
2 | ||
| 90467-07076B2 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
2 | ||
| 90467-07076E4 |
MCL10 DK. OAK,TRIM4# |
2 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-07076E4 |
MCL10..5D DK. OAK,TRIM11,4# |
2 | ||
| 90467-07076B2 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
2 | ||
| 90467-07076E4 |
MCL10 DK. OAK,TRIM4# |
2 | ||
| 62522A - COVER, QUARTER TRIM, LH | ||||
| 62522-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62522-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62523C - COVER, QUARTER TRIM, CENTER RH | ||||
| 62523-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62523-08010B0 |
MCL10 LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-08010E0 |
MCL10..5D..CE MD.OAK,TRIM4# |
2 | ||
| 62538-08010B0 |
MCL10..5D..CE LT.BLUISH GRAY,TRIM1# |
2 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-08010E0 |
MCL10..5D..CE MD.OAK,TRIM4# |
2 | ||
| 62538-08010B0 |
MCL10..5D..CE LT.BLUISH GRAY,TRIM1# |
2 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62567-08010 |
MCL10 |
2 | ||
| 62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1 | ||||
| 62567-08010 |
MCL10 |
2 | ||
| 62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2 | ||||
| 62567-08010 |
MCL10 |
2 | ||
| 62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2 | ||||
| 62567-08010 |
MCL10 |
2 | ||
| 62605Q - LID SUB-ASSY, QUARTER TRIM, RH | ||||
| 62605-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62605-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62606A - LID SUB-ASSY, QUARTER TRIM, LH | ||||
| 62605-08020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 62605-08020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-08070B0 |
MCL10..CE LT. BLUISH GRAY,TRIM1# |
1 | ||
| 62640-08040B0 |
MCL10..5D..CE LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62640-08040E0 |
MCL10..5D..CE MD.OAK,TRIM4# |
1 | ||
| 62640-08070E0 |
MCL10..CE MD.OAK,TRIM4# |
1 | ||
| 62645 - COVER, SHOCK ABSORBER HEAD | ||||
| 62645-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62645-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 62645 - COVER, SHOCK ABSORBER HEAD | ||||
| 62645-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 62645-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 64383B - GRILLE, REAR SPEAKER, RH | ||||
| 64383-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 64383-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 64384B - GRILLE, REAR SPEAKER, LH | ||||
| 64384-08020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 64384-08020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 66991 - HOLDER, QUARTER TRIM CUP, RH | ||||
| 66991-08010B0 |
MCL10..WG LT.BLUISH GRAY,TRIM1# |
1 | ||
| 66991-08010E0 |
MCL10 MD.OAK,TRIM4# |
1 | ||
| 66991A - HOLDER, QUARTER TRIM CUP, LH | ||||
| 66991-08010B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| 66991-08010E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 88560A - GRILLE ASSY, AIR INLET | ||||
| 88560-08020E0 |
MCL10..5D MD.OAK,TRIM4# |
1 | ||
| 88560-08020B0 |
MCL10..5D LT.BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-02030 | ||||
| 67771-33040 | ||||
| 67771-89109 | ||||
| 90080-46252 | ||||
| 90084-46017 | ||||
| 90189-05097 | ||||
| 90467-06158C0 | ||||
| 90467-08206 | ||||
| 90468-05077 | ||||
| 93540-54008 | ||||
| 93567-55016 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 7456 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
