MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )5D

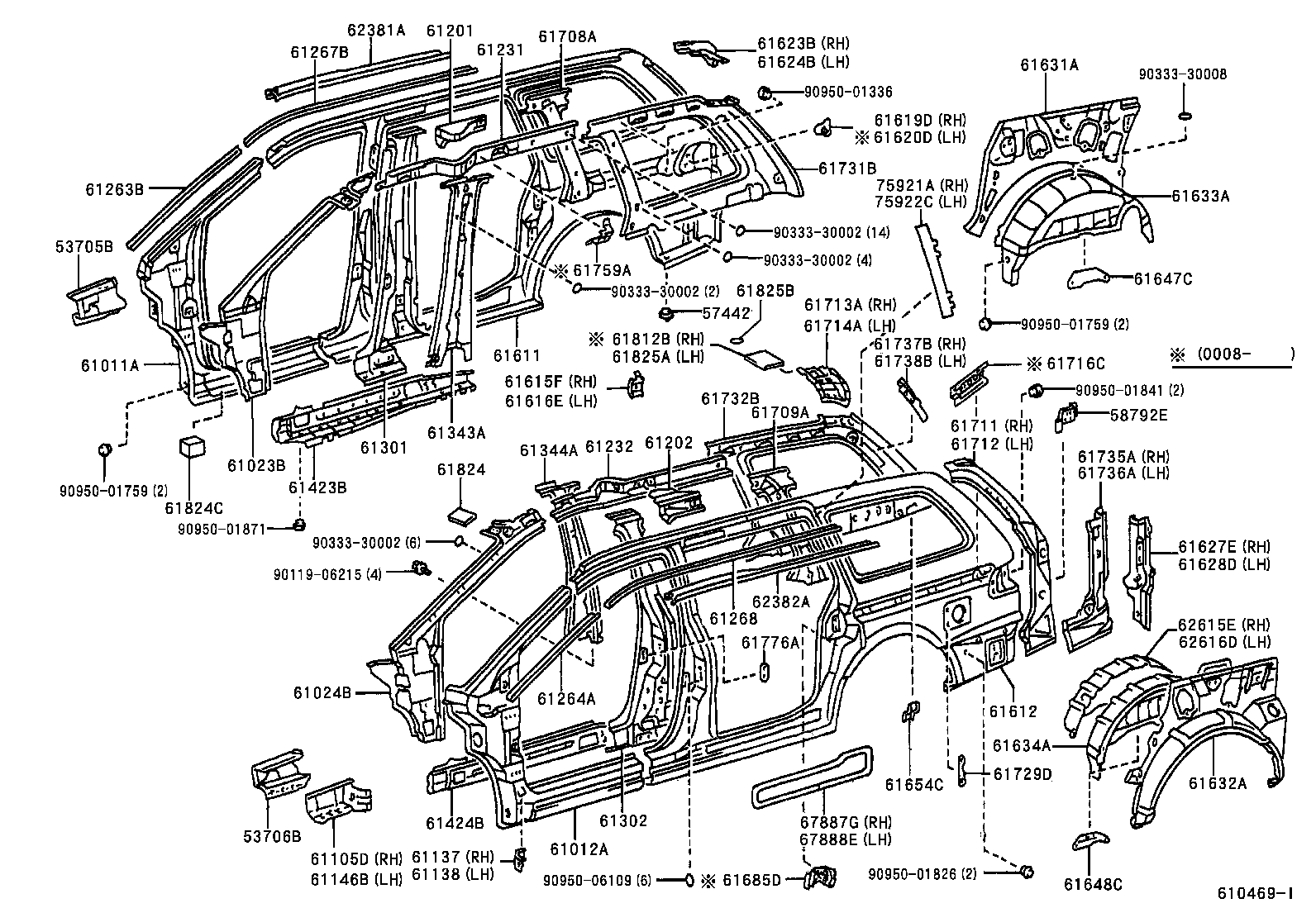

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53705B - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH | ||||
| 53705-08010 |
MCL10 |
1 | ||
| 53706B - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH | ||||
| 53706-08010 |
MCL10 |
1 | ||
| 57442 - PLUG, STEP PANEL HOLE | ||||
| 57442-45010 |
MCL10 |
2 | ||
| 58792E - REINFORCEMENT, JACK BRACKET | ||||
| 58792-08010 |
MCL10 |
1 | ||
| 61011A - PILLAR SUB-ASSY, NO.1 RH | ||||
| 61011-08900 |
MCL10 |
1 | ||
| 61012A - PILLAR SUB-ASSY, NO.2 RH | ||||
| 61012-08900 |
MCL10 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-08011 |
MCL10 |
1 | ||
| 61023-08010 |
MCL10 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-08011 |
MCL10 |
1 | ||
| 61024-08010 |
MCL10 |
1 | ||
| 61105D - PANEL SUB-ASSY, SIDE, NO.3 RH | ||||
| 61105-08010 |
MCL10 |
1 | ||
| 61137 - REINFORCEMENT, FRONT PILLAR, OUTER RH | ||||
| 61139-08010 |
MCL10 |
1 | ||
| 61138 - REINFORCEMENT, FRONT PILLAR, OUTER LH | ||||
| 61139-08010 |
MCL10 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-08010 |
MCL10 |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-08010 |
MCL10 |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-08010 |
MCL10..5D |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-08011 |
MCL10 |
1 | ||
| 61231-08010 |
MCL10 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-08010 |
MCL10..5D |
1 | ||
| 61232-08011 |
MCL10 |
1 | ||
| 61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-08010 |
MCL10 |
1 | ||
| 61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-08010 |
MCL10 |
1 | ||
| 61267B - CHANNEL, ROOF DRIP SIDE,REAR RH | ||||
| 61267-08010 |
MCL10 |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-08020 |
MCL10..5D |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-08010 |
MCL10 |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-08020 |
MCL10..5D |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-08010 |
MCL10 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-08020 |
MCL10..5D |
1 | ||
| 61423B - REINFORCEMENT, ROCKER PANEL, NO.3 RH | ||||
| 61423-08010 |
MCL10 |
1 | ||
| 61424B - REINFORCEMENT, ROCKER PANEL, NO.3 LH | ||||
| 61424-08020 |
MCL10..5D |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-08900 |
MCL10 |
1 | ||
| 61611-08901 |
MCL10 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-08903 |
MCL10..5D |
1 | ||
| 61612-08904 |
MCL10 |
1 | ||
| 61612-08901 |
MCL10..5D |
1 | ||
| 61615F - REINFORCEMENT, QUARTER PANEL, OUTER RH | ||||
| 61605-08010 |
MCL10 |
1 | ||
| 61605-08010 |
MCL10 |
1 | ||
| 61605-08010 |
MCL10..CE |
1 | ||
| 61616E - REINFORCEMENT, QUARTER PANEL, OUTER LH | ||||
| 61606-08010 |
MCL10 |
1 | ||
| 61606-08010 |
MCL10..5D..CE |
1 | ||
| 61606-08010 |
MCL10..5D |
1 | ||
| 61619D - REINFORCEMENT, QUARTER PANEL, RH | ||||
| 61619-08010 |
MCL10 |
1 | ||
| 61623B - TROUGH, BACK DOOR OPENING, REAR RH | ||||
| 61623-08010 |
MCL10 |
1 | ||
| 61624B - TROUGH, BACK DOOR OPENING, REAR LH | ||||
| 61624-08010 |
MCL10 |
1 | ||
| 61627E - EXTENSION, QUARTER PANEL, REAR LOWER RH | ||||
| 61627-08900 |
MCL10 |
1 | ||
| 61628D - EXTENSION, QUARTER PANEL, REAR LOWER LH | ||||
| 61628-08900 |
MCL10 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-08900 |
MCL10 |
1 | ||
| 61631-08901 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER) |
1 | ||
| 61631-08901 |
MCL10 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-08905 |
MCL10 |
1 | ||
| 61632-08901 |
MCL10..5D |
1 | ||
| 61632-08903 |
MCL10..5D |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-08900 |
MCL10 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-08900 |
MCL10 |
1 | ||
| 61647C - REINFORCEMENT, WHEEL HOUSE, RH | ||||
| 61647-08010 |
MCL10 |
1 | ||
| 61648C - REINFORCEMENT, WHEEL HOUSE, LH | ||||
| 61648-08010 |
MCL10 |
1 | ||
| 61654C - BRACKET, DECK SIDE TRIM, LH | ||||
| 61654-08010 |
MCL10 |
1 | ||
| 61708A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH | ||||
| 61708-08011 |
MCL10 |
1 | ||
| 61708-08010 |
MCL10 |
1 | ||
| 61708-08012 |
MCL10 |
1 | ||
| 61708-08013 |
MCL10 |
1 | ||
| 61709A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH | ||||
| 61709-08022 |
MCL10 |
1 | ||
| 61709-08023 |
MCL10 |
1 | ||
| 61709-08021 |
MCL10..5D |
1 | ||
| 61709-08020 |
MCL10..5D |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-08010 |
MCL10 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-08010 |
MCL10 |
1 | ||
| 61713A - EXTENSION, ROOF SIDE, OUTER RH | ||||
| 61713-08900 |
MCL10 |
1 | ||
| 61714A - EXTENSION, ROOF SIDE, OUTER LH | ||||
| 61714-08900 |
MCL10 |
1 | ||
| 61729D - PLATE, FUEL INLET BOX | ||||
| 61729-45010 |
MCL10 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-08010 |
MCL10 |
1 | ||
| 61731-08901 |
MCL10 W(AUTO SLIDE DOOR & EASY CLOSER) |
1 | ||
| 61731-08900 |
MCL10 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-08901 |
MCL10 |
1 | ||
| 61732-08020 |
MCL10..5D |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-08010 |
MCL10 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-08010 |
MCL10 |
1 | ||
| 61737B - PANEL, ROOF SIDE, INNER LOWER RH | ||||
| 61737-08010 |
MCL10 |
1 | ||
| 61738B - PANEL, ROOF SIDE, INNER LOWER LH | ||||
| 61738-08010 |
MCL10 |
1 | ||
| 61759A - BRACKET, ROOF SIDE REINFORCEMENT | ||||
| 61759-08010 |
MCL10 |
1 | ||
| 61759A - BRACKET, ROOF SIDE REINFORCEMENT | ||||
| 61759-08010 |
MCL10 |
1 | ||
| 61776A - NUT, W/PLATE | ||||
| 61776-08010 |
MCL10 |
1 | ||
| 61812B - PLATE, NOISE CONTROL, RH | ||||
| 61812-08010 |
MCL10 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-08010 |
MCL10 |
2 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-30050 |
MCL10 |
6 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-08010 |
MCL10 |
1 | ||
| 61825-08010 |
MCL10 |
2 | ||
| 61825B - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-12010 |
MCL10 |
2 | ||
| 62381A - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-08010 |
MCL10 |
1 | ||
| 62382A - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-08020 |
MCL10..5D |
1 | ||
| 62615E - COVER, QUARTER WHEEL HOUSE, INNER RH | ||||
| 62615-08010 |
MCL10 |
1 | ||
| 62616D - COVER, QUARTER WHEEL HOUSE, INNER LH | ||||
| 62616-08010 |
MCL10 |
1 | ||
| 67887G - WEATHERSTRIP, ROCKER OUTER, RH | ||||
| 67887-08010 |
MCL10 |
1 | ||
| 67888E - WEATHERSTRIP, ROCKER OUTER, LH | ||||
| 67888-08010 |
MCL10..5D |
1 | ||
| 75921A - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-08010 |
MCL10 |
1 | ||
| 75921-08010 |
MCL10 |
1 | ||
| 75922C - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-08020 |
MCL10..5D |
1 | ||
| 75922-08020 |
MCL10..5D |
1 | ||
| Common parts | ||||
| 90119-06215 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90950-01336 | ||||
| 90950-01759 | ||||
| 90950-01826 | ||||
| 90950-01841 | ||||
| 90950-01871 | ||||
| 90950-06109 | ||||
