MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

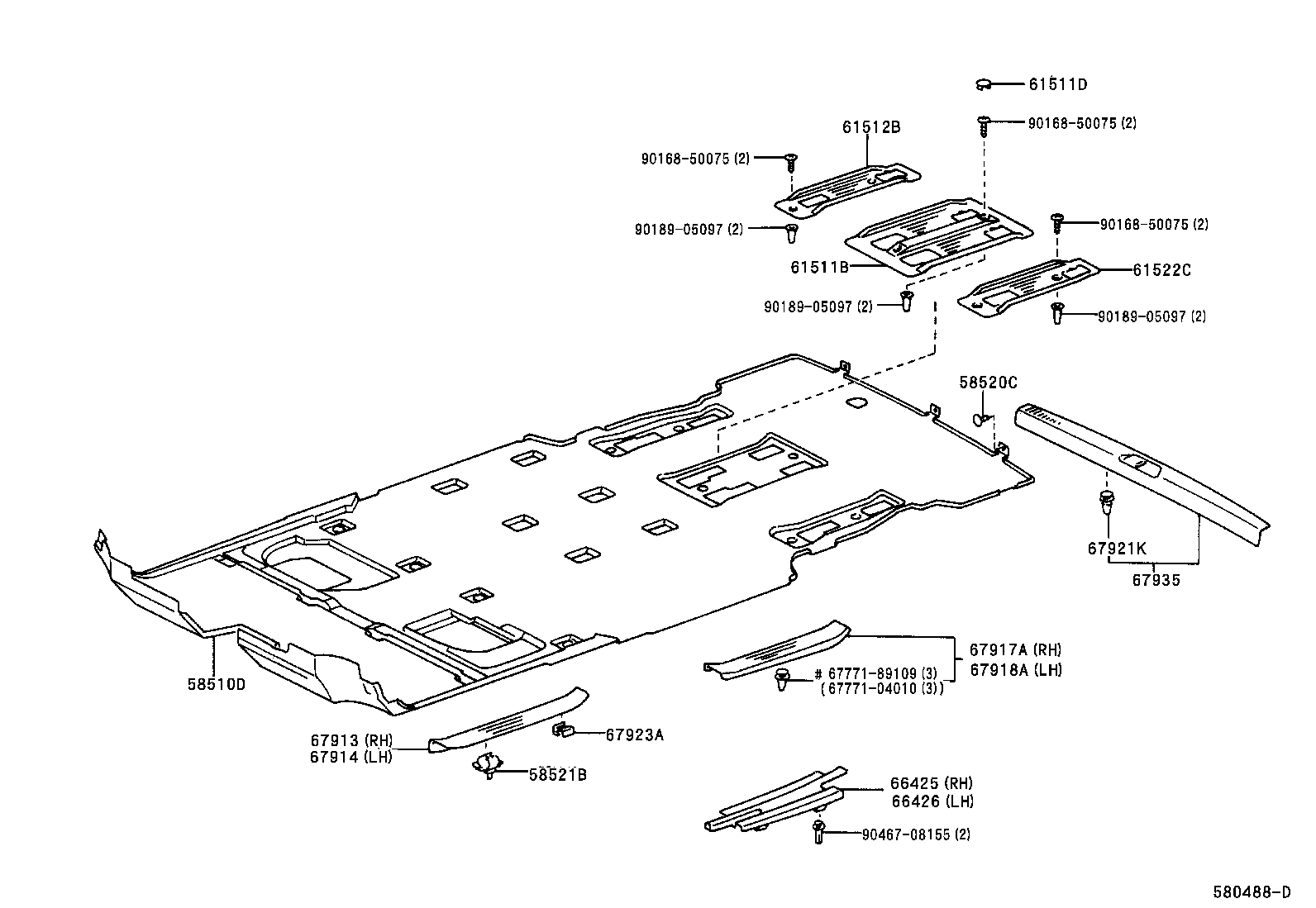

Click highlighted areas on diagram

diagram 58510D 58520C 58521B 61511B 61511D 61512B 61522C 66425 66426 6777104010 6777189109 67913 67914 67917A 67918A 67921K 67923A 67935 9016850075 9016850075 9016850075 9018905097 9018905097 9018905097 9046708155
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-08040B0

MCL10..5D

LT. BLUISH GRAY,TRIM1#

 1
58510-08040E1

MCL10..5D

MEDIUM OAK,TRIM4#

 1
58510-08041B0

MCL10..5D

LT. BLUISH GRAY,TRIM1#

 1
58510-08060B0

MCL10

W(CAPTAIN SEAT),LT. BLUISH GRAY,TRIM1#

 1
58510-08070E0

MCL10

MEDIUM OAK,TRIM4#

 1
58510-08060E0

MCL10

W(CAPTAIN SEAT),MEDIUM OAK,TRIM4#

 1
58510-08070B0

MCL10

LT. BLUISH GRAY,TRIM1#

 1
58510-08041E1

MCL10..5D

MEDIUM OAK,TRIM4#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06020C0

MCL10..WG

BLACK,TRIM1#,4#

 5
58521B - HOOK, FLOOR CARPET
58521-08010

MCL10

 4
61511B - RAIL, SEAT ANCHOR, NO.1
61511-08010B0

MCL10..WG

LT.BLUISH GRAY,TRIM1#

 1
61511-08010E0

MCL10

MD.OAK,TRIM4#

 1
61511-08011B0

MCL10..WG

LT. BLUISH GRAY,TRIM1#

 1
61511-08011E0

MCL10

MD.OAK,TRIM4#

 1
61511D - COVER, SEAT ANCHOR RAIL, NO.1
67695-08010B0

MCL10..WG

LT.BLUISH GRAY,TRIM1#

 2
67695-08010E0

MCL10

MD.OAK,TRIM4#

 2
61512B - RAIL, SEAT ANCHOR, NO.2 RH
61512-08010E0

MCL10

MD.OAK,TRIM4#

 1
61512-08011E0

MCL10

MD.OAK,TRIM4#

 1
61512-08011B0

MCL10..WG

LT. BLUISH GRAY,TRIM1#

 1
61512-08010B0

MCL10..WG

LT.BLUISH GRAY,TRIM1#

 1
61522C - RAIL, SEAT ANCHOR, NO.2 LH
61522-08010B0

MCL10..WG

LT.BLUISH GRAY,TRIM1#

 1
61522-08011B0

MCL10..WG

LT. BLUISH GRAY,TRIM1#

 1
61522-08011E0

MCL10

MD.OAK,TRIM4#

 1
61522-08010E0

MCL10

MD.OAK,TRIM4#

 1
66425 - STAY, DECK SIDE STEP, NO.1 RH
66425-08010

MCL10

 1
66426 - STAY, DECK SIDE STEP, NO.1 LH
66426-08020

MCL10

 1
66426-08010

MCL10..5D

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-08010E0

MCL10

MD.OAK,TRIM4#

 1
67913-08010B0

MCL10..WG

LT.BLUISH GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-08010B0

MCL10..WG

LT.BLUISH GRAY,TRIM1#

 1
67914-08010E0

MCL10

MD.OAK,TRIM4#

 1
67917A - PLATE, REAR DOOR SCUFF, RH
67917-08010E0

MCL10

MD.OAK,TRIM4#

 1
67917-08010B0

MCL10..WG

LT.BLUISH GRAY,TRIM1#

 1
67918A - PLATE, REAR DOOR SCUFF, LH
67918-08010B0

MCL10..5D

LT.BLUISH GRAY,TRIM1#

 1
67918-08010E0

MCL10..5D

MD.OAK,TRIM4#

 1
67921K - RETAINER, FRONT DOOR SCUFF PLATE
90467-11111

MCL10

 4
67923A - CLAMP, DOOR SCUFF PLATE, NO.1
62567-08010

MCL10

 6
67935 - PLATE, BACK DOOR SCUFF
67935-08010E0

MCL10

MD.OAK,TRIM4#

 1
67935-08010B0

MCL10..WG

LT.BLUISH GRAY,TRIM1#

 1
Common parts
67771-04010
67771-89109
90168-50075
90189-05097
90467-08155
