MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

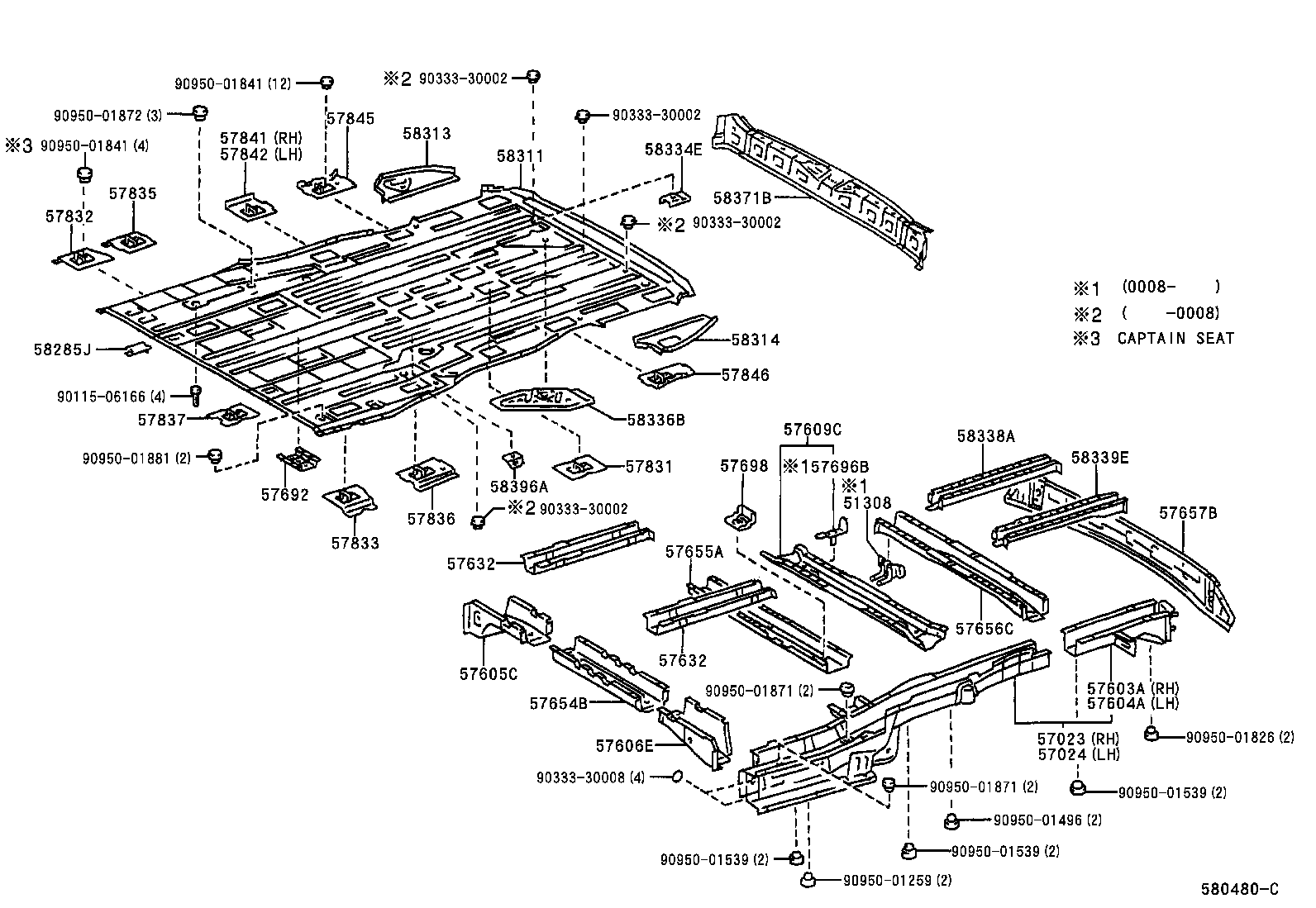

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51308 - BRACKET SUB-ASSY, EXHAUST PIPE CLAMP | ||||
| 51308-08010 |
MCL10 |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-08011 |
MCL10 |
1 | ||
| 57023-08010 |
MCL10 |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-08020 |
MCL10..5D |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-08010 |
MCL10 |
1 | ||
| 57603-08011 |
MCL10 |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-08010 |
MCL10 |
1 | ||
| 57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS | ||||
| 57605-08010 |
MCL10 |
1 | ||
| 57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-08010 |
MCL10 |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-08011 |
MCL10 |
1 | ||
| 57609-08010 |
MCL10 |
1 | ||
| 57632 - MEMBER, REAR FLOOR, CENTER NO.1 | ||||
| 57632-08010 |
MCL10 |
2 | ||
| 57632 - MEMBER, REAR FLOOR, CENTER NO.1 | ||||
| 57632-08010 |
MCL10 |
2 | ||
| 57654B - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57654-08010 |
MCL10 |
1 | ||
| 57655A - MEMBER, REAR FLOOR CROSS, NO.4 | ||||
| 57655-08011 |
MCL10 |
1 | ||
| 57655-08010 |
MCL10 |
1 | ||
| 57656C - MEMBER, REAR FLOOR CROOS, NO.5 | ||||
| 57656-08010 |
MCL10 |
1 | ||
| 57657B - MEMBER, REAR FLOOR CROSS, NO.6 | ||||
| 57657-08010 |
MCL10 |
1 | ||
| 57692 - BRACKET, FUEL TANK MOUNTING, REAR CENTER | ||||
| 57692-45010 |
MCL10 |
1 | ||
| 57696B - BRACKET, REAR FLOOR MOUNTING, NO.2 LH | ||||
| 57696-08010 |
MCL10 |
1 | ||
| 57698 - REINFORCEMENT, FUEL TANK | ||||
| 57698-08010 |
MCL10 |
2 | ||
| 57831 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 | ||||
| 57831-08010 |
MCL10 W(CAPTAIN SEAT) |
8 | ||
| 57831-08010 |
MCL10 |
5 | ||
| 57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 | ||||
| 57832-08010 |
MCL10 |
1 | ||
| 57833 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.3 | ||||
| 57833-08010 |
MCL10 |
1 | ||
| 57835 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 | ||||
| 57835-08010 |
MCL10 |
1 | ||
| 57836 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 | ||||
| 57836-08010 |
MCL10 |
1 | ||
| 57837 - REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 | ||||
| 57837-08010 |
MCL10 |
1 | ||
| 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH | ||||
| 57841-08010 |
MCL10 |
1 | ||
| 57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH | ||||
| 57842-08010 |
MCL10 |
1 | ||
| 57845 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH | ||||
| 57845-08010 |
MCL10 |
1 | ||
| 57846 - REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH | ||||
| 57846-08010 |
MCL10 |
1 | ||
| 58285J - COVER, CENTER FLOOR HOLE | ||||
| 58285-08010 |
MCL10 |
2 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-08010 |
MCL10 |
1 | ||
| 58311-08021 |
MCL10 W(CAPTAIN SEAT) |
1 | ||
| 58311-08011 |
MCL10 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-08010 |
MCL10 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-08010 |
MCL10 |
1 | ||
| 58334E - REINFORCEMENT, REAR FLOOR PART PANEL, NO.2 | ||||
| 58334-08010 |
MCL10 |
1 | ||
| 58334-08010 |
MCL10 |
2 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-08010 |
MCL10 |
1 | ||
| 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 | ||||
| 58037-08010 |
MCL10 |
1 | ||
| 58338-08010 |
MCL10 |
1 | ||
| 58339E - REINFORCEMENT, REAR FLOOR PAN, NO.2 LH | ||||
| 58339-08010 |
MCL10 |
1 | ||
| 58371B - PANEL, BODY LOWER BACK, OUTER | ||||
| 58371-08900 |
MCL10 |
1 | ||
| 58396A - BRACKET, WIRE HARNESS CLAMP | ||||
| 58396-08010 |
MCL10 |
2 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90950-01259 | ||||
| 90950-01496 | ||||
| 90950-01539 | ||||
| 90950-01826 | ||||
| 90950-01841 | ||||
| 90950-01871 | ||||
| 90950-01872 | ||||
| 90950-01881 | ||||
