MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

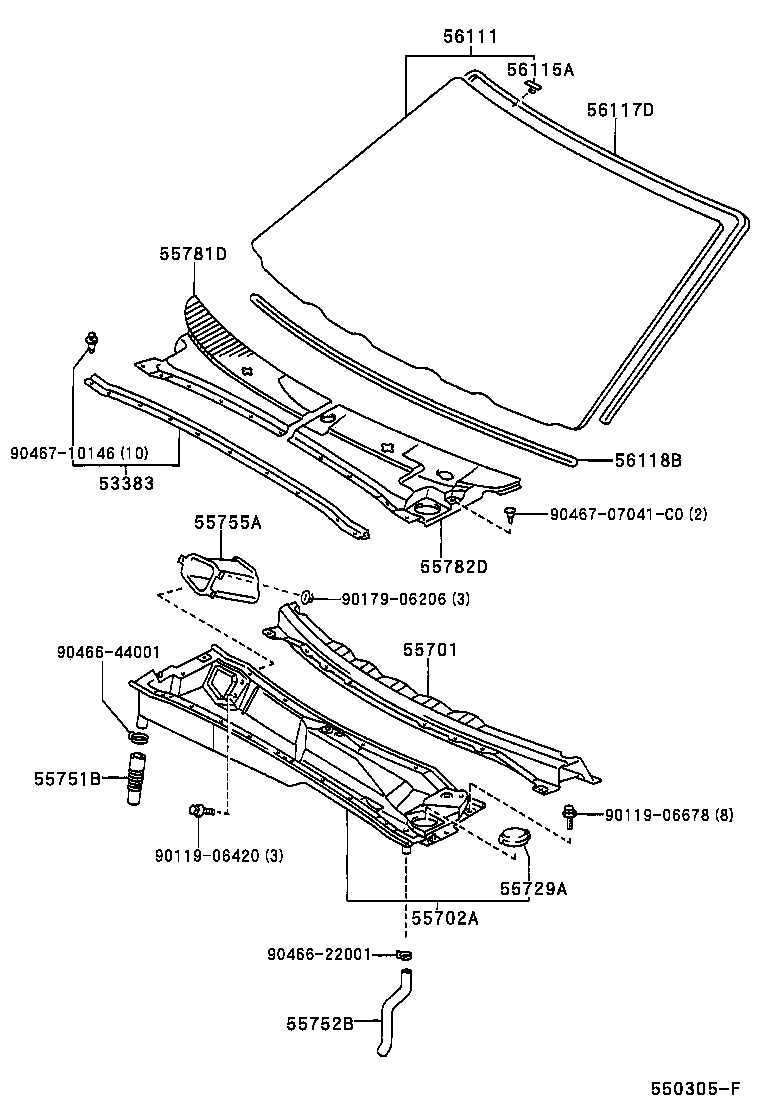

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-08010 |
MCL10 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-08010 |
MCL10 |
1 | ||
| 55702A - PANEL SUB-ASSY, COWL TOP, OUTER FRONT | ||||
| 55702-08010 |
MCL10 |
1 | ||
| 55729A - COVER, COWL PANEL HOLE | ||||
| 55729-08020 |
MCL10 |
1 | ||
| 55751B - HOSE, COWL WATER EXTRACT, NO.1 | ||||
| 55751-08010 |
MCL10 |
1 | ||
| 55752B - HOSE, COWL WATER EXTRACT, NO.2 | ||||
| 55752-08010 |
MCL10 |
1 | ||
| 55755A - DUCT, HEATER AIR | ||||
| 55755-08010 |
MCL10 |
1 | ||
| 55781D - LOUVER, COWL TOP VENTILATOR, RH | ||||
| 55781-08010 |
MCL10..USA |
1 | ||
| 55781-08010 |
MCL10 |
1 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-08010 |
MCL10 |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-08030 |
MCL10..CE *LAM,T=4.7,GREEN |
1 | ||
| 56101-08020 |
MCL10..WG *LAM,T=4.7,D-GREEN |
1 | ||
| 56101-08040 |
MCL10 *LAM,T=4.7,DK.GREEN |
1 | ||
| 56101-08010 |
MCL10..CE *LAM,T=4.7,GREEN |
1 | ||
| 56115A - STOPPER, WINDSHIELD GLASS, NO.1 | ||||
| 56115-30100 |
MCL10 |
2 | ||
| 56115-33020 |
MCL10 |
2 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 04562-12010 |
MCL10 |
1 | ||
| 56117-06010 |
MCL10 |
1 | ||
| 56118B - DAM, WINDOW GLASS ADHESIVE, NO.2 | ||||
| 04562-12010 |
MCL10 |
1 | ||
| Common parts | ||||
| 90119-06420 | ||||
| 90119-06678 | ||||
| 90179-06206 | ||||
| 90466-22001 | ||||
| 90466-44001 | ||||
| 90467-07041C0 | ||||
| 90467-10146 | ||||
