MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

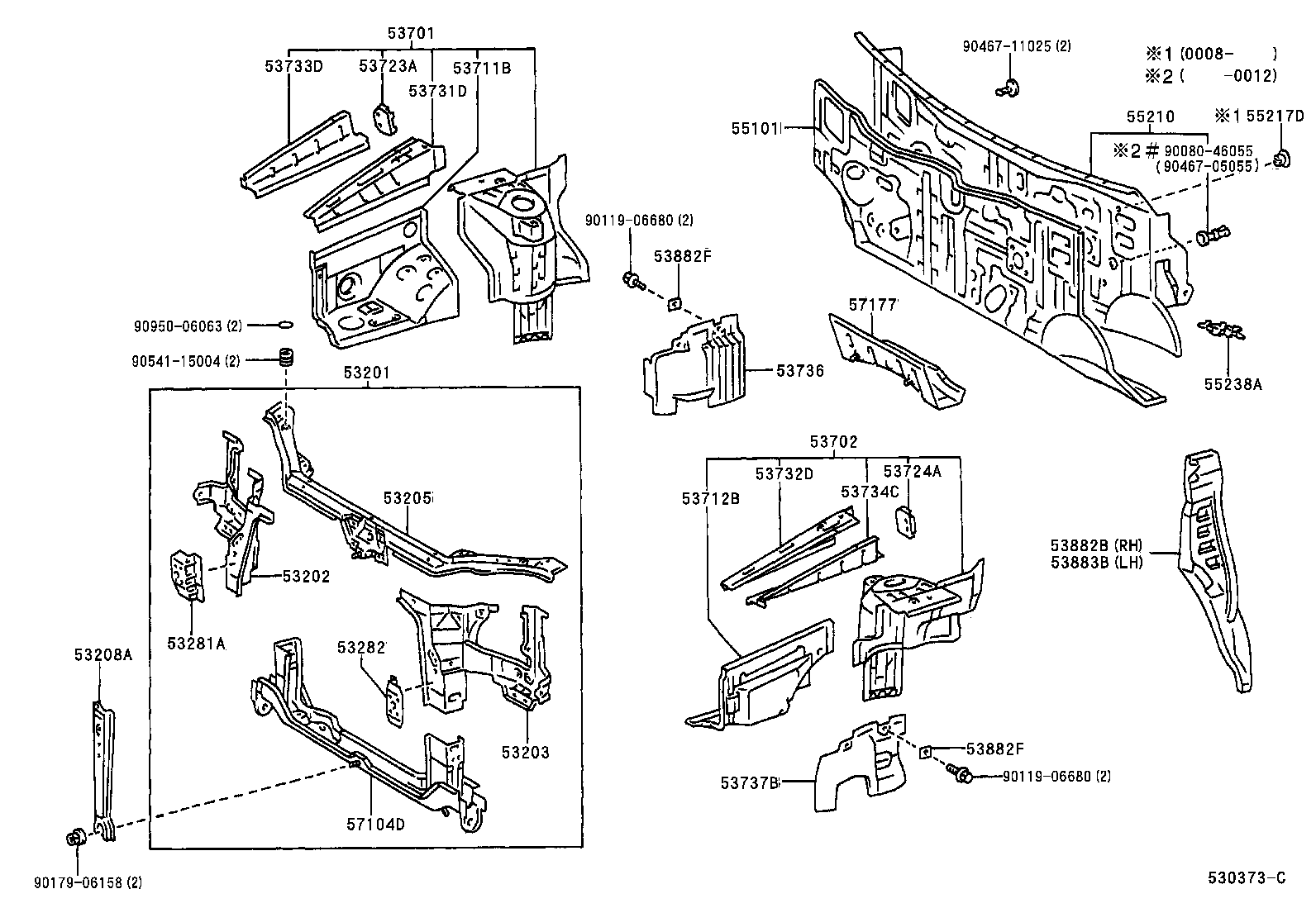

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-08010 |
MCL10 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-08010 |
MCL10 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-08010 |
MCL10 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-08010 |
MCL10 |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53215-08010 |
MCL10 |
1 | ||
| 53281A - REINFORCEMENT, FRONT BODY MOUNTING, RH | ||||
| 53281-45010 |
MCL10 |
1 | ||
| 53282 - REINFORCEMENT, FRONT BODY MOUNTING, LH | ||||
| 53282-45010 |
MCL10 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-08010 |
MCL10 |
1 | ||
| 53701-08011 |
MCL10 |
1 | ||
| 53701-08010 |
MCL10 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-08010 |
MCL10 |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-08010 |
MCL10 |
1 | ||
| 53711-08011 |
MCL10 |
1 | ||
| 53711-08010 |
MCL10 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-08010 |
MCL10 |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-08010 |
MCL10 |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53724-08010 |
MCL10 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-08010 |
MCL10 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-08010 |
MCL10 |
1 | ||
| 53733D - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH | ||||
| 53733-08010 |
MCL10 |
1 | ||
| 53734C - MEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH | ||||
| 53734-08010 |
MCL10 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-08010 |
MCL10 |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-08010 |
MCL10 |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-08010 |
MCL10 |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
MCL10 |
4 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
MCL10 |
4 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53883-08010 |
MCL10 |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-08010 |
MCL10 |
1 | ||
| 55101-08011 |
MCL10 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-08012 |
MCL10 |
1 | ||
| 55210-08011 |
MCL10 |
1 | ||
| 55210-08010 |
MCL10 |
1 | ||
| 55210-08013 |
MCL10 |
1 | ||
| 55217D - RETAINER, DASH PANEL SILENCER | ||||
| 55217-08020 |
MCL10 |
2 | ||
| 55238A - PLATE, DASH PANEL INSULATOR, NO.2 | ||||
| 55238-33010 |
MCL10 |
4 | ||
| 57104D - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-08010 |
MCL10 |
1 | ||
| 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL | ||||
| 57177-08010 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-46055 | ||||
| 90119-06680 | ||||
| 90179-06158 | ||||
| 90467-05055 | ||||
| 90467-11025 | ||||
| 90541-15004 | ||||
| 90950-06063 | ||||
