MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

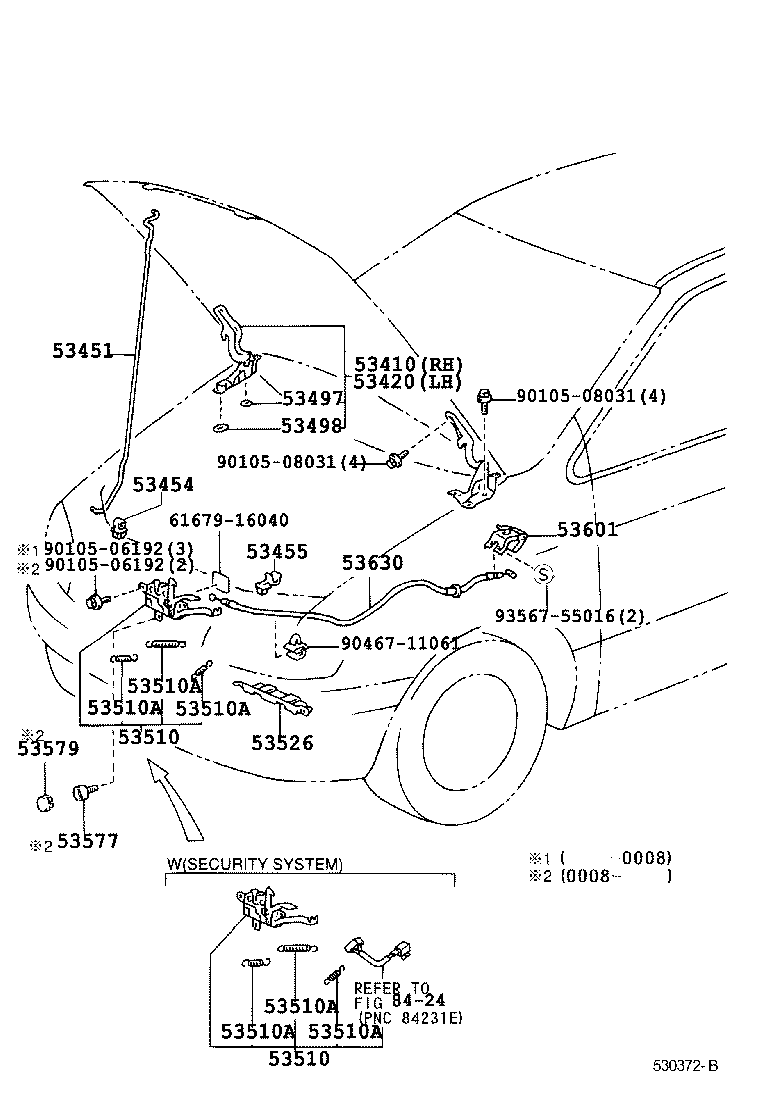

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-08010 |
MCL10 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-08010 |
MCL10 |
1 | ||
| 53451 - ROD, HOOD SUPPORT | ||||
| 53451-08010 |
MCL10 |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-08010 |
MCL10 |
1 | ||
| 53455 - CLAMP, HOOD SUPPORT ROD | ||||
| 53455-08010 |
MCL10 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-AC010 |
MCL10 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-AC010 |
MCL10 |
2 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-08010 |
MCL10 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-08010 |
MCL10 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90080-50100 |
MCL10 WD=0.9,CW=21 |
1 | ||
| 90080-50098 |
MCL10 WD=2.0,CW=17 |
1 | ||
| 90080-50175 |
MCL10 WD=2.0,CW=15 |
1 | ||
| 90080-50099 |
MCL10 WD=1.4,CW=7.25 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90080-50100 |
MCL10 WD=0.9,CW=21 |
1 | ||
| 90080-50098 |
MCL10 WD=2.0,CW=17 |
1 | ||
| 90080-50175 |
MCL10 WD=2.0,CW=15 |
1 | ||
| 90080-50099 |
MCL10 WD=1.4,CW=7.25 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90080-50100 |
MCL10 WD=0.9,CW=21 |
1 | ||
| 90080-50098 |
MCL10 WD=2.0,CW=17 |
1 | ||
| 90080-50175 |
MCL10 WD=2.0,CW=15 |
1 | ||
| 90080-50099 |
MCL10 WD=1.4,CW=7.25 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90080-50100 |
MCL10 WD=0.9,CW=21 |
1 | ||
| 90080-50098 |
MCL10 WD=2.0,CW=17 |
1 | ||
| 90080-50175 |
MCL10 WD=2.0,CW=15 |
1 | ||
| 90080-50099 |
MCL10 WD=1.4,CW=7.25 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90080-50100 |
MCL10 WD=0.9,CW=21 |
1 | ||
| 90080-50098 |
MCL10 WD=2.0,CW=17 |
1 | ||
| 90080-50175 |
MCL10 WD=2.0,CW=15 |
1 | ||
| 90080-50099 |
MCL10 WD=1.4,CW=7.25 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90080-50100 |
MCL10 WD=0.9,CW=21 |
1 | ||
| 90080-50098 |
MCL10 WD=2.0,CW=17 |
1 | ||
| 90080-50175 |
MCL10 WD=2.0,CW=15 |
1 | ||
| 90080-50099 |
MCL10 WD=1.4,CW=7.25 |
1 | ||
| 53526 - PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2 | ||||
| 53526-08010 |
MCL10 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
MCL10 |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
MCL10 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-AA010C0 |
MCL10..WG BLACK,TRIM1#,4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-08020 |
MCL10 |
1 | ||
| 53630-08011 |
MCL10 |
1 | ||
| Common parts | ||||
| 61679-16040 | ||||
| 90105-06192 | ||||
| 90105-08031 | ||||
| 90467-11061 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8424 | ||||
