MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

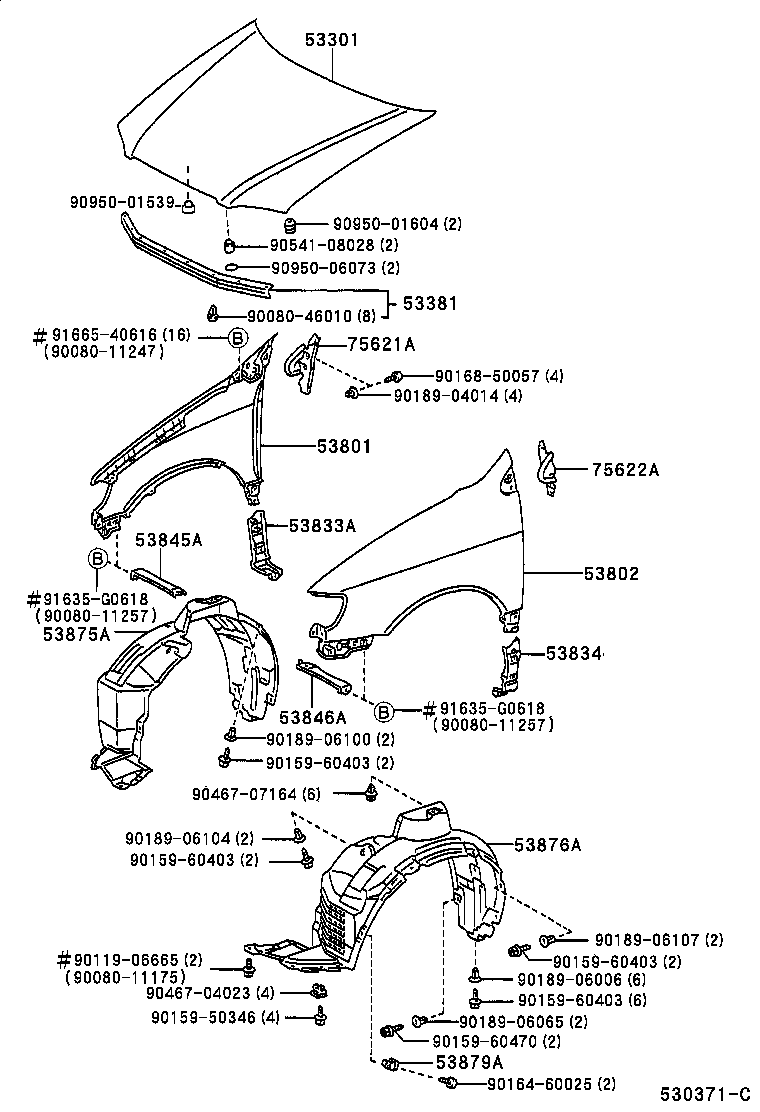

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-08020 |
MCL10 |
1 | ||
| 53301-08010 |
MCL10 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-08010 |
MCL10 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-08901 |
MCL10 |
1 | ||
| 53801-08900 |
MCL10 |
1 | ||
| 53801-08902 |
MCL10 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-08900 |
MCL10 |
1 | ||
| 53802-08901 |
MCL10 |
1 | ||
| 53802-08902 |
MCL10 |
1 | ||
| 53833A - PANEL, FRONT FENDER SIDE, LOWER RH | ||||
| 53833-08010 |
MCL10 |
1 | ||
| 53834 - PANEL, FRONT FENDER SIDE, LOWER LH | ||||
| 53834-08010 |
MCL10 |
1 | ||
| 53845A - BRACE, FRONT WHEEL OPENING APRON, RH | ||||
| 53845-08010 |
MCL10 |
1 | ||
| 53846A - BRACE, FRONT WHEEL OPENING APRON, LH | ||||
| 53845-08010 |
MCL10 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-08010 |
MCL10 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-08010 |
MCL10 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-20020 |
MCL10 |
2 | ||
| 75621A - GARNISH, FRONT FENDER, RH | ||||
| 75621-08020 |
MCL10 |
1 | ||
| 75622A - GARNISH, FRONT FENDER, LH | ||||
| 75622-08020 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-11175 | ||||
| 90080-11247 | ||||
| 90080-11257 | ||||
| 90080-46010 | ||||
| 90119-06665 | ||||
| 90159-50346 | ||||
| 90159-60403 | ||||
| 90159-60470 | ||||
| 90164-60025 | ||||
| 90168-50057 | ||||
| 90189-04014 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-06100 | ||||
| 90189-06104 | ||||
| 90189-06107 | ||||
| 90467-04023 | ||||
| 90467-07164 | ||||
| 90541-08028 | ||||
| 90950-01539 | ||||
| 90950-01604 | ||||
| 90950-06073 | ||||
| 91635-G0618 | ||||
| 91665-40616 | ||||
