MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

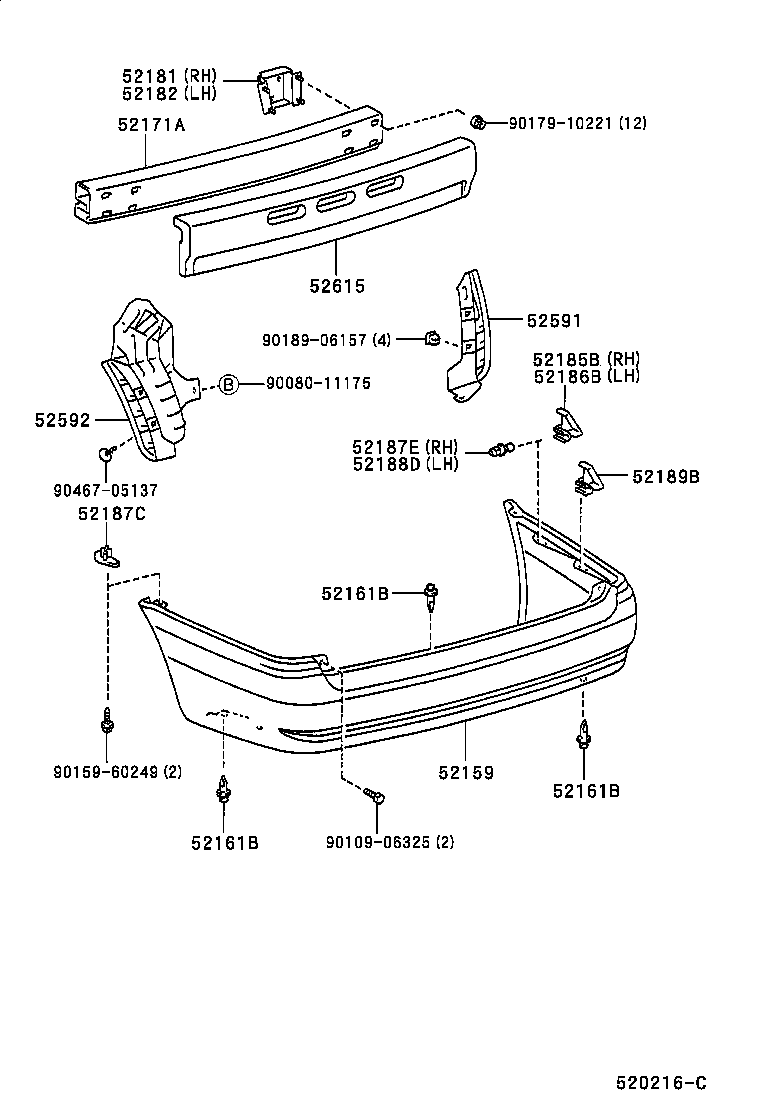

Click highlighted areas on diagram

diagram 52159 52161B 52161B 52161B 52171A 52181 52182 52185B 52186B 52187C 52187E 52188D 52189B 52591 52592 52615 9008011175 9010906325 9015960249 9017910221 9018906157 9046705137
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-08010B0

MCL10..WG

COOL GRAY,040 ,202 ,3K4 ,3M6 ,4N7 ,6M3 ,6P2 ,8L9 ,931

 1
52159-08010B0

MCL10..WG

COOL GRAY,040 ,202 ,3K4 ,3M6 ,4Q2 ,6M3 ,6R1 ,8L9 ,8N7

 1
52159-08010B0

MCL10..CND;MCL10..CE..USA

COOL GRAY,040 ,1D7 ,3N6 ,3P5 ,4Q2 ,6R1 ,8L9 ,8N7 ,8Q0

 1
52159-08010B0

MCL10..WG

COOL GRAY,040 ,202 ,3K4 ,3M6 ,4N7 ,6M3 ,6R1 ,8L9 ,931

 1
52159-08010B0

MCL10

COOL GRAY,040 ,1D7 ,3N6 ,3P5 ,4Q2 ,6R1 ,8L9 ,8N7 ,8Q0

 1
52161B - PIECE, REAR BUMPER
52161-02020

MCL10

 11
52161B - PIECE, REAR BUMPER
52161-02020

MCL10

 11
52161B - PIECE, REAR BUMPER
52161-02020

MCL10

 11
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-08020

MCL10

 1
52171-08010

MCL10

 1
52181 - ARM, REAR BUMPER, RH
52181-08010

MCL10

 1
52182 - ARM, REAR BUMPER, LH
52182-08010

MCL10

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-45010

MCL10

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-45010

MCL10

 1
52187C - BRACKET, REAR BUMPER SIDE, NO.2
52187-08010

MCL10

 2
52187E - GUIDE, REAR BUMPER LOCATION, RH
52187-45010

MCL10

 2
52188D - GUIDE, REAR BUMPER LOCATION, LH
52187-45010

MCL10

 2
52189B - BRACKET, REAR BUMPER SIDE, NO.3
52189-45010

MCL10

 2
52591 - SEAL, REAR BUMPER SIDE, RH
52591-08010

MCL10

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-08010

MCL10

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-08010

MCL10

 1
Common parts
90080-11175
90109-06325
90159-60249
90179-10221
90189-06157
90467-05137
