MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

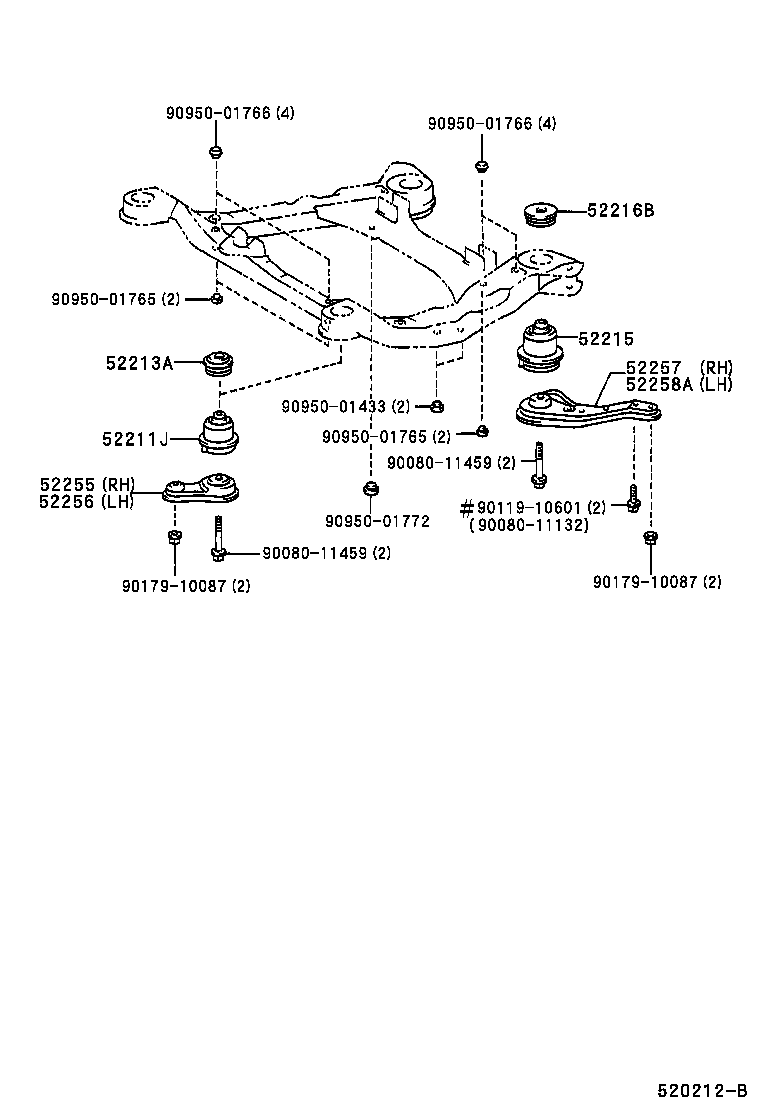

Click highlighted areas on diagram

diagram 52211J 52213A 52215 52216B 52255 52256 52257 52258A 9008011132 9008011459 9008011459 9011910601 9017910087 9017910087 9095001433 9095001765 9095001765 9095001766 9095001766 9095001772
Part # Description Qty Price
52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52211-33030

MCL10

 2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-06010

MCL10

 2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-33030

MCL10

 2
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-06010

MCL10

 2
52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH
52255-08010

MCL10

 1
52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH
52256-08010

MCL10

 1
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-08010

MCL10

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-08010

MCL10

 1
Common parts
90080-11132
90080-11459
90119-10601
90179-10087
90950-01433
90950-01765
90950-01766
90950-01772
