MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

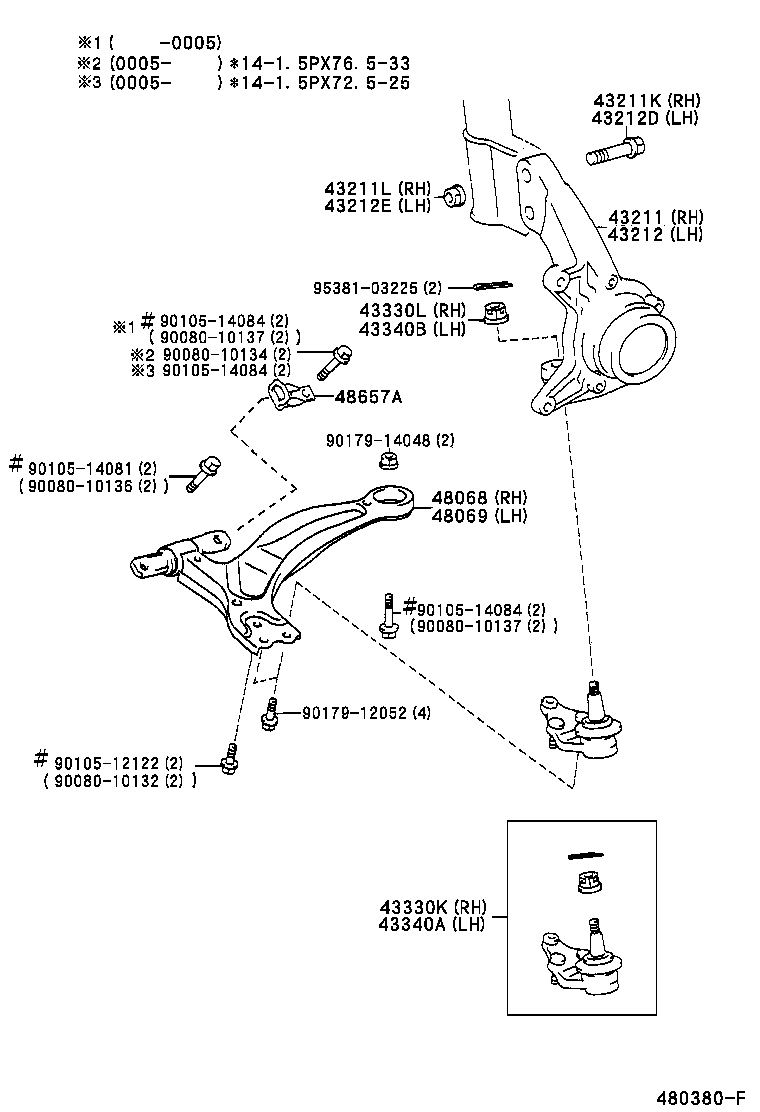

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-33060 |
MCL10 (J) |
1 | ||
| 43211-06070 |
MCL10 (L) |
1 | ||
| 43211K - BOLT (FOR STEERING KNUCKLE RH) | ||||
| 90105-17004 |
MCL10 OD=15 |
1 | ||
| 90105-17005 |
MCL10 OD=14 |
1 | ||
| 90105-17003 |
MCL10 OD=15.9 |
1 | ||
| 90105-17010 |
MCL10 OD=15 |
1 | ||
| 90105-17001 |
MCL10 OD=17 |
2 | ||
| 90105-17009 |
MCL10 OD=15.9 |
1 | ||
| 90105-17008 |
MCL10 OD=17 |
2 | ||
| 90105-17011 |
MCL10 OD=14 |
1 | ||
| 43211L - NUT (FOR STEERING KNUCKLE RH) | ||||
| 90178-17001 |
MCL10 |
2 | ||
| 90179-17001 |
MCL10 |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-33060 |
MCL10 (J) |
1 | ||
| 43212-06070 |
MCL10 (L) |
1 | ||
| 43212D - BOLT (FOR STEERING KNUCKLE LH) | ||||
| 90105-17004 |
MCL10 OD=15 |
1 | ||
| 90105-17008 |
MCL10 OD=17 |
2 | ||
| 90105-17001 |
MCL10 OD=17 |
2 | ||
| 90105-17009 |
MCL10 OD=15.9 |
1 | ||
| 90105-17003 |
MCL10 OD=15.9 |
1 | ||
| 90105-17005 |
MCL10 OD=14 |
1 | ||
| 90105-17010 |
MCL10 OD=15 |
1 | ||
| 90105-17011 |
MCL10 OD=14 |
1 | ||
| 43212E - NUT (FOR STEERING KNUCKLE LH) | ||||
| 90179-17001 |
MCL10 |
2 | ||
| 90178-17001 |
MCL10 |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-09051 |
MCL10 |
1 | ||
| 43330-09050 |
MCL10 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14003 |
MCL10 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-09051 |
MCL10 |
1 | ||
| 43330-09050 |
MCL10 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14003 |
MCL10 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-08010 |
MCL10 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-08010 |
MCL10 |
1 | ||
| 48657A - STOPPER, FRONT LOWER ARM BUSH | ||||
| 48657-33020 |
MCL10 |
2 | ||
| Common parts | ||||
| 90080-10132 | ||||
| 90080-10134 | ||||
| 90080-10136 | ||||
| 90080-10137 | ||||
| 90105-12122 | ||||
| 90105-14081 | ||||
| 90105-14084 | ||||
| 90179-12052 | ||||
| 90179-14048 | ||||
| 95381-03225 | ||||
