MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

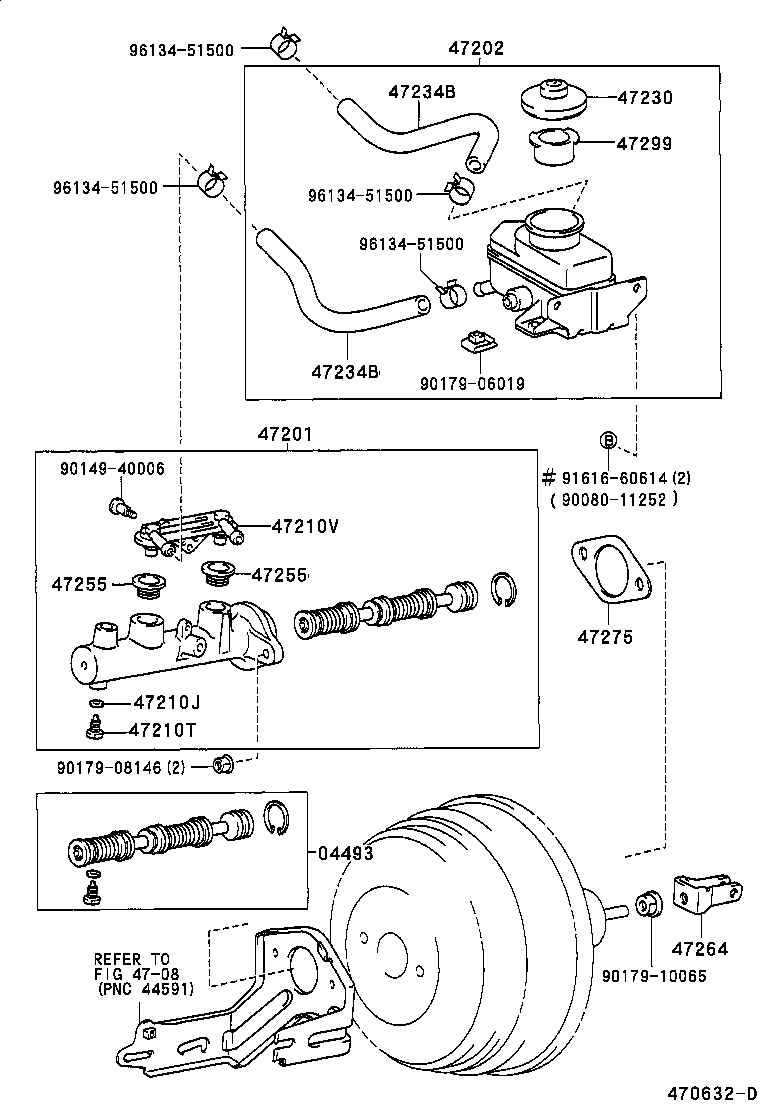

(9708-0107)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-33100 |
MCL10 W(VSC) |
1 | ||
| 04493-08010 |
MCL10 |
1 | ||
| 04493-08050 |
MCL10 W(VSC) |
1 | ||
| 04493-01020 |
MCL10 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-08030 |
MCL10 W(VSC) |
1 | ||
| 47201-08040 |
MCL10 |
1 | ||
| 47201-08050 |
MCL10 W(VSC) |
1 | ||
| 47201-08010 |
MCL10 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-08020 |
MCL10 W(VSC) |
1 | ||
| 47220-08010 |
MCL10 |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90029-43001 |
MCL10 |
1 | ||
| 90430-06104 |
MCL10 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
MCL10 |
1 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40012 |
MCL10 |
1 | ||
| 90029-40402 |
MCL10 W(VSC) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
MCL10 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-08010 |
MCL10 |
2 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-08010 |
MCL10 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
MCL10 |
2 | ||
| 47255-16010 |
MCL10 W(VSC) |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
MCL10 |
2 | ||
| 47255-16010 |
MCL10 W(VSC) |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-33010 |
MCL10 |
1 | ||
| 47264-12060 |
MCL10 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
MCL10 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-11252 | ||||
| 90149-40006 | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 91616-60614 | ||||
| 96134-51500 | ||||
| Linked diagrams | ||||
| 4708 | ||||

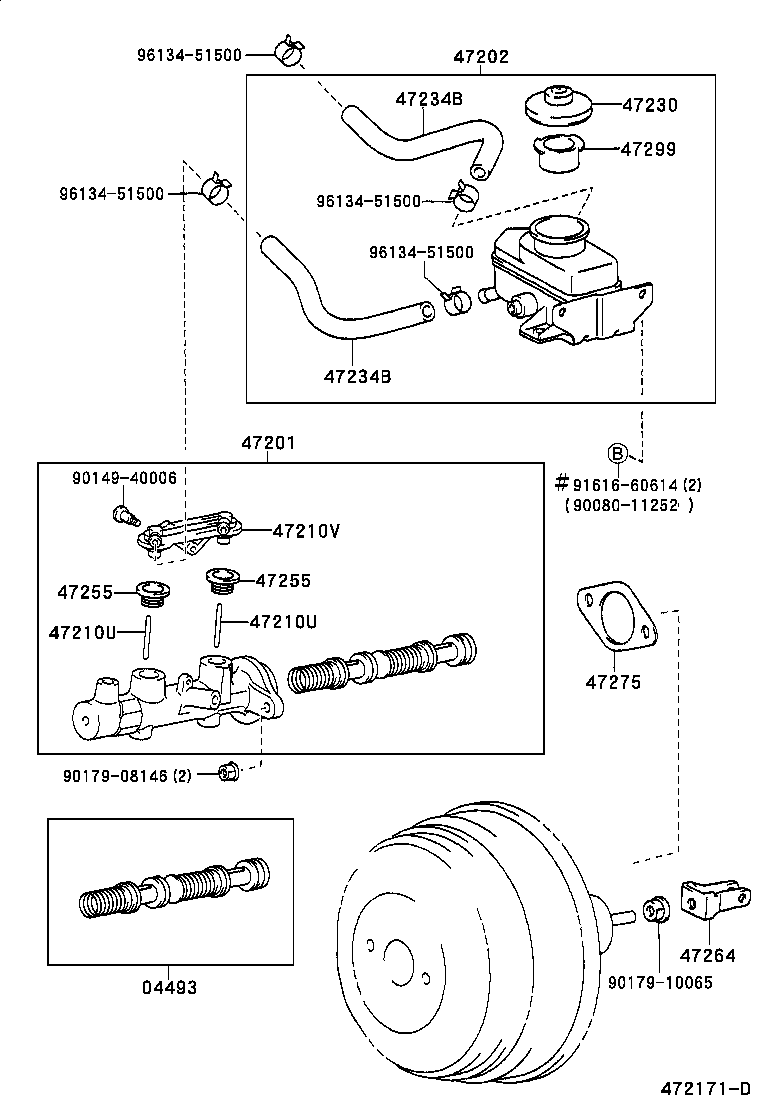

(0008-0207)
Click highlighted areas on diagram
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-33100 |
MCL10 W(VSC) |
1 | ||
| 04493-08010 |
MCL10 |
1 | ||
| 04493-08050 |
MCL10 W(VSC) |
1 | ||
| 04493-01020 |
MCL10 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-08030 |
MCL10 W(VSC) |
1 | ||
| 47201-08040 |
MCL10 |
1 | ||
| 47201-08050 |
MCL10 W(VSC) |
1 | ||
| 47201-08010 |
MCL10 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-08020 |
MCL10 W(VSC) |
1 | ||
| 47220-08010 |
MCL10 |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
MCL10 |
2 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
MCL10 |
2 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40012 |
MCL10 |
1 | ||
| 90029-40402 |
MCL10 W(VSC) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
MCL10 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-08010 |
MCL10 |
2 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-08010 |
MCL10 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
MCL10 |
2 | ||
| 47255-16010 |
MCL10 W(VSC) |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
MCL10 |
2 | ||
| 47255-16010 |
MCL10 W(VSC) |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-33010 |
MCL10 |
1 | ||
| 47264-12060 |
MCL10 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
MCL10 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-11252 | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 91616-60614 | ||||
| 96134-51500 | ||||

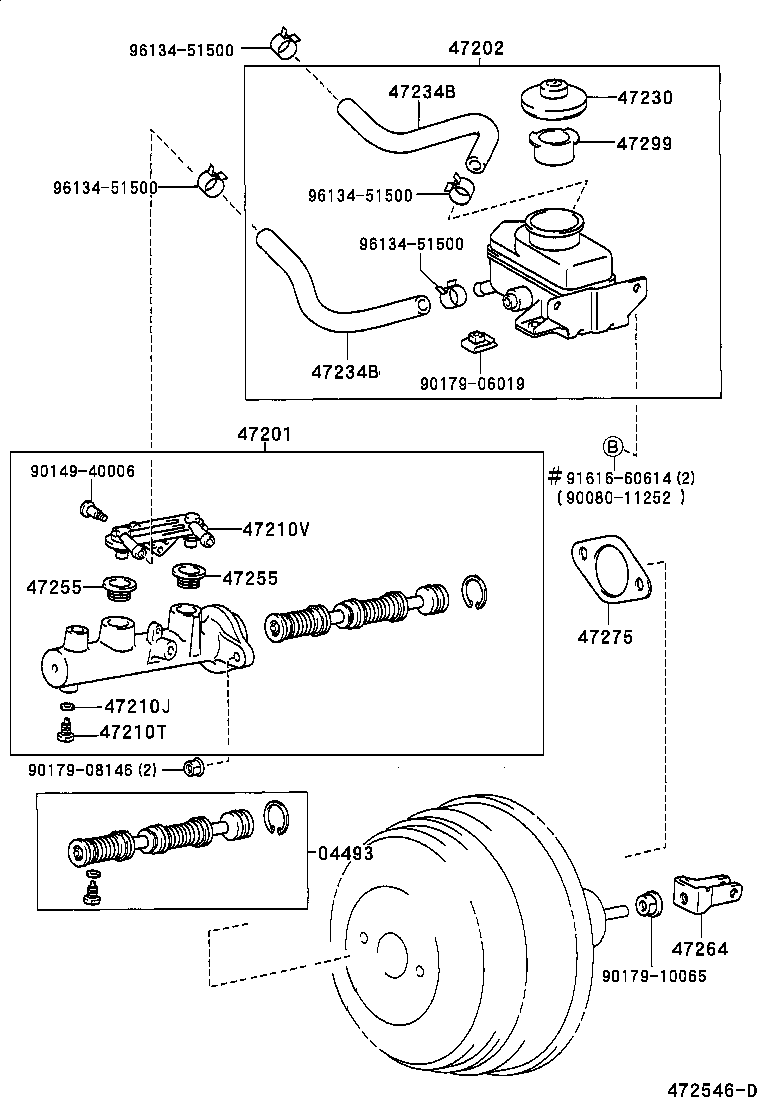

(0107-0207)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-33100 |
MCL10 W(VSC) |
1 | ||
| 04493-08010 |
MCL10 |
1 | ||
| 04493-08050 |
MCL10 W(VSC) |
1 | ||
| 04493-01020 |
MCL10 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-08030 |
MCL10 W(VSC) |
1 | ||
| 47201-08040 |
MCL10 |
1 | ||
| 47201-08050 |
MCL10 W(VSC) |
1 | ||
| 47201-08010 |
MCL10 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-08020 |
MCL10 W(VSC) |
1 | ||
| 47220-08010 |
MCL10 |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90029-43001 |
MCL10 |
1 | ||
| 90430-06104 |
MCL10 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
MCL10 |
1 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40012 |
MCL10 |
1 | ||
| 90029-40402 |
MCL10 W(VSC) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
MCL10 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-08010 |
MCL10 |
2 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-08010 |
MCL10 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
MCL10 |
2 | ||
| 47255-16010 |
MCL10 W(VSC) |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
MCL10 |
2 | ||
| 47255-16010 |
MCL10 W(VSC) |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-33010 |
MCL10 |
1 | ||
| 47264-12060 |
MCL10 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
MCL10 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-11252 | ||||
| 90149-40006 | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 91616-60614 | ||||
| 96134-51500 | ||||

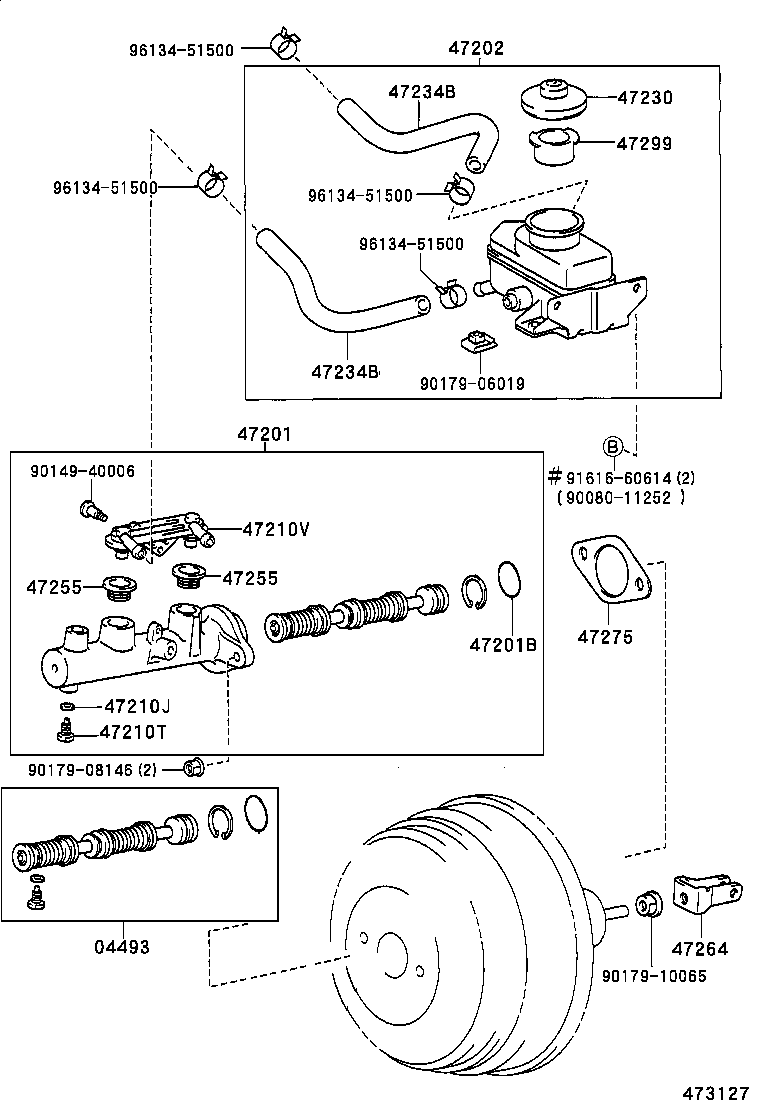

(0207- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-33100 |
MCL10 W(VSC) |
1 | ||
| 04493-08010 |
MCL10 |
1 | ||
| 04493-08050 |
MCL10 W(VSC) |
1 | ||
| 04493-01020 |
MCL10 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-08030 |
MCL10 W(VSC) |
1 | ||
| 47201-08040 |
MCL10 |
1 | ||
| 47201-08050 |
MCL10 W(VSC) |
1 | ||
| 47201-08010 |
MCL10 |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
MCL10 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-08020 |
MCL10 W(VSC) |
1 | ||
| 47220-08010 |
MCL10 |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90029-43001 |
MCL10 |
1 | ||
| 90430-06104 |
MCL10 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
MCL10 |
1 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40012 |
MCL10 |
1 | ||
| 90029-40402 |
MCL10 W(VSC) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
MCL10 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-08010 |
MCL10 |
2 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-08010 |
MCL10 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
MCL10 |
2 | ||
| 47255-16010 |
MCL10 W(VSC) |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
MCL10 |
2 | ||
| 47255-16010 |
MCL10 W(VSC) |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-33010 |
MCL10 |
1 | ||
| 47264-12060 |
MCL10 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
MCL10 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-11252 | ||||
| 90149-40006 | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 91616-60614 | ||||
| 96134-51500 | ||||

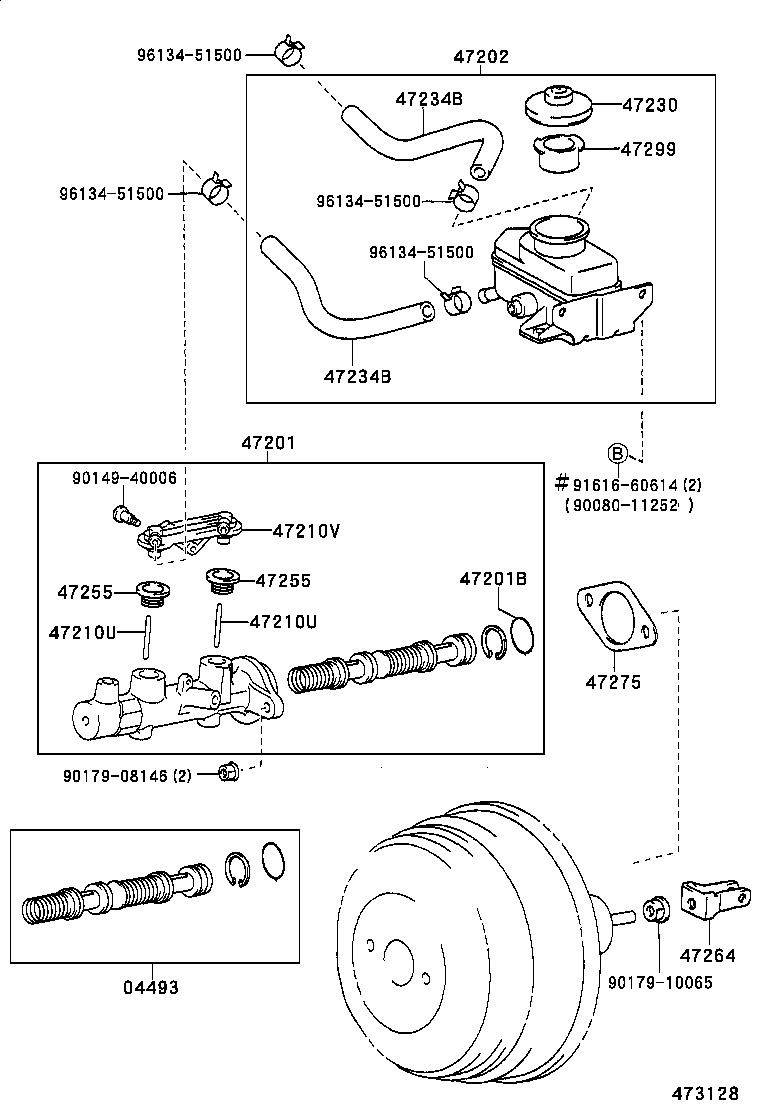

(0207- )
Click highlighted areas on diagram
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-33100 |
MCL10 W(VSC) |
1 | ||
| 04493-08010 |
MCL10 |
1 | ||
| 04493-08050 |
MCL10 W(VSC) |
1 | ||
| 04493-01020 |
MCL10 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-08030 |
MCL10 W(VSC) |
1 | ||
| 47201-08040 |
MCL10 |
1 | ||
| 47201-08050 |
MCL10 W(VSC) |
1 | ||
| 47201-08010 |
MCL10 |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
MCL10 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-08020 |
MCL10 W(VSC) |
1 | ||
| 47220-08010 |
MCL10 |
1 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
MCL10 |
2 | ||
| 47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
MCL10 |
2 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40012 |
MCL10 |
1 | ||
| 90029-40402 |
MCL10 W(VSC) |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
MCL10 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-08010 |
MCL10 |
2 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-08010 |
MCL10 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
MCL10 |
2 | ||
| 47255-16010 |
MCL10 W(VSC) |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
MCL10 |
2 | ||
| 47255-16010 |
MCL10 W(VSC) |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-33010 |
MCL10 |
1 | ||
| 47264-12060 |
MCL10 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
MCL10 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20060 |
MCL10 |
1 | ||
| Common parts | ||||
| 90080-11252 | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 91616-60614 | ||||
| 96134-51500 | ||||
