MCL10L-PFSDKA (1997)

Toyota Sienna

Production Aug 1997 - Jan 2003
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-9808) ; (9808-0008)V

Click highlighted areas on diagram

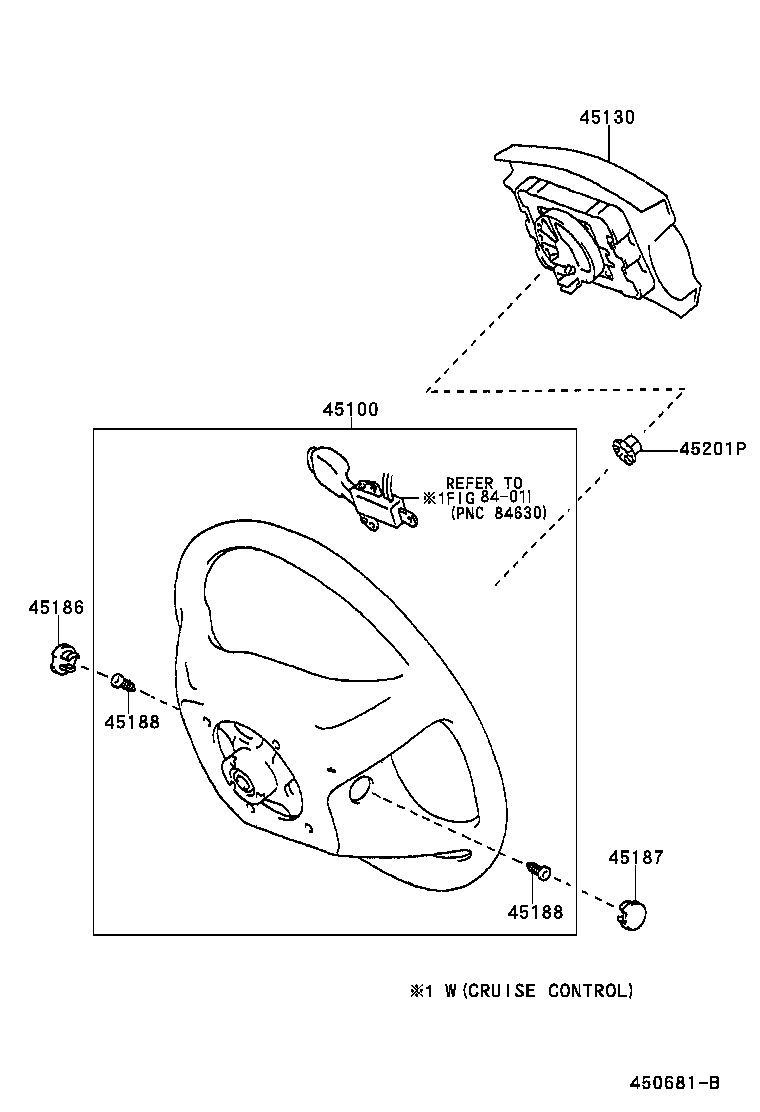

diagram 45100 45130 45186 45187 45188 45188 45201P 8401
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-08040B0

MCL10..WG..CE

4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

 1
45100-08020E0

MCL10..WG

4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

 1
45100-08010B0

MCL10..WG..CE

4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

 1
45100-08040E0

MCL10..WG..CE

4-SPOKE,URETHANE,OAK,TRIM4#

 1
45100-08050B0

MCL10..WG

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUISH GRAY,TRIM1#

 1
45100-08020B0

MCL10..WG

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUISH GRAY,TRIM1#

 1
45100-08010E0

MCL10..CE

4-SPOKE,URETHANE,OAK,TRIM4#

 1
45100-08050E0

MCL10..WG

4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-08020B0

MCL10..WG

BLUISH GRAY,TRIM1#

 1
45130-08010B0

MCL10..WG

BLUISH GRAY,TRIM1#

 1
45130-08020E0

MCL10

OAK,TRIM4#

 1
45130-08010E0

MCL10

OAK,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06070E0

MCL10

OAK,TRIM4#

 1
45186-06070B0

MCL10..WG

BLUISH GRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-06070B0

MCL10..WG

BLUISH GRAY,TRIM1#

 1
45186-06070E0

MCL10

OAK,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-06010

MCL10

L=16.3

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-06010

MCL10

L=16.3

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

MCL10

 1
Linked diagrams
8401

(9808- )WG

Click highlighted areas on diagram

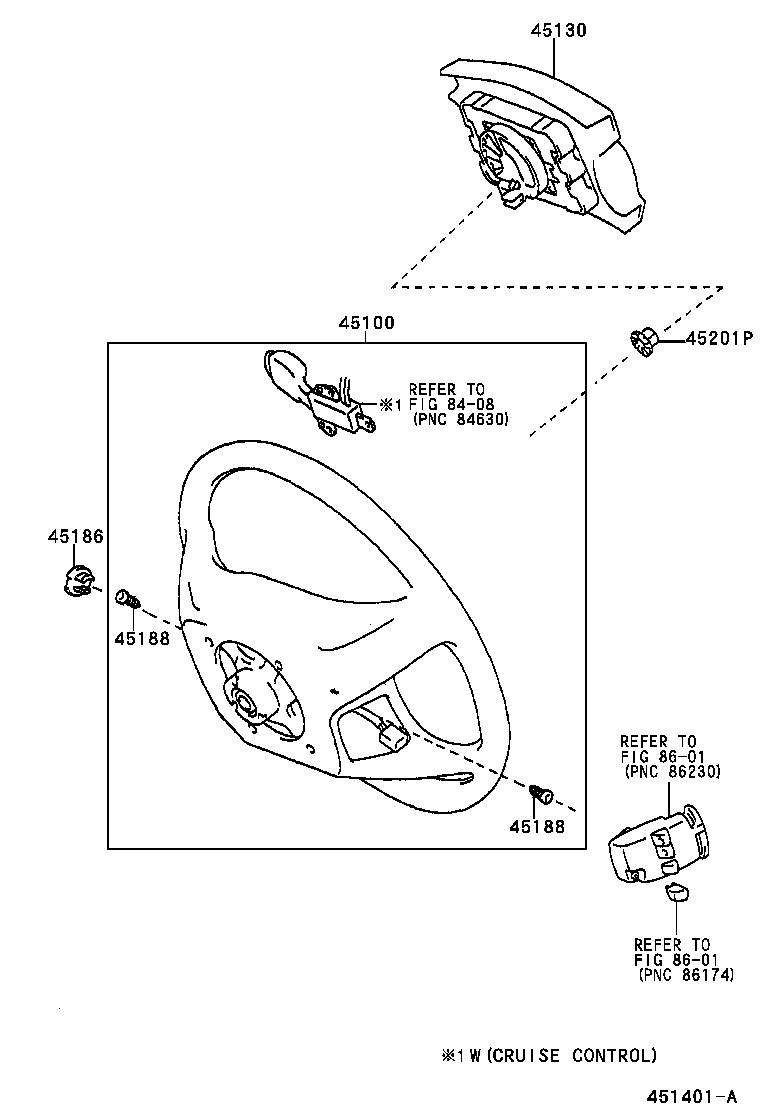

diagram 45100 45130 45186 45188 45188 45201P 8408 8601 8601
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-08040B0

MCL10..WG..CE

4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

 1
45100-08020E0

MCL10..WG

4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

 1
45100-08010B0

MCL10..WG..CE

4-SPOKE,URETHANE,BLUISH GRAY,TRIM1#

 1
45100-08040E0

MCL10..WG..CE

4-SPOKE,URETHANE,OAK,TRIM4#

 1
45100-08050B0

MCL10..WG

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUISH GRAY,TRIM1#

 1
45100-08020B0

MCL10..WG

4-SPOKE,URETHANE,W(CRUISE CONTROL),BLUISH GRAY,TRIM1#

 1
45100-08010E0

MCL10..CE

4-SPOKE,URETHANE,OAK,TRIM4#

 1
45100-08050E0

MCL10..WG

4-SPOKE,URETHANE,W(CRUISE CONTROL),OAK,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-08020B0

MCL10..WG

BLUISH GRAY,TRIM1#

 1
45130-08010B0

MCL10..WG

BLUISH GRAY,TRIM1#

 1
45130-08020E0

MCL10

OAK,TRIM4#

 1
45130-08010E0

MCL10

OAK,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-06070E0

MCL10

OAK,TRIM4#

 1
45186-06070B0

MCL10..WG

BLUISH GRAY,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-06010

MCL10

L=16.3

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-06010

MCL10

L=16.3

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

MCL10

 1
Linked diagrams
8408
8601
