MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )

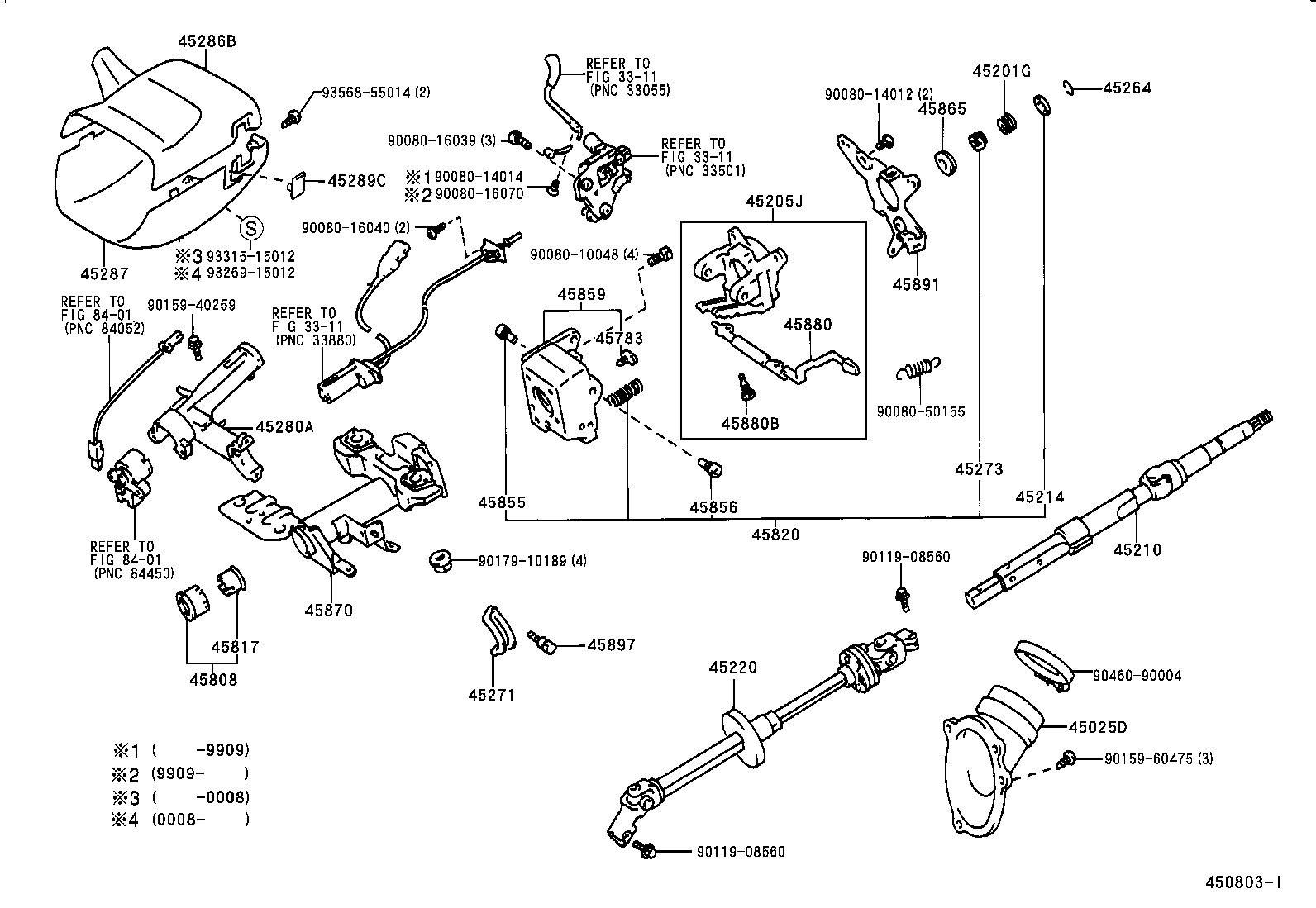

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-08010 |
MCL10 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90080-50153 |
MCL10 |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-07010 |
MCL10 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-08010 |
MCL10 |
1 | ||
| 45210-08020 |
MCL10 |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-07010 |
MCL10 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-08010 |
MCL10 |
1 | ||
| 45220-08011 |
MCL10 |
1 | ||
| 45264 - RING, STEERING COLUMN, NO.2 | ||||
| 45264-07010 |
MCL10 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-33010 |
MCL10 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-07010 |
MCL10 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-45010 |
MCL10 |
1 | ||
| 45280-45011 |
MCL10 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45023-08010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 45023-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45024-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 45024-08010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 45289C - COVER, STEERING COLUMN, LWR NO.2 | ||||
| 45289-08010E0 |
MCL10 OAK,TRIM4# |
1 | ||
| 45289-08010B0 |
MCL10..WG BLUISH GRAY,TRIM1# |
1 | ||
| 45783 - STOPPER, TILT STEERING, NO.1 | ||||
| 45783-07010 |
MCL10 |
2 | ||
| 45808 - STOPPER SUB-ASSY, STEERING SHAFT THRUST | ||||
| 45808-07011 |
MCL10 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-07020 |
MCL10 |
1 | ||
| 45820 - SPRING ASSY, TILT STEERING SUPPORT | ||||
| 45820-07010 |
MCL10 |
1 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45856-07010 |
MCL10 |
1 | ||
| 45856 - BOLT, TILT STEERING, NO.2 | ||||
| 45856-07010 |
MCL10 |
1 | ||
| 45859 - SUPPORT, TILT STEERING HOUSING | ||||
| 45859-07010 |
MCL10 |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-07010 |
MCL10 |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-08010 |
MCL10 |
1 | ||
| 45870-08020 |
MCL10 |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45826-07010 |
MCL10 |
1 | ||
| 45880B - SCREW(FOR STEERING TILT LEVER) | ||||
| 45831-07010 |
MCL10 |
1 | ||
| 45891 - BRACKET, TURN SIGNAL | ||||
| 45891-07010 |
MCL10 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
MCL10 |
2 | ||
| Common parts | ||||
| 90080-10048 | ||||
| 90080-14012 | ||||
| 90080-14014 | ||||
| 90080-16039 | ||||
| 90080-16040 | ||||
| 90080-16070 | ||||
| 90080-50155 | ||||
| 90119-08560 | ||||
| 90159-40259 | ||||
| 90159-60475 | ||||
| 90179-10189 | ||||
| 90460-90004 | ||||
| 93269-15012 | ||||
| 93315-15012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3311 | ||||
| 8401 | ||||
