MCL10L-PFSDKA (1997)
Toyota Sienna
Production
Aug 1997
-
Jan 2003
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708-0107)

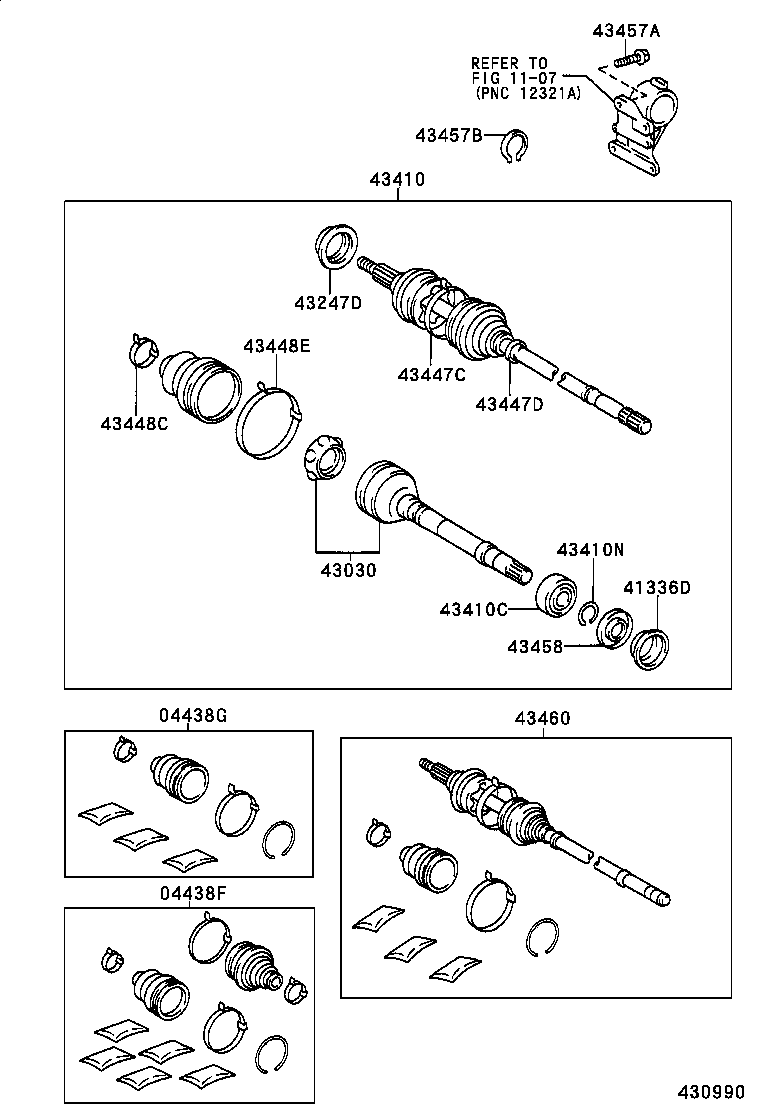

Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-06100 |
MCL10 |
1 | ||
| 04438-07050 |
MCL10 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-06090 |
MCL10 |
1 | ||
| 04438-07010 |
MCL10 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-06020 |
MCL10 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-08010 |
MCL10 |
1 | ||
| 43030-06040 |
MCL10 |
1 | ||
| 43030-08020 |
MCL10 |
1 | ||
| 43247D - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH | ||||
| 43247-06010 |
MCL10 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-06170 |
MCL10 |
1 | ||
| 43410-08010 |
MCL10 |
1 | ||
| 43410-08020 |
MCL10 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90080-36133 |
MCL10 |
1 | ||
| 90369-41001 |
MCL10 |
1 | ||
| 90363-41002 |
MCL10 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52013 |
MCL10 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-06060 |
MCL10 ID=90.9 |
1 | ||
| 42345-06080 |
MCL10 ID=95.6 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-04030 |
MCL10 ID=33.7 |
1 | ||
| 42345-06070 |
MCL10 ID=29.3 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90080-46238 |
MCL10 |
1 | ||
| 42345-07020 |
MCL10 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-07010 |
MCL10 |
1 | ||
| 90080-46173 |
MCL10 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
MCL10 *10-1.25PX19.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
MCL10 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-06020 |
MCL10 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-09340 |
MCL10 |
1 | ||
| 43470-09A16 |
MCL10 |
1 | ||
| Linked diagrams | ||||
| 1107 | ||||
(9708-0107)

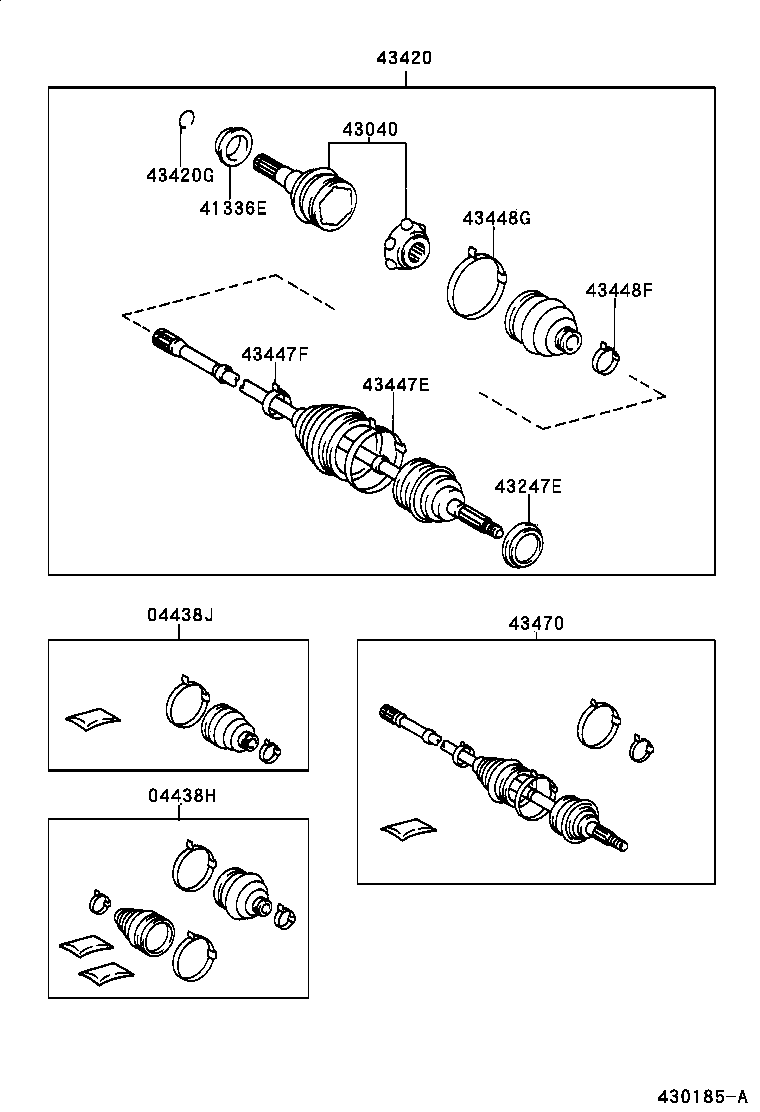

Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-07050 |
MCL10 |
1 | ||
| 04438-06100 |
MCL10 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-06090 |
MCL10 |
1 | ||
| 04438-07010 |
MCL10 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-06040 |
MCL10 |
1 | ||
| 41336-07010 |
MCL10 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-06050 |
MCL10 |
1 | ||
| 43040-07010 |
MCL10 |
1 | ||
| 43247E - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 LH | ||||
| 43247-06010 |
MCL10 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-06170 |
MCL10 |
1 | ||
| 43420-08010 |
MCL10 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52017 |
MCL10 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-06080 |
MCL10 ID=95.6 |
1 | ||
| 42345-06060 |
MCL10 ID=90.9 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-04030 |
MCL10 ID=33.7 |
1 | ||
| 42345-06070 |
MCL10 ID=29.3 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-07020 |
MCL10 |
1 | ||
| 90080-46238 |
MCL10 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-07010 |
MCL10 |
1 | ||
| 90080-46173 |
MCL10 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09A16 |
MCL10 |
1 | ||
| 43470-09340 |
MCL10 |
1 | ||
(0107- )

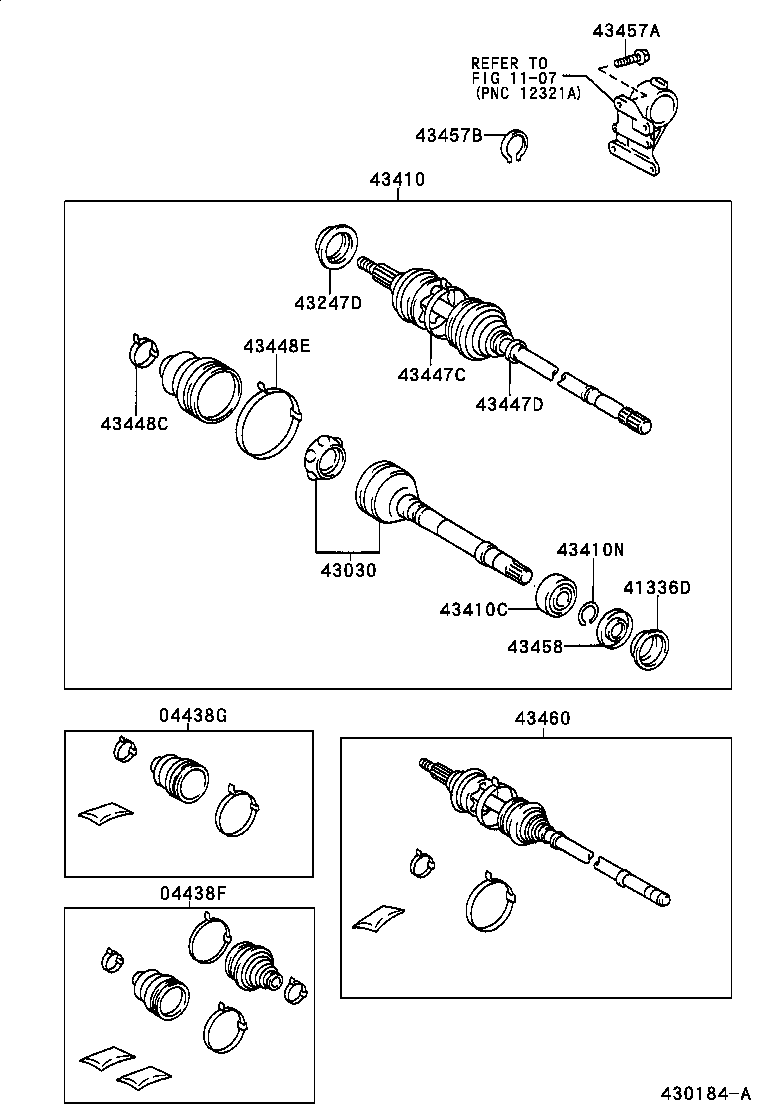

Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-06100 |
MCL10 |
1 | ||
| 04438-07050 |
MCL10 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-06090 |
MCL10 |
1 | ||
| 04438-07010 |
MCL10 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-06020 |
MCL10 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-08010 |
MCL10 |
1 | ||
| 43030-06040 |
MCL10 |
1 | ||
| 43030-08020 |
MCL10 |
1 | ||
| 43247D - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH | ||||
| 43247-06010 |
MCL10 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-06170 |
MCL10 |
1 | ||
| 43410-08010 |
MCL10 |
1 | ||
| 43410-08020 |
MCL10 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90080-36133 |
MCL10 |
1 | ||
| 90369-41001 |
MCL10 |
1 | ||
| 90363-41002 |
MCL10 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90080-52013 |
MCL10 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-06060 |
MCL10 ID=90.9 |
1 | ||
| 42345-06080 |
MCL10 ID=95.6 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-04030 |
MCL10 ID=33.7 |
1 | ||
| 42345-06070 |
MCL10 ID=29.3 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90080-46238 |
MCL10 |
1 | ||
| 42345-07020 |
MCL10 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-07010 |
MCL10 |
1 | ||
| 90080-46173 |
MCL10 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90119-10461 |
MCL10 *10-1.25PX19.8-8.3 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-78002 |
MCL10 |
1 | ||
| 43458 - COVER, FRONT DRIVE SHAFT DUST | ||||
| 43458-06020 |
MCL10 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-09340 |
MCL10 |
1 | ||
| 43470-09A16 |
MCL10 |
1 | ||
| Linked diagrams | ||||
| 1107 | ||||
(0107- )

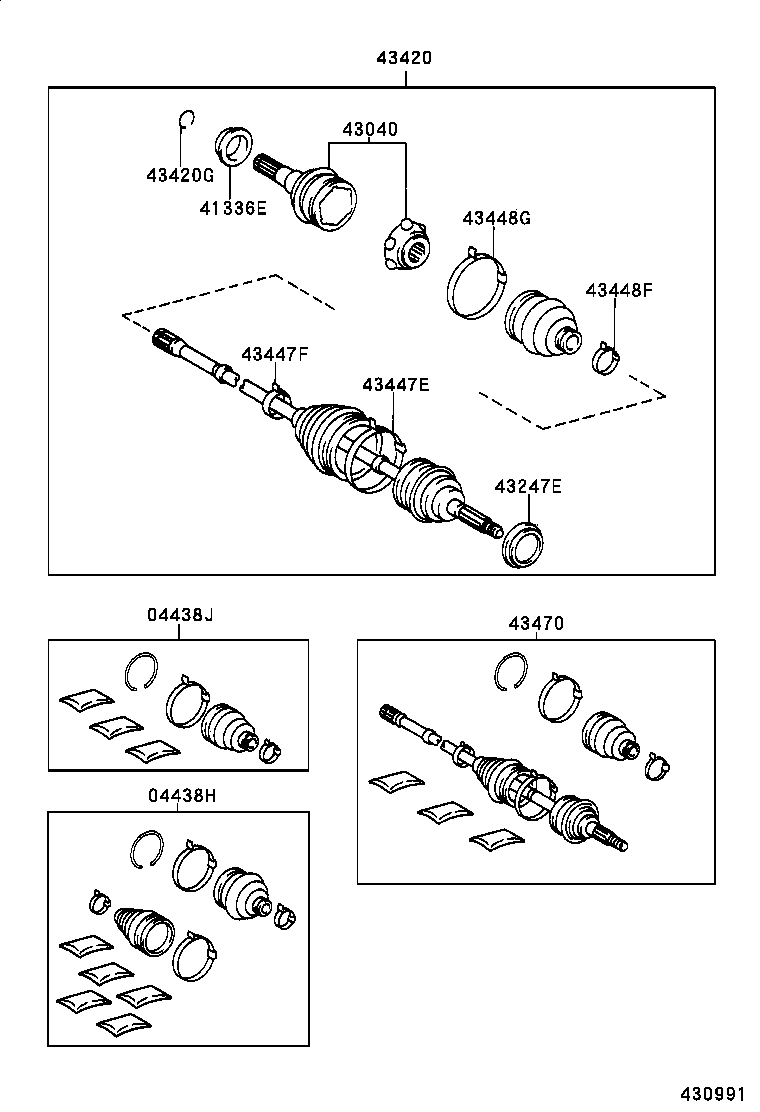

Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-07050 |
MCL10 |
1 | ||
| 04438-06100 |
MCL10 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-06090 |
MCL10 |
1 | ||
| 04438-07010 |
MCL10 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-06040 |
MCL10 |
1 | ||
| 41336-07010 |
MCL10 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-06050 |
MCL10 |
1 | ||
| 43040-07010 |
MCL10 |
1 | ||
| 43247E - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 LH | ||||
| 43247-06010 |
MCL10 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-06170 |
MCL10 |
1 | ||
| 43420-08010 |
MCL10 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90080-52017 |
MCL10 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-06080 |
MCL10 ID=95.6 |
1 | ||
| 42345-06060 |
MCL10 ID=90.9 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-04030 |
MCL10 ID=33.7 |
1 | ||
| 42345-06070 |
MCL10 ID=29.3 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-07020 |
MCL10 |
1 | ||
| 90080-46238 |
MCL10 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-07010 |
MCL10 |
1 | ||
| 90080-46173 |
MCL10 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-09A16 |
MCL10 |
1 | ||
| 43470-09340 |
MCL10 |
1 | ||
